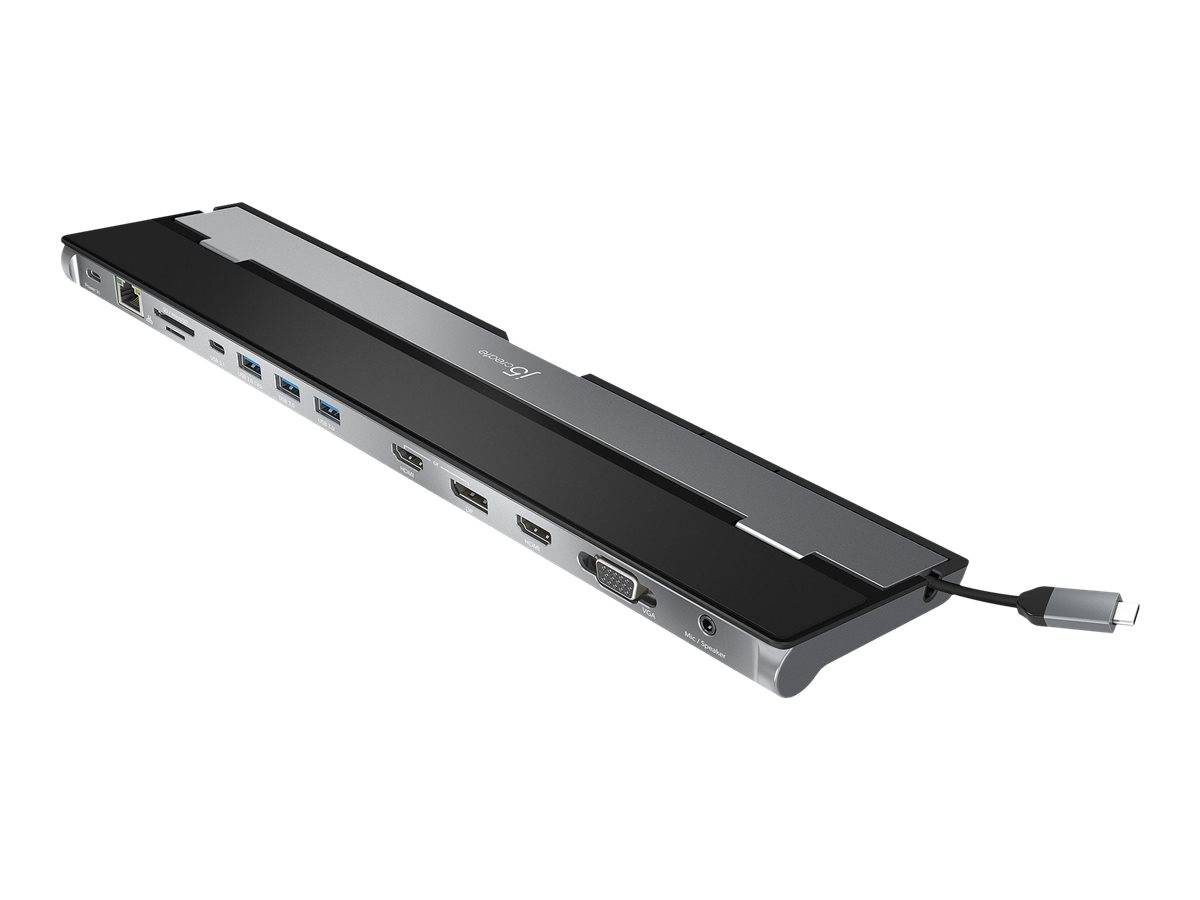

j5create JCD543 / Docking station / USB-C 3.1 Gen 1 / VGA, 2 x HDMI, DP / GigE | JCD543-N
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Docking station |
| Width | 8.25 cm |
| Depth | 35 cm |
| Height | 2.337 cm |
| Weight | 300 g |
| Enclosure Colour | Black, silver |
| Video | Video |
| Max Resolution Details | 3840 x 2160 - 30 Hz (HDMI only) ¦ 3840 x 2160 - 30 Hz (DisplayPort only) ¦ 1920 x 1080 - 60 Hz (VGA only) |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD |
| Interfaces | 2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x SuperSpeed USB 3.0 with Battery Charging 1.2 - 9 pin USB Type A ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x audio - line-out/line-in - mini-phone stereo 3.5 mm ¦ 1 x USB-C 3.1 Gen 1 - 24 pin USB-C ¦ 1 x USB-C with Power Delivery (100 W) - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB-C cable - integrated - 45 cm |
| Features | USB powered, cable compartment, DisplayPort Alt Mode, 100W power delivery, aluminium housing |
| Compliant Standards | USB Power Delivery 3.0 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 48 °C |
Features - J5CREATE - JCD543-N
More Details
Product Code
CE58398
EAN Code
4712795083613
Manufacturer
J5CREATE
