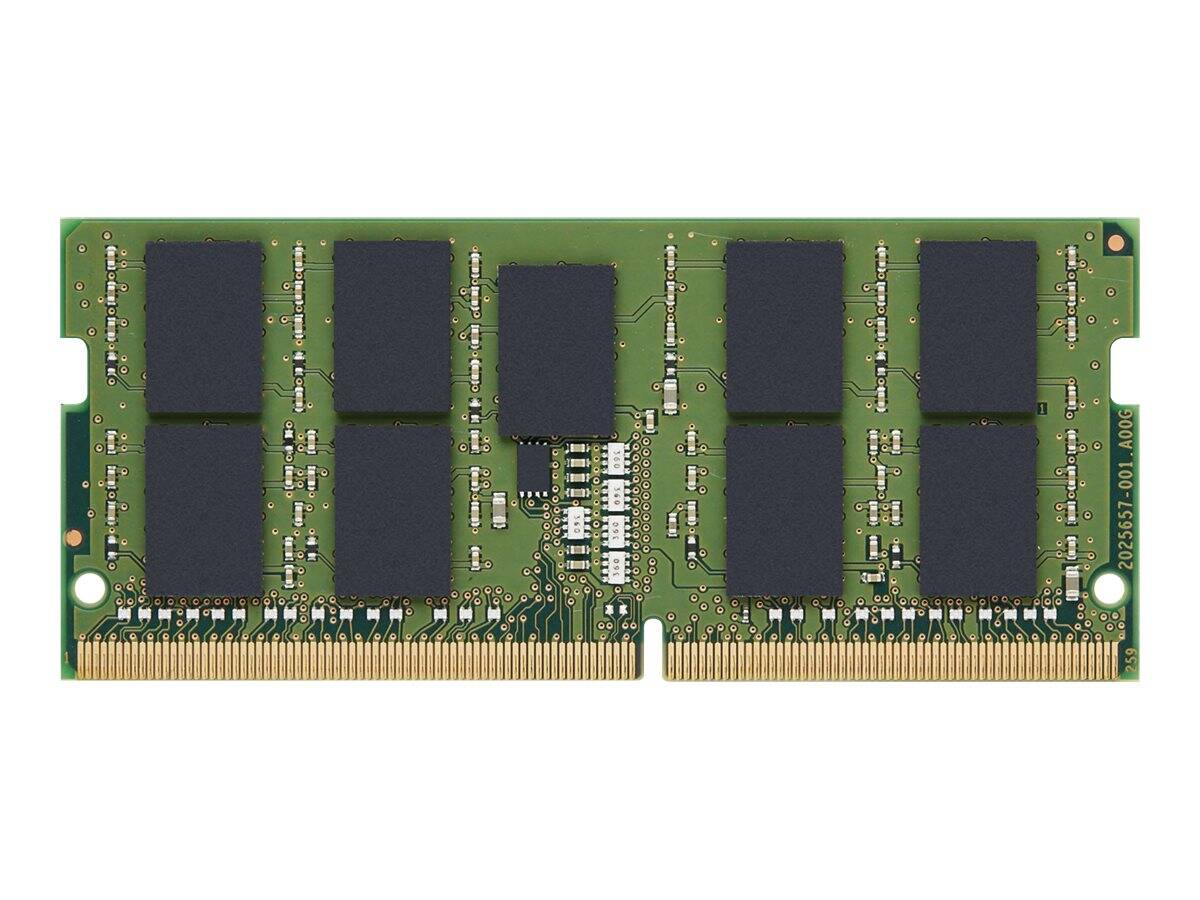

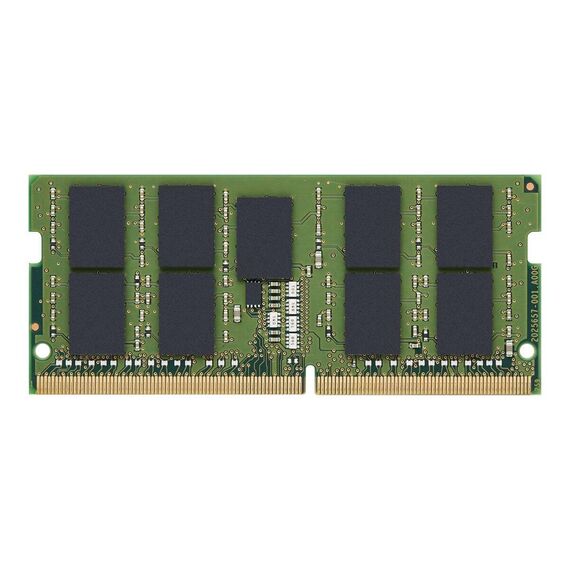

Kingston Server Premier - DDR4 - module - 32 GB - SO-DIMM 260-pin - 3200 MHz / PC4-25600 - CL22 - 1.2 V - registered with parity - ECC | KSM32SED8/32HC
Please sign in so that we can notify you about a reply
Product Specification
| Capacity | 32 GB |
| Upgrade Type | Generic |
| Width | 69.9 mm |
| Depth | 3.7 mm |
| Height | 30 mm |
| Memory | |
| Type | DRAM memory module |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Module Height (inch) | 1.18 |
| Speed | 3200 MHz (PC4-25600) |
| Latency Timings | CL22 (22-22-22) |
| Data Integrity Check | ECC |
| Features | Temperature monitoring, dual rank, On-Die Termination (ODT), Serial Presence Detect (SPD), sixteen banks, Data Cyclic Redundancy Check (CRC) support, registered with parity |
| Module Configuration | 4096 x 72 |
| Chips Organization | 2048 x 8 |
| Voltage | 1.2 V |
| Lead Plating | Gold |
| Miscellaneous | |
| Compliant Standards | RoHS, halogen-free, JEDEC |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty (Russia - 10 years) |
Features - Kingston - KSM32SED8/32HC
More Details
Product Code
CD63148
EAN Code
0740617325768
Manufacturer
Kingston
