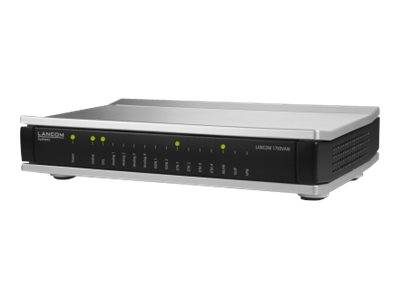

LANCOM 1793VAW / Wireless router / ISDN/DSL / 4-port switch / GigE, PPP / WAN ports: 2 / 802.11a/b/g/n/ac / Dual Band / VoIP phone adapter | 62115
Please sign in so that we can notify you about a reply
Special Features
- Professional telephony
- High-performance networking
Product Specification
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | NTP, DHCP, DDNS |
| Routing Protocol | RIP-2, VRRP, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 2, Telnet, HTTP, HTTPS, TR-069 |
| Encryption Algorithm | MD5, AES, 128-bit WEP, 64-bit WEP, 152-bit WEP, IKE, TLS, PEAP, TTLS, TKIP, WPA, WPA2 |
| Authentication Method | RADIUS, PAP, TACACS+, MS-CHAP, MS-CHAP v.2, XAUTH authentication |
| Features | Firewall protection, NAT support, VPN support, load balancing, IGMP snooping, Syslog support, Stateful Packet Inspection (SPI), packet filtering, ALG support, DiffServ support, E-mail alert, print server, IPv6 support, Intrusion Prevention System (IPS), MIMO technology, Access Control List (ACL) support, Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), RADIUS support, DHCP server, port forwarding, LLDP support, DHCP relay, DHCP client, security lock slot (cable lock sold separately), Type of Service (ToS) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, EN55022, EN55024, EN 60950-1, IPv6 Ready, EN 300 328, EN 301 893 |
| Communications | Communications |
| Type | ISDN / DSL modem combo |
| Digital Signaling Protocol | EURO-ISDN, ISDN 1TR6, ADSL, ISDN DSS1/ETSI, VDSL, ADSL2, ADSL2+, ADSL2+ over ISDN, VDSL2 |
| Protocols & Specifications | ITU G.992.1 (G.DMT) Annex B, ITU G.993.2 |
| IP Telephony | IP Telephony |
| VoIP Functionality | VoIP phone adapter |
| VoIP Protocols | SIP |
| Voice Codecs | G.722, G.711u, G.711a, T.38 |
| Telephony Interfaces | 2 phone (FXS), 2 line (ISDN BRI) |
| IP Telephony Features | Echo cancellation (G.168) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | LAN / DMZ / WAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ over ISDN ¦ WAN: 2 x ISDN S0 ¦ Management: 1 x 8 PIN mini-DIN ¦ USB 2.0: 1 x 4 pin USB Type A ¦ Phone line: 2 x RJ-11 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 230V |
| Power Consumption Operational | 17 Watt |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x network cable - 3 m ¦ 1 x modem cable - 4.25 m ¦ 1 x modem cable - 3 m ¦ 4 x RJ-11 to TAE adapter ¦ 2 x phone adaptor |
| Localisation | Europe |
| Software / System Requirements | Software / System Requirements |
| OS Provided | LCOS 10.20 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 21 cm |
| Depth | 14 cm |
| Height | 4.5 cm |
| Weight | 520 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years ¦ Technical support - phone consulting - 3 years ¦ Product info support - web knowledge base access - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - Lancom Systems - 62115
More Details
Product Code
N170575
EAN Code
4044144621154
Manufacturer
Lancom Systems
