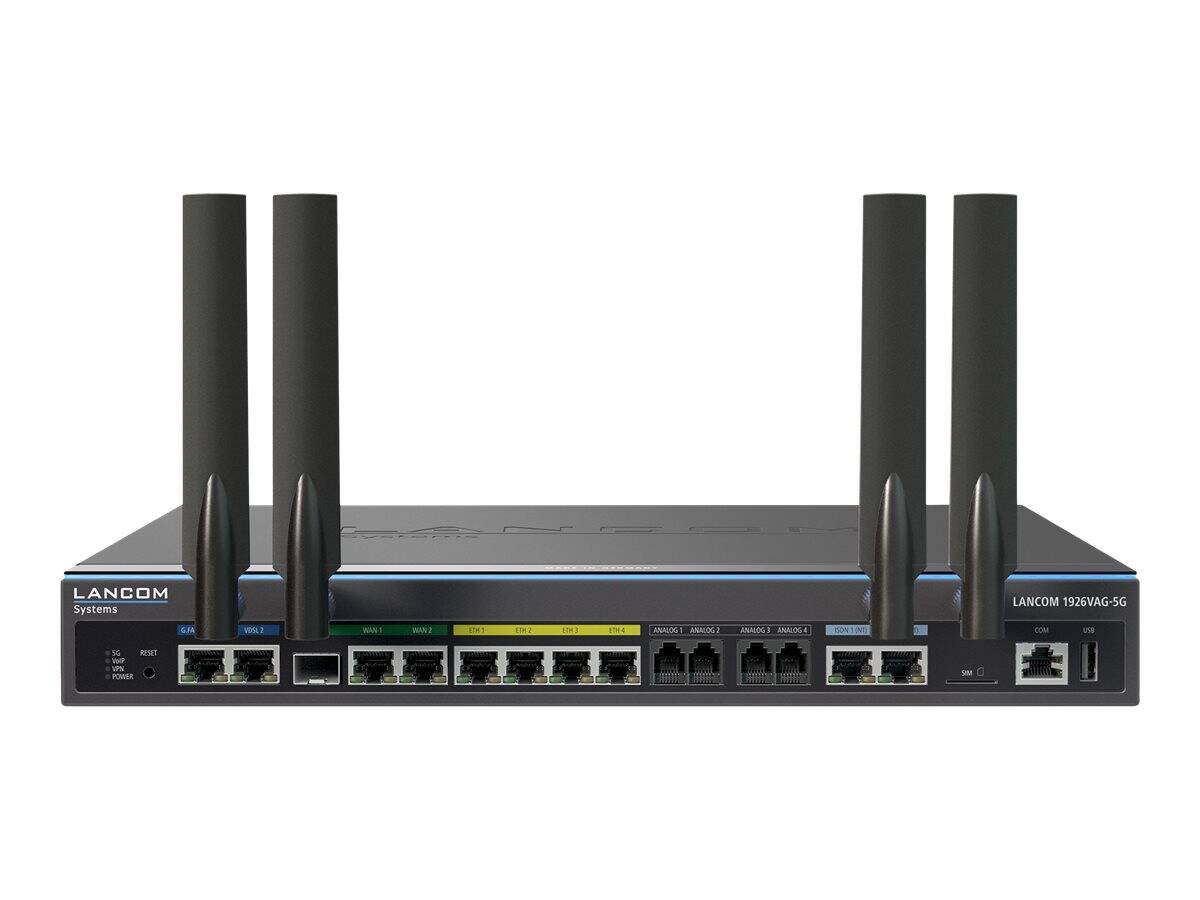

LANCOM 1926VAG-5G / Router / ISDN/WWAN/DSL / 4-port switch / GigE / WAN ports: 2 / 5G / VoIP phone adapter / rack-mountable | 62124
Product Features
- Full future viability with 5G
As the primary connection when on the move, or in active/active mode with other access technologies, the LANCOM 1926VAG-5G provides all of the advantages of 5G technology, such as the low-latency and high-performance use of real-time applications such as telephony, video chat, video streaming in 4K or 8K, or augmented reality - especially where there is a high density of users. The backwards compatible 5G module works seamlessly with the 4G LTE network and thus guarantees maximum future viability. - Multi-WAN & backup
The LANCOM 1926 series are the first routers on the market with two integrated VDSL Super Vectoring modems for a total of 2x 300 Mbps. Alternatively, one of the two modems can be used to connect via G.fast at up to 1,000 Mbps. Also, their SFP port allows them to operate directly at high-speed fiber-optic connections. They can also operate with any external DSL or cable modem via WAN Ethernet. The 5G modem integrated into the LANCOM 1926VAG-5G ensures high-performance cellular access. It is ideally suited for intelligent backup scenarios in 4G and at the same time offers future viability for 5G. - Active/active
The LANCOM 1926VAG-5G allows multiple Internet access connections to be operated in parallel, with load balancing to ensure that the available bandwidth is used to maximum effect. With the combined operation of 5G, 2x VDSL Super Vectoring, and fiber optics, it provides unsurpassed availability and bandwidth. The LANCOM 1926VAG-5G thus offers the ultimate in future proofing for performance-hungry SD-WAN scenarios in mission-critical environments. - Award-wining LANCOM VPN
The LANCOM 1926VAG-5G offers high levels of security. The standard equipment of 25 IPsec VPN channels guarantees strong encryption, secure connections for mobile employees, and protection of corporate data. The LANCOM VPN option upgrades the router to support up to 100 VPN channels. - Advanced routing & forwarding
The LANCOM 1926VAG-5G provides up to 64 securely isolated IP contexts, each of which has its own separate routing. This is an elegant way of operating IP applications with one central router and keeping the different communication channels securely isolated from one another. - Next-generation SD-WAN: high scalability VPN
The LANCOM 1926VAG-5G supports High Scalability VPN (HSVPN). The ongoing rise of digitalization, greater diversity of applications, and higher data volumes demand powerful, state-of-the-art networks. High Scalability VPN significantly improves the extensibility and efficiency of your architecture. Where previously each individual application required a separate VPN tunnel, HSVPN bundles any number of networks into a single VPN tunnel and transports them collectively to the remote site - with each network remaining secure and strictly separated from the others. The advantage for your business: Considerably fewer VPN tunnels are required, and recovery times are much faster in a failover event. - Radically simplified configuration with LANCOM SD-WAN
In combination with the LANCOM Management Cloud, the LANCOM 1926VAG-5G opens the way for automated management. The software-defined WAN (SD-WAN) enables the automatic setup of secure VPN connections between sites, including network virtualization and backup across the wide-area network: A few mouse clicks is all it takes to enable the VPN function and select the required VLANs for each site. The laborious configuration of individual tunnel endpoints is no longer necessary. - Professional telephony with the LANCOM VCM
The LANCOM Voice Call Manager is already integrated into the LANCOM 1926VAG-5G and provides a wide range of telephony functions. It manages all aspects of the telephony and controls all of the router-based PBX functions for SIP, ISDN and analog components. Furthermore, it enables the easy integration of DECT telephones by auto provisioning with the LANCOM DECT 510 IP base station. - Integrated session border controller
The LANCOM Voice Call Manager acts as a session border controller: This ensures that external (unsecure) and internal (secure) networks are kept separate. Also, voice packets are given priority (Quality of Service) thanks to bandwidth reservation, which ensures a higher quality of calls. In addition, the VCM as a SIP proxy enables the professional management of signaling and voice data for high security in the setup, implementation and teardown of telephone conversations, including any protocol conversion by means of transcoding. - Premium full-metal housing
The LANCOM 1926VAG-5G comes in a high-quality full-metal housing with integrated 230V power supply. Thanks to the mounting system, it is easy to install in a 19" rack - with connection ports redirected to the front, it is quick and easy to work with.
Special Features
- Full future viability with 5G
- Multi-WAN & backup
- Active/active
- Award-wining LANCOM VPN
- Advanced routing & forwarding
- Next-generation SD-WAN: high scalability VPN
- Radically simplified configuration with LANCOM SD-WAN
- Professional telephony with the LANCOM VCM
- Integrated session border controller
- Premium full-metal housing
Product Specification
Device Type | Router - 4-port switch (integrated) |
Enclosure Type | Desktop, rack-mountable - 1U |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Capacity | Virtual interfaces (VLANs): 4096 |
Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, NetBEUI/NetBIOS, L2TP, NTP, ICMP/IP, IPSec, PPPoE, IPoE, ARP, BOOTP, DHCP, DNS, DDNS |
Routing Protocol | BGP-4, RIP-1, RIP-2, VRRP, OSPFv2, GRE, policy-based routing (PBR), LISP |
Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH |
Encryption Algorithm | DES, Triple DES, Blowfish, RSA, MD5, IKE, SHA-1, CAST-128, IKEv2, 256-bit AES-GCM, 128-bit AES-GCM, 256-bit AES-CBC, 128-bit AES-CCMP, ECDSA 256-bit, ECDSA 384-bit, 192-bit AES-GCM, 192-bit AES-CBC, ECDSA 512-bit |
Authentication Method | RADIUS, PAP, CHAP, X.509 certificates, TACACS+, MS-CHAP, MS-CHAP v.2, XAUTH authentication |
Features | DMZ port, VPN support, BOOTP support, ARP support, load balancing, VLAN support, IGMP snooping, Syslog support, Stateful Packet Inspection (SPI), E-mail alert, IPv6 support, Intrusion Prevention System (IPS), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Access Control List (ACL) support, Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), DHCP server, MLD snooping, port forwarding, reset button, IPv4 support, LACP support, LLDP support, DHCP relay, SNMP trap, DHCP client, metal housing, IP spoofing, VLAN Double Tagging (Q-in-Q), Denial of Service (DoS) protection, Advanced Routing and Forwarding (ARF), SD-WAN support, password protection |
Compliant Standards | IEEE 802.1Q, X.509, EN55022, EN55024, EN 60950-1, IPv6 Ready Gold |
Status Indicators | Power, VoIP, link/activity, VPN, 5G |
Communications | Communications |
Type | ISDN / wireless cellular modem / DSL combo |
Digital Signaling Protocol | ADSL, ADSL over ISDN, ADSL2, ADSL2+, ADSL2+ over ISDN, VDSL2, G.fast |
Mobile Communication Protocol | UMTS, HSPA, LTE |
Generation | 5G |
Cellular Band | 5G NR NSA n41, 5G NR NSA n77, 5G NR NSA n78, 5G NR NSA n79, 5G NR SA n1, 5G NR SA n2, 5G NR SA n3, 5G NR SA n5, 5G NR SA n28, 5G NR SA n41, 5G NR SA n66, 5G NR SA n71, 5G NR SA n77, 5G NR SA n78, 5G NR SA n79, 5G NR NSA n1, 5G NR NSA n2, 5G NR NSA n3, 5G NR NSA n5, 5G NR NSA n28, 5G NR NSA n66, 5G NR NSA n71 |
Protocols & Specifications | ITU T.38, ITU G.992.1 (G.DMT) Annex B, ITU G.993.2, ITU G.992.5 Annex B, ITU G.992.3 Annex B, ITU G.992.5 Annex J, ITU G.993.5 |
IP Telephony | IP Telephony |
VoIP Functionality | VoIP phone adapter |
VoIP Protocols | SIP, RTP, SRTP |
Voice Codecs | G.722, G.723, G.729, G.711u, G.711a, ADPCM, G.726, iLBC, T.38, AAC-LC, Opus |
Telephony Interfaces | 4 phone (FXS) |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ ¦ 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x G.FAST/VDSL/ADSL2+ ¦ USB 2.0: 1 x 4 pin USB Type A ¦ Serial: 1 x RJ-45 ¦ WAN: 1 x 1000Base-X - SFP (mini-GBIC) ¦ Phone line: 4 x FXS |
Aerial | Aerial |
Aerial | External detachable |
Antenna Qty | 4 |
Gain Level | 2 dBi |
Power | Power |
Power Device | Internal power supply |
Voltage Required | AC 110-230 V (50/60 Hz) |
Power Consumption Operational | 38 Watt |
Miscellaneous | Miscellaneous |
Cables Included | Network cable - 3 m ¦ 2 x modem cable - 4.25 m ¦ 4 x RJ-11 to TAE adapter |
Localisation | English, German / Europe |
Software / System Requirements | Software / System Requirements |
OS Provided | LCOS |
Software Included | Drivers & Utilities |
Dimensions & Weight | Dimensions & Weight |
Width | 34.5 cm |
Depth | 25.3 cm |
Height | 4.4 cm |
Weight | 2.5 kg |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 3 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 - 95% (non-condensing) |
