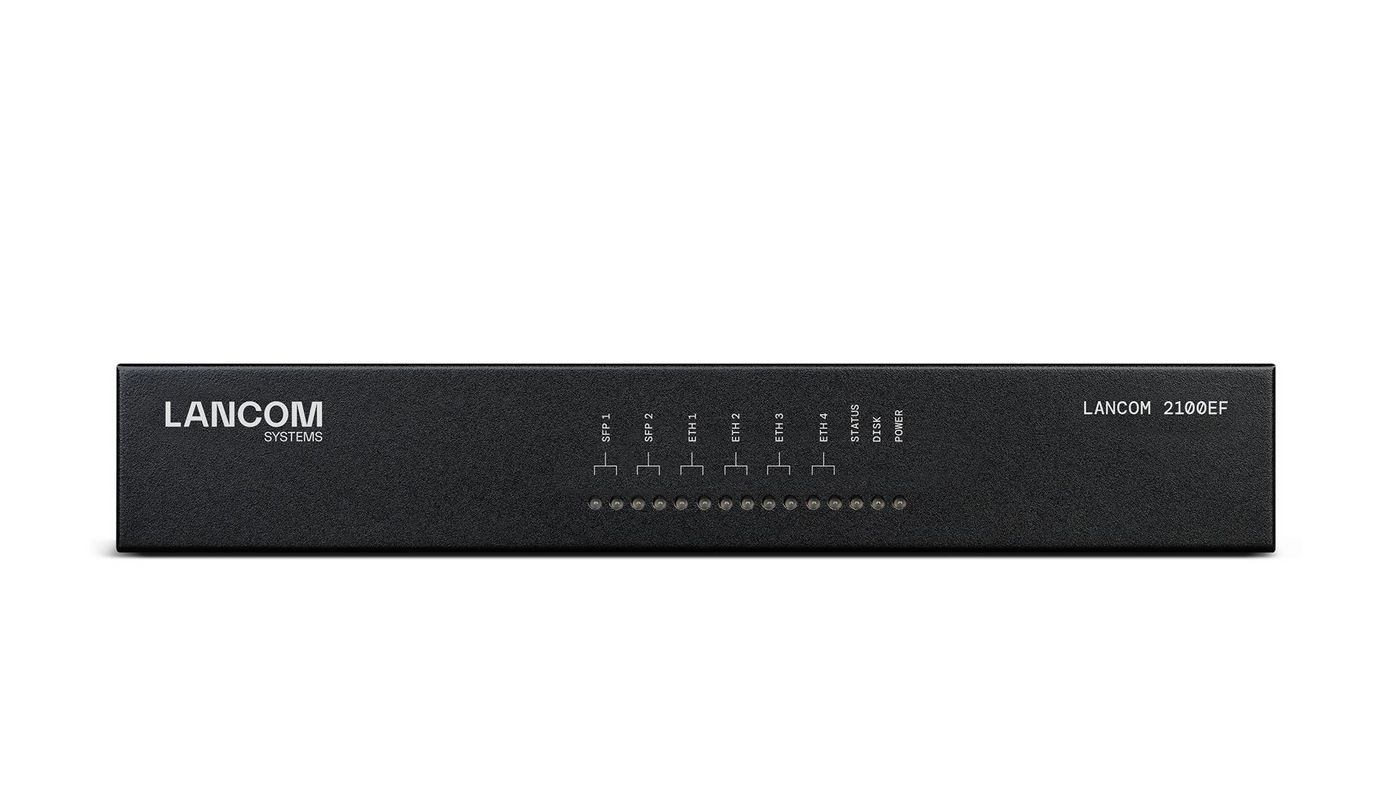

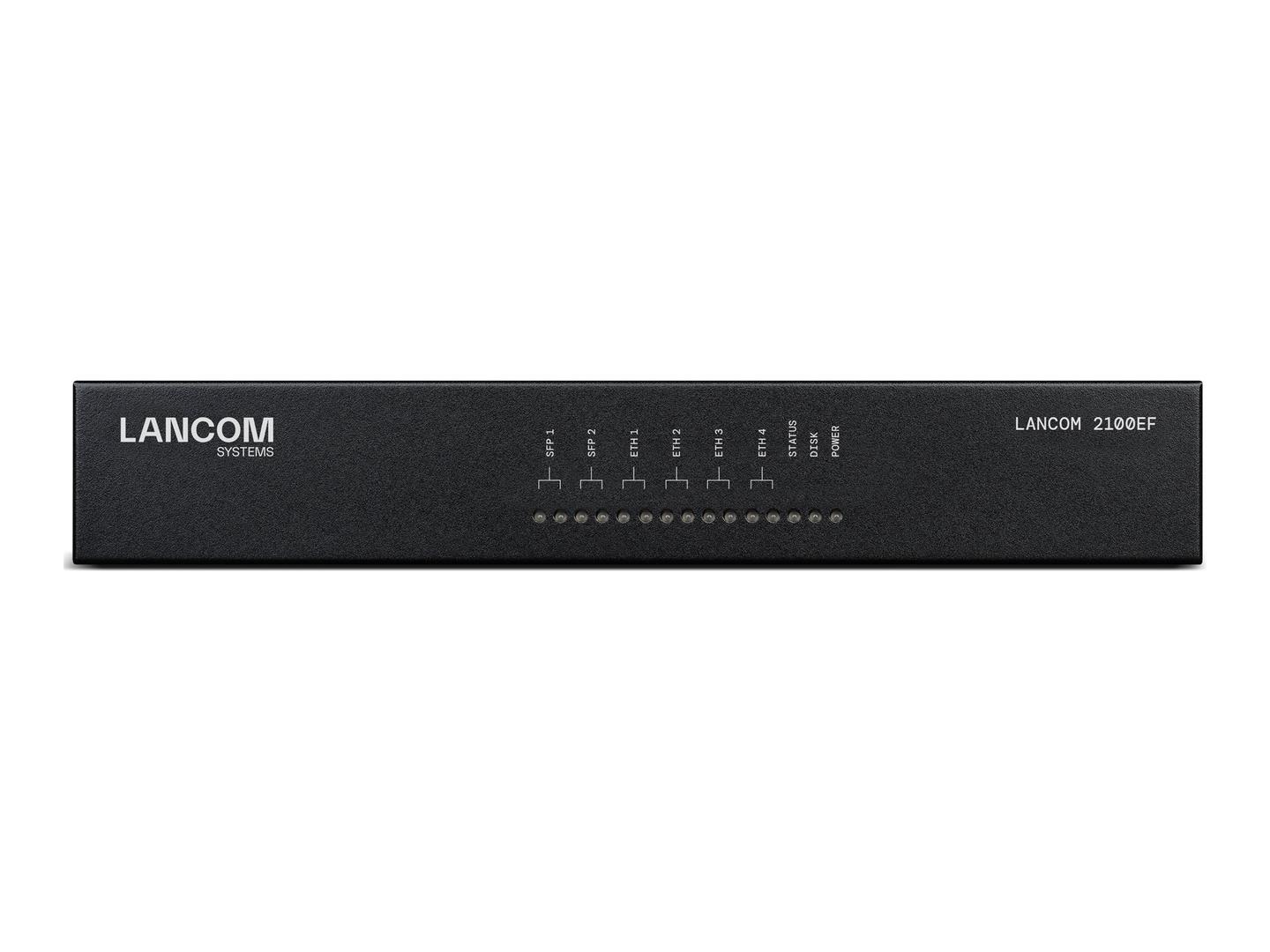

LANCOM 2100EF - SD-WAN gateway - with fiber and ethernet - 1GbE, 2.5GbE - 1U - cloud-managed - desktop / rack mountable | 61109
Please sign in so that we can notify you about a reply
Product Features
- Reliable connectivity options
Provides a range of connectivity technologies including wired Ethernet and Fast Ethernet to support diverse networking environments. - Environmentally resilient design
Operates efficiently within a temperature range of 0 ?C to 40 ?C and a humidity range of 0-85%, ensuring durability in various conditions. - Advanced management capabilities
Supports LANCOM Management Cloud, enabling centralized management of network devices and comprehensive monitoring through LANmonitor and WLANmonitor. - Extensive routing protocol support
Compatible with multiple routing protocols such as BGP-4, OSPFv2, and Rip-2, allowing for adaptable network management. - Robust authentication methods
Utilizes multiple authentication methods including RADIUS and RADSEC, ensuring secure access management across the network.
Special Fetures
- Supports 10 maximum VPN tunnels and 100 VLAN IDs
- Compact and flexible with desktop or rack-mountable design
- Compliant with IC and FCC standards for reliable operation
- Equipped with a variety of data link protocols for versatile networking
- Offers comprehensive remote management options via SNMP and Syslog
Product Specification
| Device Type | SD-WAN gateway |
| Height (Rack Units) | 1U |
| Built-in Devices | System fan |
| Width | 27 cm |
| Depth | 15.2 cm |
| Height | 4.4 cm |
| Weight | 2.5 kg |
| Networking | |
| Form Factor | Desktop / rack mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Network / Transport Protocol | IPSec, DNS, HTTP, HTTPs, ICMP/IP, NTP, NetBEUI/NetBIOS, PPPoE, RTP, TFTP, IPv4, IPv6 |
| Routing Protocol | IGMPv3, VRRP, RIP-2, BGP-4, OSPFv2, LISP |
| Remote Management Protocol | Syslog, SNMP 1, SNMP 2c, SNMP 3, TACACS+ |
| Cloud-Managed | Yes |
| Capacity | ARF contexts: 64 ? VLAN IDs: 4096 ? VPN tunnels: 25 ? VoIP local subscribers: 10 ? VoIP external networking channels: 100 ? SIP provider accounts: 25 |
| Features | Metal housing, SD-WAN support, SD-LAN support, SLA Enforcement Performance Statistics, LANCOM Management Cloud, LANmonitor, WLANmonitor, SNTP support, Neighbor Discovery Protocol (NDP), Protocol Independent Multicast (PIM), MLD proxy, IGMP proxy |
| Authentication Method | RADSEC, RADIUS |
| Compliant Standards | IEEE 802.1Q |
| Expansion / Connectivity | |
| Interfaces | 4 x 2.5 GBase-T - RJ-45 ? 2 x 10Gb Ethernet - SFP+ ? 1 x console - RJ-45 ? 2 x USB 3.0 - Type A |
| Miscellaneous | |
| Included Accessories | Rack mounting ears |
| Cables Included | 1 x network cable - 3 m |
| Compliant Standards | FCC, IC |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 42 Watt |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 ?C |
| Max Operating Temperature | 40 ?C |
| Humidity Range Operating | 0 - 85% (non-condensing) |
Features - Lancom Systems - 61109
More Details
Product Code
04:514911
EAN Code
4044144611094
Manufacturer
Lancom Systems
