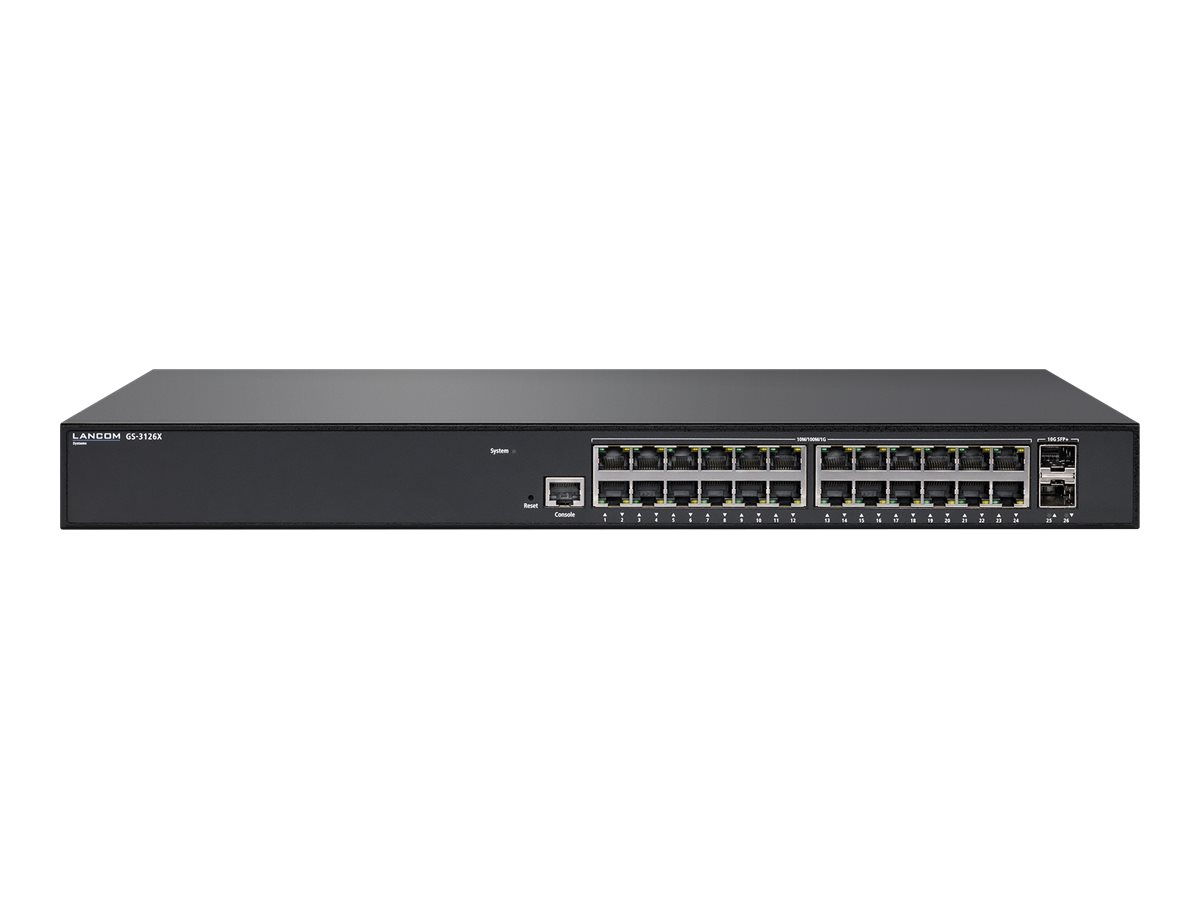

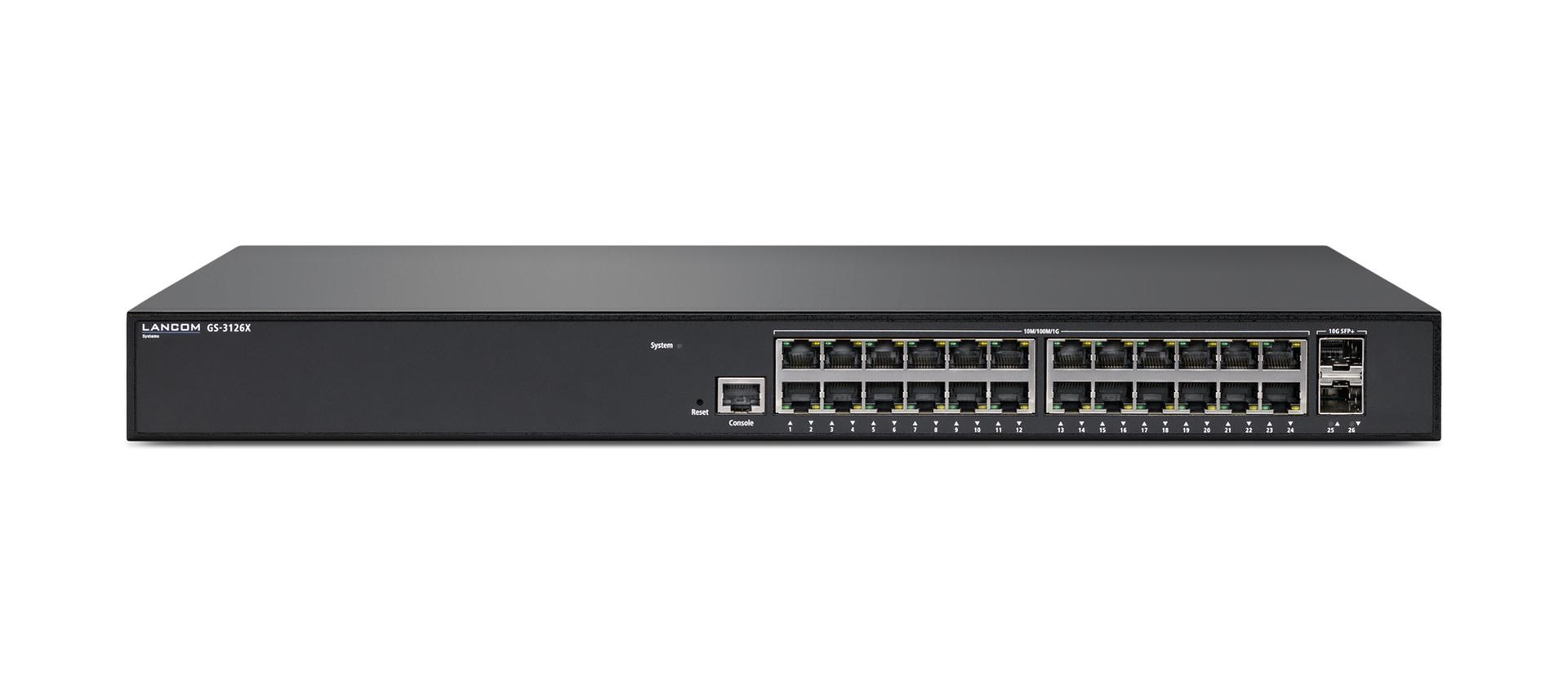

LANCOM GS-3126X - Switch - L3 Lite - Managed - 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink) - rack-mountable | 61847

Product Features

• High performance on 26 ports
  The LANCOM GS-3126X is equipped with 24 Gigabit Ethernet ports and 2 SFP+ uplink ports supporting transfer rates of up to 10 Gbps. In addition, with a data throughput of 88 Gbps on the backplane, it offers full performance even at high workload. This makes the access switch the powerful foundation for modern network infrastructures in all industries and applications.
• Static routing for fast data exchange
  The LANCOM GS-3126X supports the basic layer-3 feature static routing and thus the shift of certain routing tasks from the router to the switch. Administrator-predefined network routes, through one or multiple network segments, enable fast data transfer especially in scenarios with high data volumes and relieve the router accordingly. Newly available router capacities can then additionally be used to manage external data traffic. As a result, the entire network efficiency is increased.
• DHCP server functionality
  As a DHCP server, the switch is able to independently and automatically assign IP addresses to clients. The LANCOM GS-3126X supports this basic layer-3 function and thus takes over the IP management of the connected network.
• Configurable access control
  The LANCOM GS-3126X excludes rogue clients from gaining unauthorized access to the network. This is ensured by secured access control on all ports as per IEEE 802.1X (port-based, single-based, multi-based, and MAC-based).
• Secure remote management
  Secure communication protocols such as SSH, SSL, and SNMPv3 make the LANCOM GS-3126X ideal for professional remote network management. The switch also supports the TACACS+ protocol for authentication, authorization, and accounting. This optimized solution promises maximum security for multi-site network management and monitoring.
• SD-LAN - days become minutes
  The LANCOM GS-3126X offers fast and easy network integration and automatic configuration assignment with the LANCOM Management Cloud - without manual configuration. In this way, even complex networking scenarios are easy to administer. SD-LAN eliminates the need for a single device configuration for holistic network orchestration. In addition, automatic VLAN assignment to the desired switch ports is possible. The configu­rations can be coordinated with each other across locations and network architectures, and at the same time rolled out or updated at the click of a mouse.
• IPv6 and IPv4 support
  Thanks to its dual-stack implementation, the LANCOM GS-3126X operates in pure IPv4, pure IPv6 or in mixed networks. Applications such as SSL, SSH, Telnet or TFTP can continue to be operated on IPv6 networks. Supported IPv6 features includes stateless auto configuration, neighbor detec­tion, and MLD snooping.

Special Fetures

• Fully managed access switch with 24x 1G Gigabit Ethernet downlink ports und 2x 10G SFP+ uplink ports
• Basic layer-3 features like static routing and DHCP server
• Security through configurable access control on all ports according to IEEE 802.1X
• Secure remote management through TACACS+, SSH, SSL, and SNMPv3
• SD-LAN - for easy and fast configuration via the LANCOM Management Cloud
• IPv6 and IPv4 support for modern enterprise networks
