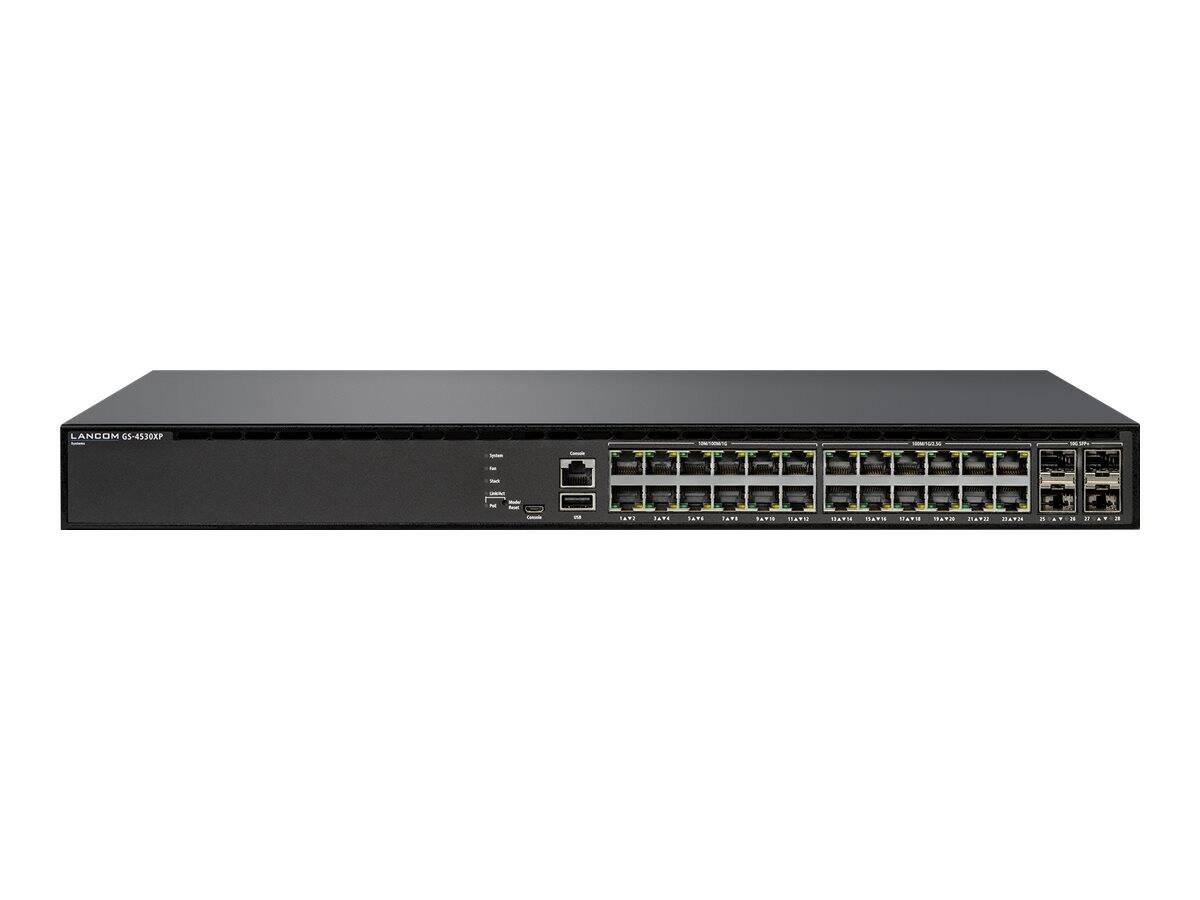

LANCOM GS-4530XP - Switch - L3 - Managed - 12 x 10/100/1000 (PoE+) + 12 x 100/1000/2.5G (PoE+) + 4 x SFP+ + 2 x QSFP+ - rack-mountable - PoE+ (720 W) | 61868

Product Features

• High performance on 30 ports
  The LANCOM GS-4530XP is equipped with 12x 2.5 multi-Gigabit PoE+ Ethernet ports, 12x Gigabit PoE+ Ethernet ports, as well as 4 SFP+ and 2 QSFP+ FleX ports supporting transmission rates of 10 and 40 Gbps respectively. In addition, with a data throughput of 324 Gbps on the backplane, it offers wirespeed performance even at high workloads. The multi-Gigabit access switch thus forms the powerful basis for modern network infrastructures in all industries and areas of application.
• A high-performance basis for Wi-Fi 6 - PoE included
  Thanks to 12 high-performance 2.5 Gigabit Ethernet ports, the LANCOM GS-4530XP is the ideal LAN-side basis for integrating the wireless LAN standard Wi-Fi 6 into modern infrastructures. The increased data rates when using Wi-Fi 6 require 2.5 Gigabit Ethernet, as the required performance demands exceed those of a simple Gigabit Ethernet port. This switch in combination with the corresponding PoE power thus enables the operation of up to 12 Wi-Fi 6 access points or other network components with high performance requirements - without additional electrical installation.
• Central power supply without additional electrical installation
  As a powerful PoE switch, the LANCOM GS-4530XP supplies connected PoE end devices without additional power supplies or power cabling. It supports the Power over Ethernet standards IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) with up to 30 watts at its 24 PoE ports. Thanks to high power reserves, a PoE budget of 720 watts is available, which ensures high availability of the device when using a second power supply in redundancy mode.
• LANCOM fail-safe stacking
  LANCOM fail-safe stacking allows up to 8 physical switches to be combined into one logical unit for convenient maintenance and management - at a single site or even distributed across different sites. Via the nonstop forwarding function, the stack manager cyclically supplies its standby with current information such as the MAC table and its own status information. In the event of a failure, the standby manager is able to take over without noticeable network interruption via the hitless failover function. Subsequent expansion of the network is also possible, as the switch receives its configuration automatically from the stack manager and is ready for use within seconds. The stacking function can also be activated on both the front SFP+ FleX ports and the rear QSFP+ FleX ports, enabling a mixed stack with the LANCOM XS-5110F and XS-5116QF aggregation switches.
• Full control over your investment
  Fully equipped ex works, ready for immediate use, everything from a single source: In accordance with the principle of "Total Cost of Ownership" (TCO), the LANCOM GS-4530XP gives you planning security from the very beginning and at all times with regard to the acquisition costs for your network expansion. The full expansion with all necessary ports in the industry standard makes time-consuming and costly retrofitting of proprietary port modules a thing of the past. Furthermore, our accessories portfolio provides you with the necessary SFP modules and direct attach cables directly from us in tested LANCOM quality. In addition to the guarantee of maximum operational reliability through extensive load and long-term tests of the modules, you also avoid long delivery times.
• Full layer 3 routing for high network efficiency
  The LANCOM GS-4530XP is full layer 3 capable with policy-based dynamic routing via OSPF, providing dynamic network routes through one or more network segments. This provides tremendous increase in network efficiency for example in meshed networks with multiple aggregation switches at different locations.
• Hardware redundancy
  The LANCOM GS-4530XP with a "hot-swappable" PSU (power supply unit) allows the power supply to be replaced quickly and without interruption in the event of a defect. A separate plug-in module allows the addition of a second PSU. With the integration of two redundant power supply units, for example, highly fail-safe scenarios can be realized. In addition, the redundant (N+1) fan concept also ensures fail-safe switch operation in case one of the two fans fails.
• Front-to-back ventilation design
  The LANCOM GS-4530XP protects your investment with an innovative front-to-back ventilation design. This enables optimal cooling even in 19" racks and maximizes the lifetime of the device.
• Cloud-managed LAN and switch stacking
  With the LANCOM Management Cloud, the LANCOM GS-4530XP offers fast and easy network integration as well as automatic configuration assignment. Cloud-managed LAN replaces individual device configuration with holistic network orchestration and enables automatic VLAN assignment to the desired switch ports. Configurations can be rolled out or updated simultaneously at the click of a mouse and even more complex networking scenarios easy to administer. When using the LANCOM GS-4530XP in a stack, Cloud-managed switch stacking also ensures convenient management and monitoring of the entire stack. The cloud independently detects which and how many switches belong to the stack. Learn more about professional network connectivity and configuration in the Design guide switch stacking.
• Secure remote management
  Secure communication protocols such as SSH, SSL and SNMPv3 mean that the LANCOM GS-4530XP is ideal for professional remote network management. The switch also supports the TACACS+ protocol for authentication, authorization and accounting. This solution is optimized for maximum security for multi-site network management and monitoring.

Special Fetures

• Multi-Gigabit Access Switch with 12x 2.5 multi-Gigabit Ethernet ports, 12x 1 Gigabit Ethernet ports, 4x SFP+, and 2 QSFP+ FleX ports
• IEEE 802.3af/at PoE+ support to efficiently power connected devices at 720 watts
• Full layer 3 functionality with policy-based dynamic routing and DHCP server function
• Backplane stacking optionally (SW-defined) via SFP+ or QSFP+ FleX ports
• 1x hot-swappable PSU plus separate socket for adding a second PSU
• 2x fixed, redundant fans (N+1)
• Front-to-back ventilation design for optimal cooling in 19" racks
• Cloud-managed LAN and switch stacking for quick configuration and convenient management via the LANCOM Management Cloud
• IPv6 and IPv4 support for modern enterprise networks
