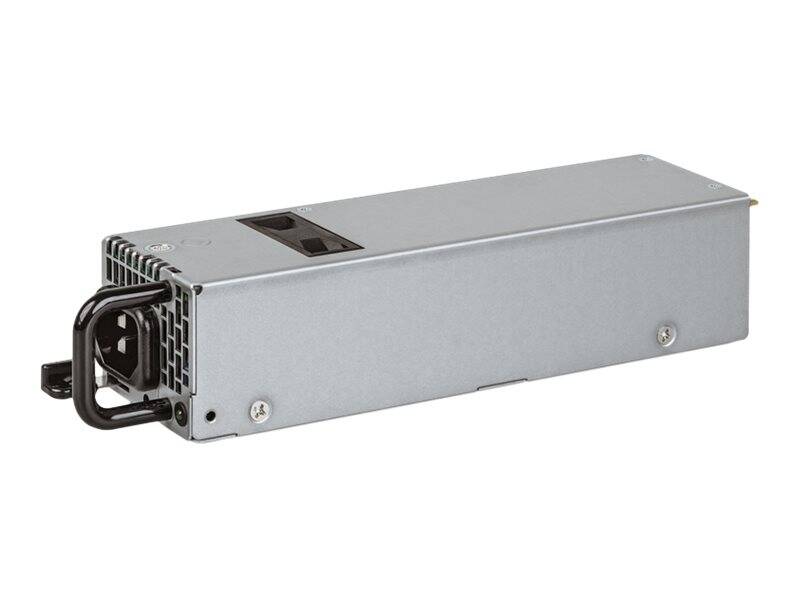

LANCOM SPSU UF-760 - Power supply (plug-in module) - AC 100-240 V - 300 Watt - for R&S Unified Firewall UF-760 | 55148
Please sign in so that we can notify you about a reply
Special Fetures
- 300 Watts power supply unit
- Improved failover of the LANCOM R&S Unified Firewall UF-760
- Hot-swappable - can be inserted during operation
- Input voltage: 115 VAC and 230 VAC
- Output voltage: +12 V 25 A, +5 VSB 3 A
- Over current protection
- Over voltage protection
- Short circuit protection
- Operating temperature: 0°C to 50°C
Product Specification
| Device Type | Power supply - plug-in module |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Output Voltage | 5 / 12 V |
| Power Capacity | 300 Watt |
| Miscellaneous | |
| Features | Hot-swappable, over current protection, over voltage protection, short-circuit protection |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Compatibility Information | |
| Designed For | LANCOM R&S Unified Firewall UF-760 |
Features - Lancom Systems - 55148
More Details
Product Code
04:415484
EAN Code
4044144551482
Manufacturer
Lancom Systems
