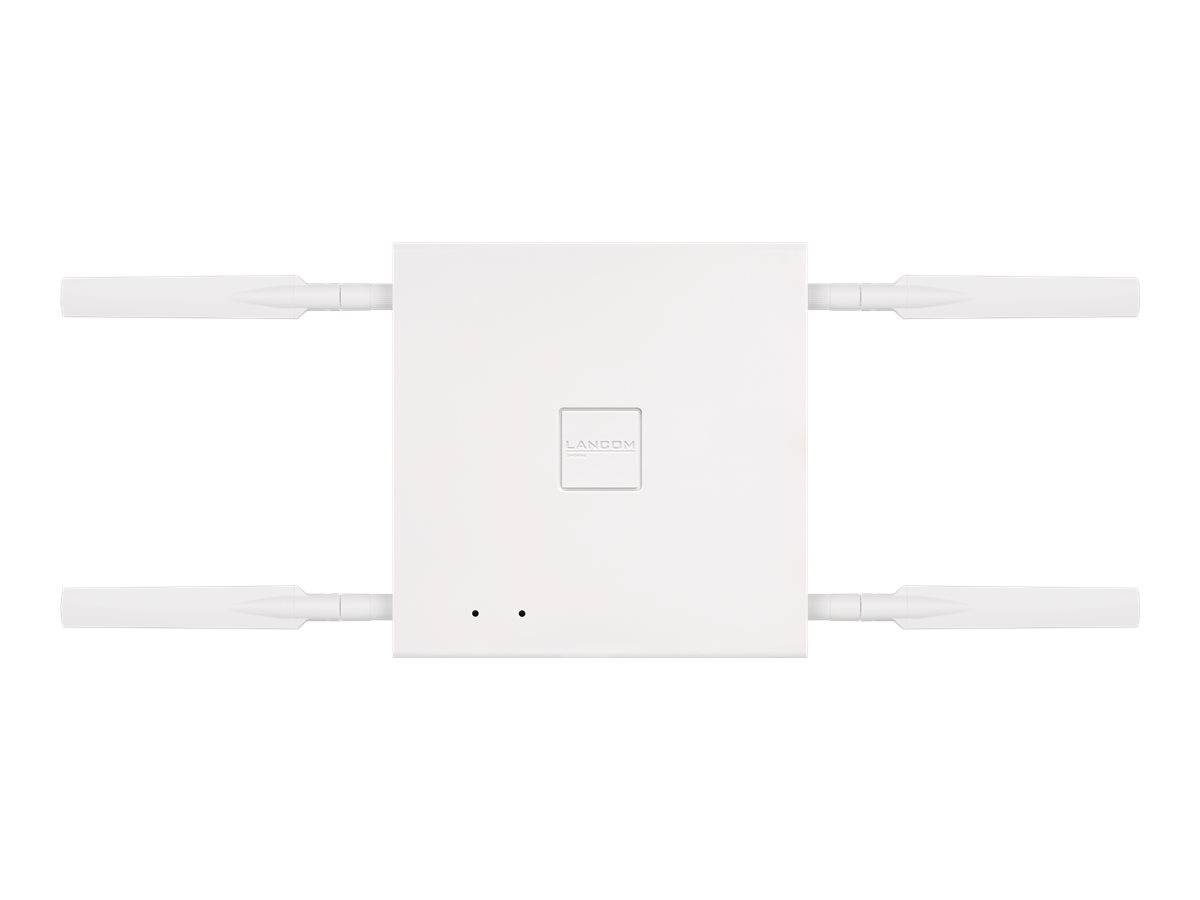

LANCOM 750-5G / Router / WWAN / 1GbE / 3G, 4G, 5G / wall-mountable | 61707
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Router |
| Enclosure Type | Wall-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Virtual interfaces (VLANs): 4096 |
| Network / Transport Protocol | NTP, ICMP/IP, PPPoE, DNS, RTP, DHCPv6, IPv4, IPv6 |
| Routing Protocol | RIP-2, VRRP, IGMPv3, policy-based routing (PBR), MLDv2 |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, PAP, CHAP, TACACS+, MS-CHAP, MS-CHAP v.2, Extensible Authentication Protocol (EAP), RADSEC, EAP-TLS, EAP-TTLS |
| Features | IGMP snooping, Syslog support, traffic shaping, Stateful Packet Inspection (SPI), packet filtering, DiffServ support, E-mail alert, Intrusion Prevention System (IPS), Access Control List (ACL) support, DHCP server, MLD snooping, DNS proxy, port forwarding, bandwidth control, DNS server, DHCP relay, NetFlow, SNMP trap, DNS relay, DHCP client, Neighbor Discovery Protocol (NDP), Type of Service (ToS), IP spoofing, DNS client, NTP client, Denial of Service (DoS) protection, Advanced Routing and Forwarding (ARF), dynamic DNS client, NetBIOS/IP proxy, SNTP server, Bonjour proxy, IPv4 and IPv6 dual stack, security slot (Kensington security lock compatible), password protection, Stealth Mode, LANCOM Management Cloud, DHCPv6 client, DHCPv6 server, receiver diversity, URL blocker, Stateless Address Autoconfiguration (SLAAC), FirmSafe, analogue/GSM modem backup, HTTP server |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3af, IEEE 802.3az, IPv6 Ready Gold, UKCA |
| Communications | Communications |
| Type | Wireless cellular modem |
| Mobile Communication Protocol | UMTS, HSPA, LTE |
| Generation | 3G, 4G, 5G |
| Cellular Band | LTE B13, LTE B17, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B39, LTE B28, LTE B29, LTE B8, LTE B66, LTE B30, LTE B40, LTE B41, LTE B38, LTE B18, LTE B19, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, LTE B71, 5G n78, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n20, 5G n25, 5G n28, 5G n40, 5G n41, 5G n66, 5G n71, 5G n77, 5G n79, LTE B34, 5G n38, 5G n48, UMTS B1, UMTS B2, UMTS B4, UMTS B5, UMTS B8, UMTS B19, 5G n29, 5G n30, 5G n75, 5G n13, 5G n14, 5G n18, 5G n76, 5G n26, 5g n70 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | LAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 ¦ Serial: 1 x 24 pin USB-C ¦ Antenna: 4 x SMA |
| Expansion Slots | 1 Micro-SIM |
| Aerial | Aerial |
| Aerial | External detachable |
| Antenna Qty | 4 |
| Gain Level | 2 dBi |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 230 V |
| Miscellaneous | Miscellaneous |
| Included Accessories | 4 aerials |
| Cables Included | 1 x network cable - 3 m |
| Localisation | Europe |
| Software / System Requirements | Software / System Requirements |
| OS Provided | LCOS 10.80 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 20.5 cm |
| Depth | 20.5 cm |
| Height | 4.2 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - Lancom Systems - 61707
More Details
Product Code
04:427667
EAN Code
4044144617072
Manufacturer
Lancom Systems
