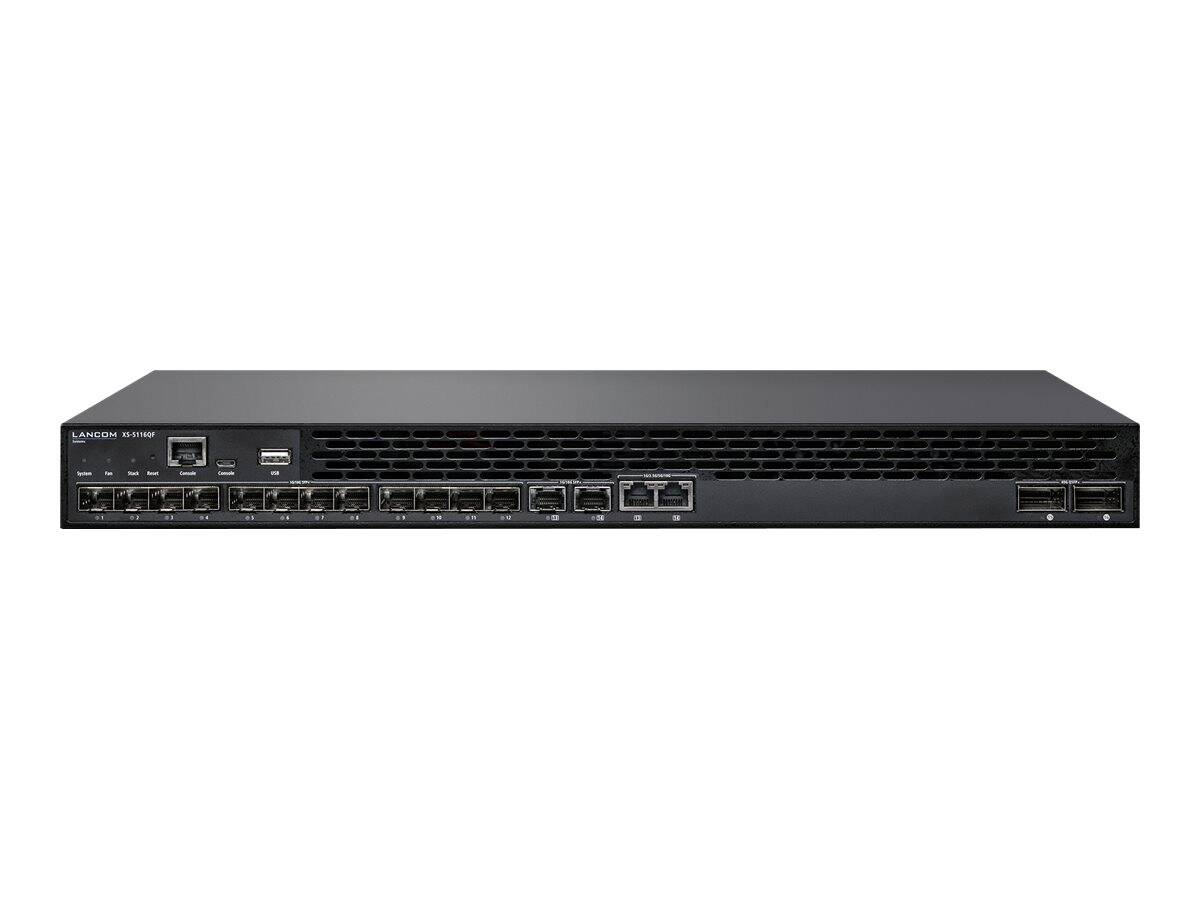

LANCOM XS-5116QF - Switch - L3 - Managed - 12 x 1 Gigabit / 10 Gigabit SFP+ + 2 x combo 1/2.5/5/10 Gigabit Ethernet / 1/10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ (uplink/stacking) - front to back airflow - rack-mountable | 61859

Product Features

• Flexible network topologies
  The LANCOM XS-5116QF is an ideal aggregation instance for the networking of access switches. Depending on the size of the installation, it integrates into the network topology either at the top level facing the WAN (2-tier design) or at the second level between a core switch and the access switches (3-tier design).
• Maximum performance on all ports
  With its fiber-optics and multi-Gigabit Ethernet (mGbE) ports, the LANCOM XS-5116QF offers future-proof port performance for resilient networks that meet the increasing demands occurring from increasingly powerful clients, a growing number of IoT devices, and cloud applications. 14 SFP+ ports (10G), 2 of which can be used as mGbE combo ports, serve as a high-performance distribution instance for establishing switch structures. A powerful uplink featuring 2x QSFP+ ports (40G), which can alternatively be used for stacking, makes the LANCOM XS-5116QF the ideal solution for mid-sized distributed networks with high-performance requirements.
• Flexibility and investment protection thanks to stacking technology
  Stacking makes child's play of expanding your network, as several physical switches combine into a single logical unit for convenient maintenance and management. When you expand your network, the switch automatically receives a configuration from the stack master and is ready to use within seconds. Furthermore, device or network redundancies can be implemented with stacking for maximum reliability. With the LANCOM XS-5116QF, stack processing with a separate backplane CPU remains independent of network load thanks to the QSFP+ uplink ports.
• Static routing and DHCP server
  The LANCOM XS-5116QF can handle layer-3 tasks to offer, for example, a DHCP server for IP-address management or to define fixed network routes across one or more network segments. This takes load off of the router or the firewall and increases the overall speed of data exchange. Capacities are freed up to handle the external data traffic and improve the overall network efficiency.
• Configurable access control
  The LANCOM XS-5116QF stops rogue clients from gaining unauthorized access to the network. This is ensured by secured access control on all ports as per IEEE 802.1X (port-based, single, multi, and MAC-based) or by ACLs (access control lists).
• High operational security
  The LANCOM XS-5116QF features two integrated hot-swappable PSUs (power supply units). This allows a quick and uninterrupted replacement of defective power supply units. Front-to-back airflow design improves cooling in 19-inch racks and extends the product lifetime. Stacking is a major contribution to highly resilient scenarios.
• SD-LAN - easy management of complex networking scenarios
  With the LANCOM Management Cloud, the LANCOM XS-5116QF offers quick and easy network integration as well as automatic provision of the configuration. This makes it easy to manage even complex networking scenarios. With SD-LAN, holistic network orchestration replaces the configuration of individual devices and allows the automatic assignment of VLANs to the required switch ports. Configurations are customized to the multi-site network architecture and, with a click of a mouse, they are rolled-out or updated simultaneously to every site.
• Secure remote management
  Secure communication protocols such as SSH, SSL and SNMPv3 mean that the LANCOM XS-5116QF is ideal for the professional management of remote networks. The switch also supports the TACACS+ protocol for authentication, authorization and accounting. This optimized solution promises maximum security for multi-site network management and monitoring.
• Secure Terminal Access
  This function provides access to the command line of the LANCOM switch ("CLI tunneling") directly from the LANCOM Management Cloud - encrypted and without leaving the cloud interface. Be it trace or ping commands for rapid troubleshooting, access to low-level configuration parameters and detailed statistics in the LCOS SX operating system, or secure remote access to third-party devices in the local network via the integrated SSH client - Secure Terminal Access offers expert functions and extensive diagnostic and troubleshooting commands on your devices.

Special Fetures

• Multi-gigabit aggregation switch with 12x SFP+ ports and 2x combo ports and 2x QSFP+ uplink ports
• Layer-3 features such as static routing and DHCP server
• Backplane stacking via uplink ports
• Redundantly designed, hot-swappable PSU for maximum reliability
• Front-to-back airflow for optimal cooling in 19" racks
• Security with configurable access control on all ports as per IEEE 802.1X and access control lists
• Secure remote management through TACACS+, SSH, SSL, and SNMPv3
• SD-LAN - for quick and easy configuration via the LANCOM Management Cloud
