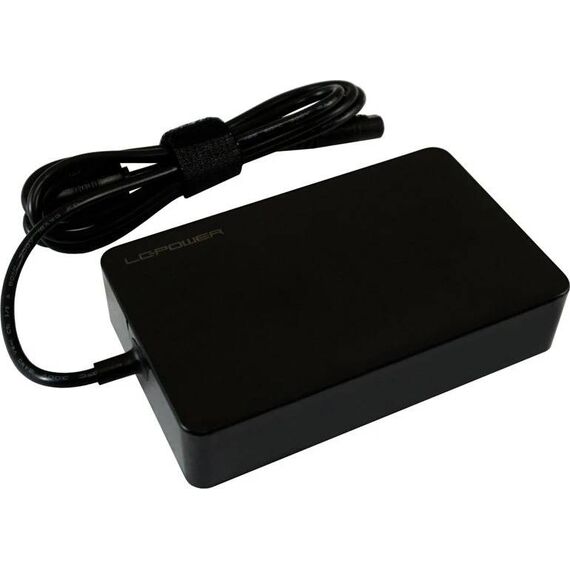

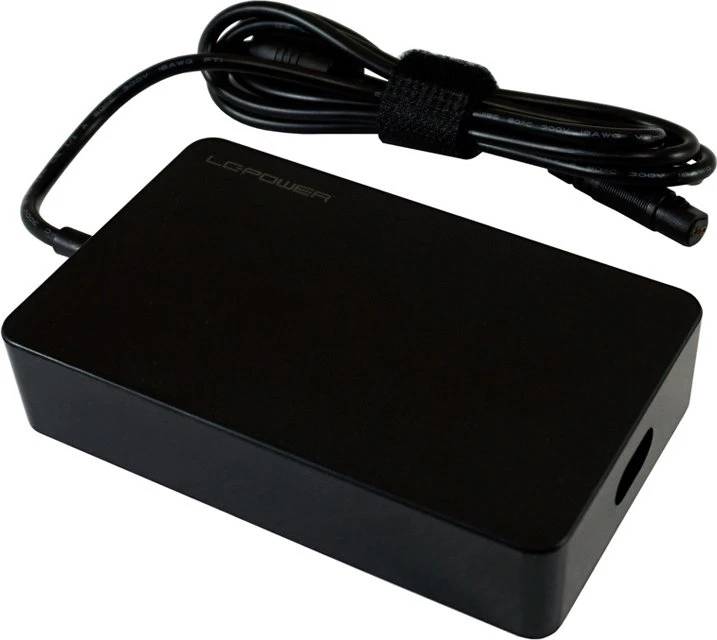

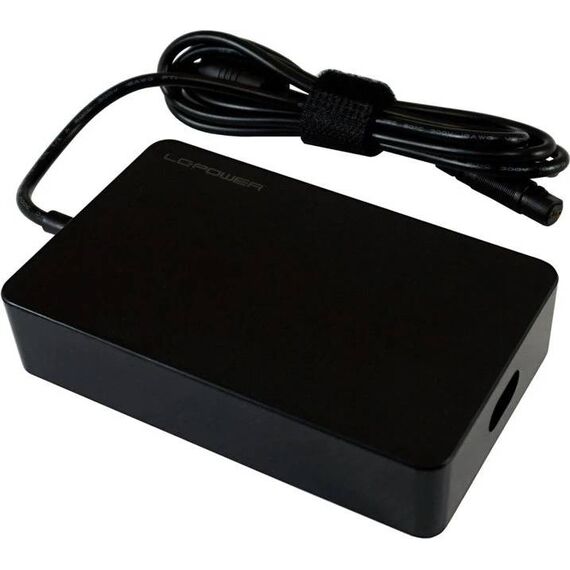

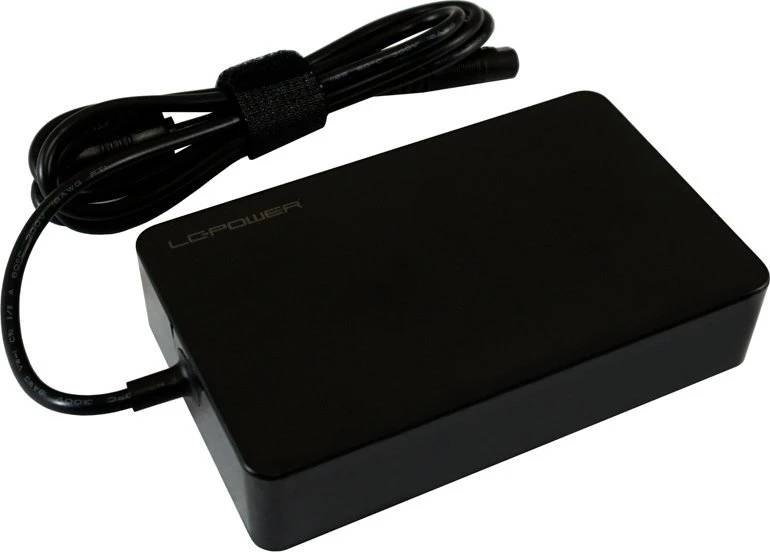

LC Power LC-NB-PRO-90 / Power adapter / AC 110-240 V / 90 Watt / black | LC-NB-PRO-90
Please sign in so that we can notify you about a reply
Special Features
- Multi-range output voltage
- High efficiency up to 90%
- Stabilized output, low ripple and low interference
- Over-current protection (OCP)
- Over-load protection (OLP)
- Over-voltage protection (OVP)
- Over-temperature protection (OTP)
- Short-circuit protection (SCP)
Product Specification
| Device Type | Power adapter - external |
| Colour | Black |
| Power Device | Power Device |
| Input Voltage | AC 110-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power DC jack 4.8 mm (ID: 1.7 mm) - 18.5 V 4.87 A 90 W ¦ 1 x power DC jack 5.5 mm (ID: 1.7 mm) - 19 V 4.74 A 90 W ¦ 1 x power DC jack 5.5 mm (ID: 2.5 mm) - 19 V 4.74 A 90 W ¦ 1 x power DC jack 7.4 mm (ID: 5.0 mm) - 19.5 V 4.62 A 90 W ¦ 1 x power DC jack 11 x 4.6 mm - 20 V 4.5 A 90 W ¦ 1 x power DC jack 4.0 mm (ID: 1.7 mm) - 19 V 4.74 A 90 W ¦ 1 x power DC jack 4.0 mm (ID: 1.35 mm) - 19 V 4.74 A 90 W ¦ 1 x power DC jack 3.0 mm (ID: 1.1 mm) - 19 V 4.74 A 90 W ¦ 1 x power DC jack 4.5 mm (ID: 3.0 mm) - 19.5 V 4.62 A 90 W ¦ 1 x power DC jack 5.5 mm (ID: 2.1 mm) - 19 V 4.74 A 90 W |
| Output Voltage | 18.5 - 20 V |
| Max Electric Current | 4.87 A |
| Power Capacity | 90 Watt |
| Efficiency | 90% |
| Miscellaneous | Miscellaneous |

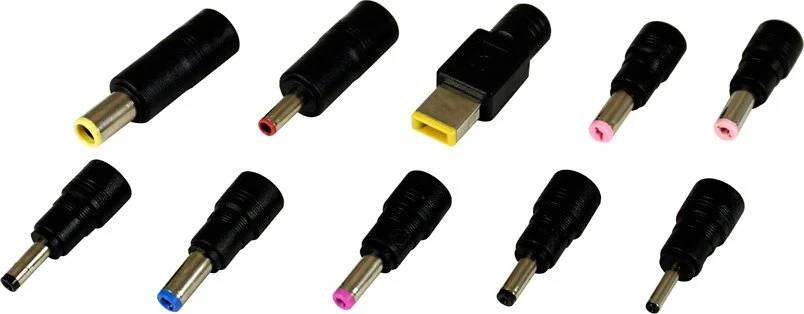

| Included Accessories | 10 notebook power tips |
| Cables Included | Power cable 1.2 m ¦ Power cable 1.5 m ¦ Power DC jack 4.8 mm (ID: 1.7 mm) adapter - external ¦ Power DC jack 5.5 mm (ID: 1.7 mm) adapter - external ¦ Power DC jack 5.5 mm (ID: 2.5 mm) adapter - external ¦ Power DC jack 7.4 mm (ID: 5.0 mm) adapter - external ¦ Power DC jack 11.0 x 4.6 mm adapter - external ¦ Power DC jack 4.0 mm (ID: 1.7 mm) adapter - external ¦ Power DC jack 4.0 mm (ID: 1.35 mm) adapter - external ¦ Power DC jack 3.0 mm (ID: 1.1 mm) adapter - external ¦ Power DC jack 4.5 mm (ID: 3.0 mm) adapter - external ¦ Power DC jack 5.5 mm (ID: 2.1 mm) adapter - external |
| Features | Plastic housing, overheat protection, over current protection, over voltage protection, overload protection, short-circuit protection |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.5 cm |
| Depth | 7 cm |
| Height | 2.5 cm |
| Weight | 419 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 19.5 cm |
| Shipping Depth | 13 cm |
| Shipping Height | 3.5 cm |
| Shipping Weight | 496 g |
Features - LC-Power - LC-NB-PRO-90
More Details
Product Code
04:399094
EAN Code
4260070128875
Manufacturer
LC-Power
