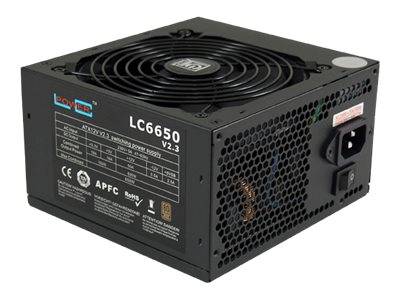

LC Power LC6650 V2.3 / Power supply (internal) / ATX12V 2.3 / 80 PLUS Bronze / AC 230 V / 650 Watt / active PFC | LC6650 V2.3
Please sign in so that we can notify you about a reply
LC Power LC6650 V2.3 / Power supply (internal) / ATX12V 2.3 / 80 PLUS Bronze / AC 230 V / 650 Watt / active PFC | LC6650 V2.3
|
Description The Super Silent Series offers the optimum price-performance ratio: thanks to its high-value fan, the LC6650 V2.3 lets you experience a stress-free and super-silent work in your office as well as at home. Despite the low sound level, the power supply offers an excellent cooling capacity for your system thanks to its honeycomb styled ventilation grille on its back. The power supply features all current connectors of the office and mid-range sector. Besides current mainboards you can connect several SATA and PATA hard disk drives respectively optical drives. |
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3 |
| Input Voltage | AC 230 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 3 x 4 PIN internal power ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 5 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector ¦ 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, +12 V |
| Power Capacity | 650 Watt |
| Output Current | +5V - 18 A ¦ +3.3V - 18 A ¦ +12V - 50 A |
| Efficiency | 88% |
| 80 PLUS Certification | 80 PLUS Bronze |
| Cooling System | 120 mm fan |
| Features | Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection |
| Compliant Standards | TUV, ErP 2013 |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Shipping Weight | 2.082 kg |
Features - LC-Power - LC6650 V2.3
More Details
Product Code
03:527736
EAN Code
4260070125638
Manufacturer
LC-Power
