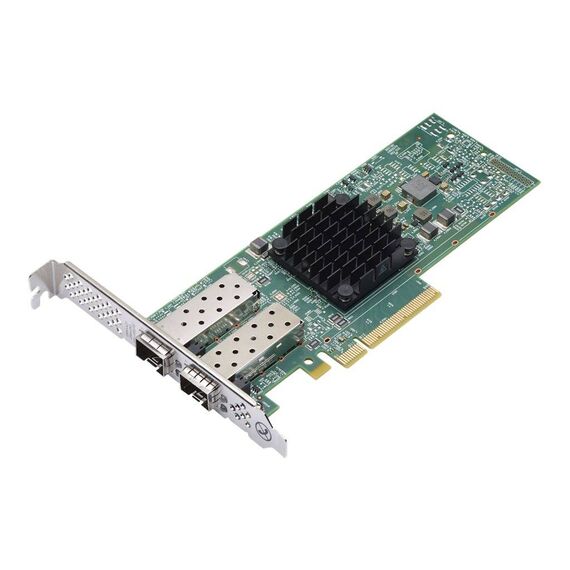

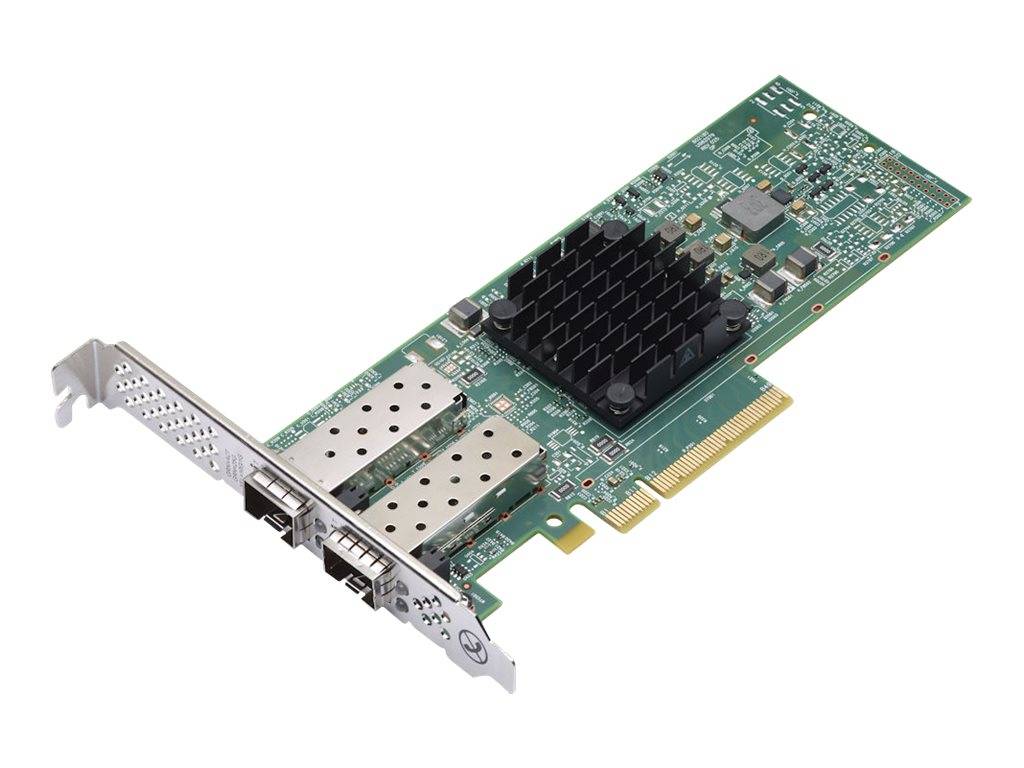

Lenovo ThinkSystem Broadcom 57414 / Network adapter / PCIe 3.0 x8 / 10Gb Ethernet / 25Gb Ethernet SFP28 x 2 / for ThinkAgile VX3530-G Appliance; VX7330-N Appliance; ThinkSystem SR250 V2; ST250 V2 | 4XC7A08238
Please sign in so that we can notify you about a reply
Special Features
- Broadcom TruFlow technology integrates flow processing to provide hardware assisted processing of traffic flows with data path acceleration
- TruFlow enables efficient network flow processing, increases Virtual Machine density by offloading the server CPU to improve application performance
- Broadcom's Smart Congestion Control provides consistent and predictive performance for real world workloads plus scaling for heavily loaded network traffic making it ideal for clients looking for deterministic low latency
- DCB technology allows the device to provide lossless data delivery, prioritize low latency traffic, and share bandwidth among data center physical links
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| Networking | Networking |
| Ports | 10Gb Ethernet / 25Gb Ethernet SFP28 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Data Transfer Rate | 25 Gbps |
| Capacity | Jumbo frame size: 9600 |
| Network / Transport Protocol | TCP/IP |
| Features | Wake on LAN (WOL), Jumbo Frames support (up to 9600 bytes) |
| Compliant Standards | IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ad, IEEE 802.3az |
| Processor / Memory | Processor / Memory |
| Processor | 1 x Broadcom BCM57414 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x 10Gb Ethernet/25Gb Ethernet - SFP28 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | BSMI CNS 13438 Class B, ICES-003, RRL, CSA 22.2 No. 950, ICES-003 Class B, EN55024 Class B, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, cTUVus, UL 94, KN22, KN24, EN 55022:2010+AC:2011 Class B, UL 1977, UL 796, CNS 14336 Class B |
| Dimensions & Weight | Dimensions & Weight |
| Depth | 16.7 cm |
| Height | 6.3 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Compatibility Information | Compatibility Information |
| Designed For | Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX3575-G Integrated System 7D43 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 ¦ Lenovo ThinkSystem SD530 7X21 ¦ Lenovo ThinkSystem SR250 V2 7D7Q ¦ Lenovo ThinkSystem SR530 7X07, 7X08 ¦ Lenovo ThinkSystem SR550 7X03, 7X04 ¦ Lenovo ThinkSystem SR570 7Y02, 7Y03, 7Y04 ¦ Lenovo ThinkSystem SR590 7X98, 7X99 ¦ Lenovo ThinkSystem SR630 7X01, 7X02 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR635 7Y98, 7Y99 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 7X05, 7X06 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR655 7Y00, 7Z01 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR670 V2 7Z23 ¦ Lenovo ThinkSystem SR850 7X18, 7X19 ¦ Lenovo ThinkSystem SR860 7X69, 7X70 ¦ Lenovo ThinkSystem SR950 7X11, 7X12, 7X13 ¦ Lenovo ThinkSystem ST250 V2 7D8F ¦ Lenovo ThinkSystem ST550 7X09, 7X10 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75 |
Features - Lenovo - 4XC7A08238
More Details
Product Code
S60EME8
EAN Code
0889488496662
Manufacturer
Lenovo
