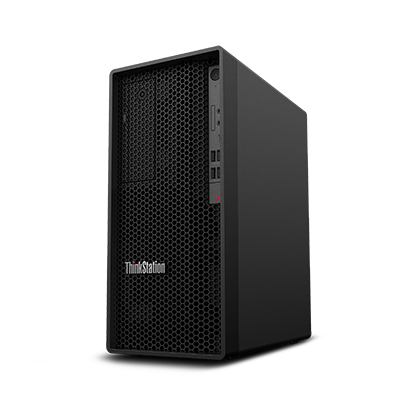

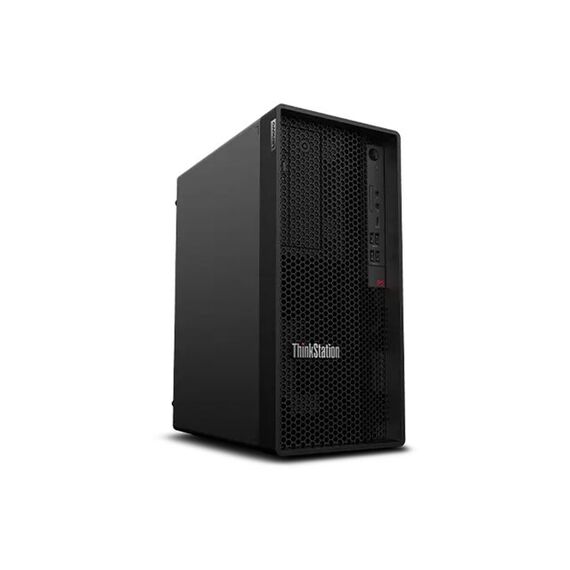

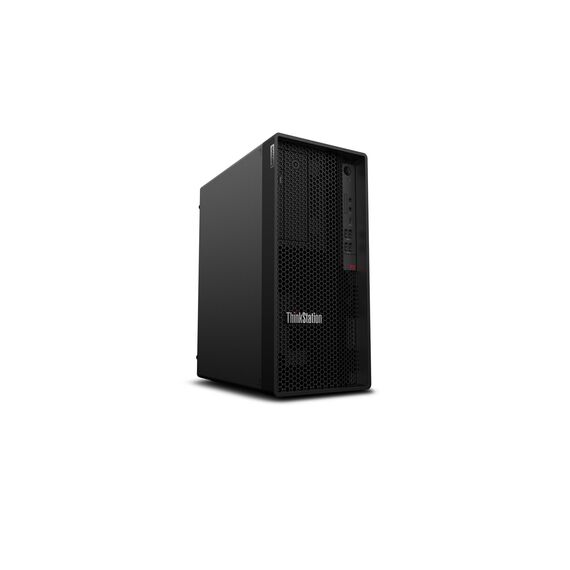

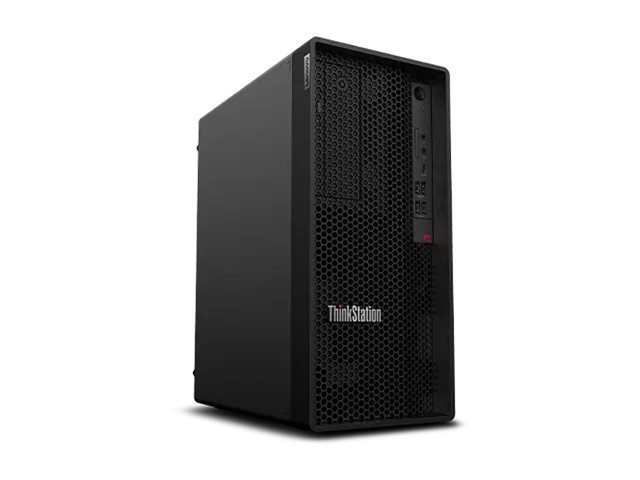

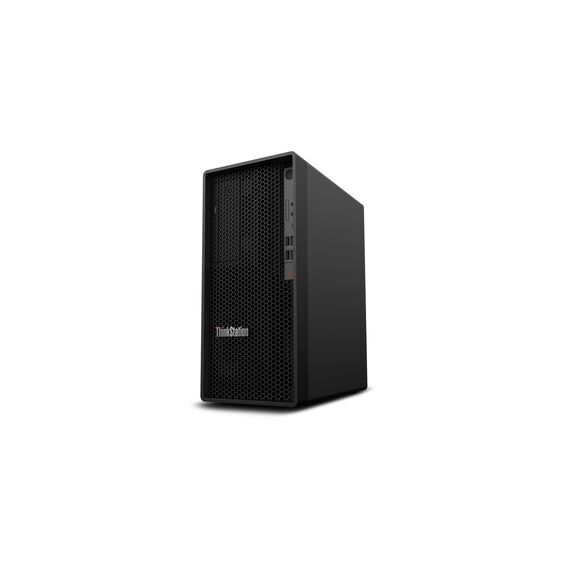

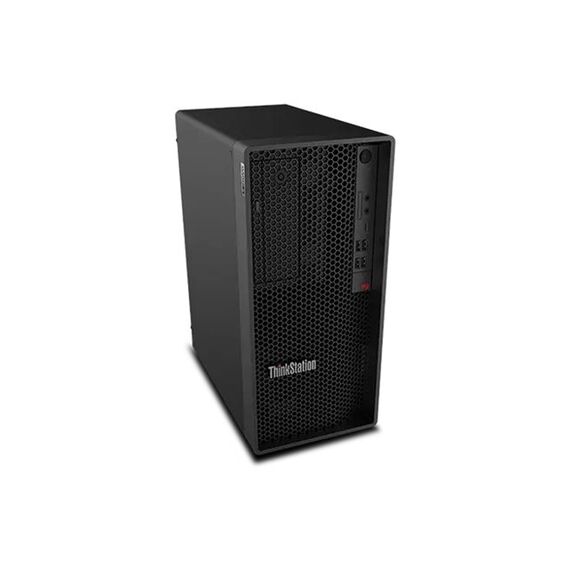

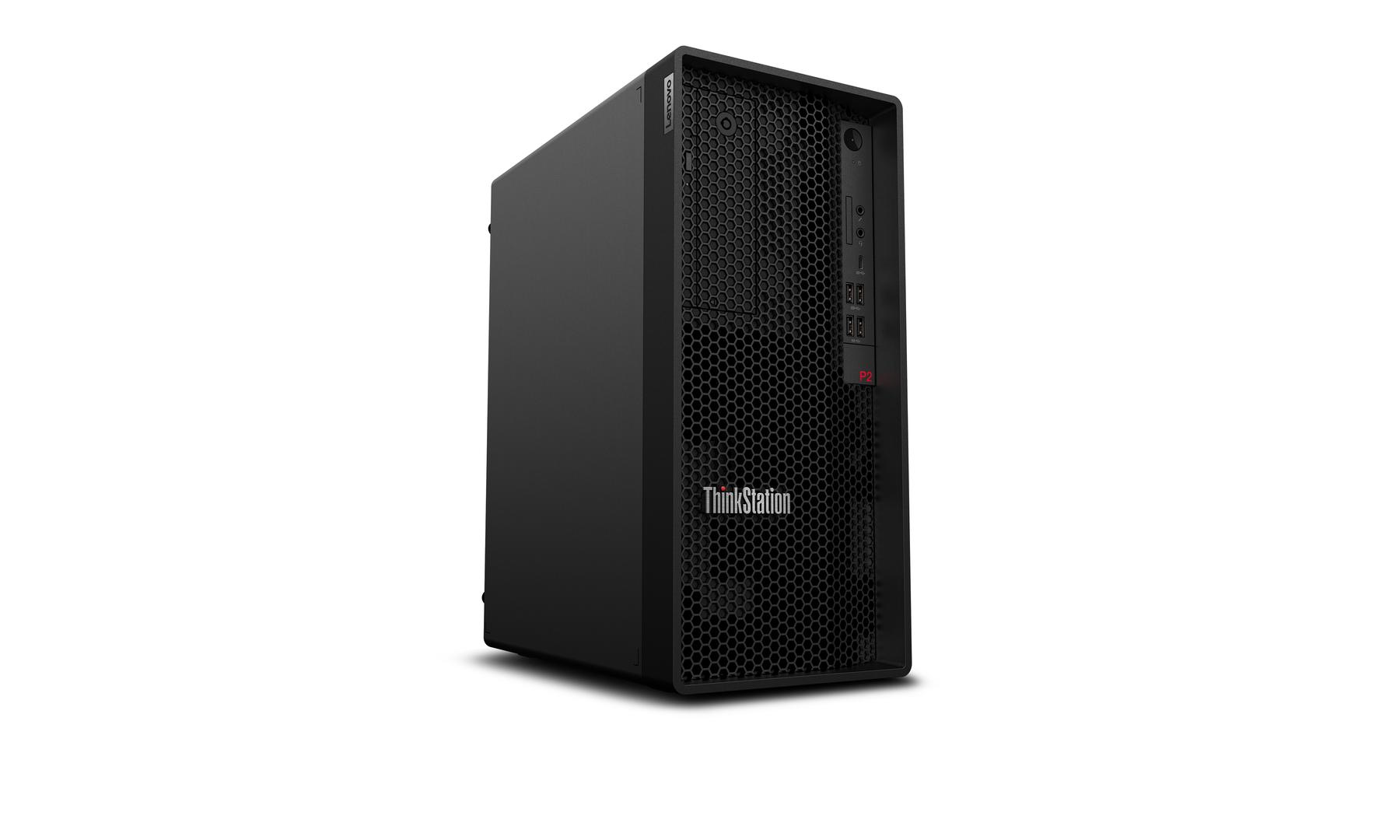

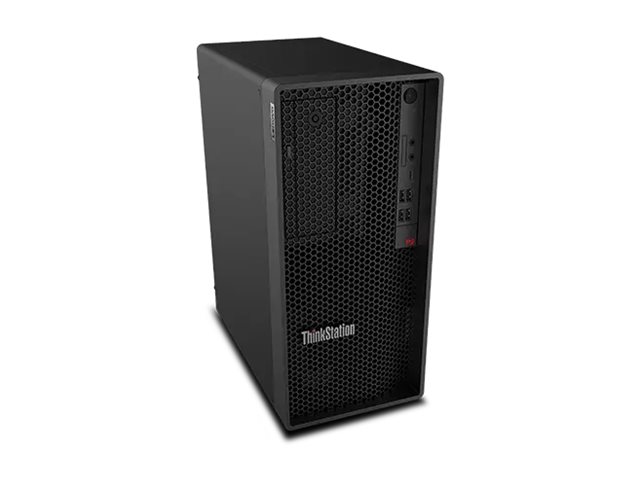

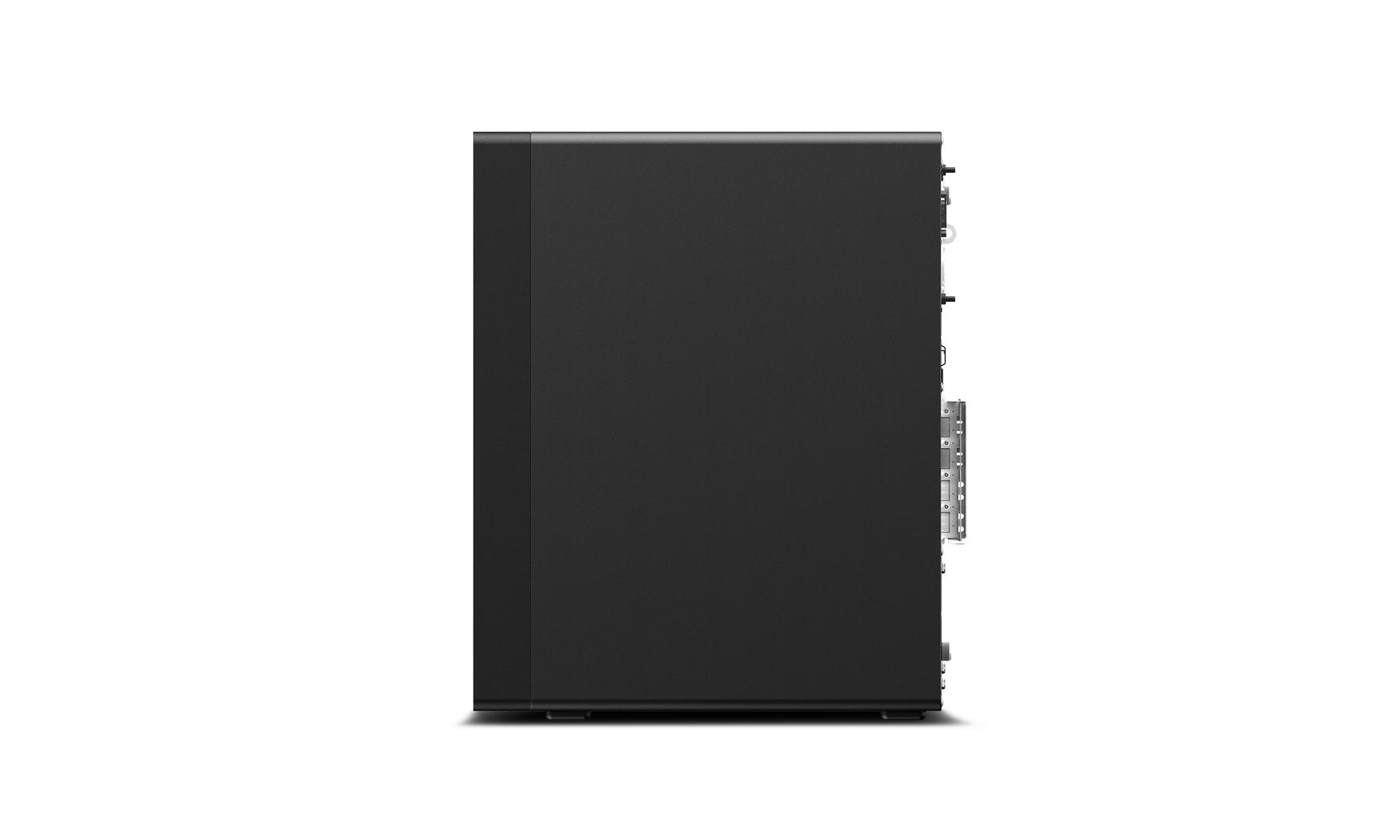

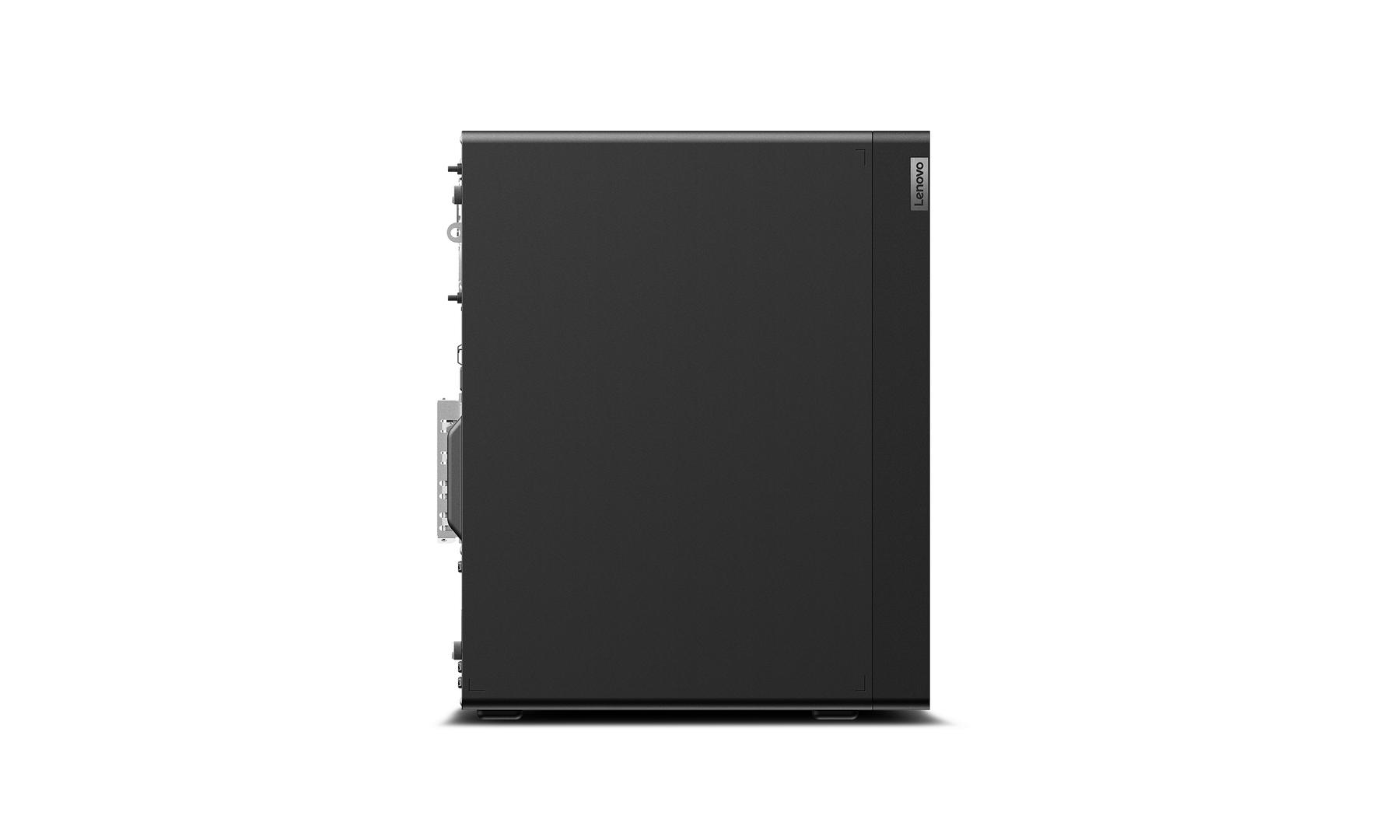

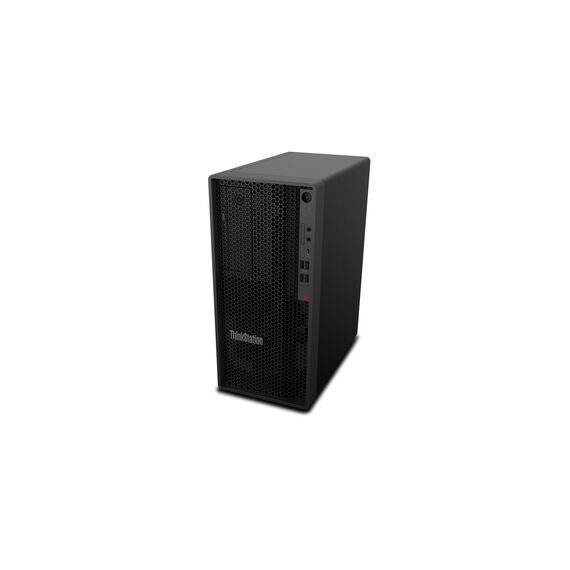

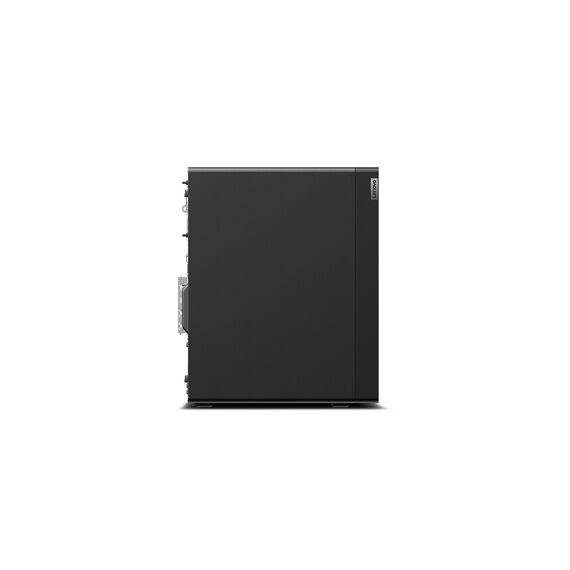

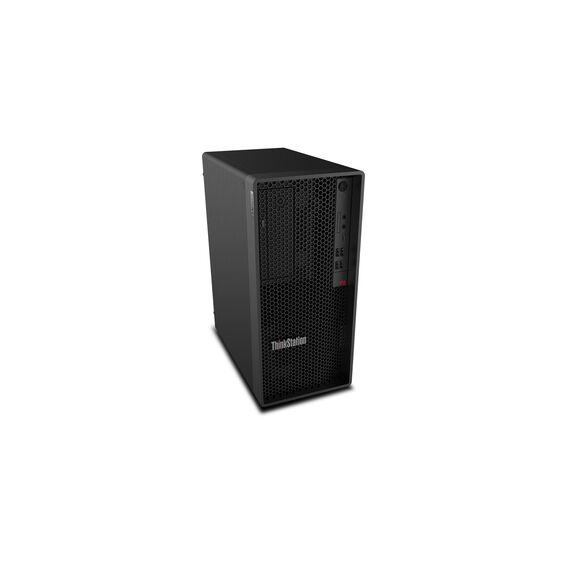

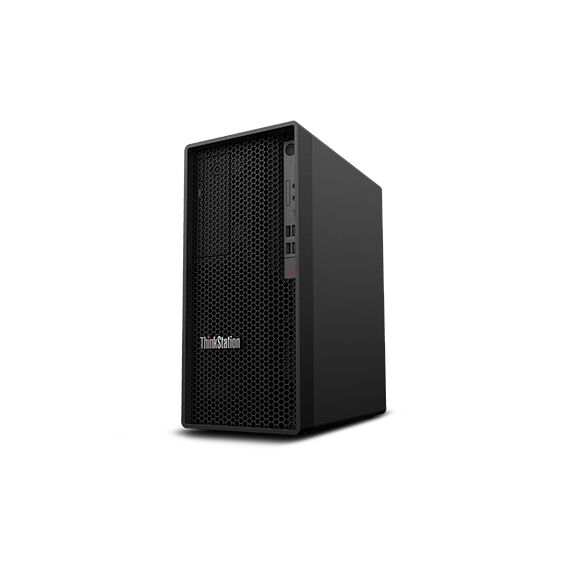

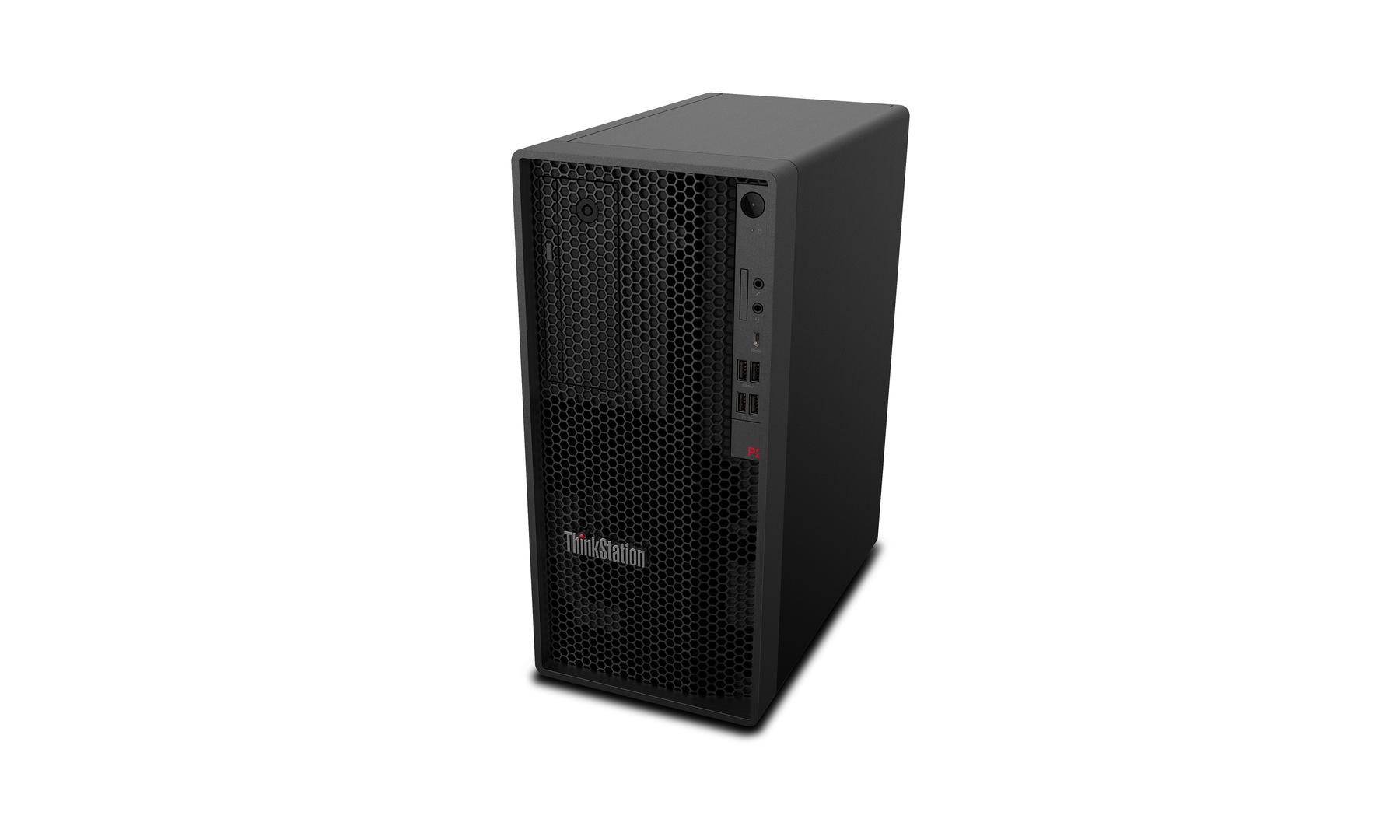

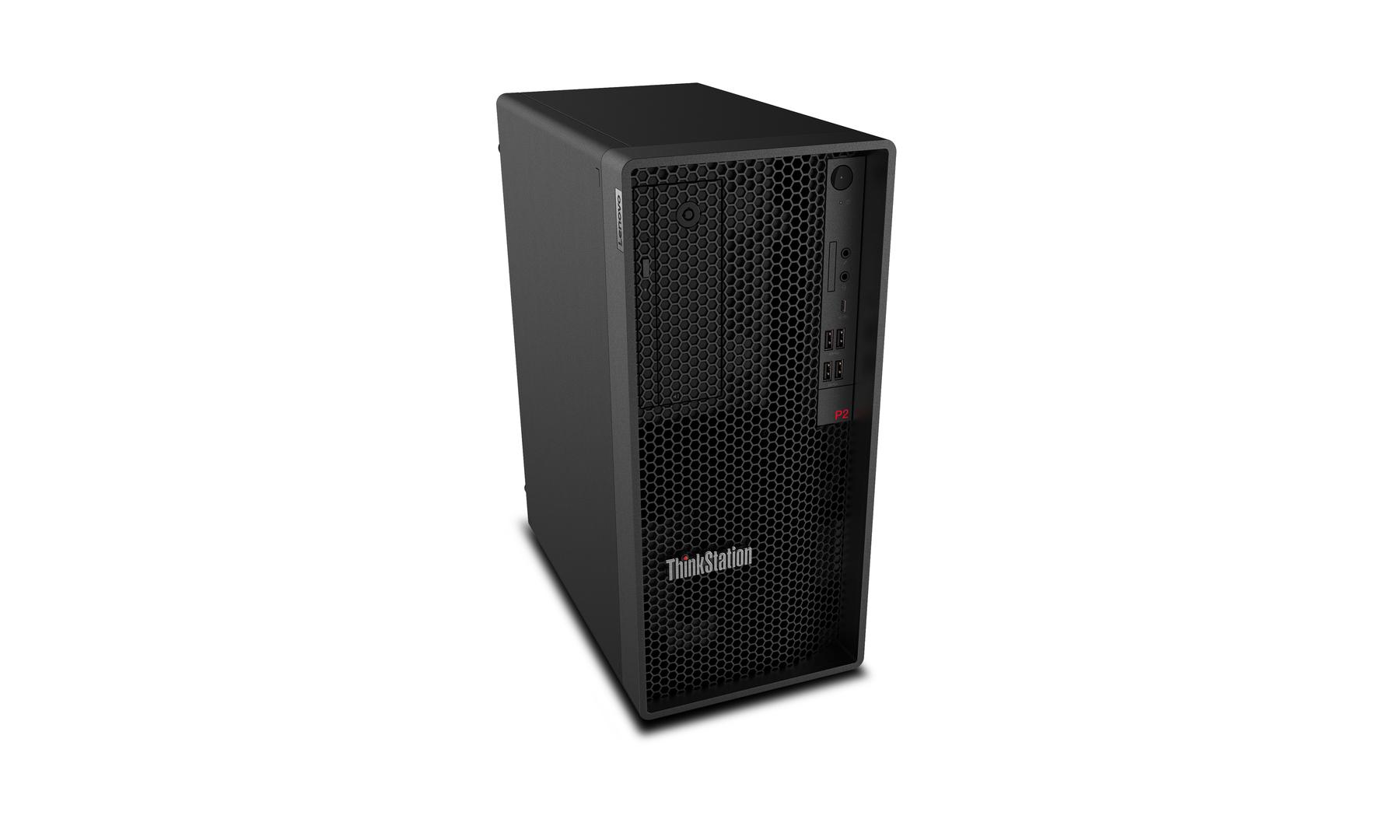

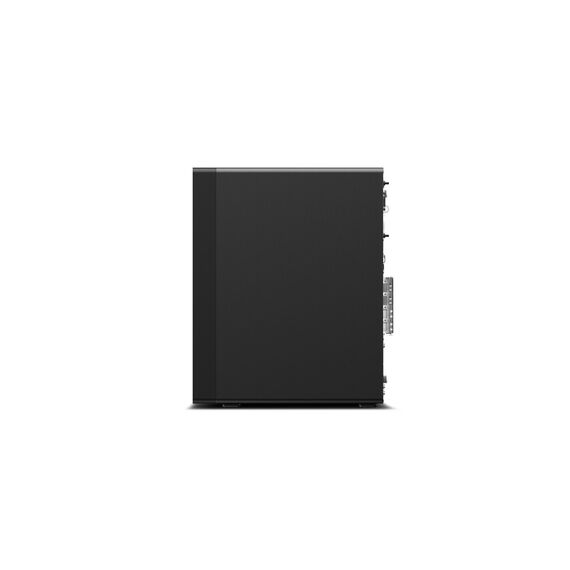

Lenovo ThinkStation P2 30FR - Tower - 1 x Core i7 i7-14700K / up to 5.6 GHz - vPro Enterprise - RAM 32 GB - SSD 1 TB - TCG Opal Encryption, NVMe, Performance - GeForce RTX 4060 - Gigabit Ethernet - Win 11 Pro | 30FR004FGE
Please sign in so that we can notify you about a reply
Product Features
- Advanced performance
Equipped with a 20-core Intel Core i7-14700 processor and DDR5 SDRAM, this workstation delivers exceptional speed and efficiency for demanding applications. - Superior storage
Features a high-speed SSD with PCI Express 4.0 x4 interface, enhanced by NVM Express (NVMe) and TCG Opal Encryption for fast, secure data access. - Robust expansion capabilities
Offers a variety of expansion slots including PCIe 4.0 x16 and M.2 card slots, providing ample room for future upgrades and specialized hardware integration. - Energy efficient
ENERGY STAR certified and equipped with an 80 PLUS Platinum power supply, ensuring high energy efficiency and lower operating costs. - Professional-grade connectivity
Includes a comprehensive set of USB 3.2 ports, HDMI, and DisplayPort 1.4 outputs, facilitating easy connection to a wide range of peripherals and displays.
Special Fetures
- 20-core Intel Core i7 processor for high-end performance
- DDR5 SDRAM supports faster memory speeds and improved efficiency
- PCI Express 4.0 x4 SSD with NVMe for rapid data access and security
- 80 PLUS Platinum power supply for energy efficiency
- Comprehensive USB 3.2, HDMI, and DisplayPort connectivity options
Product Specification
| Platform Technology | Intel vPro Enterprise |
| Type | Workstation |
| Bundled Services | 1 Year Lenovo Premier Support |
| Product Form Factor | Tower |
| Built-in Devices | Speaker |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Localisation | Language: German / region: Germany |
| Processor / Chipset | |
| CPU | Intel Core i7 (14th Gen) i7-14700K |
| Clock Speed | 3.4 GHz (P-core) / 2.5 GHz (E-core) |
| Max Turbo Speed | 5.6 GHz (P-core) / 4.3 GHz (E-core) |
| Number of Cores | 20-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Socket | FCLGA1700 Socket |
| Chipset Type | Intel W680 |
| Cache Memory | |
| Installed Size | 33 MB |
| Cache Per Processor | 33 MB |
| RAM | |
| Installed Size | 32 GB / 128 GB (max) |
| Technology | DDR5 SDRAM - non-ECC |
| Effective Memory Speed | 4400 MHz |
| Rated Memory Speed | 4400 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (Total) / 2 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Configuration Features | 2 x 16 GB |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 x4 |
| Features | TCG Opal Encryption, NVM Express (NVMe), Performance |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1 |
| Storage Controller (2nd) | |
| Type | 1 x RAID |
| Controller Interface Type | PCI Express (NVMe) |
| RAID Level | RAID 0, RAID 1 |
| Optical Storage | |
| Type | No optical drive |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | SD Memory Card |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Graphics Processor | NVIDIA GeForce RTX 4060 / Intel UHD Graphics 770 |
| Video Memory | 8 GB GDDR6 SDRAM |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Keyboard Name | Lenovo Calliope Keyboard |
| Interface | USB |
| Localization & Layout | German |
| Mouse | |
| Mouse Name | Lenovo Calliope Mouse |
| Interface | USB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL) |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 3.5" |
| Slots | 1 (total) / 0 (free) x PCIe 4.0 x16 (full-length, full-height) ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 (x4 mode) ¦ 2 (total) / 2 (free) x PCIe 3.0 x1 ¦ 1 (total) / 1 (free) x M.2 Card (for WLAN) ¦ 2 (total) / 1 (free) x M.2 Card (for SSD) |

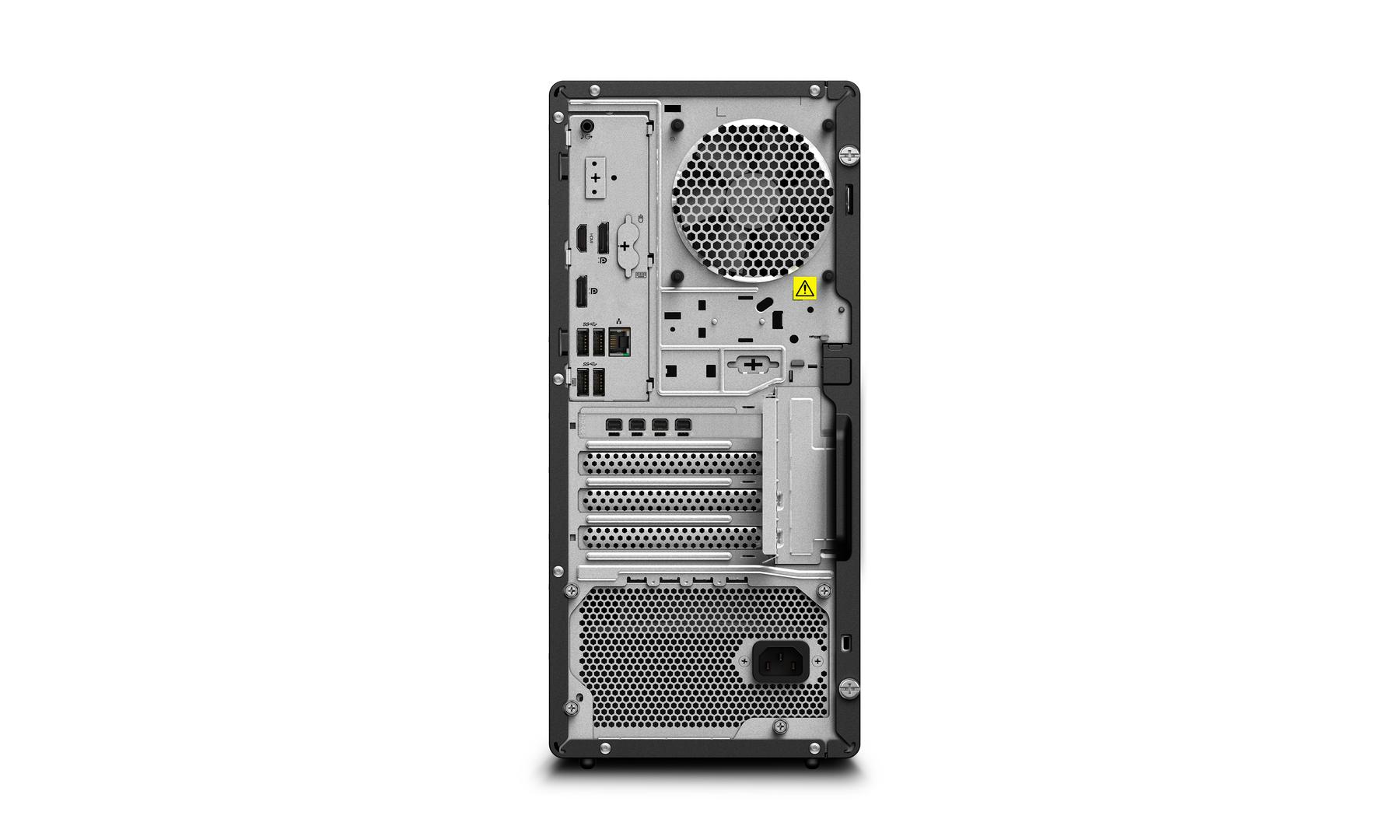

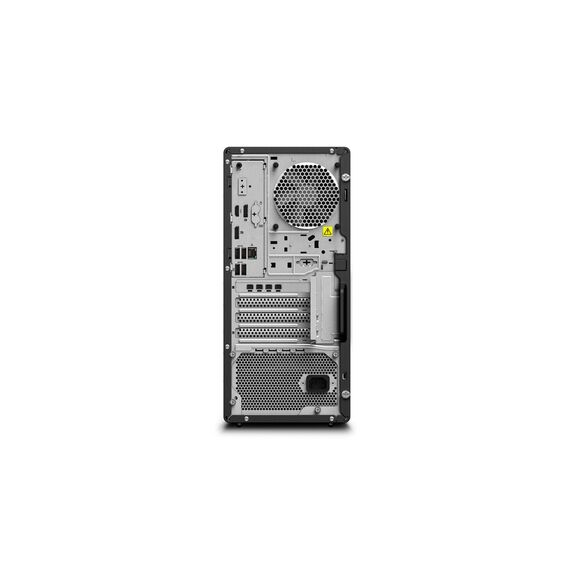

| Interfaces | 5 x USB 3.2 Gen 1 (2 front, 3 rear) ¦ 1 x USB 3.2 Gen 1 (1 rear) (supports SmartPower On) ¦ 1 x USB-C 3.2 Gen 2 (1 in front) ¦ 2 x USB 3.2 Gen 2 (2 in front) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x microphone (1 in front) ¦ 2 x HDMI ¦ 2 x DisplayPort 1.4 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out ¦ 3 x DisplayPort |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, FIPS 140-2, Energy-Related Products (ErP) Lot 3, TCG Certified, TCO Certified 9.0 |
| Manufacturer Selling Program | TopSeller |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 750 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Efficiency | 92% |
| Operating System / Software | |
| OS Provided | Windows 11 Pro German |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
| Carbon Footprint | 841 kg carbon emissions |
| Total CF/unit Standard Deviation (kg CO2e) | 247 |
| PAIA Version | 1.4.0 |
| Manufacturer Warranty | |
| Service & Support | Base warranty - 3 years - on-site ¦ Extended warranty - 1 year - on-site - response time: next business day |
| Dimensions & Weight | |
| Width | 17 cm |
| Depth | 31.535 cm |
| Height | 37.6 cm |
| Weight | 9.67 kg |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% |
Features - Lenovo - 30FR004FGE
CPU Type
- Intel Core i7
Capacity
1TB
More Details
Product Code
CK50037
EAN Code
0198153585281
Manufacturer
Lenovo
