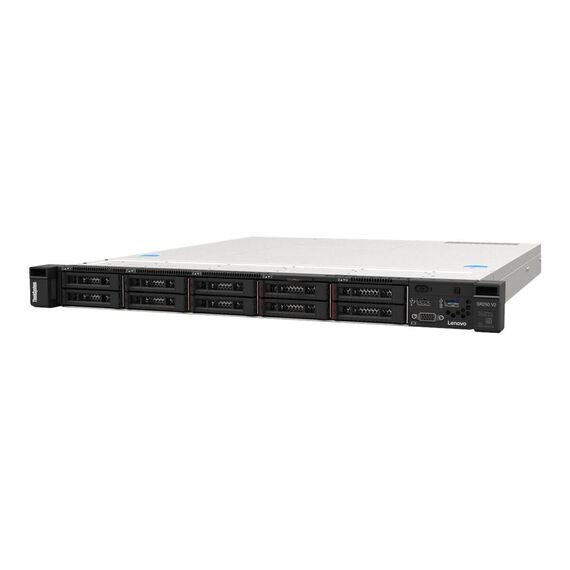

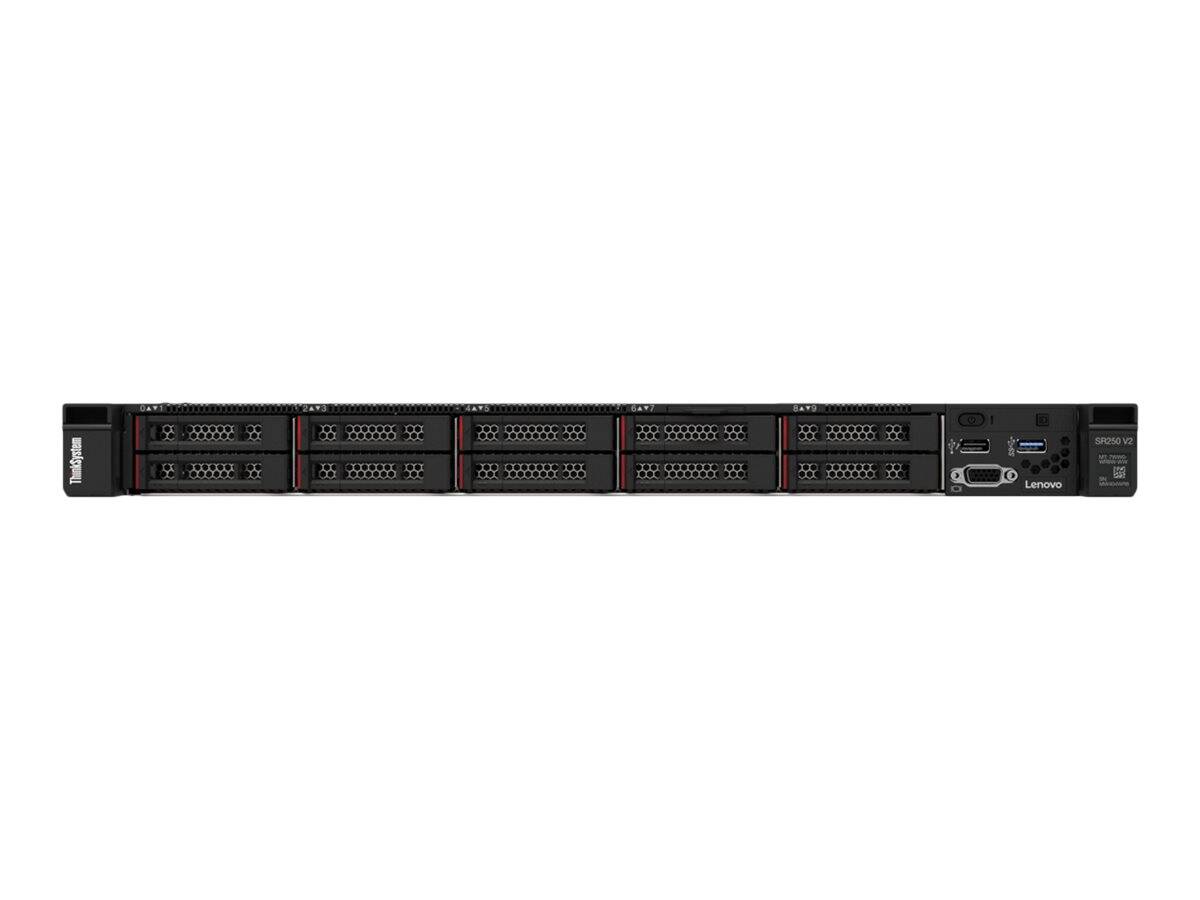

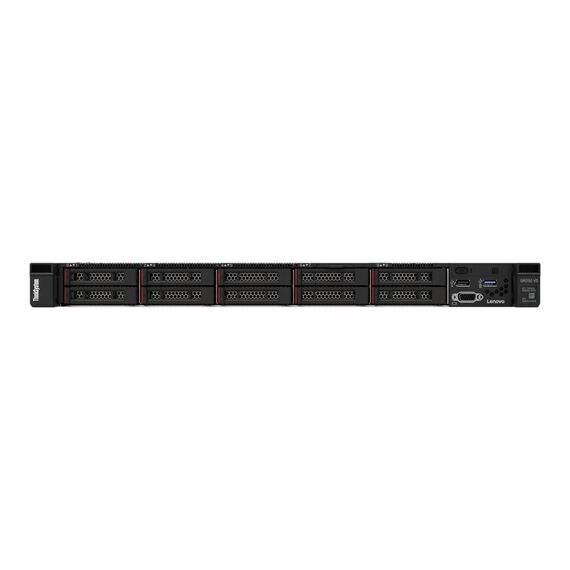

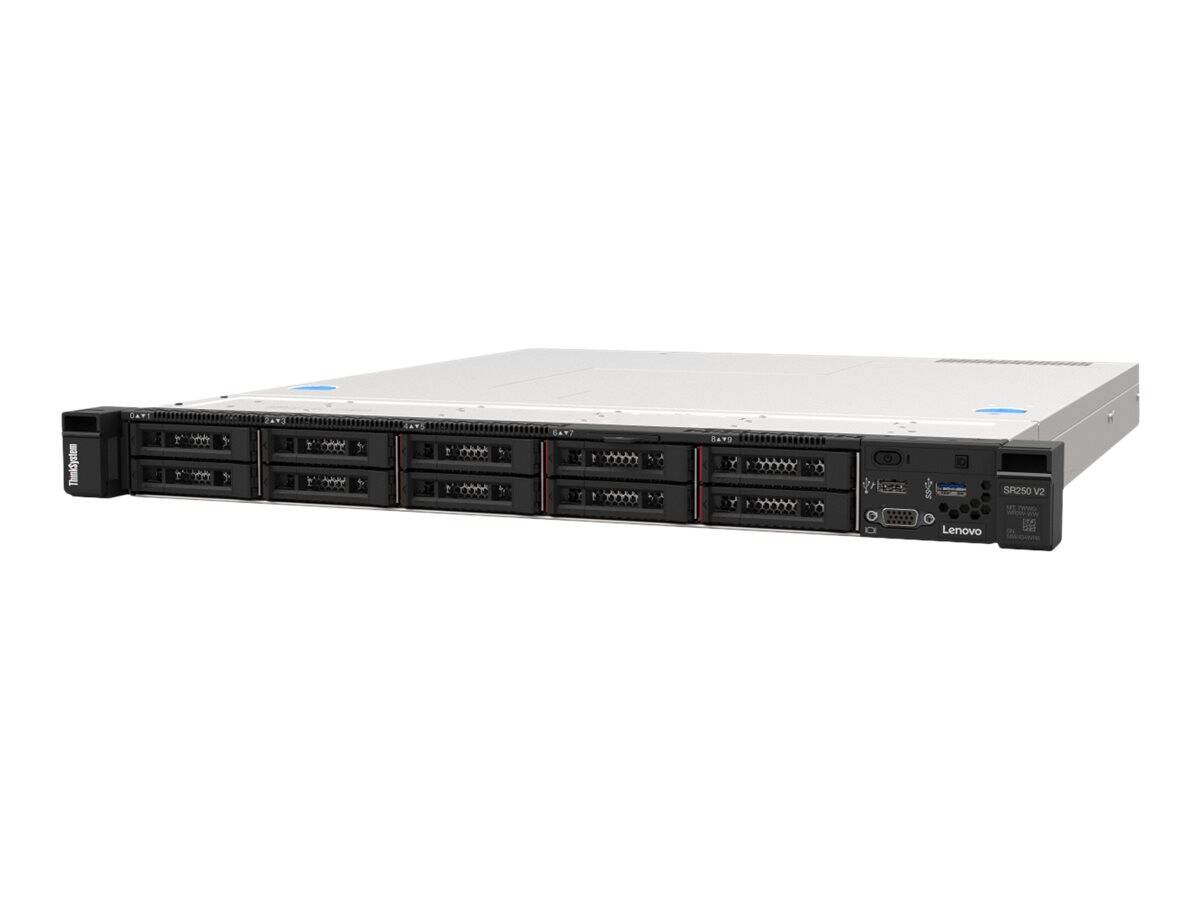

Lenovo ThinkSystem SR250 V2 7D7Q - Server - rack-mountable - 1U - 1-way - 1 x Xeon E-2378 / up to 4.8 GHz - RAM 32 GB - hot-swap 2.5" bay(s) - no HDD - Matrox G200 - Gigabit Ethernet - no OS | 7D7QA031EA
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- High reliability and security
The Lenovo ThinkSystem SR250 V2 offers reliability, and security without sacrificing performance. This single-processor rack server, in a compact 1U form factor, is built for expanding businesses or edge deployment. With an increase in performance of up to 17% above previous generations, the next-generation Intel Xeon processors provide higher workload performance at an entry-level price point. - Flexible, scalable and manageable
Ideal for IT infrastructure, web serving, virtualization, and edge applications. The SR250 V2 includes the Lenovo XClarity Controller, that standardizes and automates server management tasks. The XClarity Administrator virtualized application centrally manages your ThinkSystem servers, storage, and networking, lowering costs and speeding infrastructure provisioning. - Energy-efficient powerhouse
The ThinkSystem SR250 V2 provides enterprise-level, high performance while using no more than 95 W CPUs. It's shorter-depth rack accommodates the space-constrained environments found in many SMB's, remote/branch offices, and edge applications. The ThinkSystem SR250 V2 is an ideal solution when your business needs a server to handle large workloads in a small footprint.
Special Fetures
- High reliability and security
- Flexible, scalable and manageable
- Energy-efficient powerhouse
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | Led panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 8 |
| Localisation | Region: EMEA |
| Processor / Chipset | |
| CPU | Intel Xeon E-2378 |
| Clock Speed | 2.6 GHz |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel C256 |
| Cache Memory | |
| Installed Size | 16 MB |
| Cache Per Processor | 16 MB |
| RAM | |
| Installed Size | 32 GB / 128 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (Total) / 3 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 32 GB |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | 1 x RAID - SATA / SAS |
| Controller Interface Type | PCI Express 3.0 x8 |
| Storage Controller Name | ThinkSystem RAID 5350-8i |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Matrox G200 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | XClarity Controller (XCC) Enterprise |
| Features | PXE support, Teaming support |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x8 - low-profile ¦ 1 (total) / 1 (free) x PCIe 4.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 4.0 x4 (for internal storage controller) ¦ 1 (total) / 1 (free) x M.2 Card |

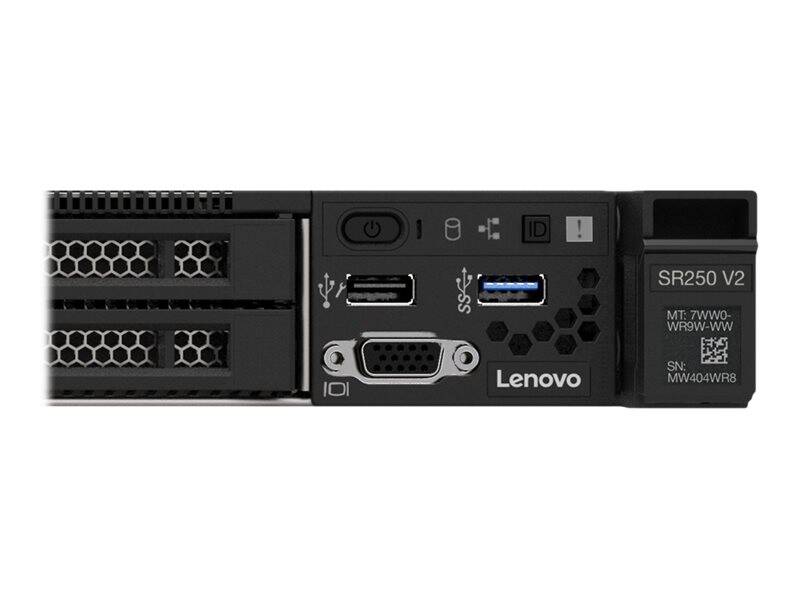

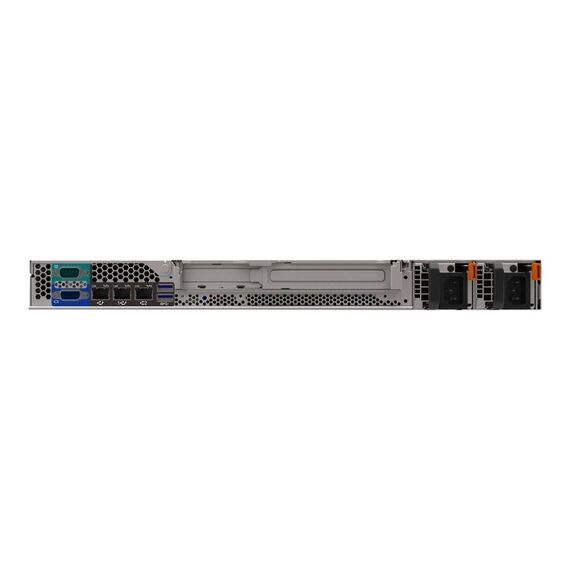

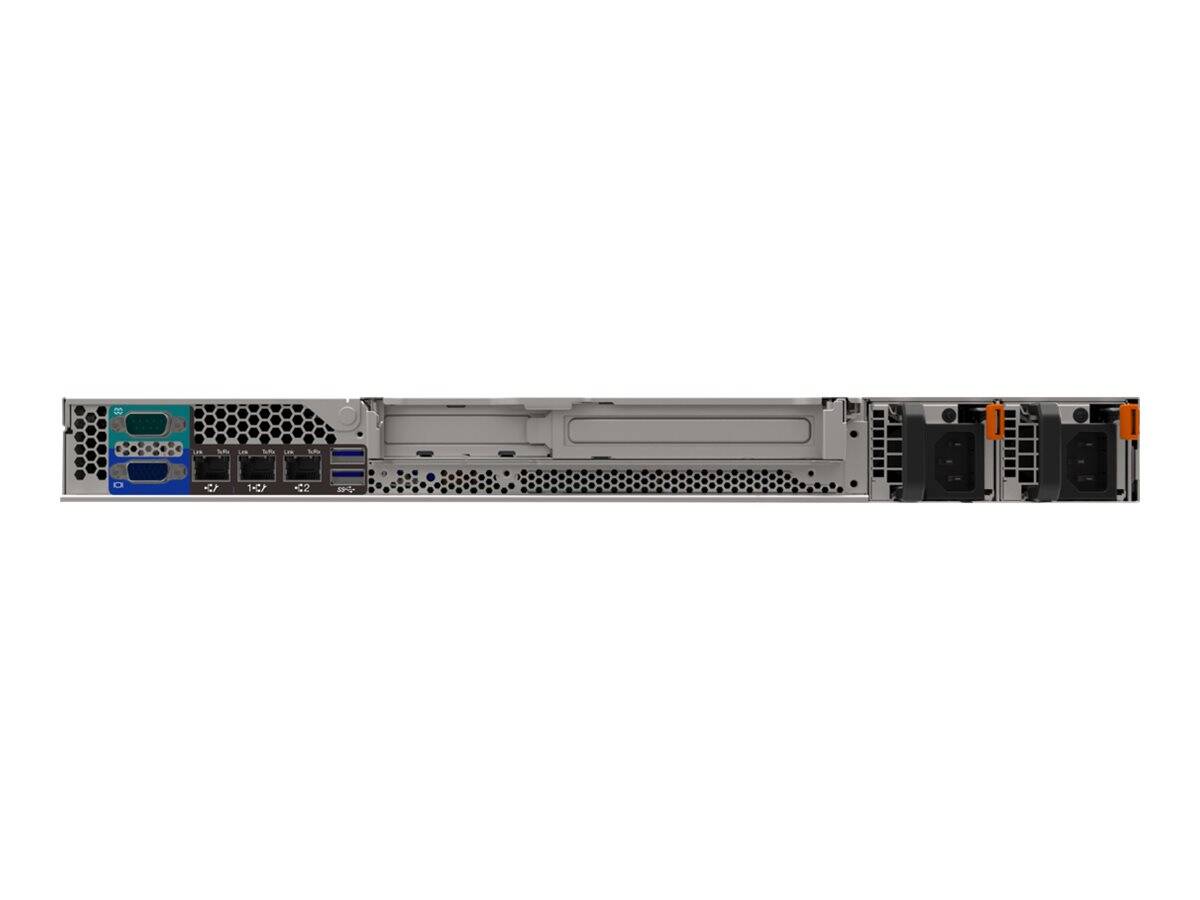

| Interfaces | 1 x USB 2.0 (1 in front) ¦ 1 x USB 3.2 Gen 1 (1 in front) ¦ 2 x USB 3.2 Gen 2 ¦ 1 x serial ¦ 1 x VGA ¦ 1 x management - RJ-45 ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 |
| Miscellaneous | |
| Included Accessories | Friction rail kit |
| Compliant Standards | TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, GS, EN 61000-3-3, EN55024, CB, CCC, IEC 60950-1, FCC Part 15 A, UkrSEPRO, GREENGUARD, GB 17625.1, CECP, VCCI Class A, GB 4943.1, CNS 14336, BIS, INMETRO, NOM-019, EK1-ITB2000, KN35, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, EN 55035, CISPR 35, CM, TP TC 004/2011, TP TC 020/2011, CELP, HJ 2507-2011, Energy-Related Products (ErP) Lot 9, CNS 15663 section 5, TP EAC 037/2016, EN 50581-1, AS/NZS 62368.1, UKCA, ANSI/UL 62368-1, ICES-003 issue 7 Class A, NSF/ANSI 426, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, CMIM, NRCS LOA |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 450 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Operating System / Software | |
| OS Provided | No operating system |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Bronze |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 3.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years - on-site - response time: next business day |
| Dimensions & Weight | |
| Width | 43.5 cm |
| Depth | 54.5 cm |
| Height | 4.3 cm |
| Weight | 9.1 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 61 cm |
| Shipping Depth | 86 cm |
| Shipping Height | 19.6 cm |
