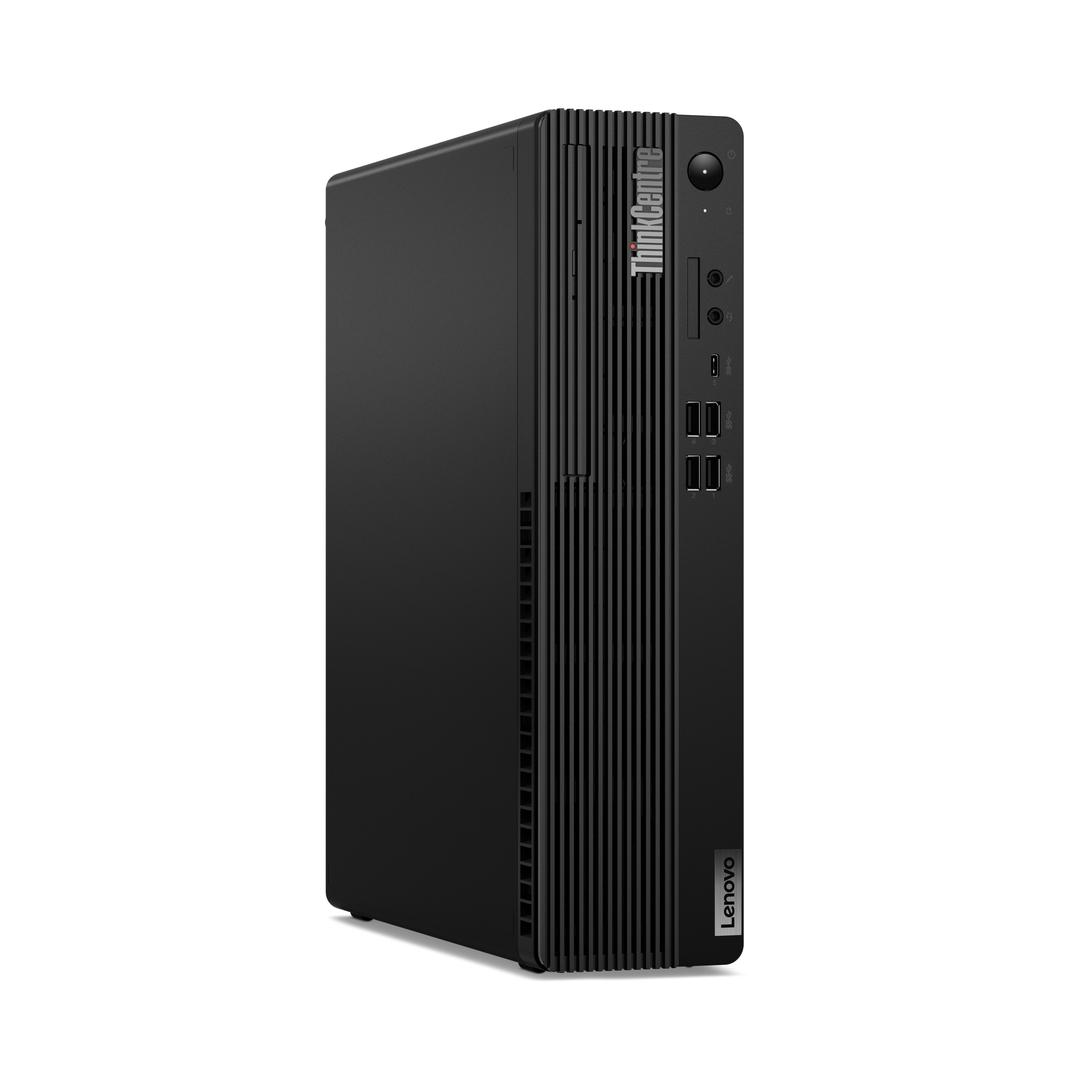

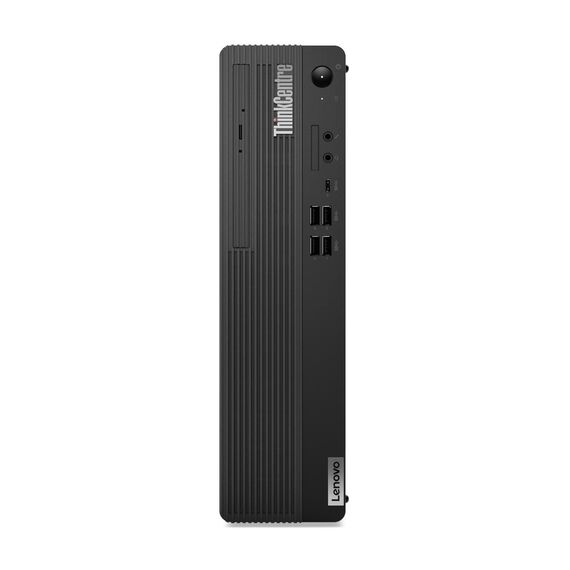

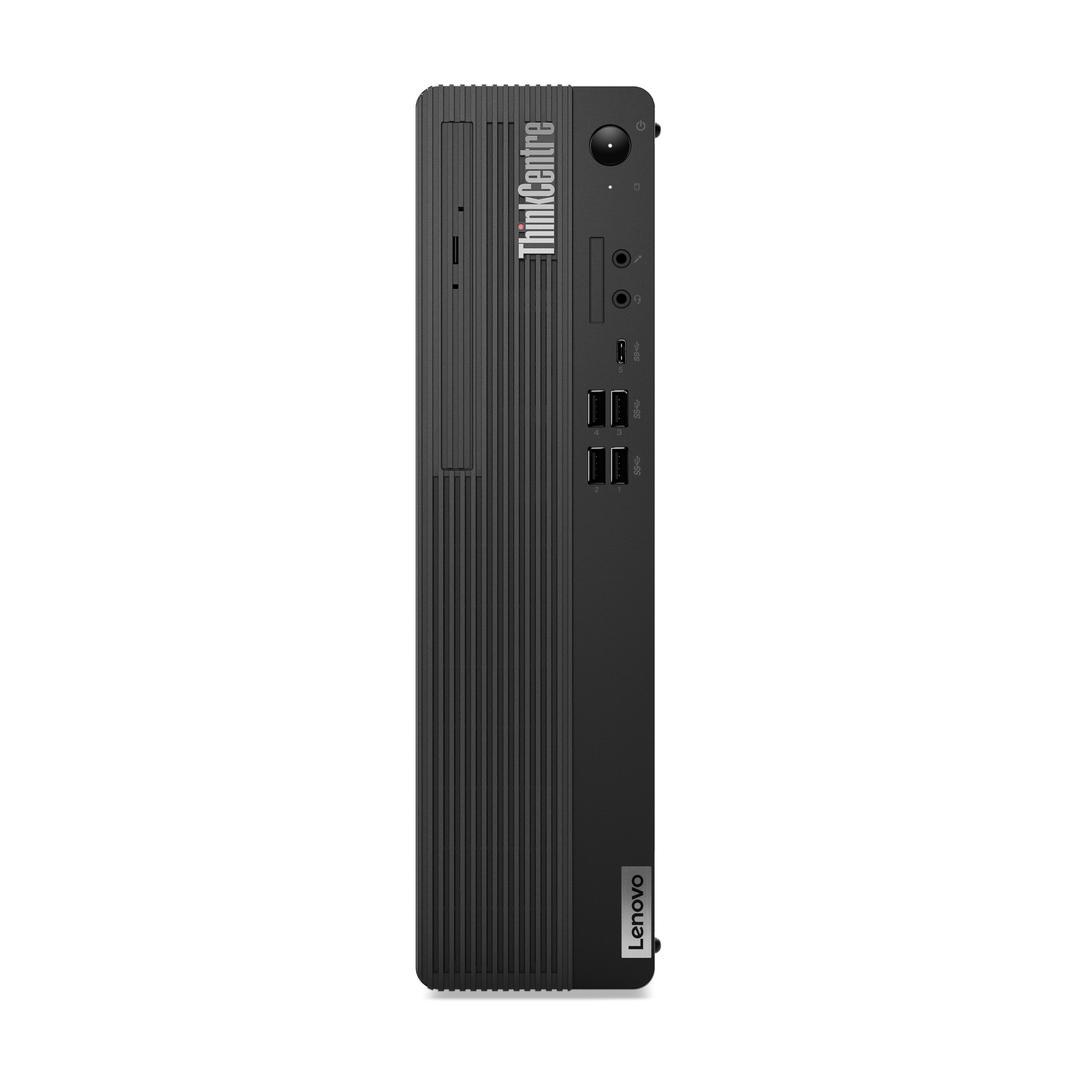

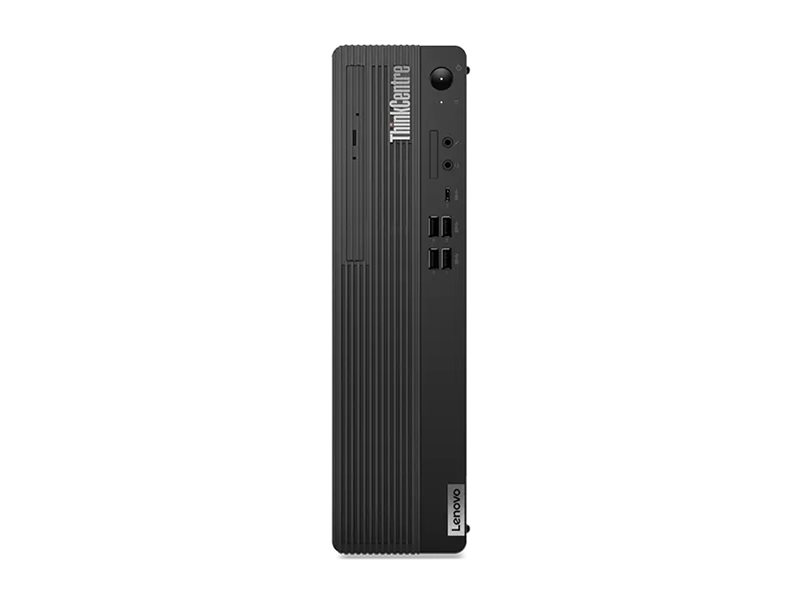

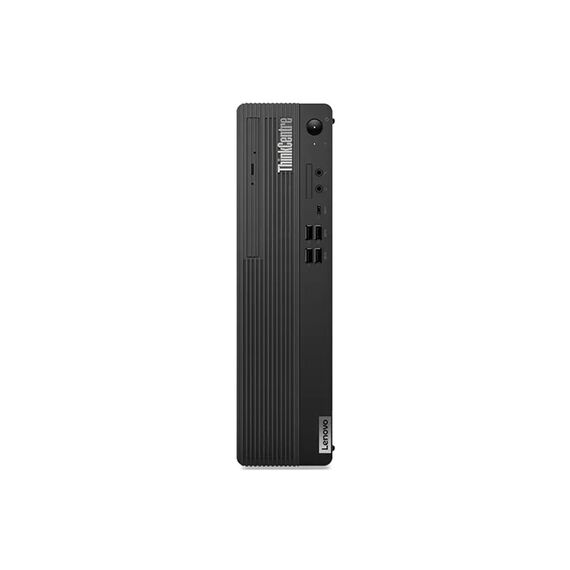

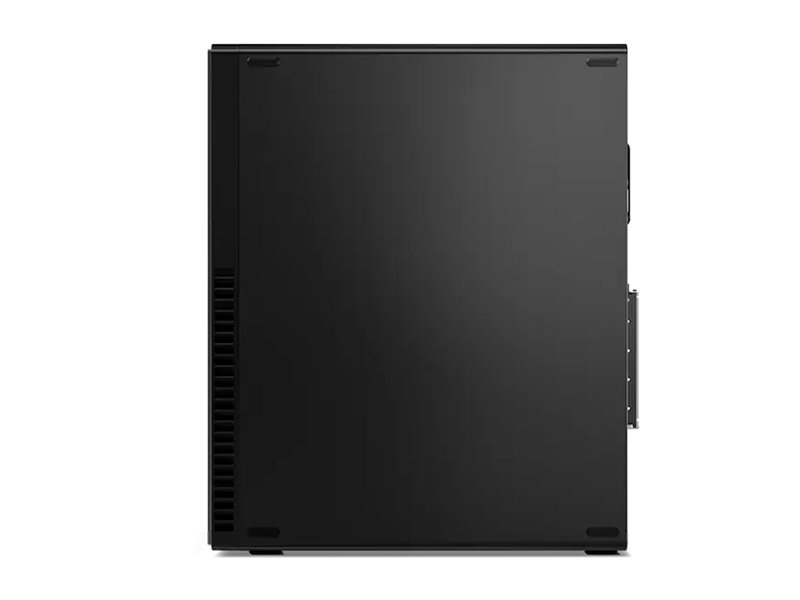

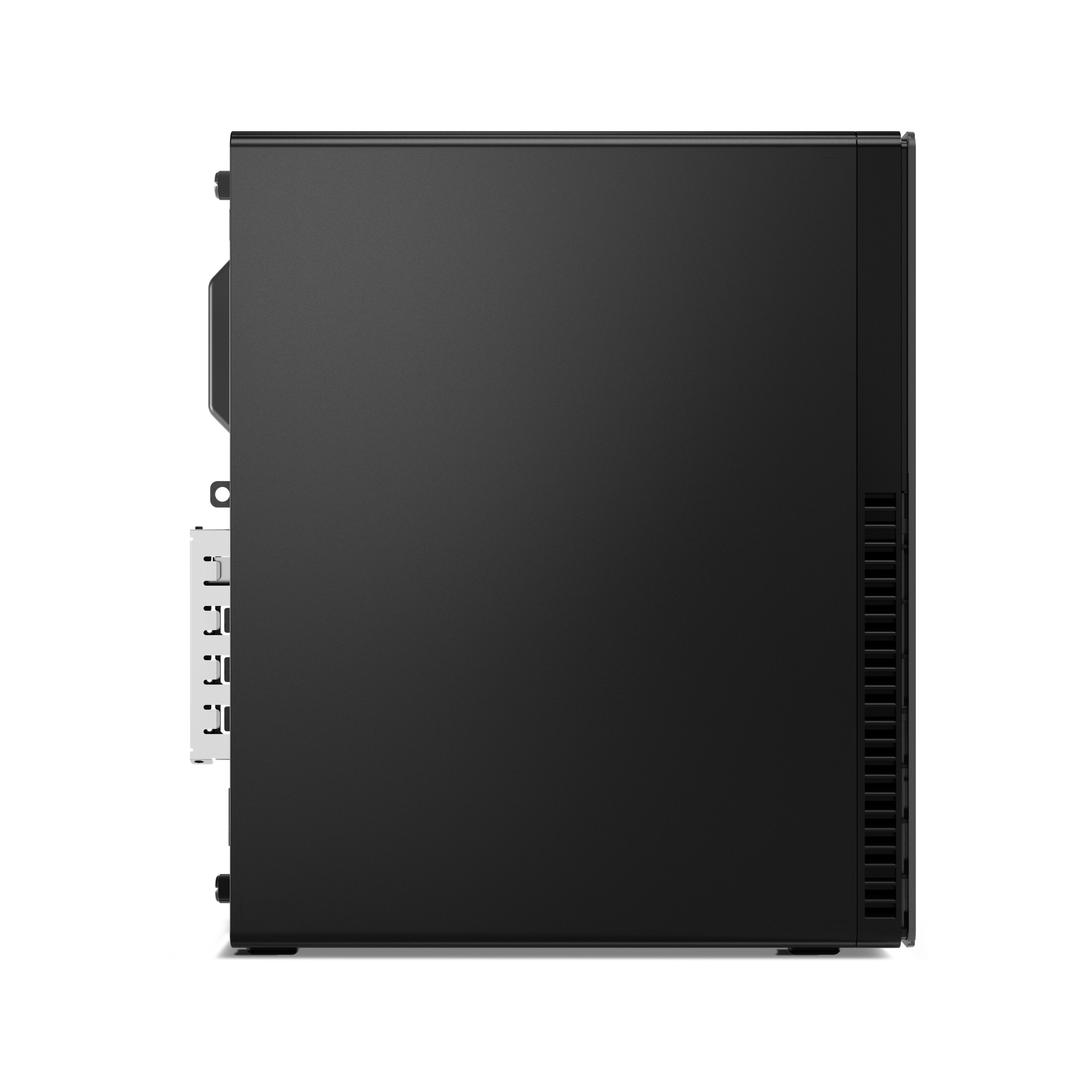

Lenovo ThinkCentre M70s Gen 5 12U8 / SFF / Core i5 i5-14400 / up to 4.7 GHz / RAM 16 GB / SSD 512 GB / TCG Opal Encryption 2, NVMe / DVD-Writer / UHD Graphics 730 / Gigabit Ethernet / Win 11 Pro | 12U80005GE
Please sign in so that we can notify you about a reply
Product Features
- Robust performance
Equipped with a 10-core Intel Core i5-14400 processor and 16 GB of DDR5 RAM, this Lenovo ThinkCentre M70s Gen 5 offers efficiency and power. Its dual-channel memory architecture ensures smooth multitasking and fast access to frequently used files and programs. - Advanced storage solutions
Featuring a 512 GB SSD with PCI Express 4.0 x4 interface and NVMe technology, this system provides rapid boot times and quick data access. The inclusion of TCG Opal Encryption 2 enhances data security, making it suitable for professionals concerned with protecting sensitive information. - Comprehensive connectivity
This model boasts a wide range of connectivity options, including USB-C 3.2 Gen 1 for data transfer and 15 W charging, multiple USB 3.2 Gen 1 ports for high-speed peripherals, and HDMI and DisplayPort 1.4a for multi-display setups. Gigabit Ethernet and Intel I219-LM controller facilitate seamless network connections. - Compact and secure design
The small form factor is not only space-saving but also packed with security features like a discrete TPM 2.0 chip, chassis intrusion switch, and a Kensington security slot. Its design is compliant with several environmental and security standards, including Energy-Related Products (ErP) Lot 3, FIPS 140-2, and TCO certified 9.0. - Eco-friendly choice
With a carbon footprint of 537 kg CO2e and compliance with standards like GREENGUARD and RoHS, the Lenovo ThinkCentre M70s Gen 5 is an environmentally responsible choice for your computing needs.
Special Features
- 10-core Intel Core i5-14400 processor for robust performance
- 16 GB of DDR5 RAM with dual-channel memory architecture
- 512 GB NVMe SSD for fast storage and TCG Opal Encryption 2 for security
- Comprehensive connectivity with USB-C, USB 3.2, HDMI, and DisplayPort 1.4a
- Energy-efficient with a 90% power supply efficiency and eco-friendly certifications
Product Specification
| Type | Personal computer - AI Ready |
| Bundled Services | 1 Year Lenovo Premier Support |
| Product Form Factor | SFF |
| Built-in Devices | Speaker |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| Localisation | Language: German / region: Germany |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i5 (14th Gen) i5-14400 |
| Clock Speed | 2.5 GHz (P-core) / 1.8 GHz (E-core) |
| Max Turbo Speed | 4.7 GHz (P-core) / 3.5 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel Q670 |
| Cache Memory | Cache Memory |
| Installed Size | 20 MB |
| Cache Per Processor | 20 MB |
| RAM | RAM |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 2 (Total) / 1 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Configuration Features | 1 x 16 GB |
| Hard Drive | Hard Drive |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 4.0 x4 |
| Features | TCG Opal Encryption 2, NVM Express (NVMe) |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | Optical Storage |
| Type | DVD±RW DVD-Writer - SATA |
| Card Reader | Card Reader |
| Type | 3 in 1 card reader |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel UHD Graphics 730 Shared Video Memory (UMA) |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | Audio Output |
| Compliant Standards | High Definition Audio |
| Input Device | Input Device |
| Type | Mouse, keyboard |
| Keyboard | Keyboard |
| Keyboard Name | Lenovo Traditional Keyboard |
| Interface | USB |
| Localization & Layout | German |
| Mouse | Mouse |
| Mouse Name | Lenovo Calliope Mouse |
| Interface | USB |
| Networking | Networking |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL) |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 (total) / 0 (free) x external 5.25" Slim Line ¦ 1 (total) / 1 (free) x internal 3.5" |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 (low-profile) ¦ 1 (total) / 1 (free) x M.2 Card (for WLAN) ¦ 1 (total) / 0 (free) x M.2 Card (for SSD) |

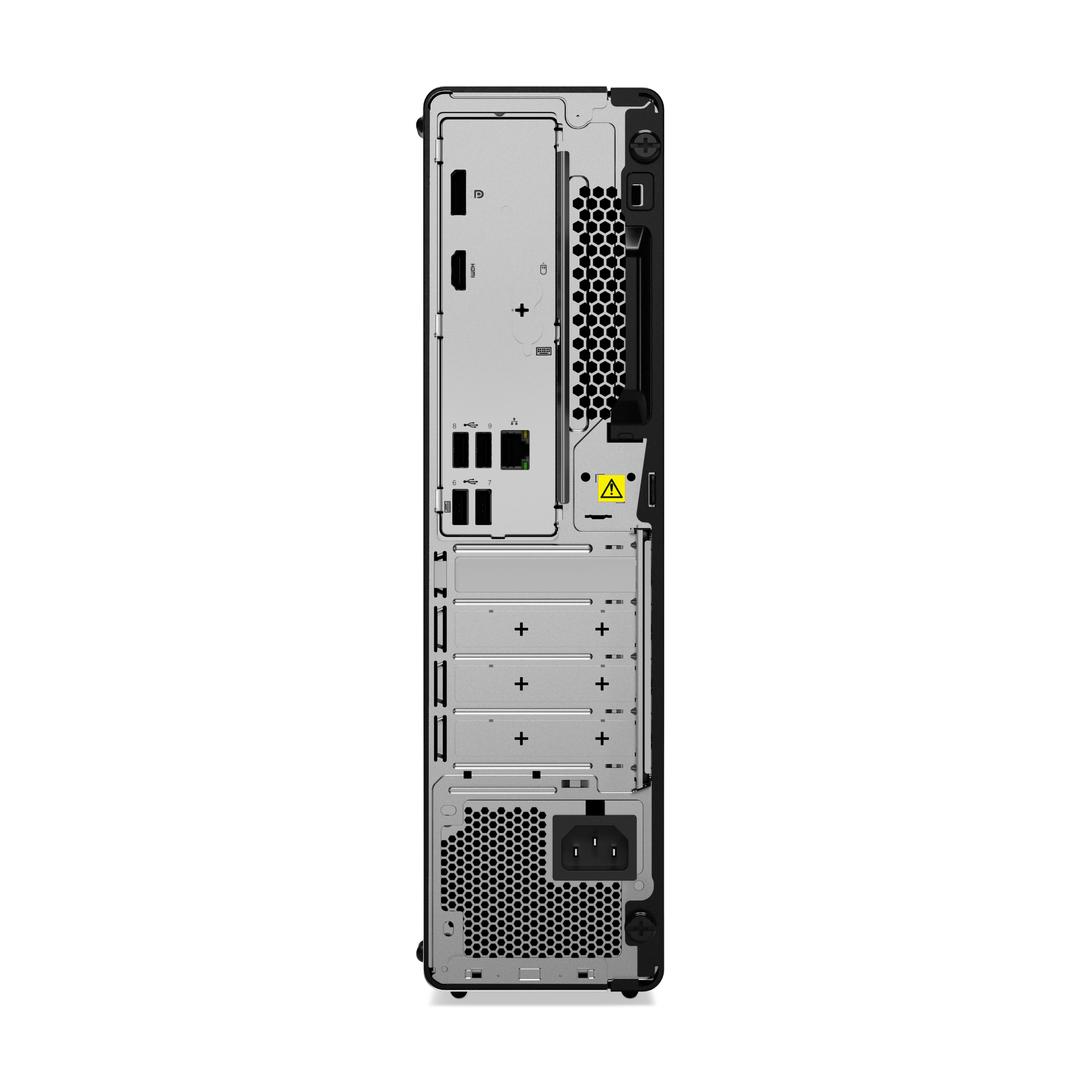

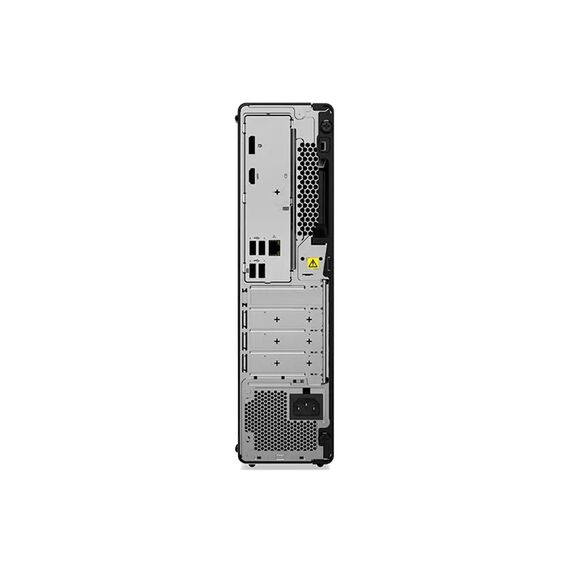

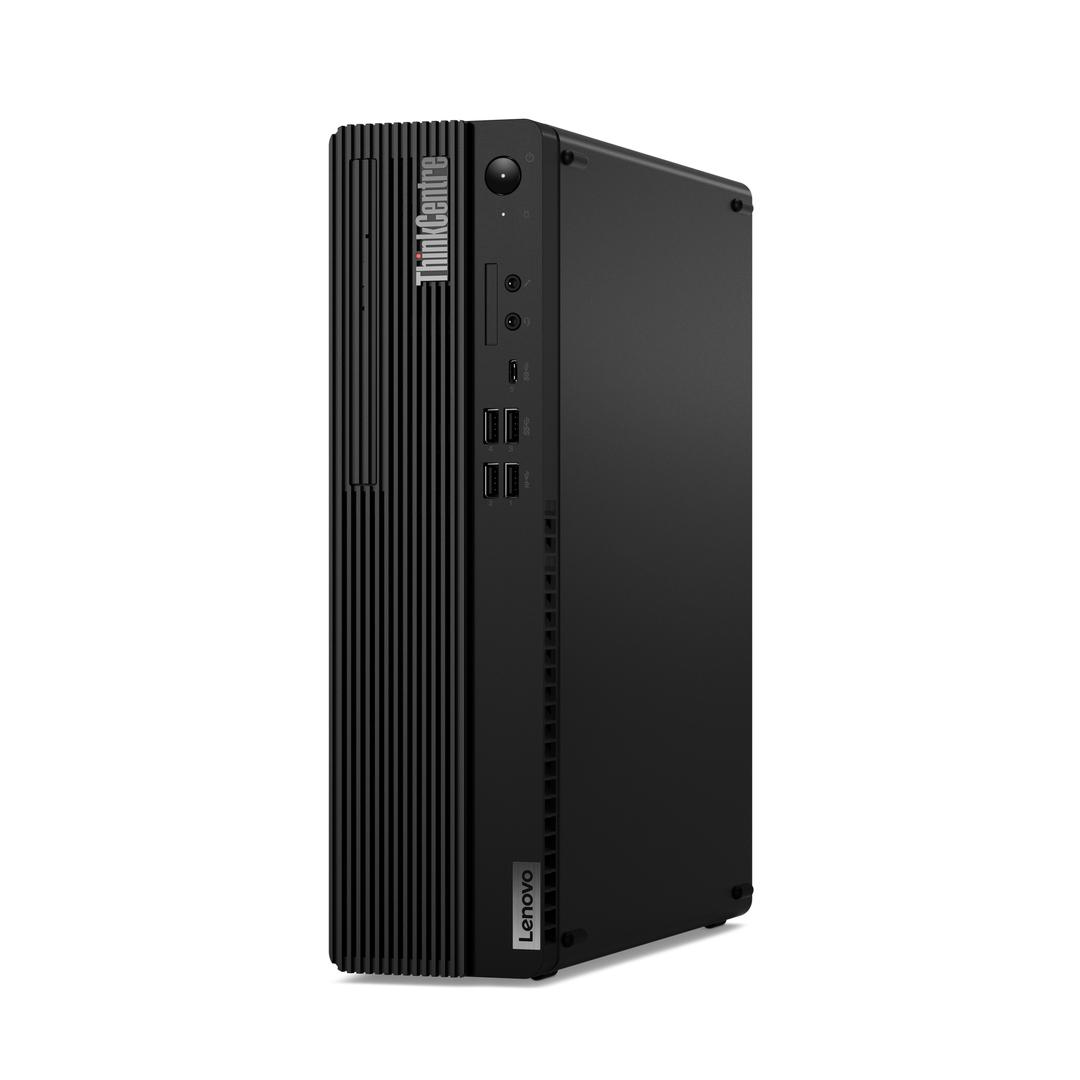

| Interfaces | 1 x USB-C 3.2 Gen 1 (1 in front) (data transfer, 15W charging) ¦ 4 x USB 3.2 Gen 1 (4 in front) ¦ 4 x USB 2.0 (4 rear) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x microphone (1 in front) ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x DisplayPort 1.4a |
| Miscellaneous | Miscellaneous |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, FIPS 140-2, GREENGUARD, Energy-Related Products (ErP) Lot 3, TCG Certified, TCO Certified 9.0 |
| Manufacturer Selling Program | Lenovo TopSeller |
| Power | Power |
| Device Type | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 260 Watt |
| Efficiency | 90% |
| Operating System / Software | Operating System / Software |
| OS Provided | Windows 11 Pro German |
| Sustainability Information | Sustainability Information |
| Carbon Footprint | 537 kg carbon emissions |
| Total CF/unit Standard Deviation (kg CO2e) | 129 |
| PAIA Version | 1.4.0 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Base warranty - 1 year - on-site ¦ Extended warranty - 1 year - on-site - response time: next business day |
| Dimensions & Weight | Dimensions & Weight |
| Width | 9.25 cm |
| Depth | 29.77 cm |
| Height | 33.95 cm |
| Weight | 5.3 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 19.5 cm |
| Shipping Depth | 39.5 cm |
| Shipping Height | 53 cm |
| Shipping Weight | 7.6 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% |
