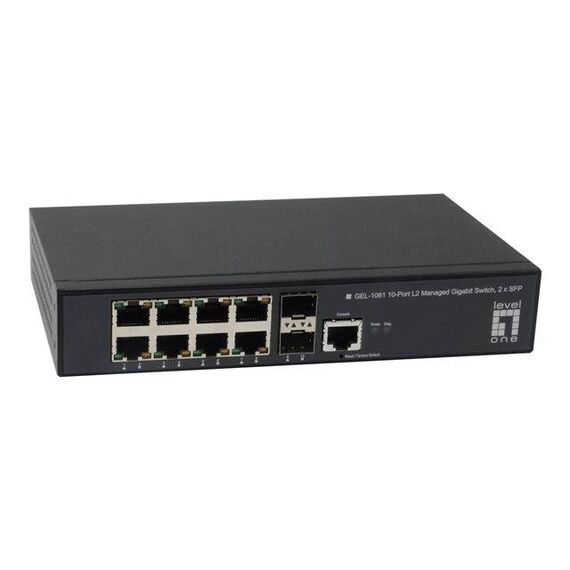

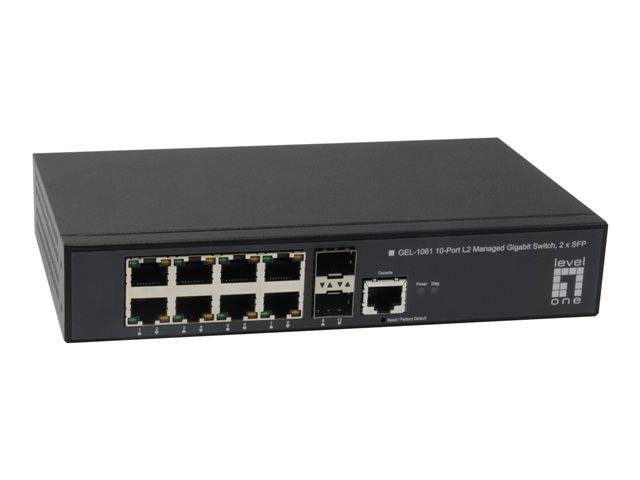

Level One GEL-1061 / Switch / Managed / 8 x 10/100/1000 + 2 x SFP / desktop | GEL-1061
Please sign in so that we can notify you about a reply
Level One GEL-1061 / Switch / Managed / 8 x 10/100/1000 + 2 x SFP / desktop | GEL-1061
Description
The GEL-1061 is a L2 managed switches designed for the SMB market. The switches can be deployed in different target network topologies, from small to large. As well as IPv4 and IPv6 features. The GEL-1061 includes green-saving technologies. Using the Energy Efficient Ethernet standard, the switch automatically decreases power usage when network traffic is low.
Product Specification
| Device Type | Switch - 10 ports - Managed |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x SFP |
| Performance | Backplane switching capacity: 20 Gbps ¦ Forwarding performance: 14.9 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Remote Management Protocol | SNMP, RMON, Telnet, HTTP, TFTP, CLI |
| Features | Flow control, VLAN support, IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, IGMP filtering, IGMP throttling, Storm Control, system log, Bridge protocol data unit (BPDU) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az, UPnP |
| RAM | 32 MB |
| Status Indicators | Power, link/activity |
| Interfaces | 8 x 1000Base-T RJ-45 ¦ 2 x SFP ¦ 1 x console RJ-45 |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 8 Watt |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| Compliant Standards | UL, VCCI, BSMI, FCC |
| Width | 19.6 cm |
| Depth | 11.7 cm |
| Height | 3.6 cm |
| Weight | 817 g |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - LevelOne - GEL-1061
General
8-Port
More Details
Product Code
04:408940
EAN Code
4015867228623
Manufacturer
LevelOne
