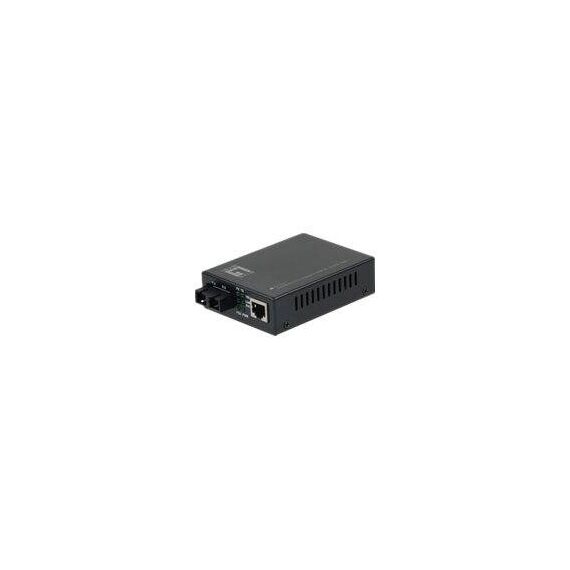

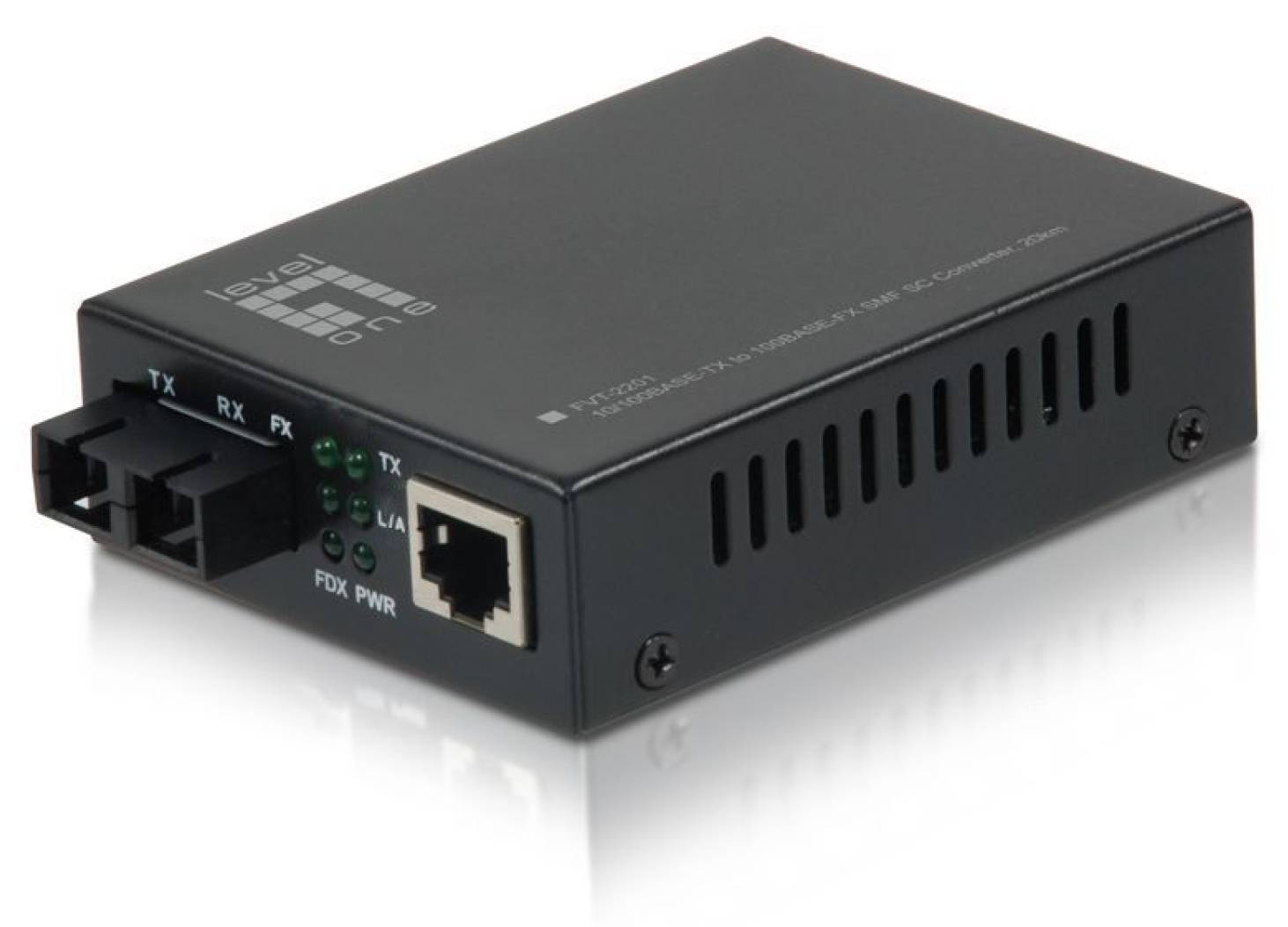

LevelOne FVT-2201 / Fibre media converter / 100Mb LAN / 10Base-T, 100Base-FX, 100Base-TX / RJ-45 / SC single-mode / up to 20 km / 1310 nm | FVT-2201
Please sign in so that we can notify you about a reply
Special Features
- Transfers data from 10/100Base-TX copper to fiber interfaces
- Single-mode fiber with SC connector for transmission of up to 20 km
- Built-in LFP (Link Fault Pass-through) technology
- IEEE 802.3x flow control protects against lost packets for reliable data transmission
- Dip switches for customized configuration
- Supports low-time lag transmission
- Supports the transmission of extra-long packets
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 20 km |
| Status Indicators | Power, link/activity |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), built-in DIP switch |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC single-mode female x 2 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC |
| Power | Power |
| Power Device | External power adapter |
| Dimensions & Weight | Dimensions & Weight |
| Width | 7.1 cm |
| Depth | 9.4 cm |
| Height | 2.6 cm |
| Weight | 420 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
Features - LevelOne - FVT-2201
More Details
Product Code
04:365992
EAN Code
4015867225486
Manufacturer
LevelOne
