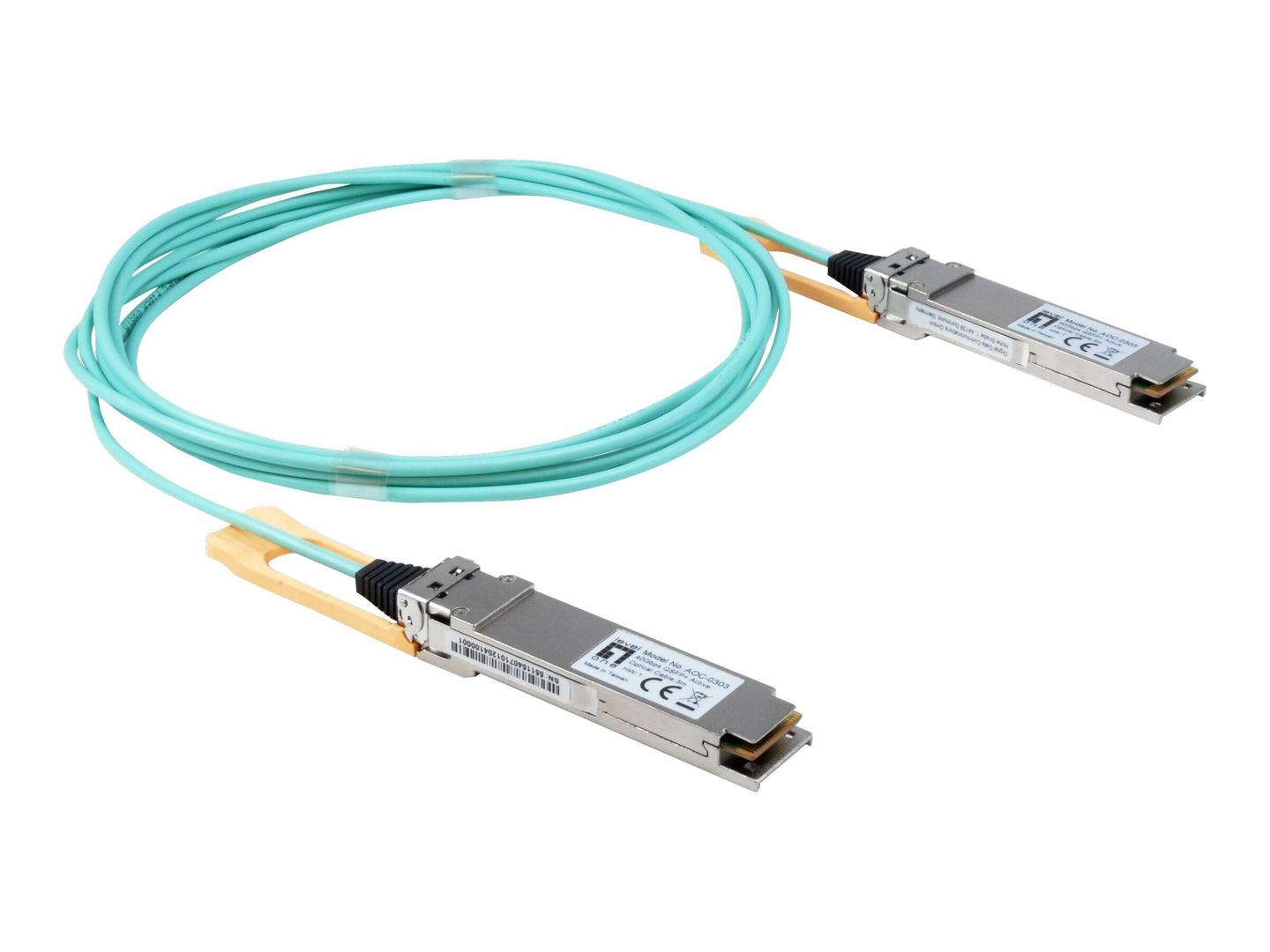

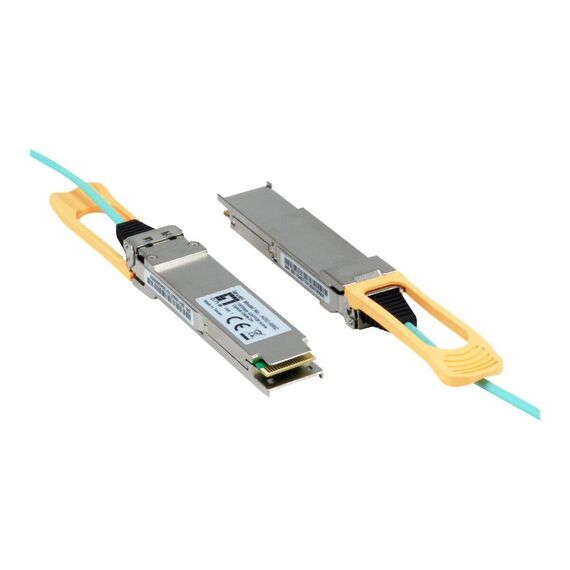

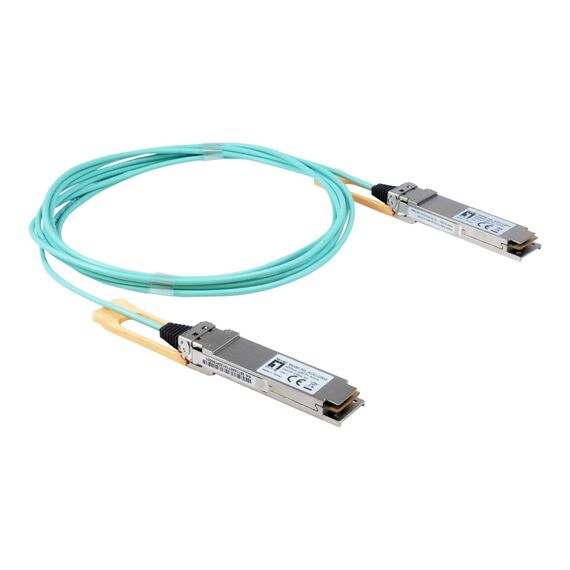

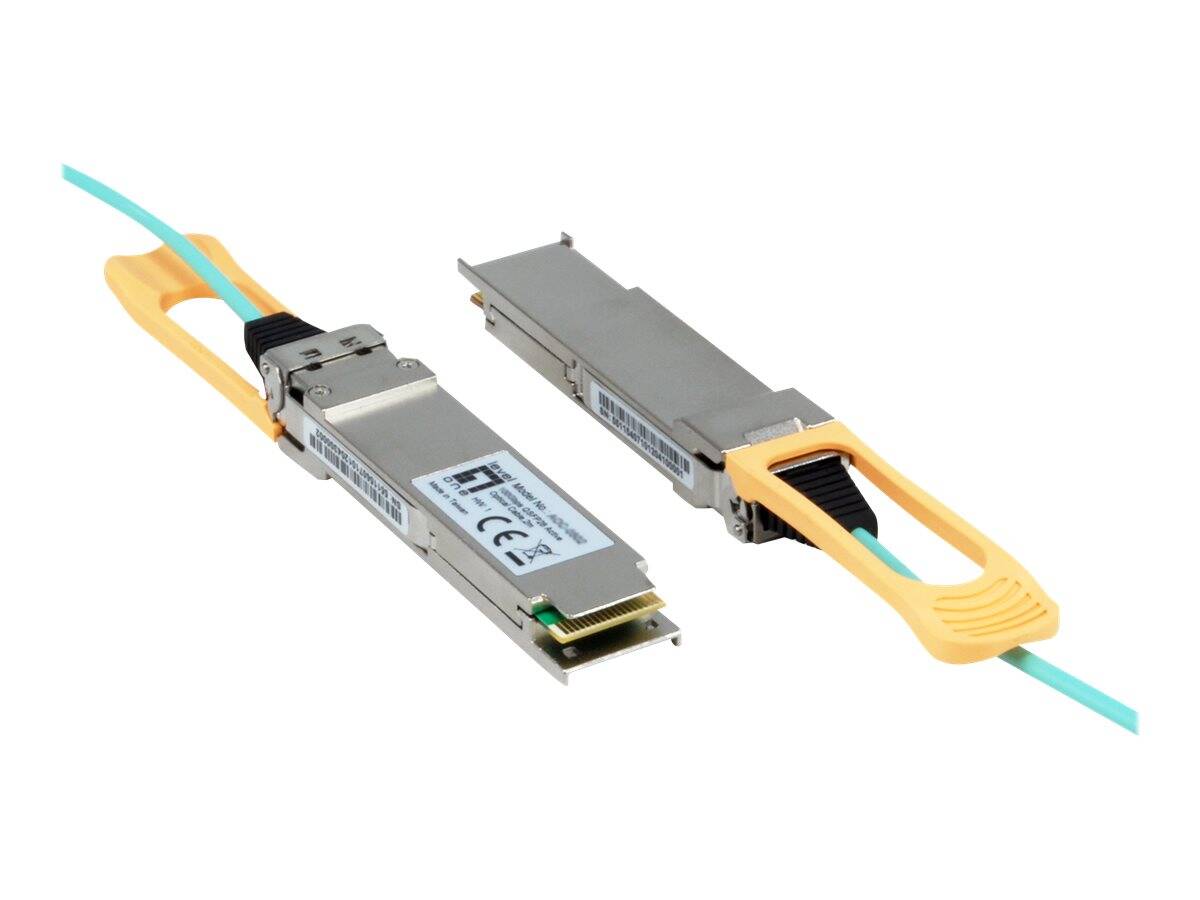

LevelOne - 100GBase-AOC direct attach cable - QSFP28 to SFP28 - 3 m - fibre optic - IEEE 802.3bm - Active Optical Cable (AOC) | AOC-0503
Please sign in so that we can notify you about a reply
Special Fetures
- Data rates of up to 100Gbps
- Compliant with 100GBASE-SR4 standards
- Supports EDR 4x link bandwidth
- Compliant with QSFP28 Multi-Sourcing Agreement (MSA) standards
- Supports Digital Diagnostics Monitoring (DDM) for easy status monitoring
- Hot-swappable providing non-stop service
Product Specification
| Network Cable Type | 100GBase-AOC direct attach cable - IEEE 802.3bm |
| Technology | Fibre optic |
| Features | Active Optical Cable (AOC), Digital Diagnostics Monitoring (DDM) |
| Length | 3 m |
| Weight | 117 g |
| Connectivity | |
| Connector | QSFP28 |
| Connector (Second End) | SFP28 |
| Miscellaneous | |
| Compliant Standards | MSA, RoHS 2011/65/EU, 21 CFR 1040.10, 21 CFR 1040.11, IEC/EN 60825-1:2014 Class 1, RoHS 2015/863/EU |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - LevelOne - AOC-0503
Length
3m
More Details
Product Code
04:372627
EAN Code
4015867224151
Manufacturer
LevelOne
