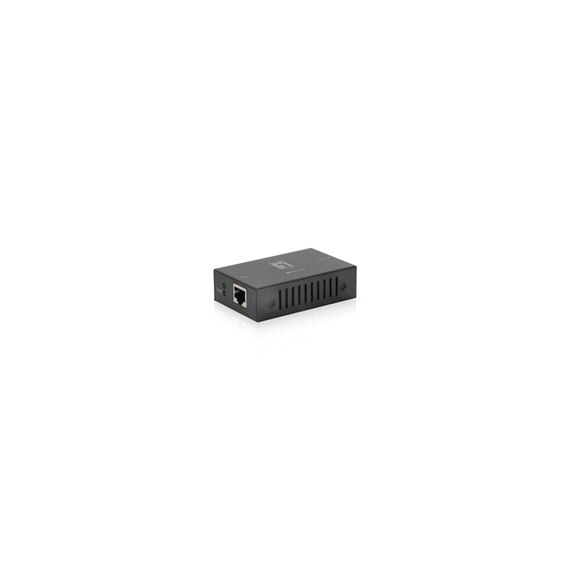

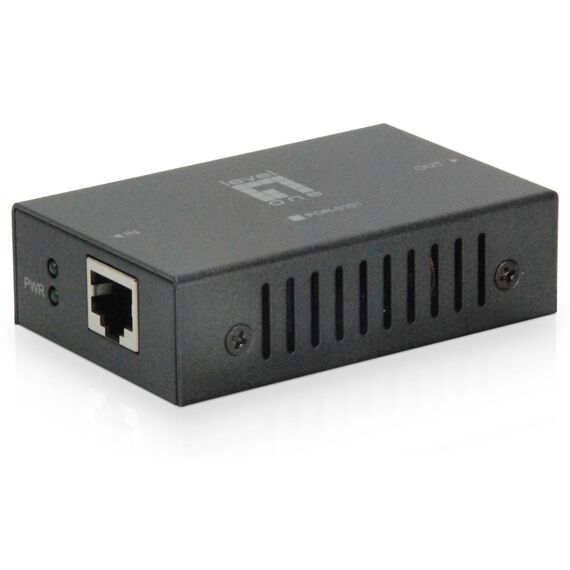

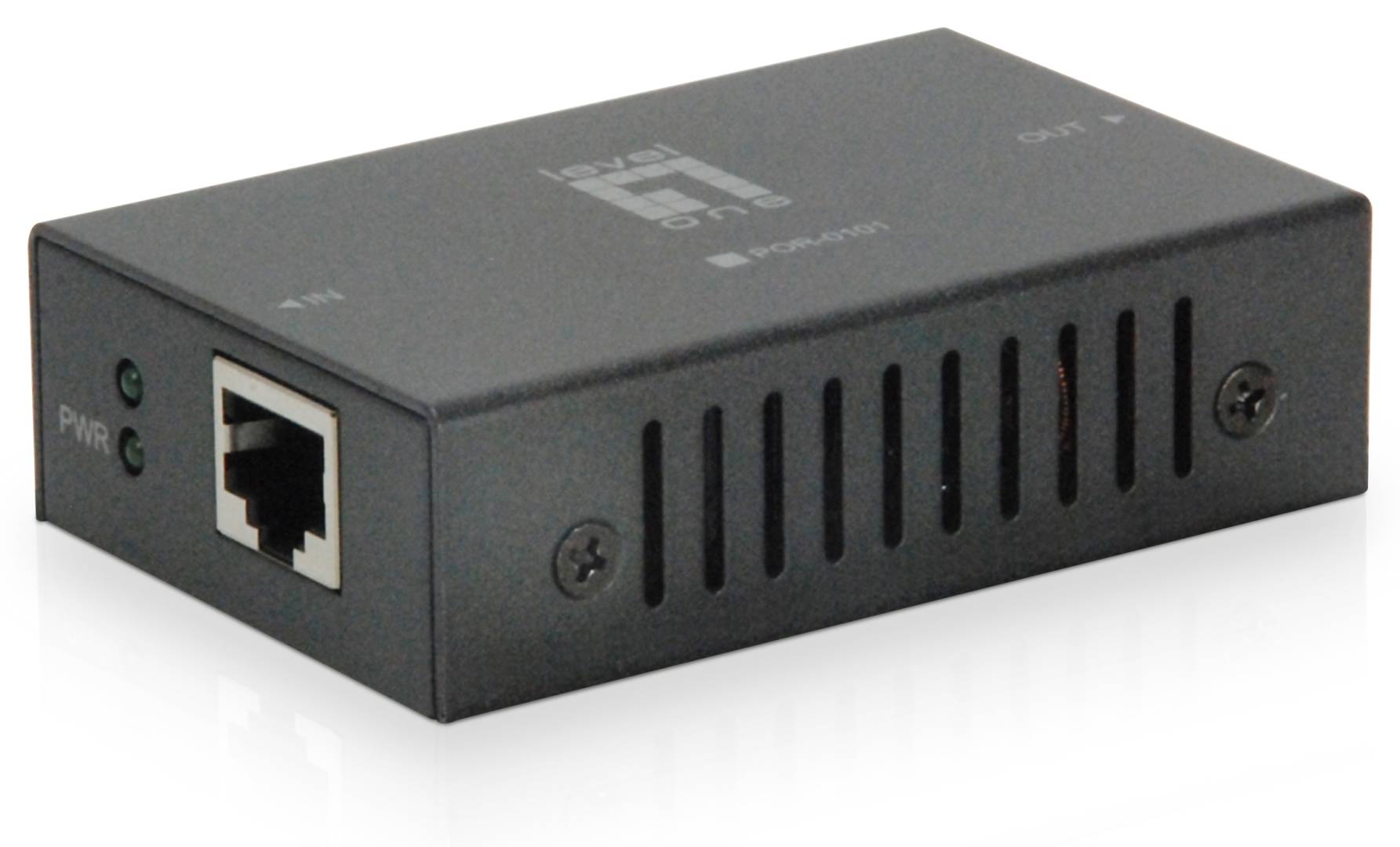

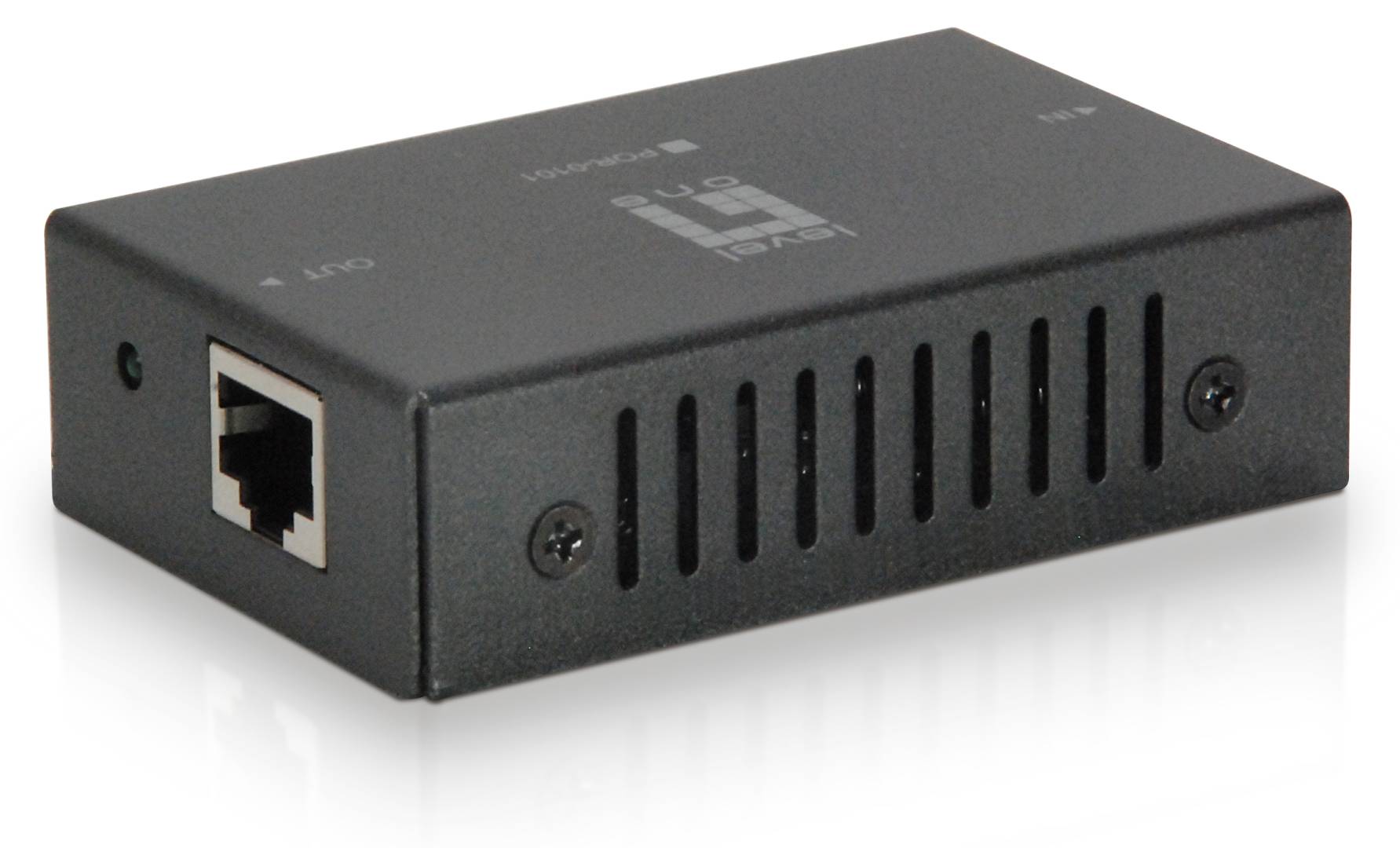

LevelOne POR-0101 / Repeater / 100Mb LAN / 10Base-T, 100Base-TX / up to 100 m | POR-0101
Please sign in so that we can notify you about a reply
LevelOne POR-0101 / Repeater / 100Mb LAN / 10Base-T, 100Base-TX / up to 100 m | POR-0101
Description
For system integrators looking for a professional solution to help extend their PoE network, POR-0101 is the perfect accessory to increase your Power over Ethernet network performance. LevelOne POR-0101, a 1-port PoE repeater requiring neither configuration nor electrical power, is an innovative transmitter to pass on both data and power extend to another 100 meters. The delivery though one PoE port and one non-PoE port are adequate to extend network devices such as WLAN access points, network cameras and other appliances with high-speed to the network for greater deployment flexibility.
LevelOne POR-0101 / Repeater | POR-0101
Special Features
- High power midspan PoE compliant to simplify deployment and installation
- 10/100 Mbps wire speed transmission and reception
- Forwards Power over Ethernet to remote device
- Extends PoE connection for another 100 meters
- Multiple PoE repeaters can be deployed by daisy chain to extend range
- Simple Plug and Play installation, no additional power supply required
Product Specification
| Device Type | Repeater |
| Form Factor | External |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Max Transfer Distance | 100 m |
| Status Indicators | Power, PoE |

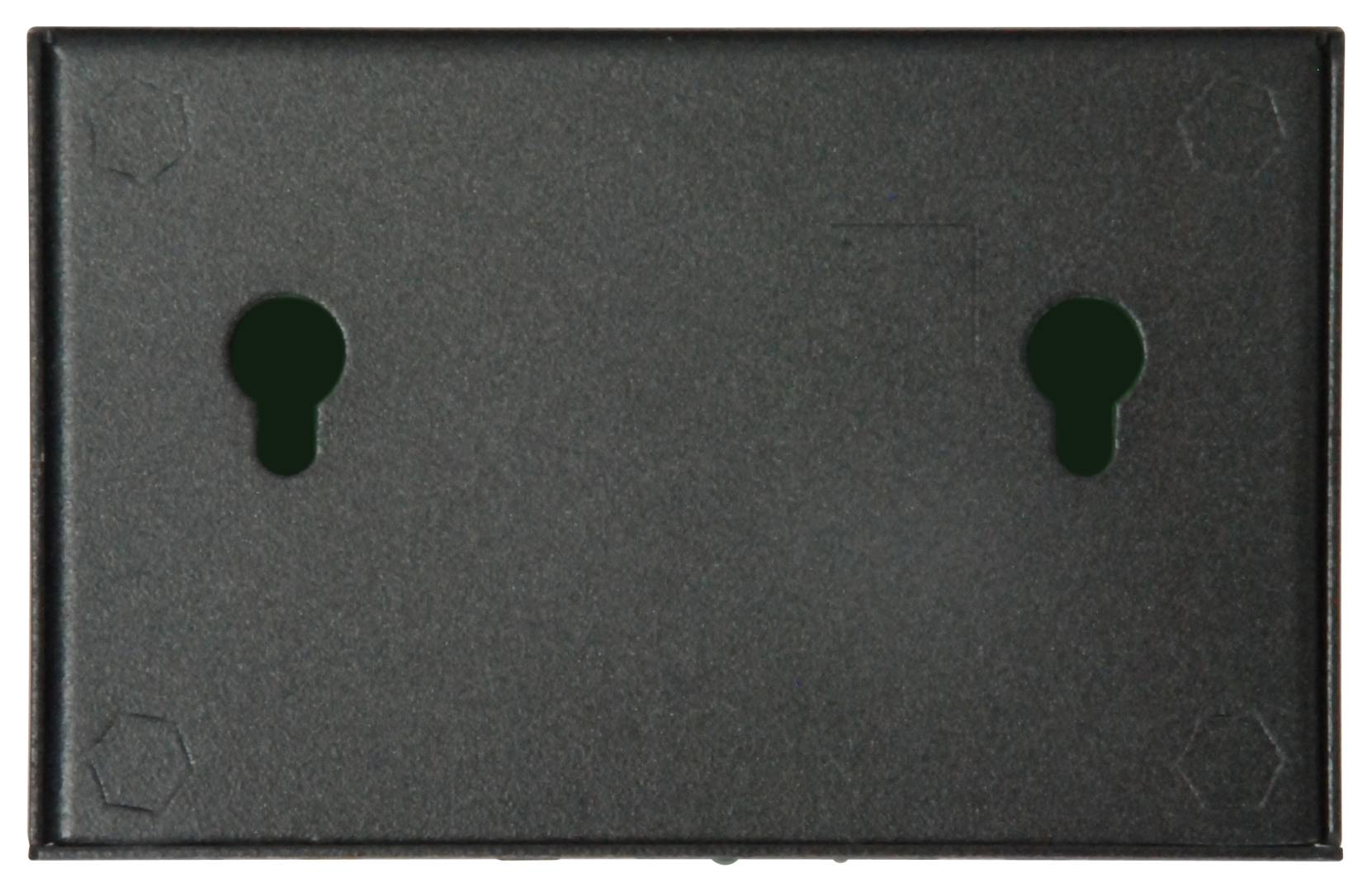

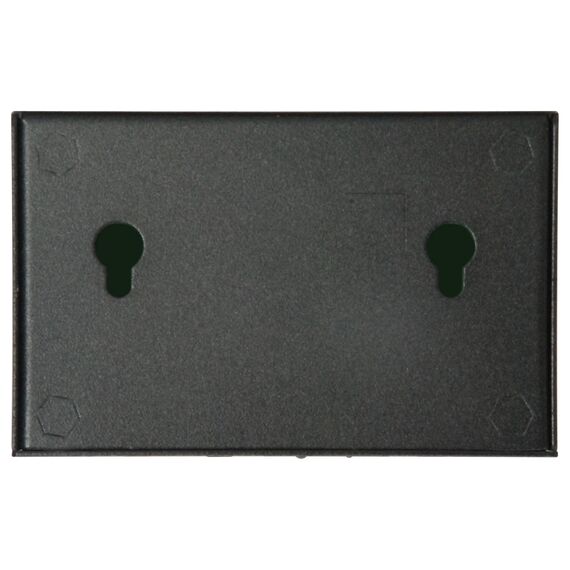

| Features | Flow control, wall mountable |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX (PoE+ output) - RJ-45 female ¦ 1 x Ethernet 10Base-T/100Base-TX (PoE+ input) - RJ-45 female |
| Compliant Standards | FCC Part 15 B |
| Power Over Ethernet (PoE) | PoE+ |
| Power Consumption Operational | 2.5 Watt |
| Width | 8 cm |
| Depth | 7 cm |
| Height | 2.3 cm |
| Weight | 250 g |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - LevelOne - POR-0101
Length
>50m
More Details
Product Code
04:168953
EAN Code
4015867191279
Manufacturer
LevelOne
