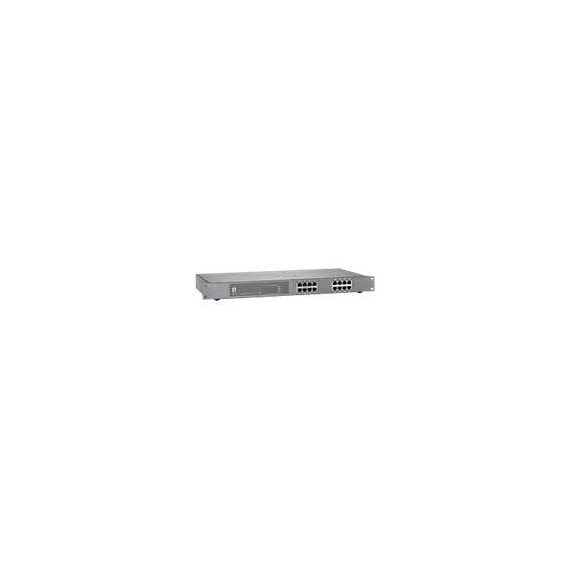

LevelOne GEP-1621 / Switch / unmanaged / 16 x 10/100/1000 (PoE+) / rack-mountable / PoE+ (240 W) | GEP-1621
Please sign in so that we can notify you about a reply
Product Features
- Cost effectiveness and enhanced flexibility
Featuring Power over Ethernet Plus (PoE+) technology (IEEE 802.3at), which nearly doubles the power delivery comparing to the IEEE 802.3af PoE technology. Furthermore, it ensures that the power is used more efficiently due to the maximum power will only be requested when it is needed. Thus providing great cost savings by reducing power bills and eliminating the need for additional power cables and outlets.
Special Features
- 16 PoE-Plus Gigabit Ethernet ports
- 10/100/1000 Mbps wire speed transmission and reception
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- 9K jumbo frames to increase data transfer rates
- Supports 8K MAC address auto-learning and auto-aging
- IEEE 802.3x flow control protects against lost packets for reliable data transmission
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
Product Specification
| Device Type | Switch - 16 ports - unmanaged |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Backplane switching capacity: 32 Gbps ¦ Forwarding performance: 1488000 pps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Features | Flow control, store and forward, half duplex mode, full duplex mode, Energy Efficient Ethernet, 256KB packet buffer |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Built-in Devices | Led panel |
| Status Indicators | Power, PoE, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 16 x 1000Base-T RJ-45 PoE+ - 30 W |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 250 Watt |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC Part 15 A |
| Dimensions & Weight | Dimensions & Weight |
| Width | 48 cm |
| Depth | 20 cm |
| Height | 4.4 cm |
| Weight | 2.9 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - LevelOne - GEP-1621
General
16-Port
More Details
Product Code
04:128386
EAN Code
4015867185674
Manufacturer
LevelOne
