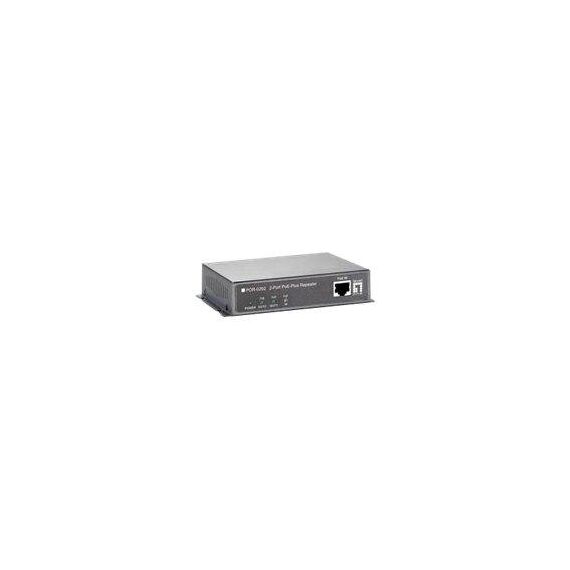

LevelOne POR-0202 / Repeater / 100Mb LAN / 10Base-T, 100Base-TX / 2 ports / RJ-45 / RJ-45 / up to 100 m | POR-0202

Product Features

• Extend the reach of your PoE-plus devices
  For system integrators looking for a professional solution to help extend their PoE (802.3 af/at) network, POR-0202 is the perfect accessory to increase your network performance. As a 2-port repeater, it's now easier to add more devices to the network for greater deployment flexibility.
• Simple yet durable, no software required
  As a PoE-plus repeater, POR-0202 receives all power from the Power Sending Equipment (PSE), such as a PoE-plus switch. This means that POR-0202 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. POR-0202 has 3 RJ-45 ports for easy deployment, 1 "IN" port that accepts the power and data for the first 100 meters, and 2 "OUT" ports that boosts and extends the power and data an additional 100 meters. With a durable metal housing, POR-0202 fits into any tight deployments.
• Applications
  POR-0202 is a long-ranged solution for deploying PoE IP cameras and any Fast Ethernet PoE PD powered by 802.3at PSE.

Special Features

• High power midspan PoE compliant to simplify deployment and installation
• Built-in 2 PoE output ports for PoE devices
• Forwards power over Ethernet to remote device
• Extends PoE connection for another 100 meters
• Multiple PoE repeaters can be deployed by daisy chain to extend range
• Simple Plug and Play installation, no additional power supply required

Product Specification
