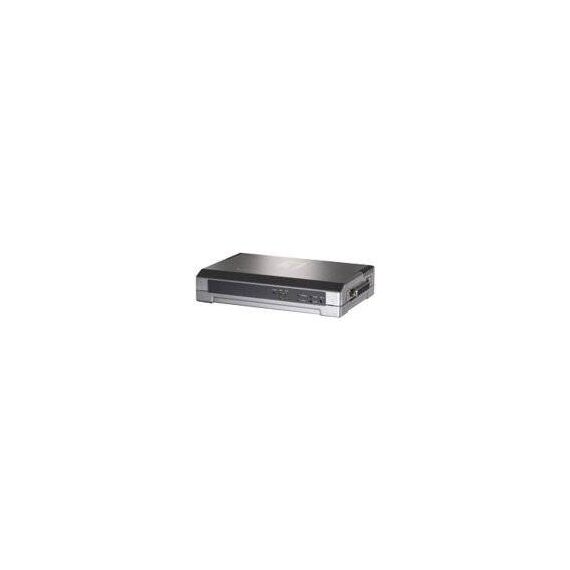

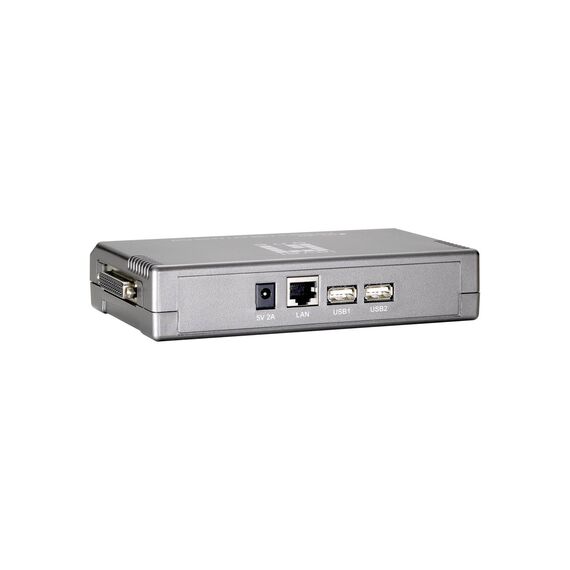

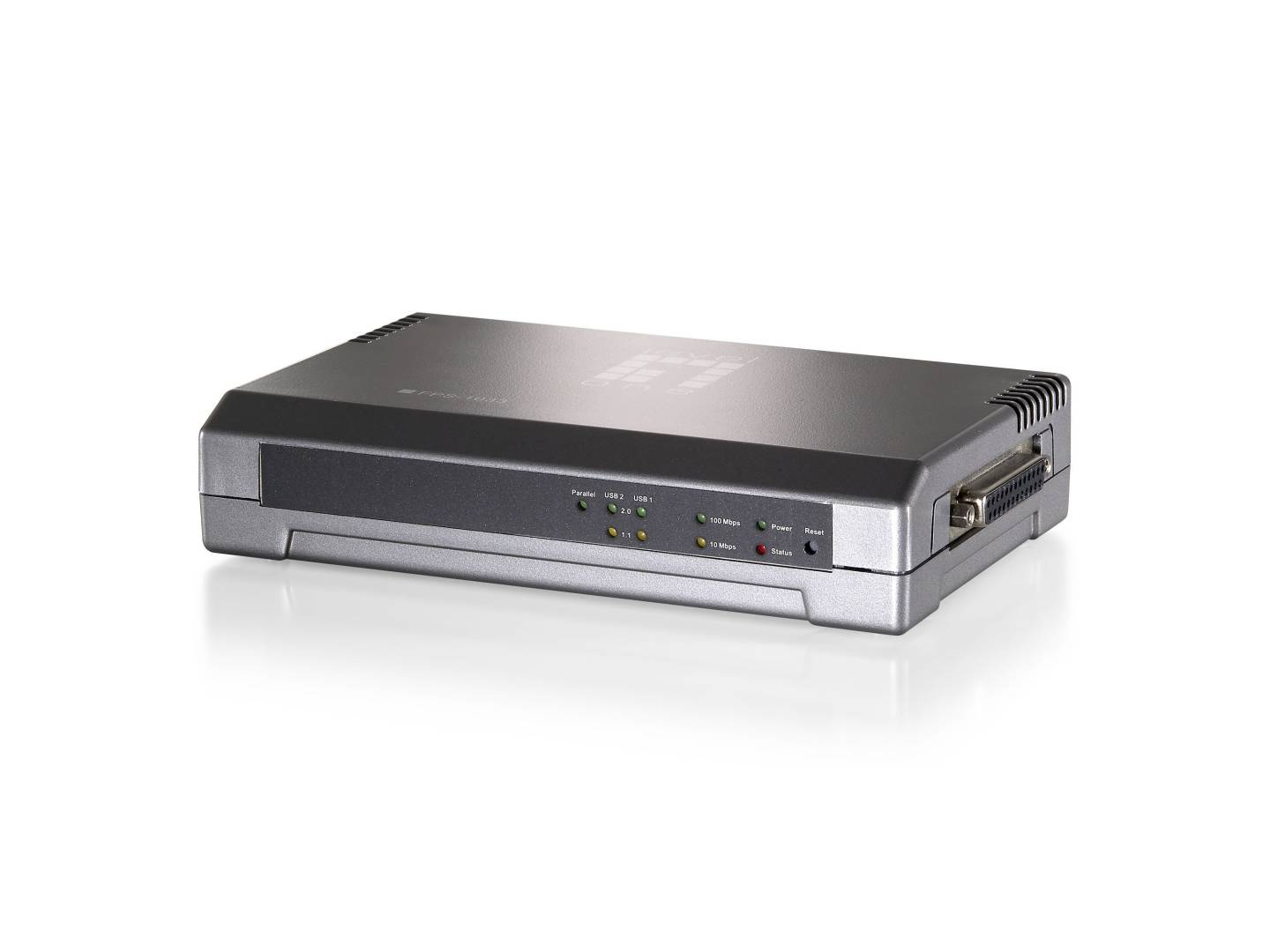

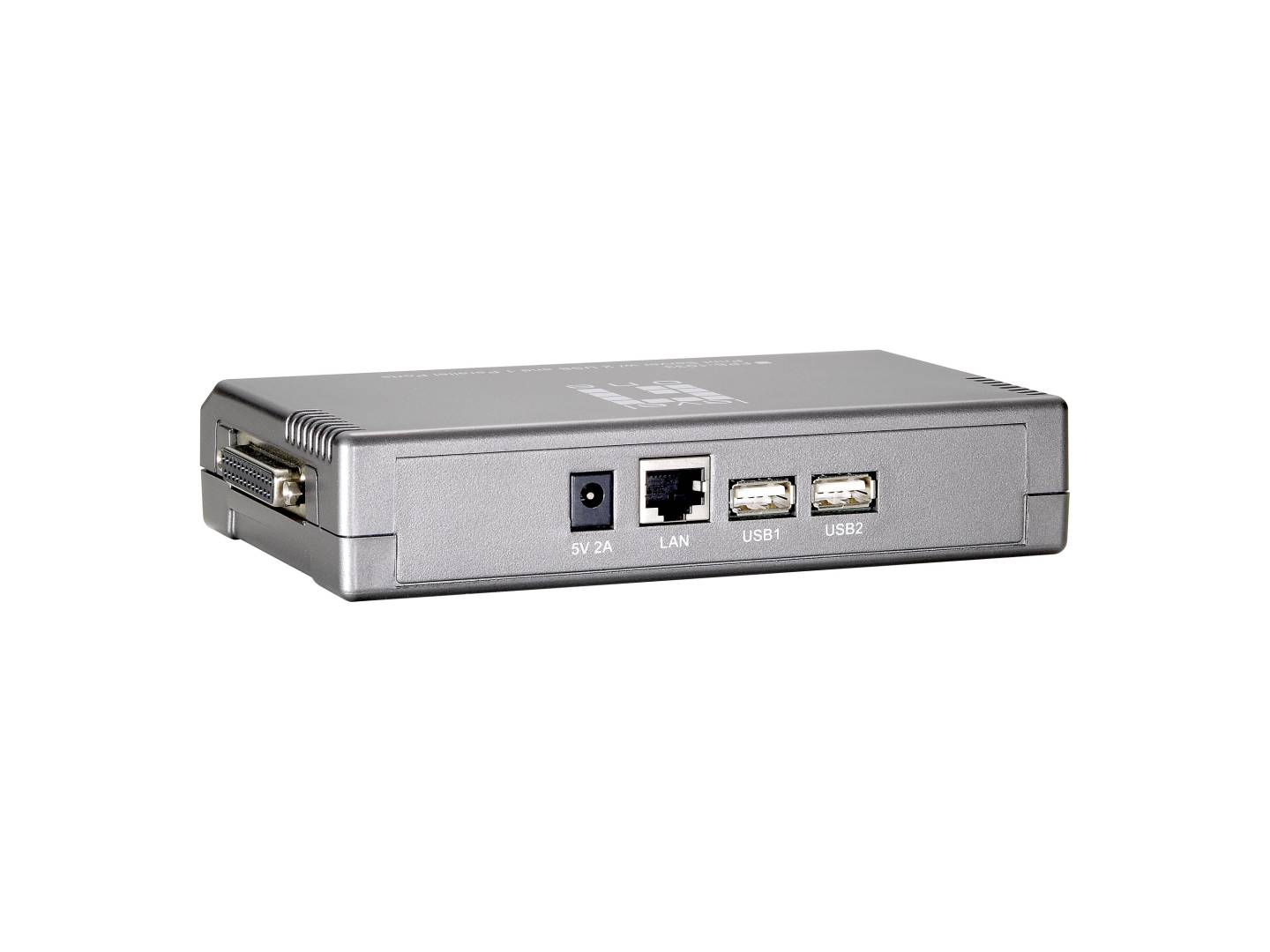

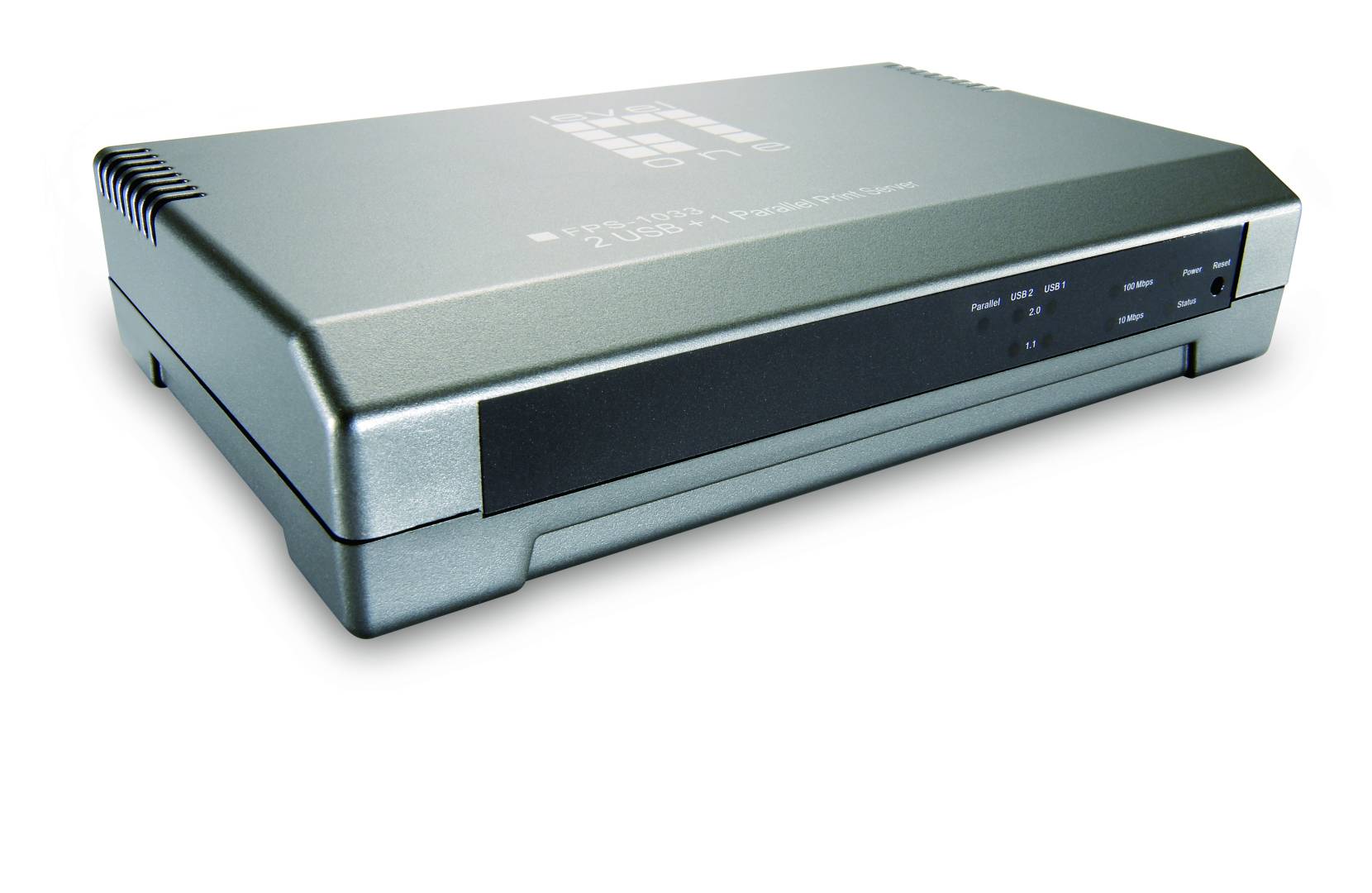

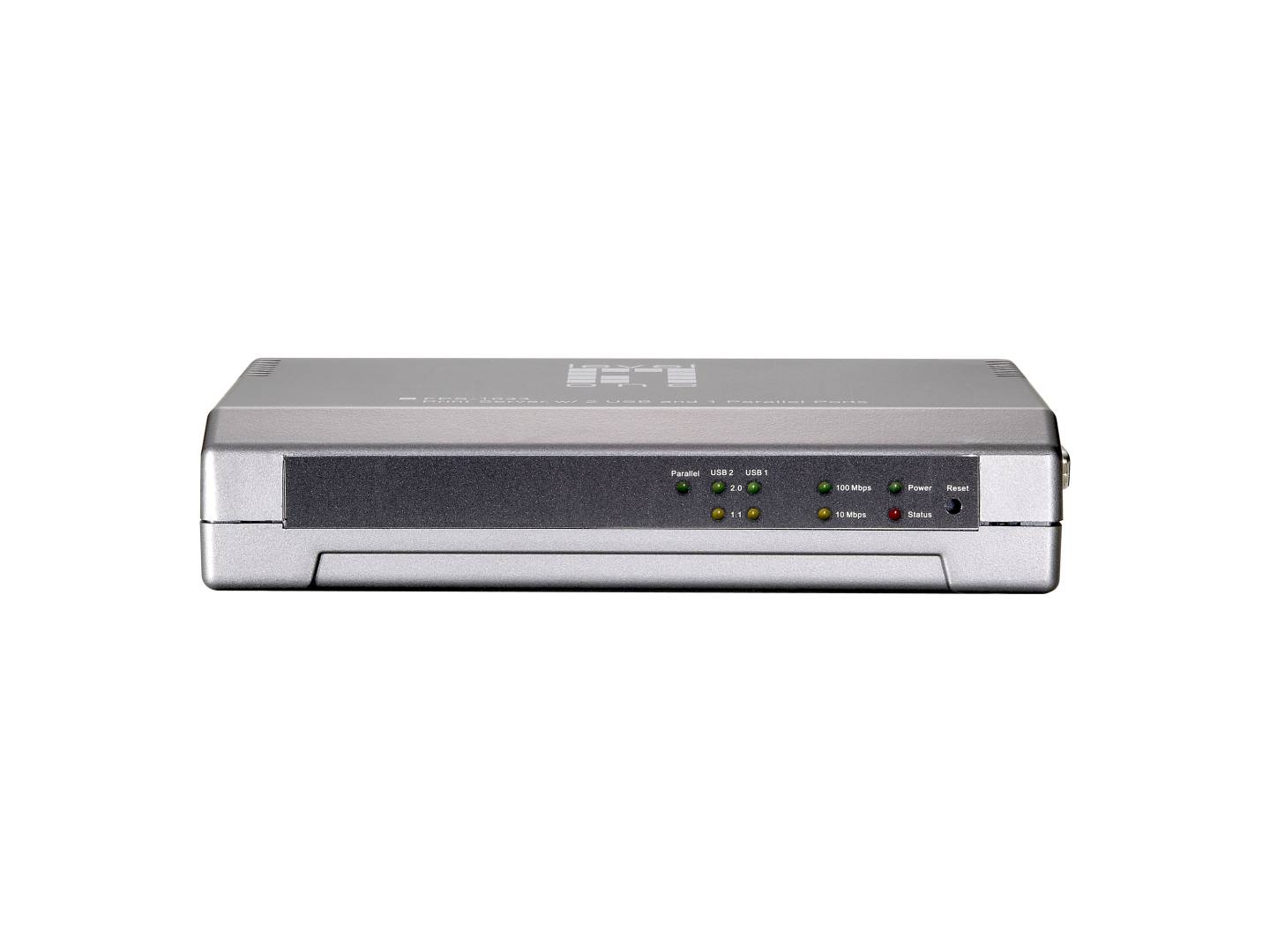

LevelOne FPS-1033 / Print server / USB 2.0 / parallel / 10/100 Ethernet | FPS-1033
Please sign in so that we can notify you about a reply
Product Features
- Multi printer support
The FPS-1033 multi-port print server provides simultaneous connectivity to two USB and one parallel printers. It supports the USB 2.0 standard for high-speed printing. - Multi OS and network printing protocol support
The FPS-1033 multi-port print server supports multi operating systems. Network print protocol supported includes TCP/IP, IPX, NetBEUI, AppleTalk, LPR, SMB over TCP/IP and IPP for flexible use with different network clients connected to the same office network. - Easy installation wizard
The LevelOne FPS-1033 is easily configurable using a Web browser or Windows based configuration program included with the CD-ROM. The print server is easily managed through a Web based user interface and the firmware is upgradeable through TFTP, the windows set-up program or the Web based user interface.
Special Features
- Multi-port print server for network print sharing
- High-Speed USB 2.0 interface
- Fast Ethernet network connectivity
- Web based user interface
- Support multiple operating systems
- Support multiple network printing protocols
Product Specification
| Device Type | Print server |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 / parallel |
| Networking | Networking |
| Ports | 10/100 Ethernet |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Data Transfer Rate | 100 Mbps |
| Network / Transport Protocol | TCP/IP, AppleTalk, NetBEUI/NetBIOS, IP/IPX, LPR/LPD, DHCP, SMB |
| Remote Management Protocol | Telnet, IPP |
| Status Indicators | Power, status, link/activity |
| Features | Auto-sensing per device, DHCP support, Trivial File Transfer Protocol (TFTP) support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 100Base-TX - RJ-45 |
| Connections | 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x parallel - 25 pin D-Sub (DB-25) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC Class B certified |
| Power | Power |
| Power Device | Power adapter - external |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| OS Required | UNIX, Apple MacOS 8.1 or later, Novell NetWare, Linux, Microsoft Windows 2000, Microsoft Windows Millennium Edition, Microsoft Windows XP |
| Dimensions & Weight | Dimensions & Weight |
| Width | 10 cm |
| Depth | 18 cm |
| Height | 3.5 cm |
| Weight | 255 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 70% |
Features - LevelOne - FPS-1033
More Details
Product Code
04:51993
EAN Code
4015867142240
Manufacturer
LevelOne
