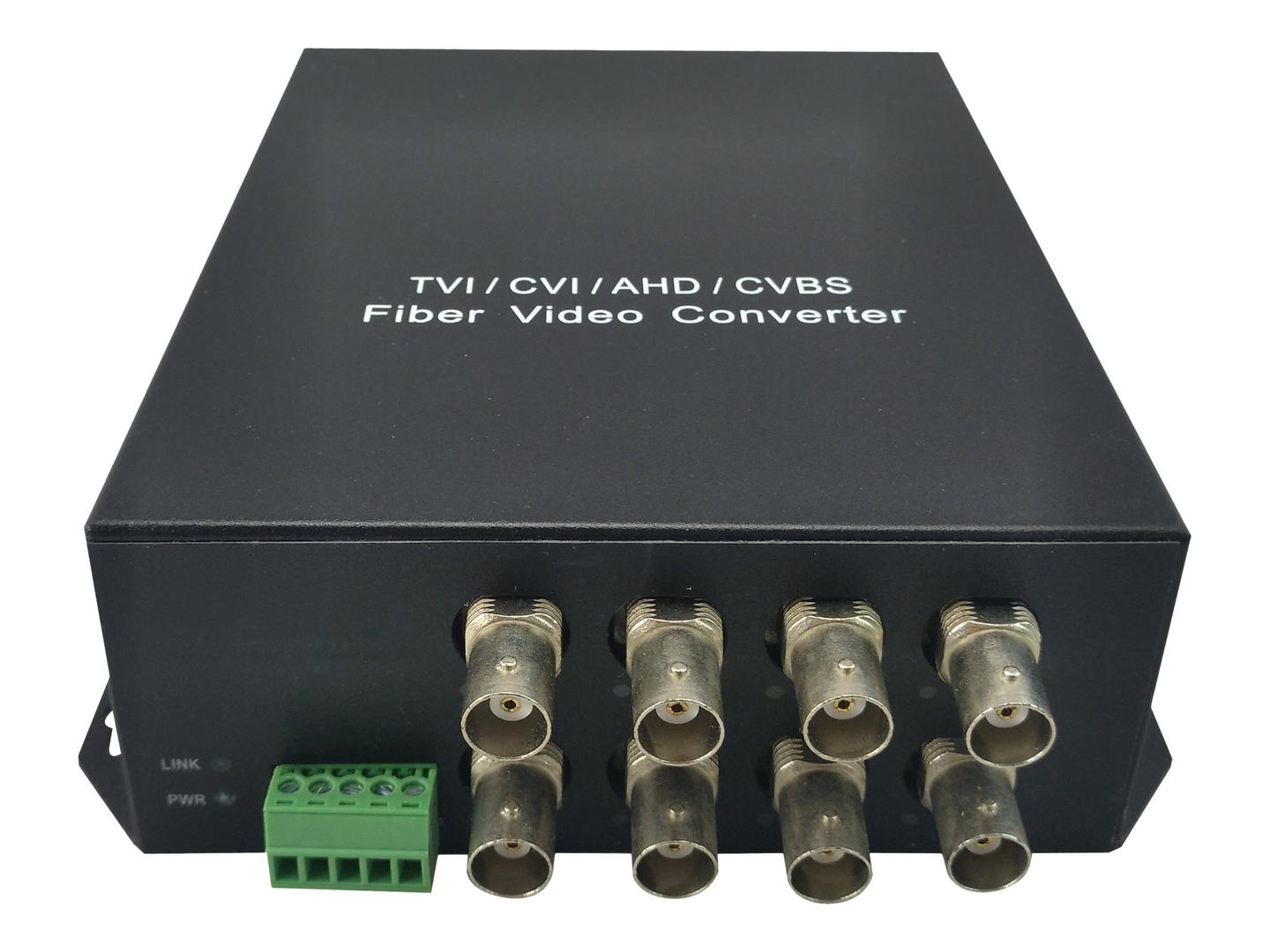

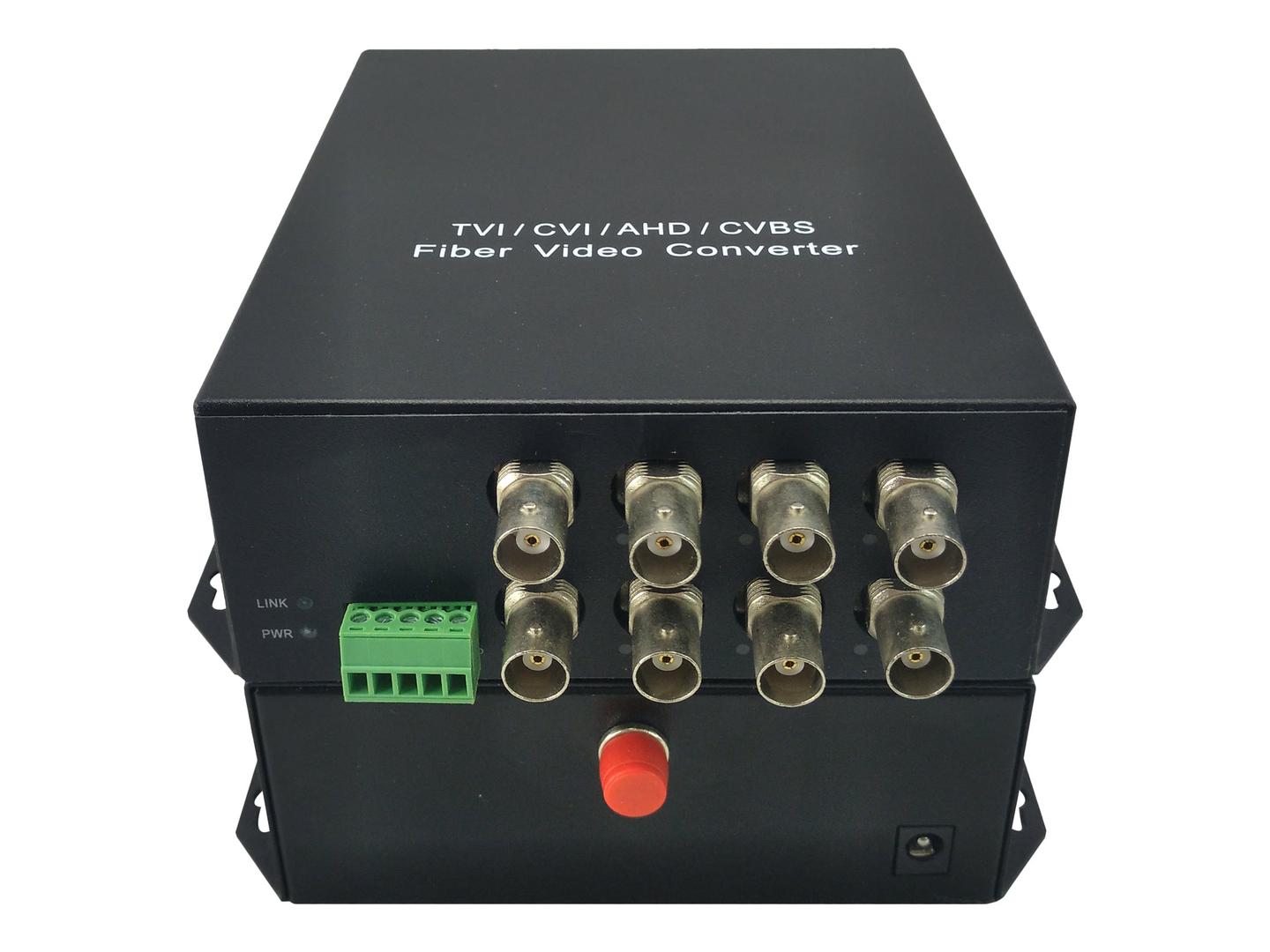

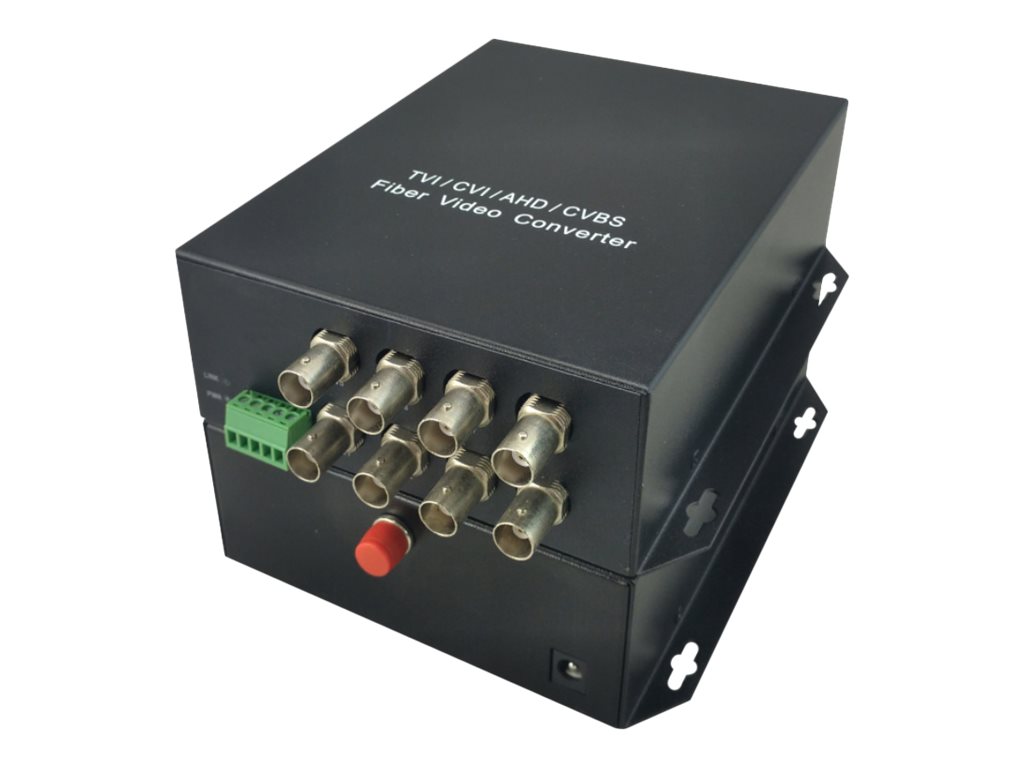

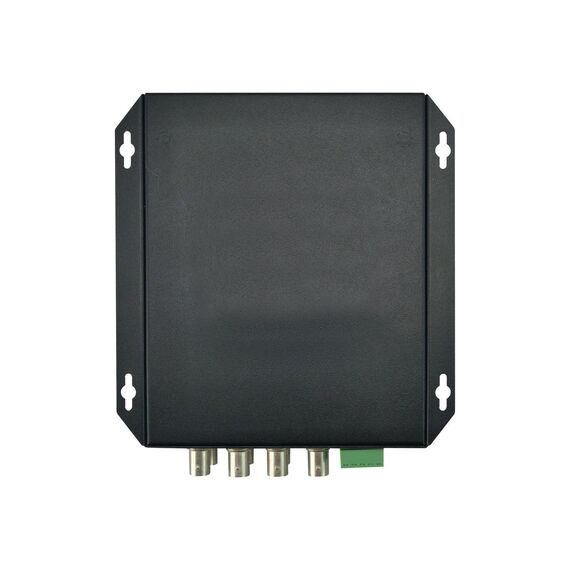

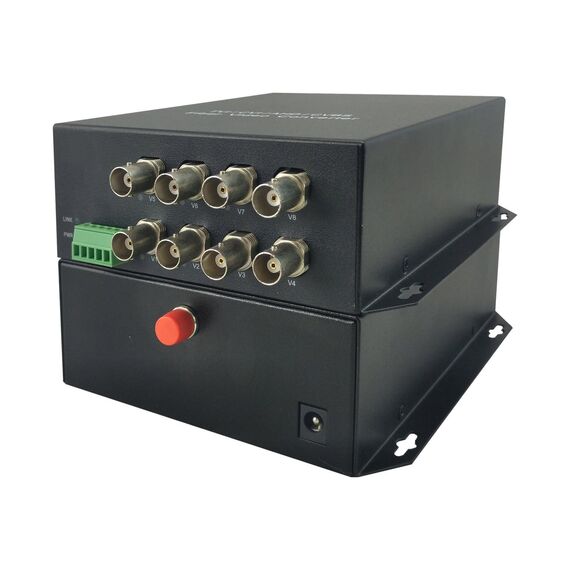

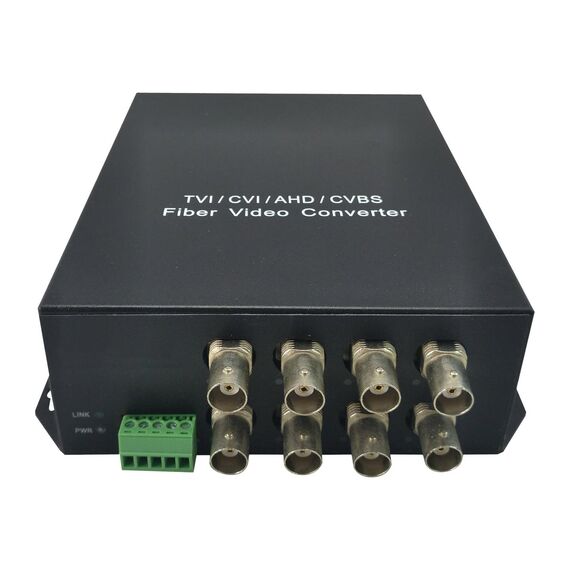

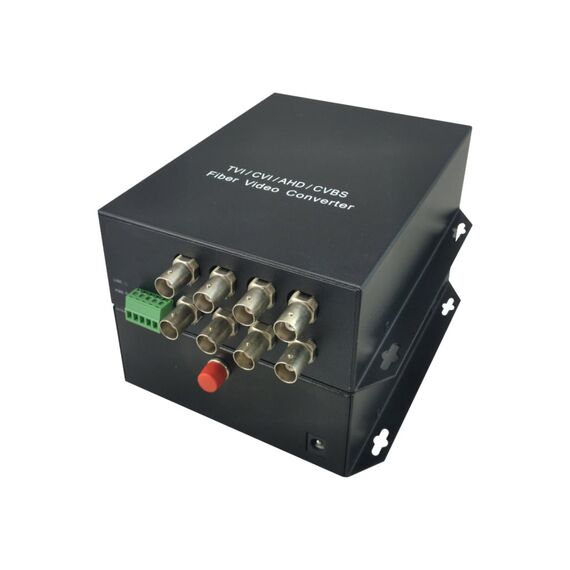

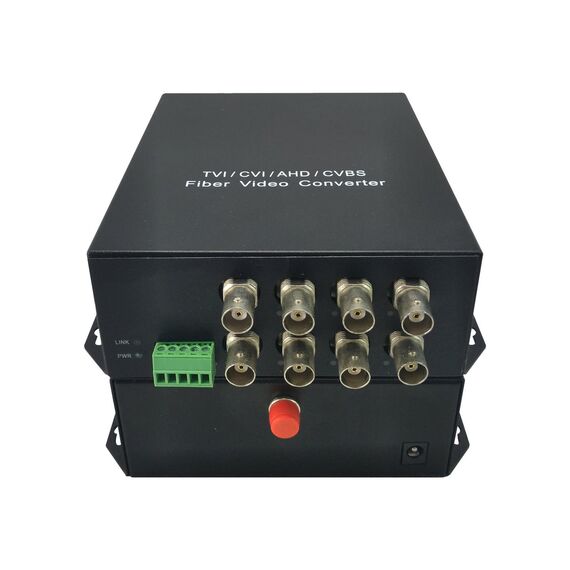

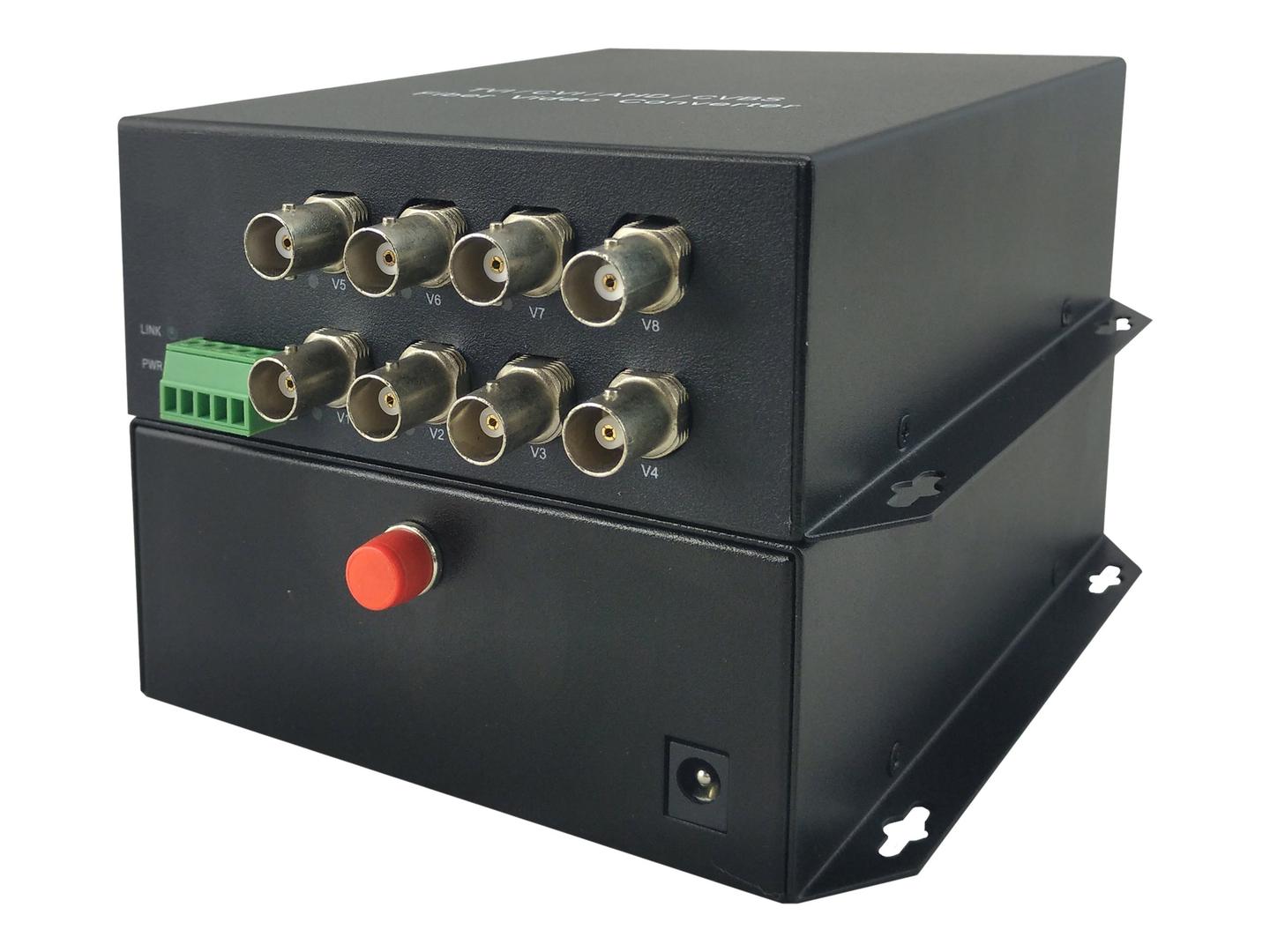

LevelOne AVF-1801 - Video extender - Fibre Channel - 8 ports - up to 20 km - 1310-1610 nm | AVF-1801
Please sign in so that we can notify you about a reply
Special Fetures
- Transmits analog video signal over single fiber cable
- Uncompressed high quality video transmission
- Transmit up to 20 km without optical attenuation
- No RF interference or signal degradation over optical fiber
- No EMI and electromagnetic interference
- LED indicator status for instance system monitoring
- True Plug & Play design facilitates ease of installation
- -25°C to 75°C operating temperature range
Product Specification
| Device Type | Video extender |
| Form Factor | External |
| Networking | |
| Ports Qty | 8 |
| Connectivity Technology | Wired |
| Cabling Type | Fibre Channel |
| Optical Wave Length | 1310-1610 nm |
| Max Video Bandwidth | 6.5 MHz |
| Max Transfer Distance | 20 km |
| Status Indicators | Power, link OK, video |
| Expansion / Connectivity | |
| Interfaces | 8 x video - BNC <br /> 1 x serial (management) |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Power Consumption Operational | 13 Watt |
| Dimensions & Weight | |
| Width | 13.3 cm |
| Depth | 17.4 cm |
| Height | 4.7 cm |
| Weight | 1.5 kg |
| Environmental Parameters | |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - LevelOne - AVF-1801
More Details
Product Code
04:281970
EAN Code
4015867206553
Manufacturer
LevelOne
