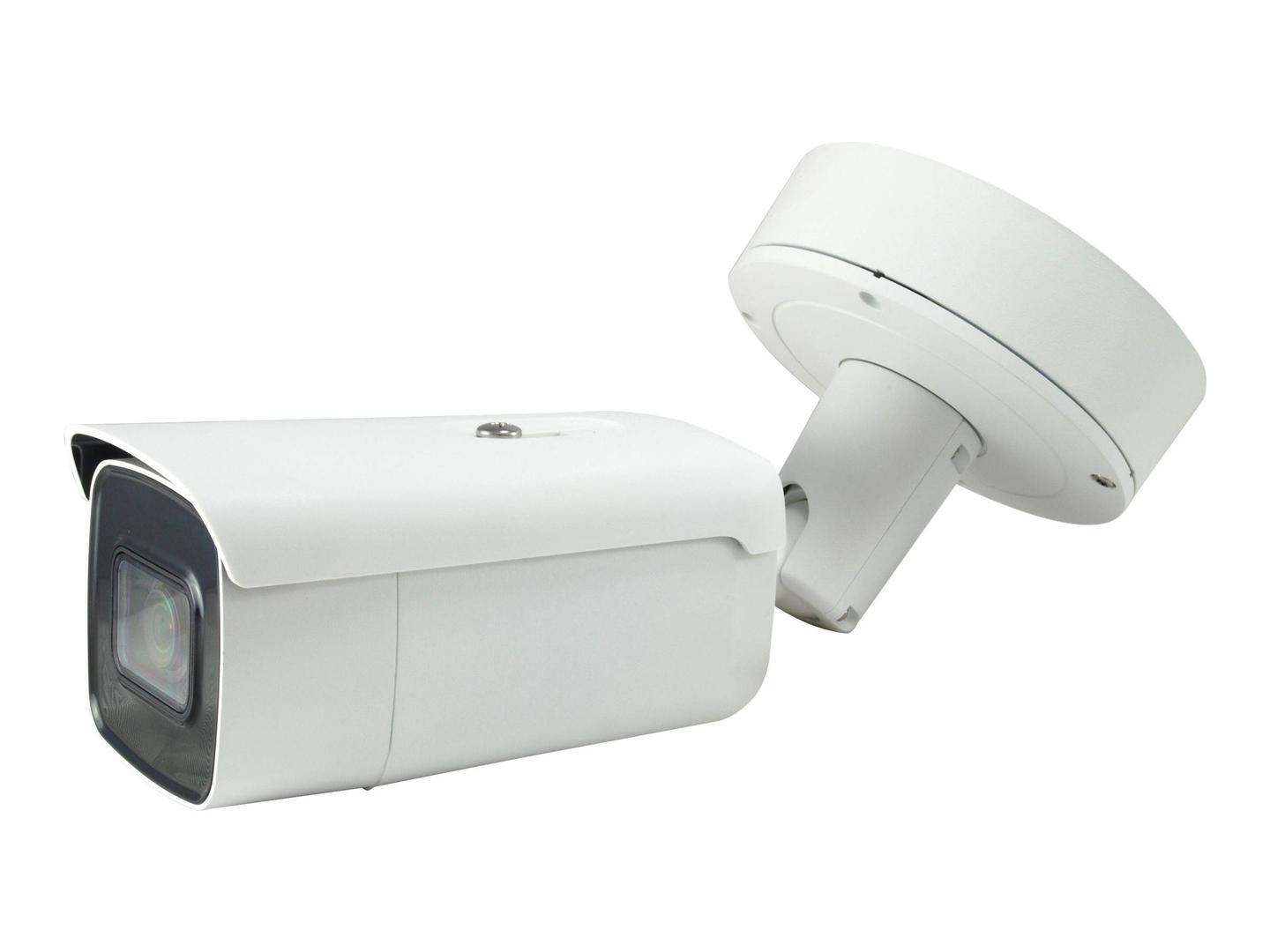

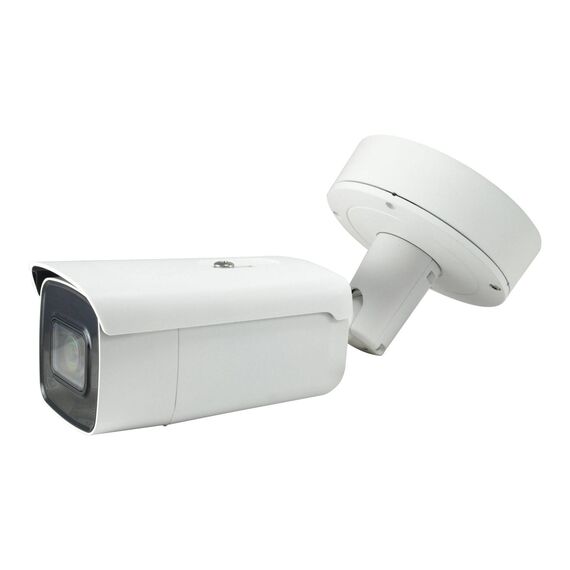

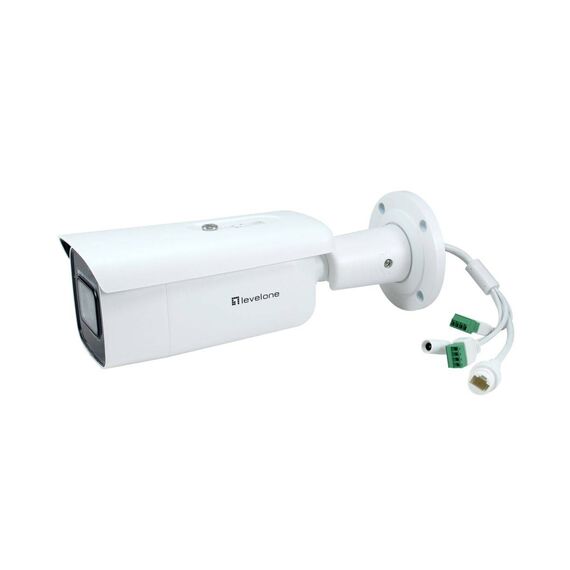

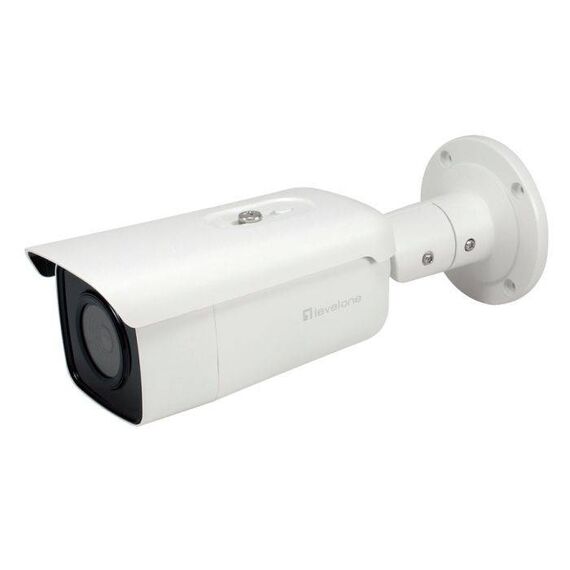

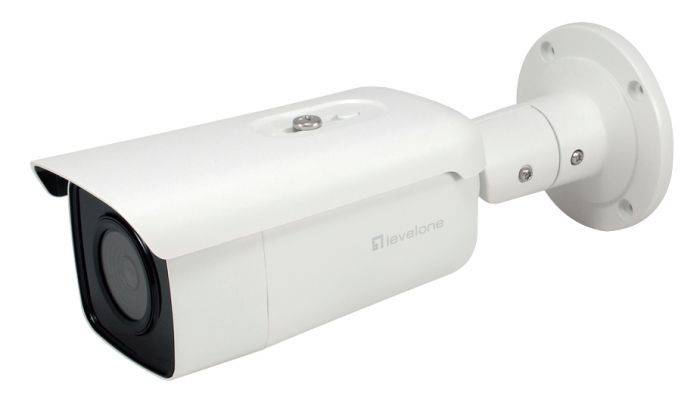

LevelOne FCS-5095 / Network surveillance camera / outdoor, indoor / vandal-proof / colour (Day&Night) / 8 MP / 3840 x 2160 / motorized / audio / LAN 10/100 / AVI, H.264, H.265, H.264+ / DC 12 V / PoE | FCS-5095
Please sign in so that we can notify you about a reply
Special Features
- 8MP high-definition resolution
- H.264/H.265 video compression
- Supports 4.3x optical zoom
- Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
- Vandal-proof IK10-rated housing
- Weatherproof IP67-rated housing
- Built-in infrared LEDs for night viewing
- Built-in microSDHC/SDXC card slot for local storage
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Width | 14.413 cm |
| Depth | 33.273 cm |
| Height | 14.413 cm |
| Weight | 1.893 kg |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor, indoor - vandal-proof |
| Digital Video Format | AVI, H.264, H.265, H.264+ |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Minimum Illumination | 0.01 lux F1.2 - AGC on ¦ 0.014 lux F1.4 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 50 m |
| Video Capture | 3840 x 2160 @ 20 fps ¦ 2560 x 1440 @ 25 - 30 fps ¦ 2560 x 1920 @ 25 - 30 fps ¦ 1920 x 1080 @ 25 - 30 fps ¦ 1280 x 720 @ 25 - 30 fps |
| Features | Sharpness control, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), ONVIF support, Motion Detection Technology, infrared cut filter, Privacy Mask Function, reset button, password protection, intrusion detection, Line Crossing Detection, watermark, heartbeat, anti-flicker, IP address filtering |
| Image Sensor | Image Sensor |
| Type | 8 MP CMOS 1/2.5" |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Horizontal Field of View (degree) | 36 - 120 |
| Vertical Field of View (degree) | 20.5 - 62 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv6, RTCP, PPPoE, IGMP, QOS |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |

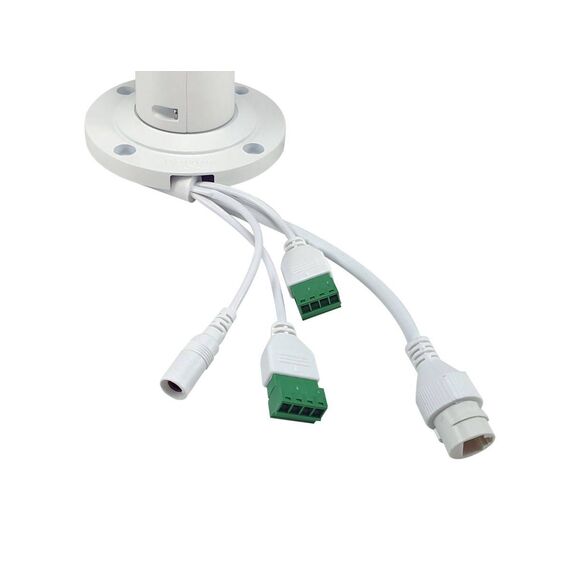

| Ports | LAN/power - RJ-45 ¦ Composite video output ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Screw kit |
| Compliant Standards | FCC, IP67, IK10, IEEE 802.3af, IEEE 802.3at, IEEE 802.1x |
| Colour | White |
| Power | Power |
| Power Requirements | DC 12 V / PoE |
| Power Device | 17 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
Features - LevelOne - FCS-5095
More Details
Product Code
04:418436
EAN Code
4015867203040
Manufacturer
LevelOne
