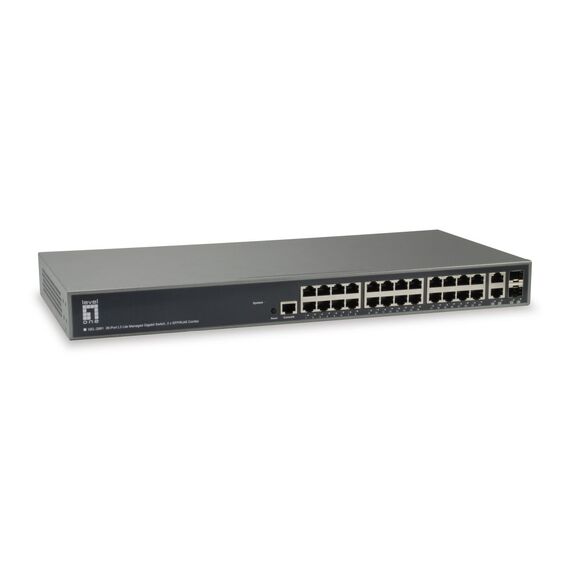

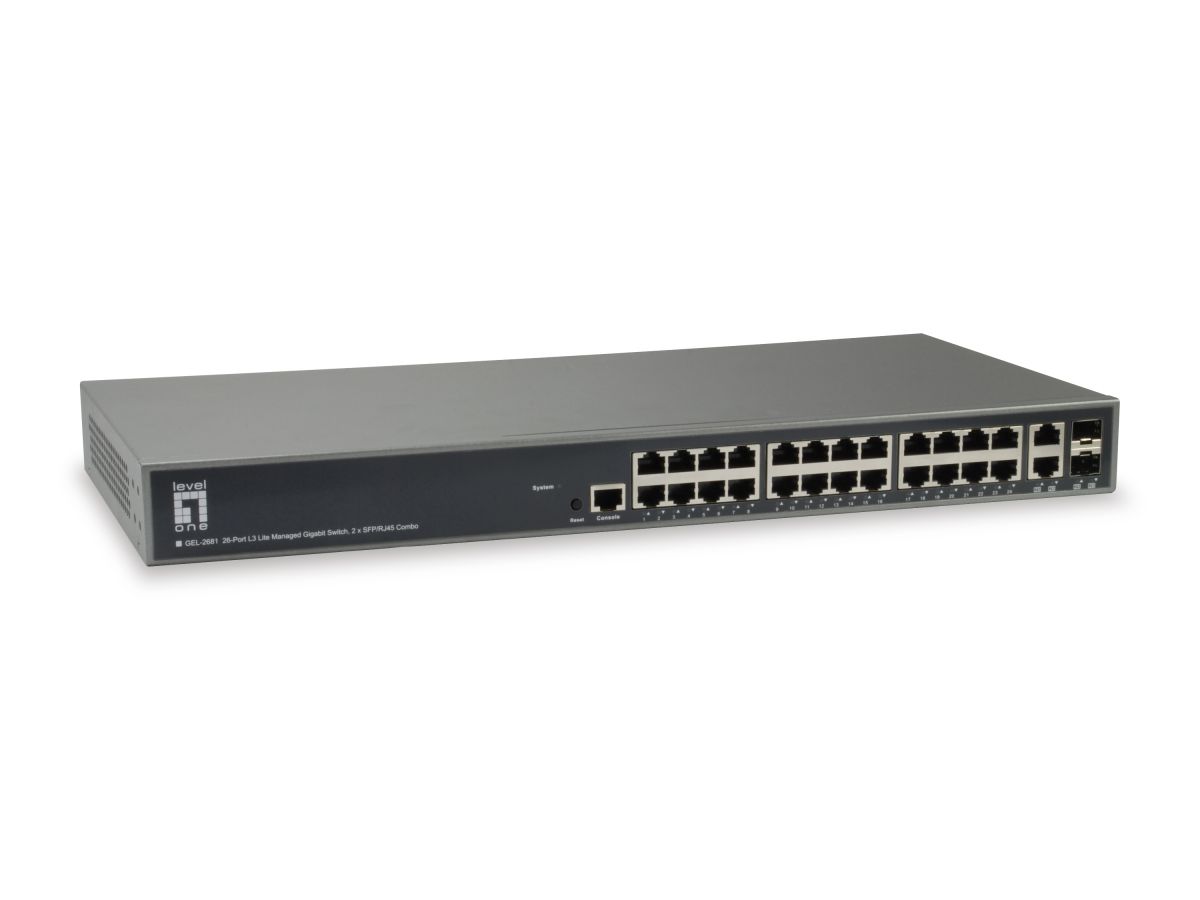

LevelOne GEL-2681 / Switch / L3 Lite / Managed / 24 x 10/100/1000 + 2 x combo Gigabit SFP / rack-mountable | GEL-2681
Please sign in so that we can notify you about a reply
Special Features
- 24 Gigabit Ethernet ports and 2 Gigabit combo (RJ-45/SFP) ports
- QoS control for traffic prioritization and bandwidth management
- DHCP client/server
- Supports IPv4/IPv6 network operation
- Minimize carbon footprint with advanced energy efficient technology
- IEEE 802.3ad LACP for auto port aggregation
- Supports VLAN (port-based, protocol-based, private, Q-in-Q, tag-based) and GVRP
- IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
- IP multicast filtering through IGMP snooping V1/V2/V3
Product Specification
| Device Type | Switch - 26 ports - L3 Lite - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 2 x combo Gigabit SFP |
| Performance | Switching bandwidth: 52 Gbps ¦ Forwarding performance: 38.7 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9600 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, HTTP, SSH |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+ |
| Features | VLAN support, IGMP snooping, port mirroring, IPv6 support, firmware upgradable, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, DHCP server, IPv4 support, LLDP support, DHCP client, Energy Efficient Ethernet, 512KB packet buffer, Generic VLAN Registration Protocol (GVRP), Storm Control, Network Timing Protocol (NTP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.11d, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az |
| RAM | 128 MB |
| Flash Memory | 32 MB |
| Status Indicators | System, link/activity/speed |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 26 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45 |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 16.79 Watt |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC Part 15 A, LVD |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.2 cm |
| Depth | 21.1 cm |
| Height | 4.4 cm |
| Weight | 2.6 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
Features - LevelOne - GEL-2681
General
24-Port
More Details
Product Code
04:216635
EAN Code
4015867198940
Manufacturer
LevelOne
