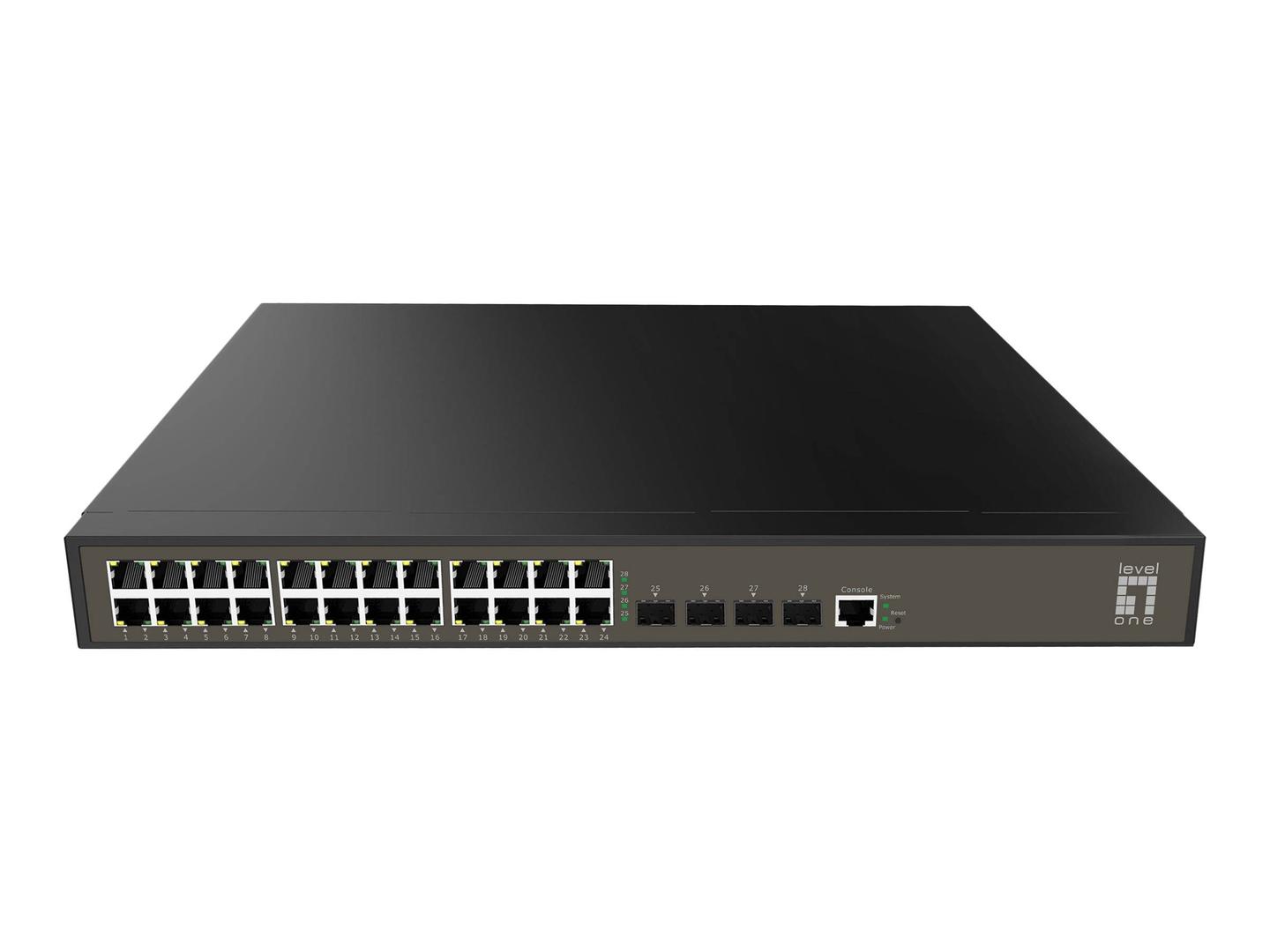

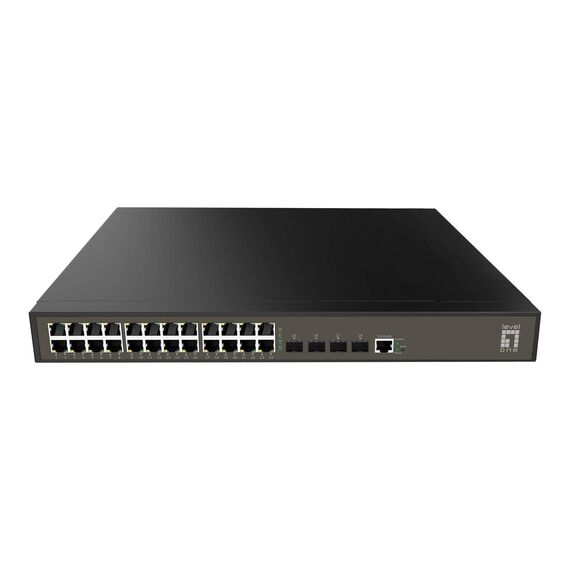

LevelOne GEL-2871 / Switch / Managed / 24 x 10/100/1000 + 4 x combo Gigabit SFP / desktop, rack-mountable | GEL-2871
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 28 ports - Managed |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 4 x combo Gigabit SFP |
| Performance | Backplane bandwidth: 56 Gbps |
| Capacity | Packet buffer size: 12 Mbit |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, NTP |
| Authentication Method | Secure Shell (SSH), RADIUS |
| Features | Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IPv4 support, LLDP support, Link Aggregation Control Protocol (LACP), Port Security, DHCP client, TFTP client, Protocol-based VLANs support, Storm Control, IP source guard, VLAN Double Tagging (Q-in-Q), IP/Mac/Port Binding (IPMB), Private VLAN, Energy-Efficient Ethernet (EEE), port-based VLAN, Telnet server, 10 KB Jumbo Frame, IP multicast, SSH server |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az |
| RAM | 256 MB |
| Flash Memory | 512 MB |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 1000Base-T RJ-45 ¦ 4 x SFP ¦ 1 x console RJ-45 management |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 36 Watt |
| Miscellaneous | Miscellaneous |
| Colour | Black |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| MTBF | 534,057 hours |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, RoHS, EN 55032, EN 55035, IEC/EN 62368-1, FCC Part 15 Subpart B |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 24.5 cm |
| Height | 4.4 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% |
Features - LevelOne - GEL-2871
General
24-Port
More Details
Product Code
04:411503
EAN Code
4015867228579
Manufacturer
LevelOne
