Description

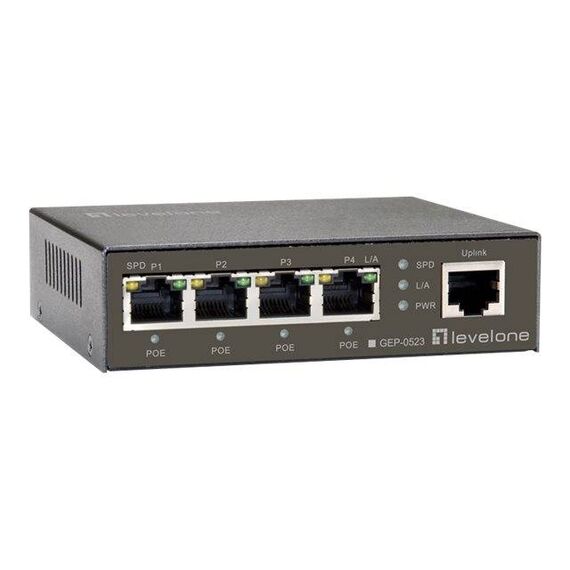

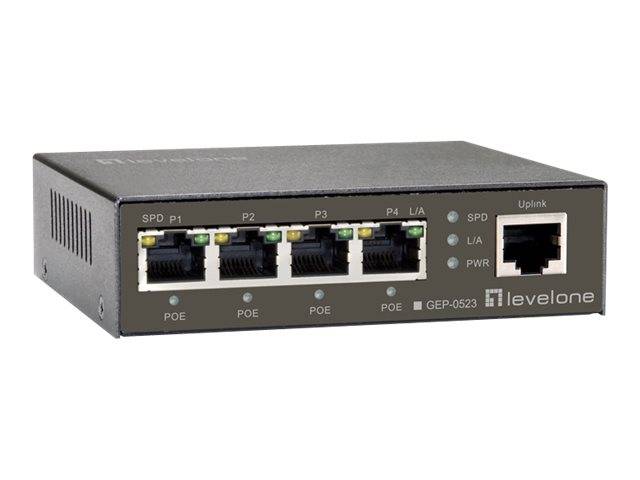

The LevelOne GEP-0523 is a Gigabit Ethernet PoE switch with a total of 5 ports, one of which is available as uplink port and 4 ports for Power over Ethernet. Per PoE port a power supply of up to 30W is possible. The total PoE power budget is 60W. It is an ideal solution when office and home users use a combination of PoE and non-PoE devices.The GEP-0523\'s four PoE-enabled ports make it the ideal solution for office users using PoE-enabled devices in the workplace. This can include a mix of PoE IP phones, PoE Wifi APs and PoE IP cams. It is the perfect solution for offices that want to upgrade their office equipment and LAN infrastructure to PoE capability or upgrade with Gigabit performance. The switch automatically detects the connected IEEE 802.3at/af standard device and provides these devices with power and data over a single cable.In addition, the GEP-0523 enables users to provide a stable and reliable high-speed LAN environment with store-and-forward switching architecture, packet error filtering and blockage-free packet forwarding. The 802.3x flow control mechanisms operate in both full and half duplex modes. This device supports the N-Way Auto Negotiation protocol, which automatically detects network speed and duplex mode.For instant fault detection, the GEP-0523 is equipped with a full range of LEDs to help monitor and troubleshoot the network.
LevelOne GEP-0523 / Switch | GEP-0523
Special Features
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 10/100/1000Mbps wire speed transmission and reception
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Total PoE power budget: 60W, up to 30W per port
Product Specification
| Device Type | Switch - 5 ports |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 60 W |
| Performance | Backplane speed: 10 Gbps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Flow control, auto-negotiation, packet filtering, store and forward, half duplex mode, full duplex mode, 1MB packet buffer, Power Sourcing Equipment (PSE), PoE circuit sorting protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Port transmission speed, power, PoE, link/activity, link/activity/speed |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-T RJ-45 uplink |
| Power Device | External power adapter |
| Power Provided | 65 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 5 Watt |
| Features | Overload Current Protection |
| MTBF | 30,000 hours |
| Compliant Standards | FCC |
| Width | 110.2 cm |
| Depth | 95.7 cm |
| Height | 3 cm |
| Weight | 750 g |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
