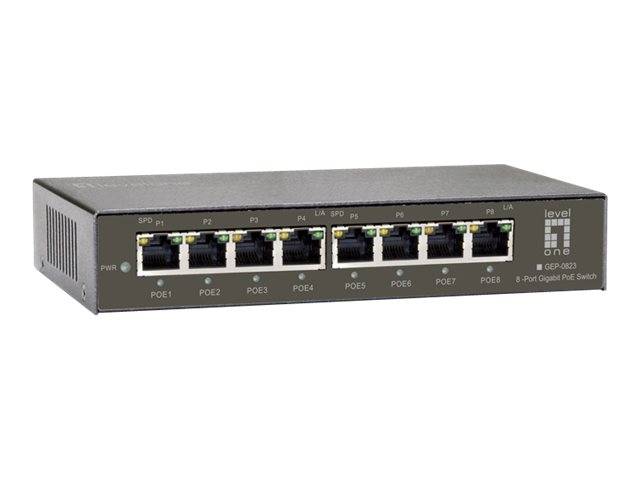

LevelOne GEP-0823 / Switch / 8 x 10/100/1000 (PoE+) / desktop / PoE+ (120 W) | GEP-0823
LevelOne GEP-0823 / Switch / 8 x 10/100/1000 (PoE+) / desktop / PoE+ (120 W) | GEP-0823
Description
The LevelOne GEP-0823 is an 8-port Gigabit Ethernet PoE switch that provides Power over Ethernet on all eight of its ports. Per PoE port a power supply of up to 30W is possible. The total PoE power budget is 120W. It is the ideal solution when office and home users are using a combination of PoE and non-PoE devices.The GEP-0823\'s eight PoE-enabled ports make it an ideal solution for office users who use PoE-enabled devices and already want to power a larger number of PoE devices. These products can be a mix of PoE IP phones, PoE Wifi APs and PoE IP cams. It is the perfect solution for offices that want to upgrade their office equipment and LAN infrastructure to PoE capability or upgrade their existing PoE infrastructure to Gigabit speed. The switch automatically detects the connected IEEE 802.3at/af standard device and provides these devices with power and data over a single cable.The GEP-0823 also enables users to provide a stable and reliable high-speed LAN environment with store-and-forward switching architecture, packet error filtering and blockade-free packet forwarding. The 802.3x flow control mechanisms operate in both full and half duplex modes. This switch also supports the N-Way auto negotiation protocol, which automatically detects network speed and duplex mode.For instant fault detection, the GEP-0823 is equipped with a complete set of LEDs to help monitor and troubleshoot the network.
LevelOne GEP-0823 / Switch | GEP-0823
Special Features
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 10/100/1000Mbps wire speed transmission and reception
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Total PoE power budget: 120W, up to 30W per port
Product Specification
| Device Type | Switch - 8 ports |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| Performance | Backplane speed: 16 Gbps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Flow control, auto-negotiation, packet filtering, store and forward, half duplex mode, full duplex mode, 1MB packet buffer, Power Sourcing Equipment (PSE), PoE circuit sorting protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Power, PoE, link/activity, link/activity/speed |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 30 W |
| Power Device | External power adapter |
| Power Provided | 130 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 10 Watt |
| Features | Overload Current Protection |
| MTBF | 30,000 hours |
| Compliant Standards | FCC |
| Width | 17.05 cm |
| Depth | 8.05 cm |
| Height | 3 cm |
| Weight | 900 g |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
