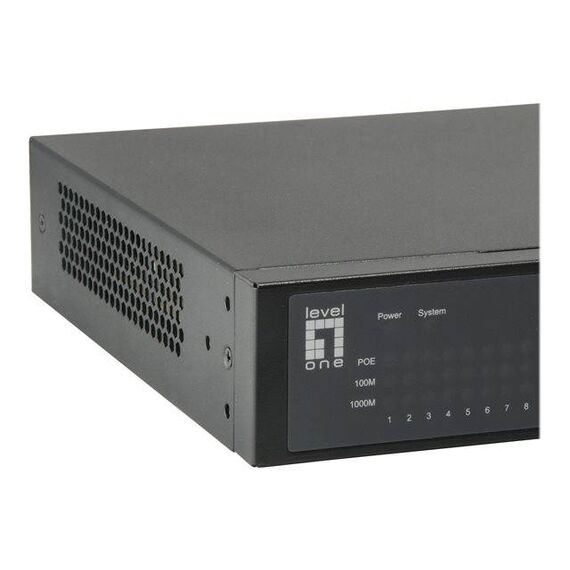

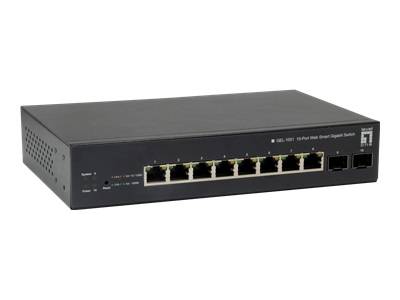

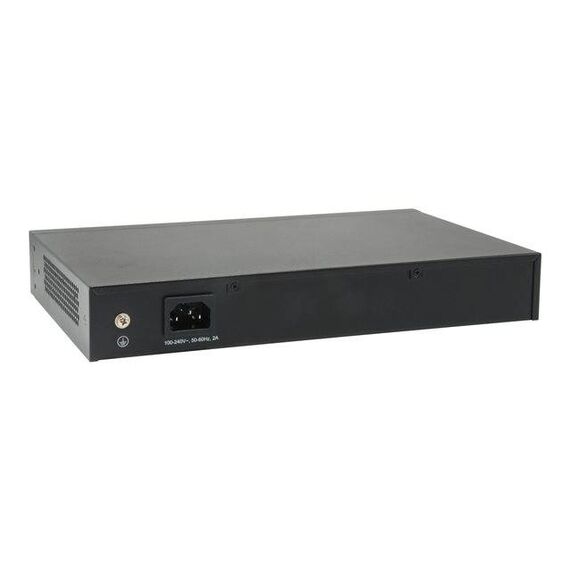

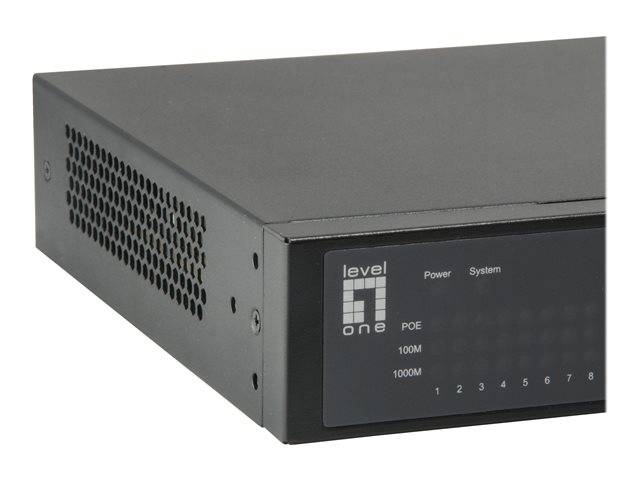

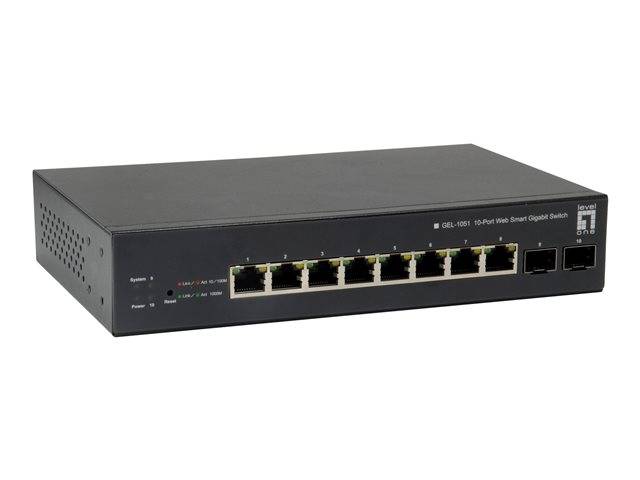

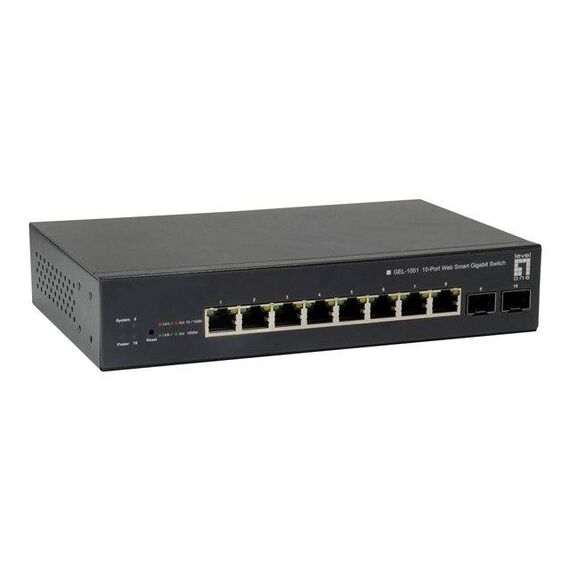

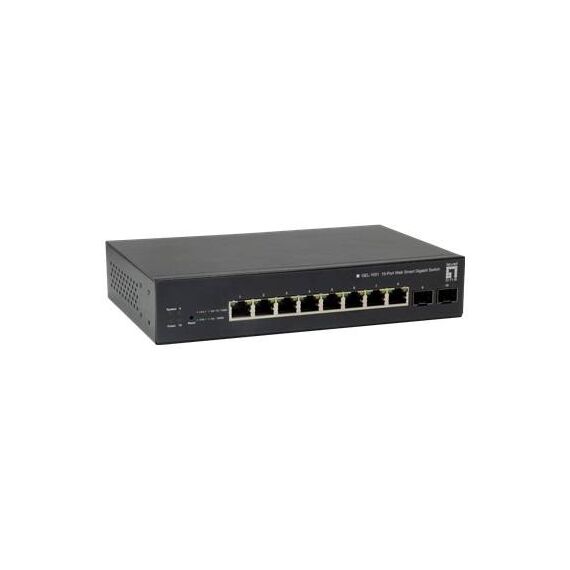

LevelOne GEP-1051 / Switch / smart / 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / desktop, rack-mountable / PoE+ (70 W) | GEP-1051
Description
The GEP-1051 is a web-smart switch designed for the SMB market. The switch can be deployed in different target network topologies, from small to large. The GEP-1051 is a full-PoE fanless design switch, it supports up to 4 ports at 15.4 W, or 2 ports at 30 W to meet the increasing power demands of users. As well as IPv4 and IPv6 features, the GEP-1051 includes the best green-saving technologies (IEEE 802.3az and Green-Ethernet). Using the Energy Efficient Ethernet standard, the switch automatically decreases power usage when network traffic is low.
LevelOne GEP-1051 / Switch | GEP-1051
Special Features
- 8 Gigabit PoE ports and 2 Gigabit SFP slots
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
- Supports port-based VLAN, IEEE 802.1Q VLAN tagging
- IEEE 802.3ad LACP for auto port aggregation
- MLD, Telnet, SNMP V1, V2c & V3, RMON, Web browser, and TFTP management
- Total PoE power budget: 70W, up to 30W per port
Product Specification
| Device Type | Switch - 10 ports - smart |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 70 W |
| Performance | Backplane speed: 20 Gbps ¦ Forwarding performance: 14.9 Mpps |
| Capacity | ACL entries: 256 ¦ Priority queues per port: 8 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI, NTP |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+ |
| Features | Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, store and forward, MAC address filtering, IPv6 support, DDos attack prevention, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), reset button, IPv4 support, fanless, LLDP support, Link Aggregation Control Protocol (LACP), SNMP trap, DHCP client, Management Information Base (MIB), Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), port isolation, DiffServ Code Point (DSCP) support, IGMP filtering, IGMP throttling, 4.1MB packet buffer, Storm Control, CPU protection, Authentication, Authorization and Accounting (AAA), IGMP querier, Root Guard, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), loopback detection, IPv6 management, VLAN Tagging, IGMP immediate leave |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az, UPnP |
| Flash Memory | 16 MB |
| Status Indicators | Power, system, link/activity |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x Gigabit LAN SFP |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 80 Watt |
| Rack Mounting Kit | Included |
| MTBF | 118,824 hours |
| Compliant Standards | UL, VCCI, BSMI, FCC |
| Width | 29.4 cm |
| Depth | 18 cm |
| Height | 4.4 cm |
| Weight | 2 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
