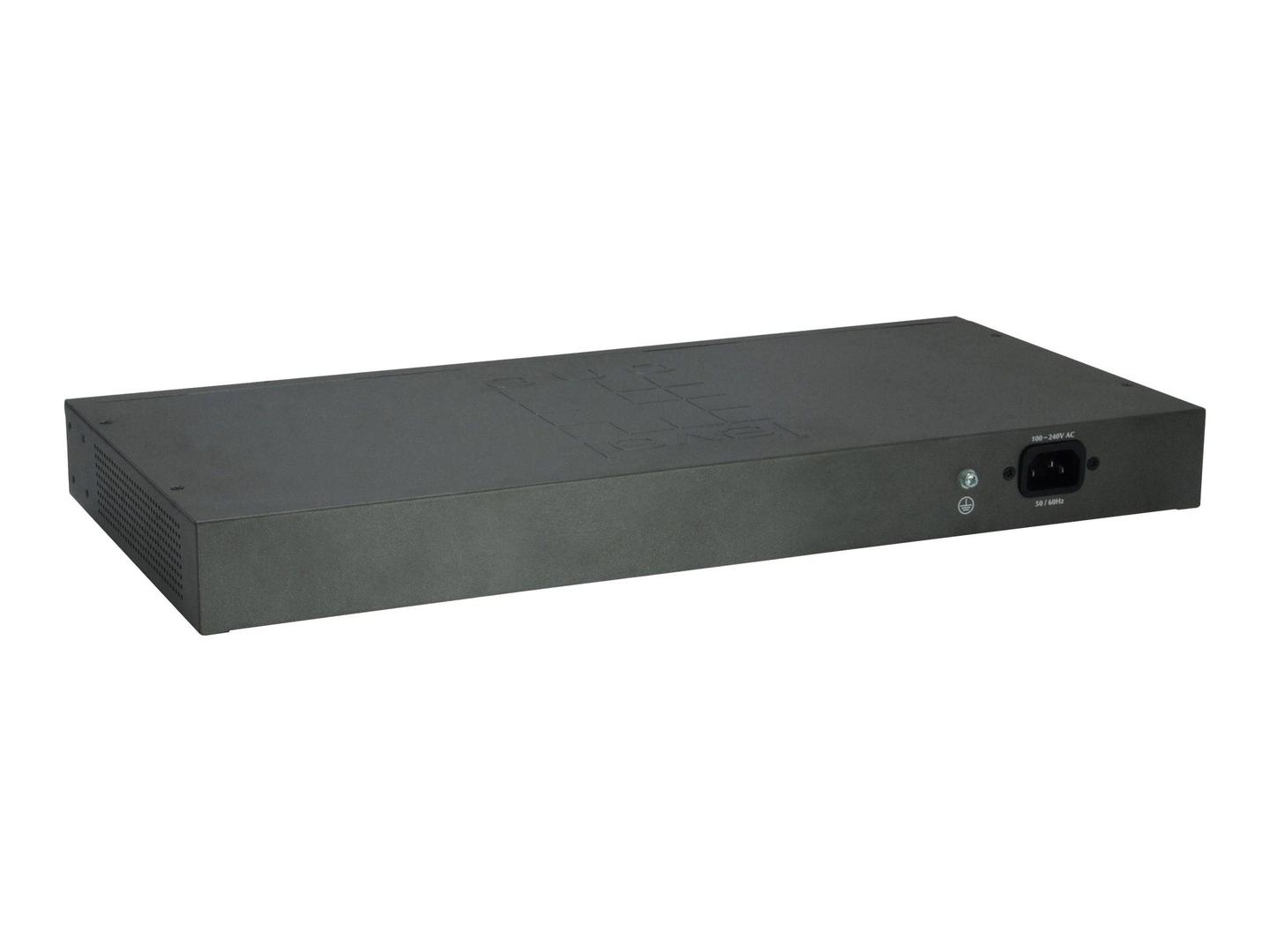

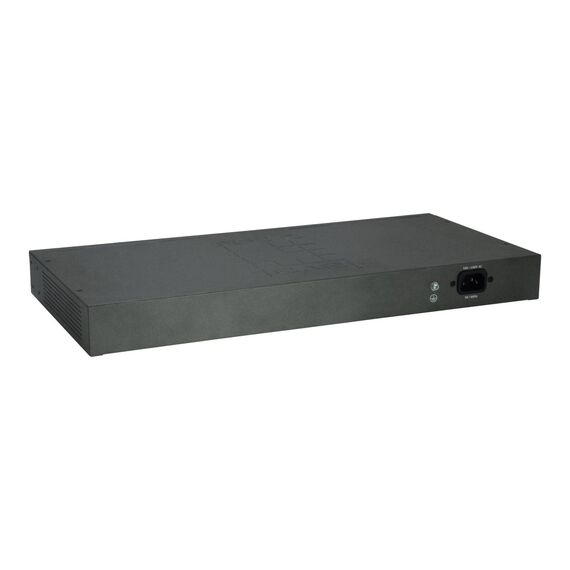

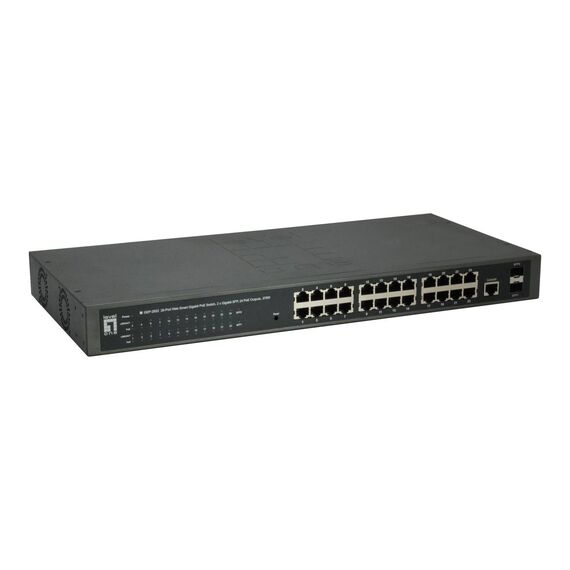

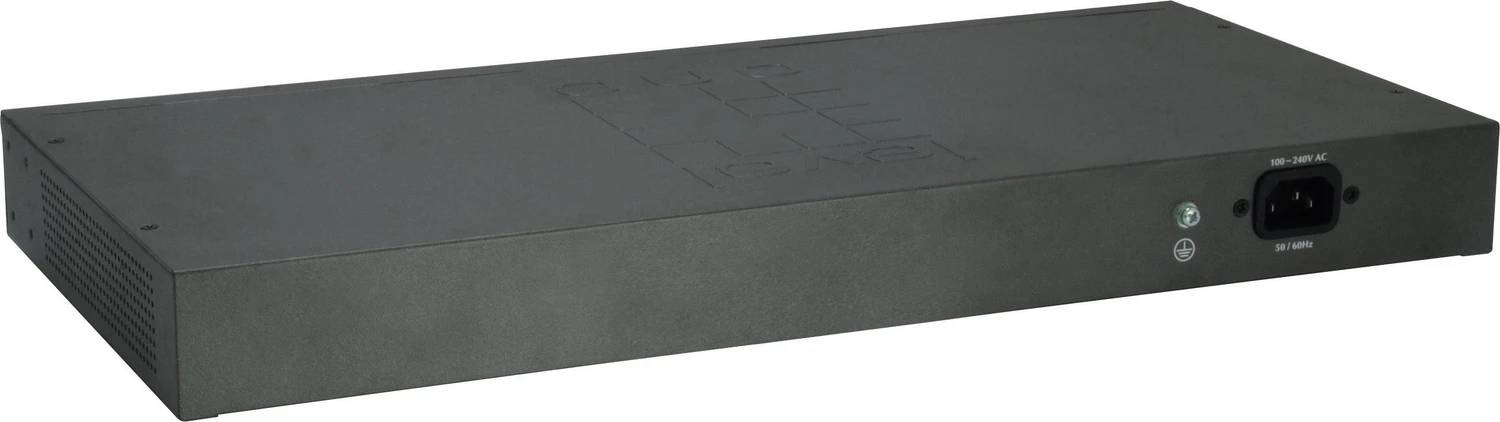

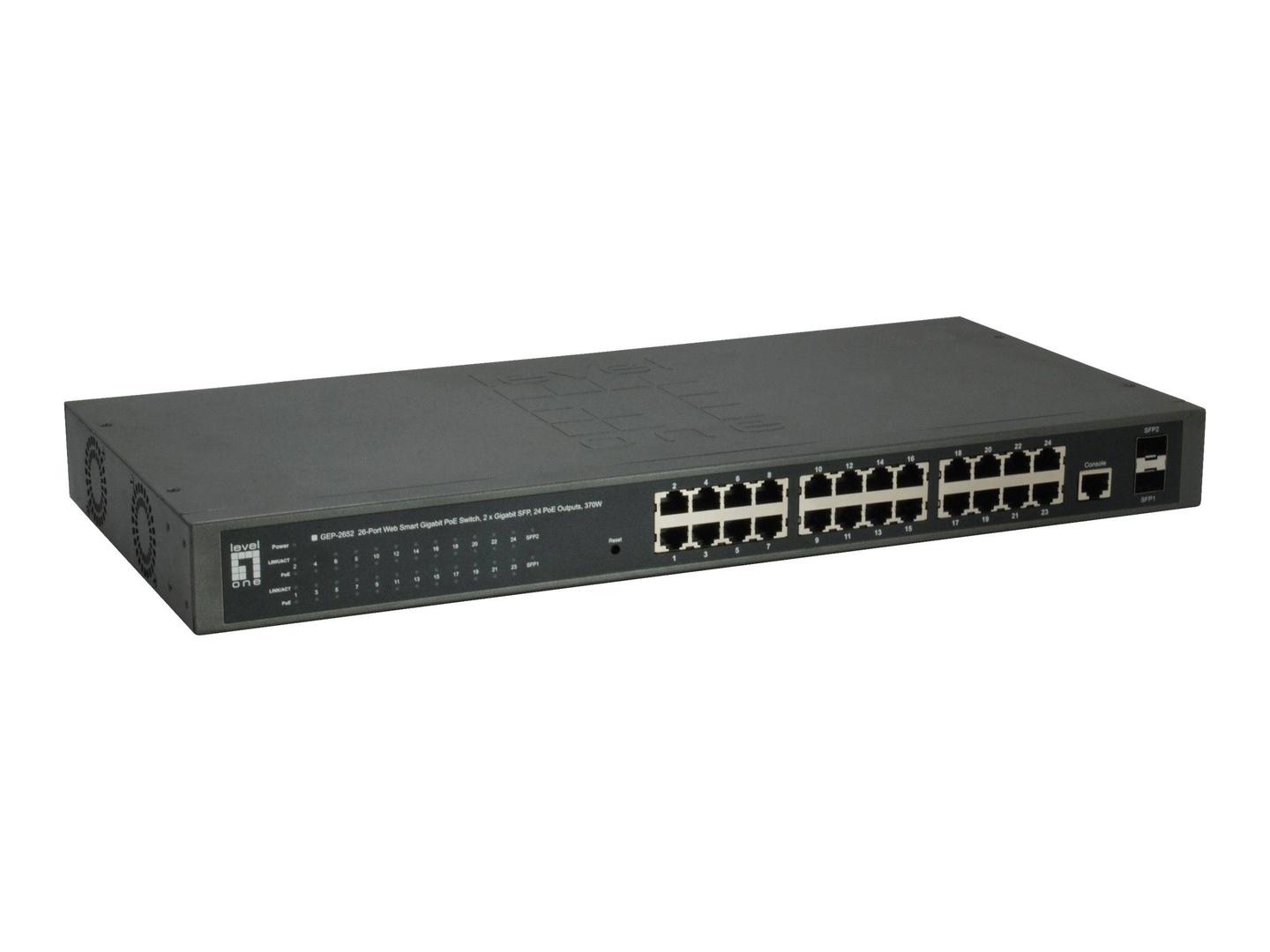

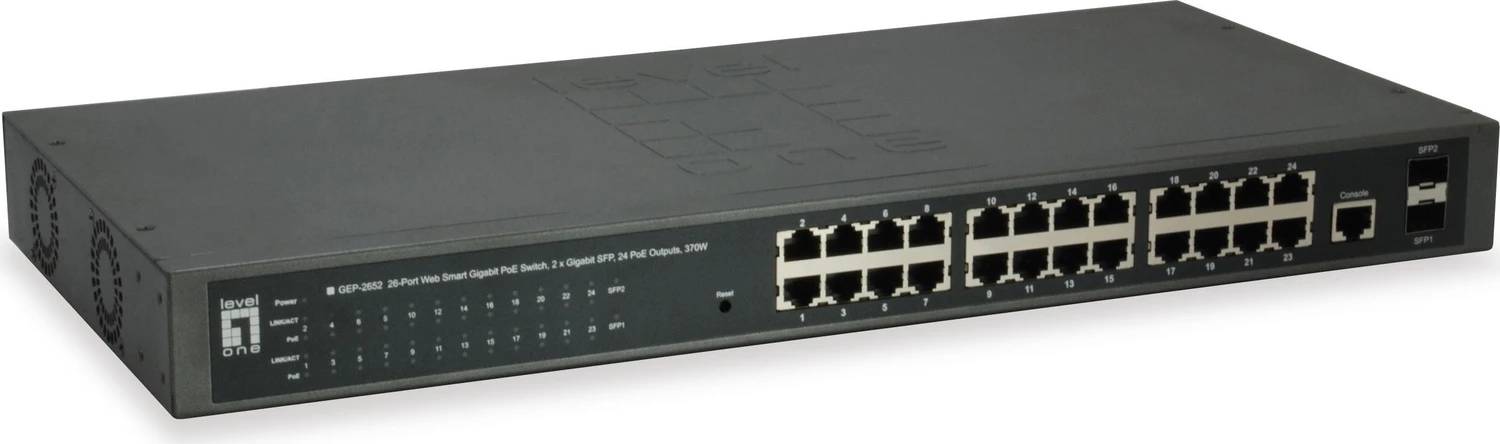

LevelOne GEP-2652 / Switch / smart / 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / rack-mountable / PoE+ (370 W) | GEP-2652
Please sign in so that we can notify you about a reply
Special Features
- 24 Gigabit PoE ports and 2 Gigabit SFP slots
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Supports port-based VLAN, IEEE 802.1Q VLAN Tagging and GVRP
- IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
- Supports IPv4/IPv6 network operation
- Supports unknown unicast / broadcast / multicast storm control
- MLD, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
- IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
- Dynamic ARP Inspection (DAI) protects switches against ARP spoofing
Product Specification
| Device Type | Switch - 26 ports - smart |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Backplane speed: 52 Gbps ¦ Packet forwarding rate: 38.69 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, CLI, DHCP |
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), Secure Shell v.1.5 (SSH1.5) |
| Features | Trunking, IGMP snooping, port mirroring, store and forward, DHCP snooping, tagged VLAN, 8MB packet buffer |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.3at |
| Status Indicators | Port transmission speed, system, PoE, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 1000Base-T RJ-45 30 W ¦ 2 x 1000Base-X SFP ¦ 1 x console management |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 435 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rubber feet |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 20.8 cm |
| Height | 4.4 cm |
| Weight | 3.875 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - LevelOne - GEP-2652
General
24-Port
More Details
Product Code
04:319098
EAN Code
4015867207932
Manufacturer
LevelOne
