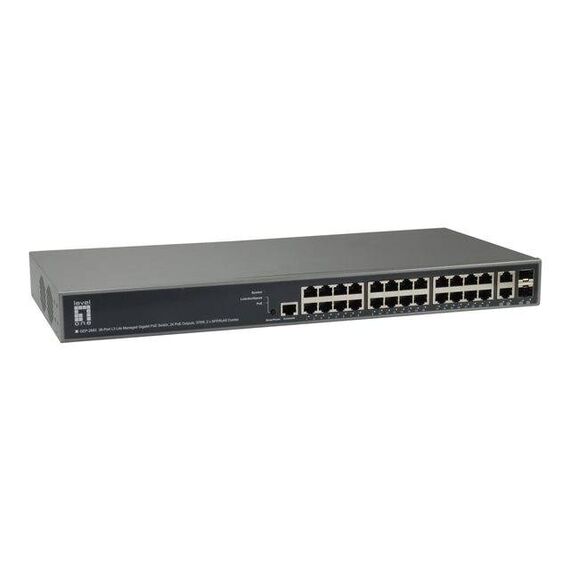

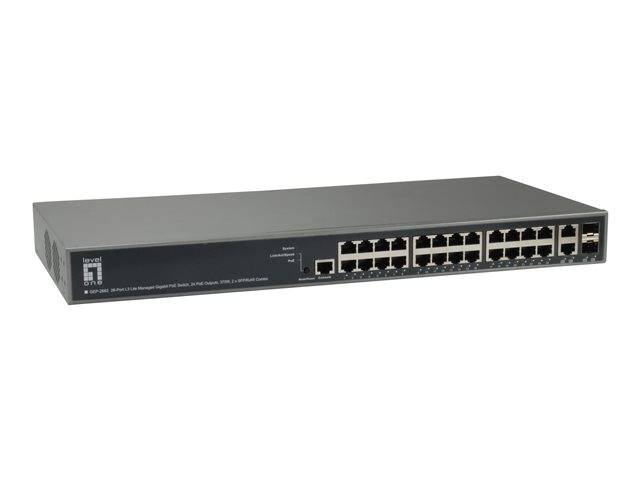

LevelOne GEP-2682 / Switch / L3 Lite / Managed / 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / rack-mountable / PoE+ (370 W) | GEP-2682
LevelOne GEP-2682 / Switch / L3 Lite / Managed / 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / rack-mountable / PoE+ (370 W) | GEP-2682
Description
LevelOne GEP-2682 L3 lite managed PoE+ switch is a next-generation Ethernet switch offering better PoE functionality and usability, including advanced L3 features such as static route that delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.LevelOne GEP-2682 delivers 24 RJ45/PoE+ (support 802.3at/af, and total up to 370 W) ports, 2 combo GbE RJ45/SFP ports and RJ45 console port. LevelOne GEP- 2682 provides high HW performance and environment flexibility for SMBs and enterprises. LevelOne GEP-2682 is ideal to deliver management simplicity, intuitive user experience, and lower total cost of ownership. The embedded device managed system is designed to be extremely easy-to-use/manage/install IP phone, IP cam, or WifiAP for enterprise applications.
LevelOne GEP-2682 / Switch | GEP-2682
Special Features
- QoS control for traffic prioritization and bandwidth management
- 24 PoE-Plus Gigabit Ethernet ports and 2 Gigabit SFP slots
- DHCP client/server
- Supports IPv4/IPv6 network operation
- Minimize carbon footprint with advanced energy efficient technology
- IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
- IP multicast filtering through IGMP snooping V1/V2/V3
- IEEE 802.3ad LACP for auto port aggregation
- Supports Universal Plug and Play (UPnP) for auto-configure network devices
Product Specification
| Device Type | Switch - 26 ports - L3 Lite - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching bandwidth: 52 Gbps ¦ Forwarding performance: 38.7 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9600 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, HTTP, SSH |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+ |
| Features | Power over Ethernet (PoE), VLAN support, IGMP snooping, port mirroring, IPv6 support, firmware upgradable, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, DHCP server, PoE+, IPv4 support, LLDP support, DHCP client, Energy Efficient Ethernet, 512KB packet buffer, Generic VLAN Registration Protocol (GVRP), Storm Control, Network Timing Protocol (NTP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.11d, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az, UPnP |
| RAM | 128 MB |
| Flash Memory | 32 MB |
| Status Indicators | System, PoE, link/activity/speed |
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45 |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| Compliant Standards | UL 60950-1 Second Edition, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1-07 |
| Width | 44.2 cm |
| Depth | 21.1 cm |
| Height | 4.4 cm |
| Weight | 3.3 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
