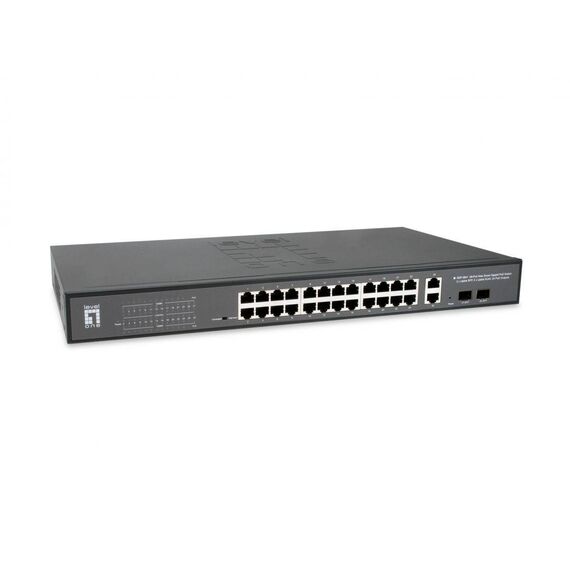

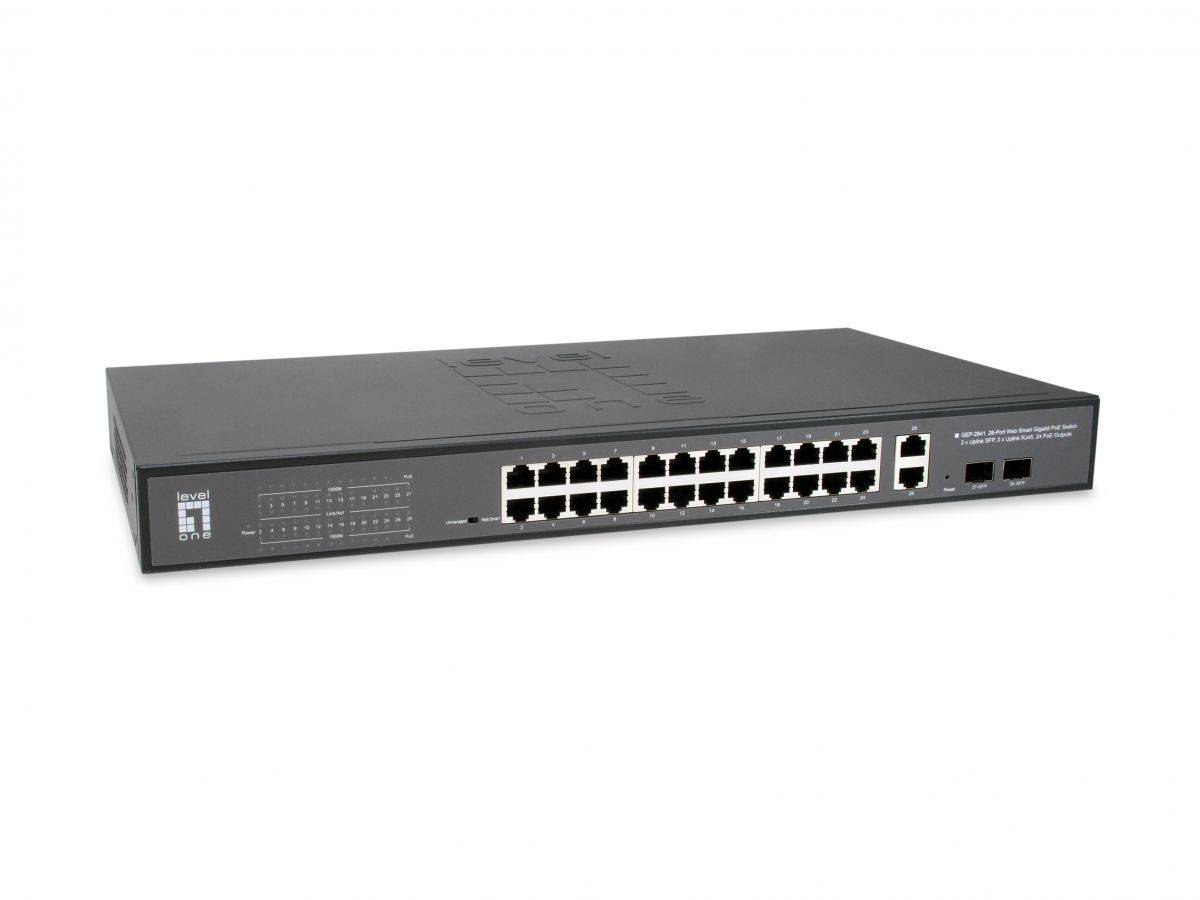

LevelOne 28-Port Web Smart Gigabit PoE Switch, 2 x Uplink SFP, 2 x Uplink RJ45, 24 PoE Outputs, 375W PoE | GEP-2841
The LevelOne GEP-2841 Web Smart Gigabit PoE Switch, provides 24 PoE ports 10/100/1000Base-T plus 2 port Gigabit Uplink SFP and 2 port Gigabit Uplink RJ45 to enable high speed network. With the plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. It offers powerful enhanced PoE functionality and a total PoE budget of 375W. and it is fully complied with IEEE802.3af/at/bt PoE standard at maximum 90W(1-2 port) power budget. supports up to 30W output power per PoE port, giving you power distribution flexibility for a wide range of PoE PD devices. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed.
- 24 Gigabit PoE ports, 2 Gigabit Uplink ports and 2 Gigabit Uplink SFP slots
- Total 375W PoE power budget and usability, up to 2 ports at 90W(1-2 port), or 12 ports at 30W or 24 ports at 15.4W
- IEEE 802.3af/at/bt PoE compliant to simplify deployment and installation
- Supports port-based VLAN
- Supports IEEE 802.1P Layer 2 Priority Queuing for improving traffic flow
Product Specification
| Switch type | Managed |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| MAC address table | 8000 entries |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | Y |
| Rack mounting | Y |
| Form factor | 1U |
