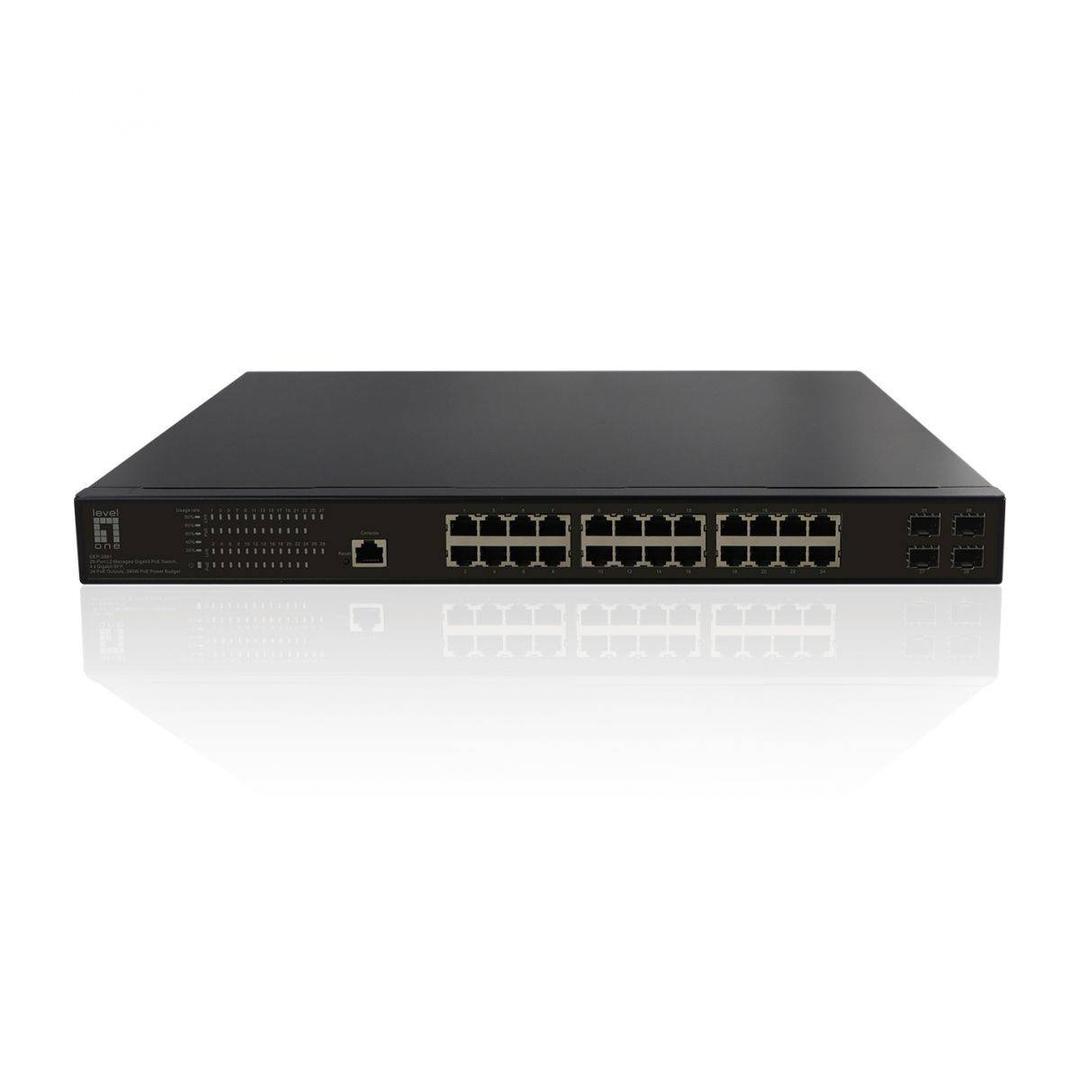

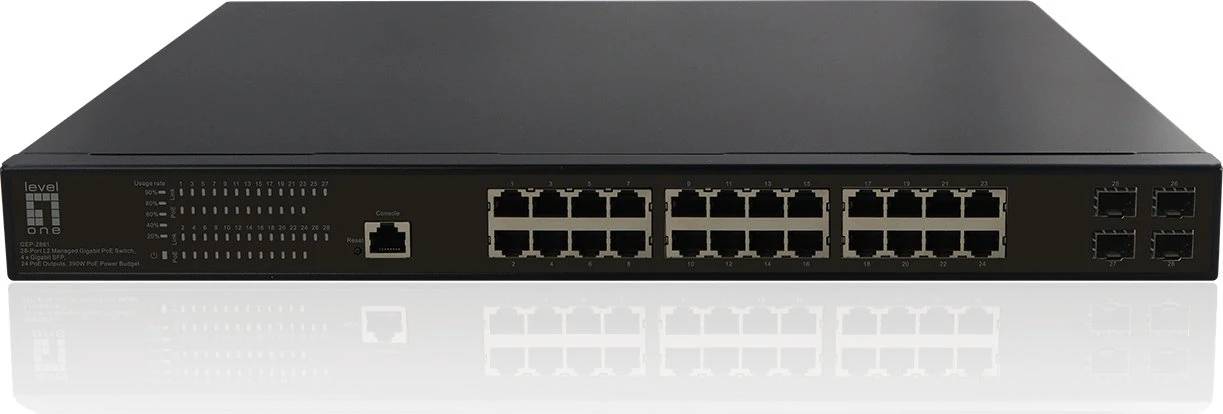

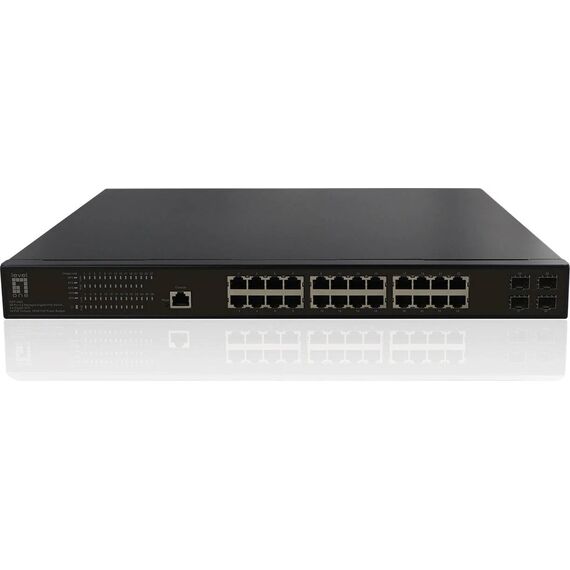

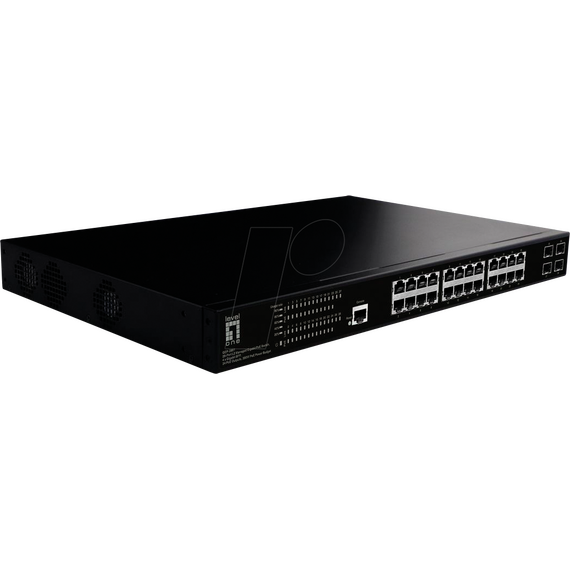

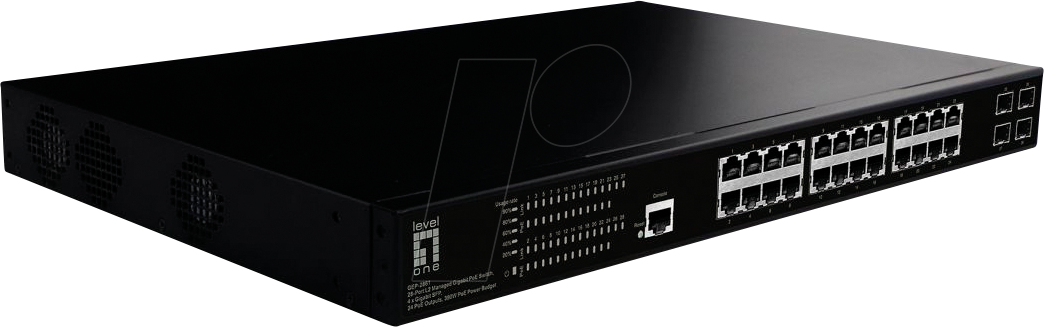

LevelOne 28-Port L2 Managed Gigabit PoE Switch, 4 x Gigabit SFP, 24 PoE Outputs, 390W PoE | GEP-2861
The levelone GEP-2861 is a 28-Port L2 Managed Gigabit PoE Switch that supports up to 24*10/100/1000M PoE ports and 4*1000M SFP ports. 24*10/100/1000M ports support PoE+ and total up to 390W PoE power budget, conforming to IEEE 802.3af/at standard, single port PoE power up to 30W. supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management. It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection. supports 19" rack mount and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions. GEP-2861 provides high HW performance and environment flexibility for SMBs and Enterprises. GEP-2861 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
- 24 Gigabit PoE+ ports and 4 Gigabit SFP ports
- Total PoE power budget: 390W, up to 30W per port
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Supports working temperature -10℃~50℃
- 6KV surge protection, 6KV contact / 8KV air ESD protection
Product Specification
| Device Type | Switch - 24 ports - Managed |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| PoE Budget | 390 W |
| Performance | Switching bandwidth: 56 Gbps |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLD |
| Features | Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, store and forward, IPv6 support, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, reset button, STP Root Guard, Port Security, short circuit protection, DHCP client, 512KB packet buffer, loop prevention, Class of Service (CoS), tagged VLAN, IGMP proxy, 802.1x authentication, DiffServ Code Point (DSCP) support, Storm Control, IP source guard, Internet Control Message Protocol (ICMP), Network Timing Protocol (NTP), IGMP querier, VLAN Double Tagging (Q-in-Q), LLDP-MED, Energy-Efficient Ethernet (EEE), Device Management System (DMS), MAC based VLAN, port-based VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az, UPnP |
| Miscellaneous | Miscellaneous |
| Colour | Black |
| Rack Mounting Kit | Included |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.2 cm |
| Depth | 28.5 cm |
| Height | 4.4 cm |
| Weight | 4 kg |
