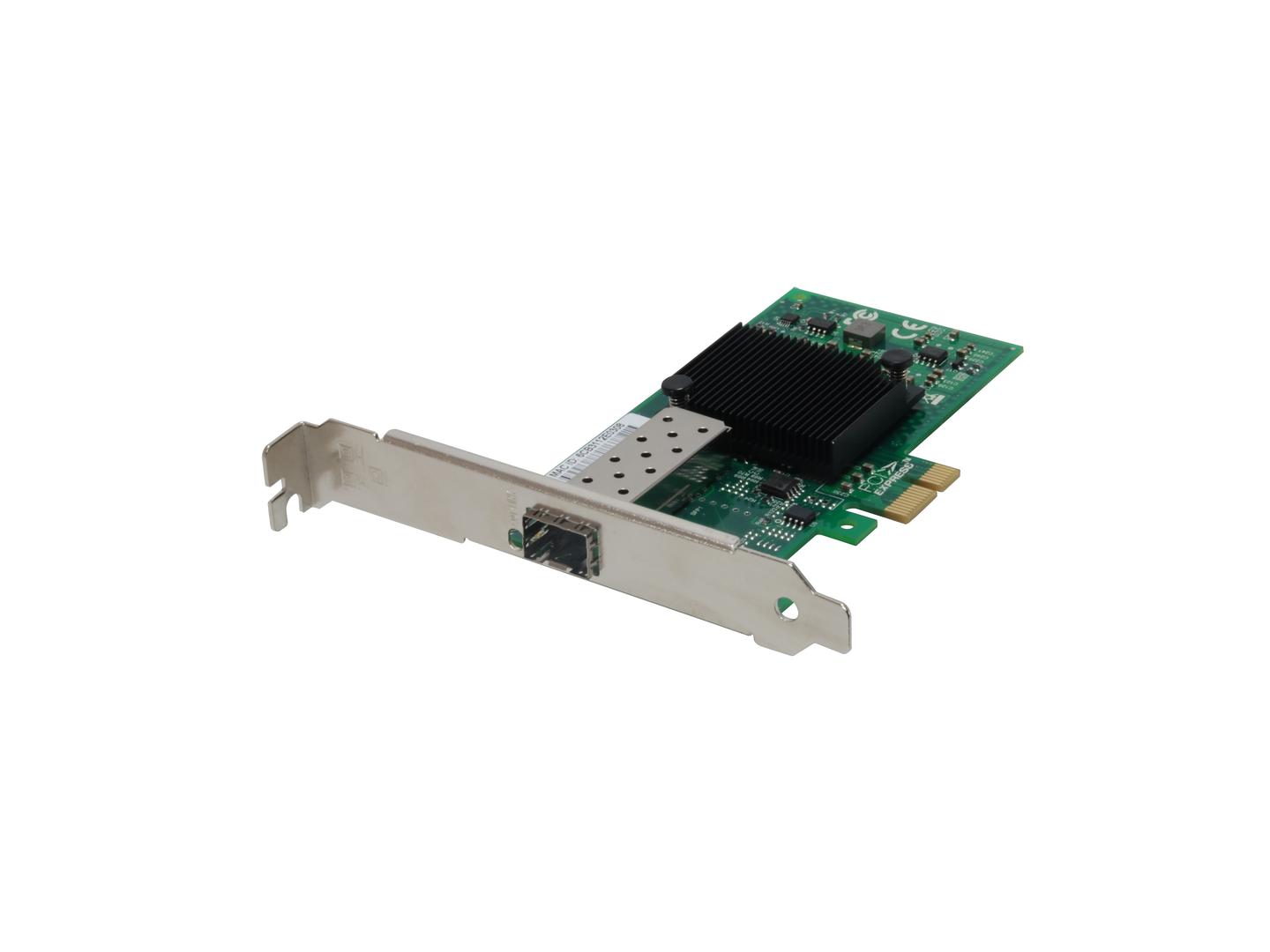

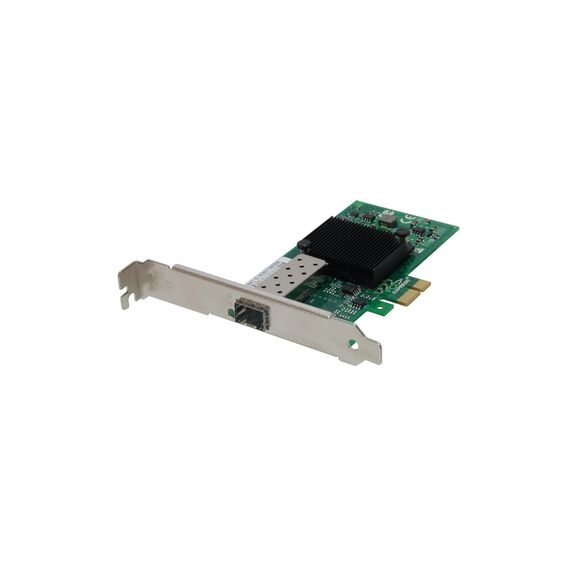

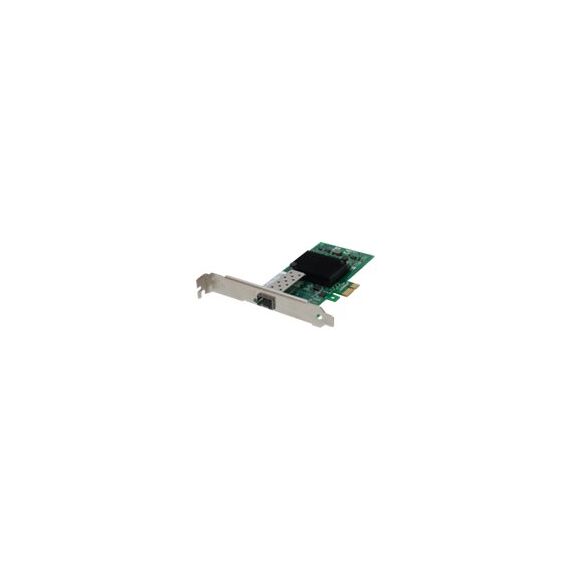

LevelOne GNC-0110 - Network adapter - PCIe low profile - GigE | GNC-0110
Please sign in so that we can notify you about a reply
Special Fetures
- Interrupt Moderation: Delivers increased performance while significantly reducing CPU utilization
- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- High-speed gigabit network card with PCI Express v1.1 compliant
- IEEE 802.1Q VLAN allows network segmentation to enhance performance and security
- Supports most network operating systems (NOS)
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express x1 |
| PCI Specification Revision | PCIe 1.1 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Remote Management Protocol | SNMP |
| Status Indicators | Port duplex mode, link/activity |
| Features | Flow control, bootROM, RPL support, load balancing, VLAN support, half duplex mode, full duplex mode, Accelerated iSCSI, TCP/IP offloading, Quality of Service (QoS), PXE support, Link Aggregation Control Protocol (LACP), checksum offload support |
| Compliant Standards | IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP) |
| Expansion / Connectivity | |
| Interfaces | 1 - SFP (mini-GBIC) |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Software / System Requirements | |
| OS Required | Novell NetWare 4.x, Linux, Novell NetWare 5.x, Novell NetWare 6.x, Microsoft Windows 98/ME/NT/2000/XP/Vista/7/8 |
| Dimensions & Weight | |
| Width | 11.5 cm |
| Depth | 6.8 cm |
| Height | 1.7 cm |
| Weight | 70 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - LevelOne - GNC-0110
More Details
Product Code
04:243816
EAN Code
4015867191057
Manufacturer
LevelOne
