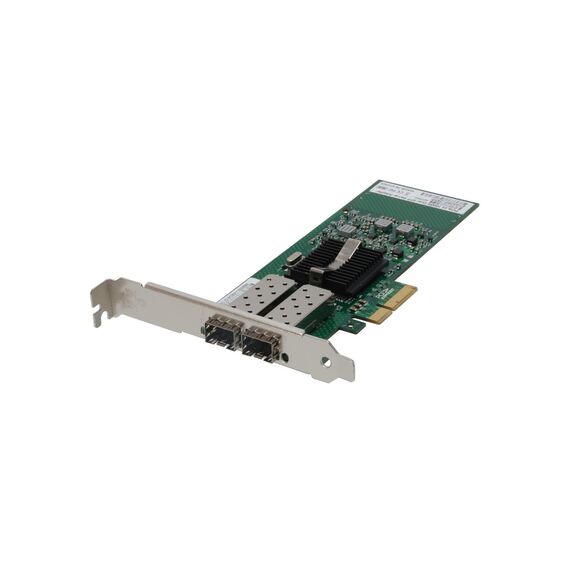

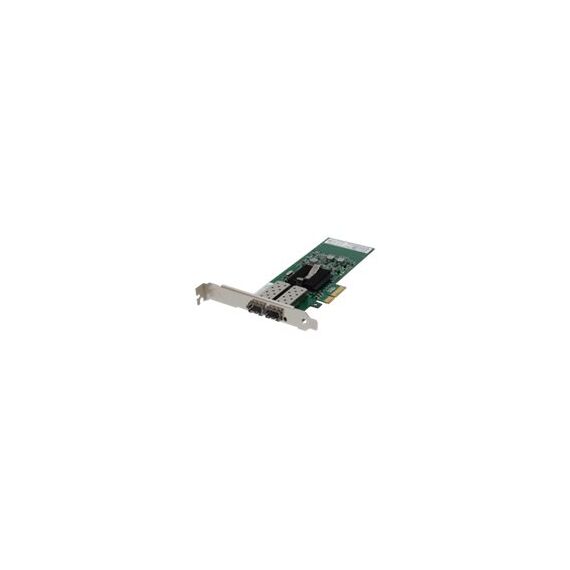

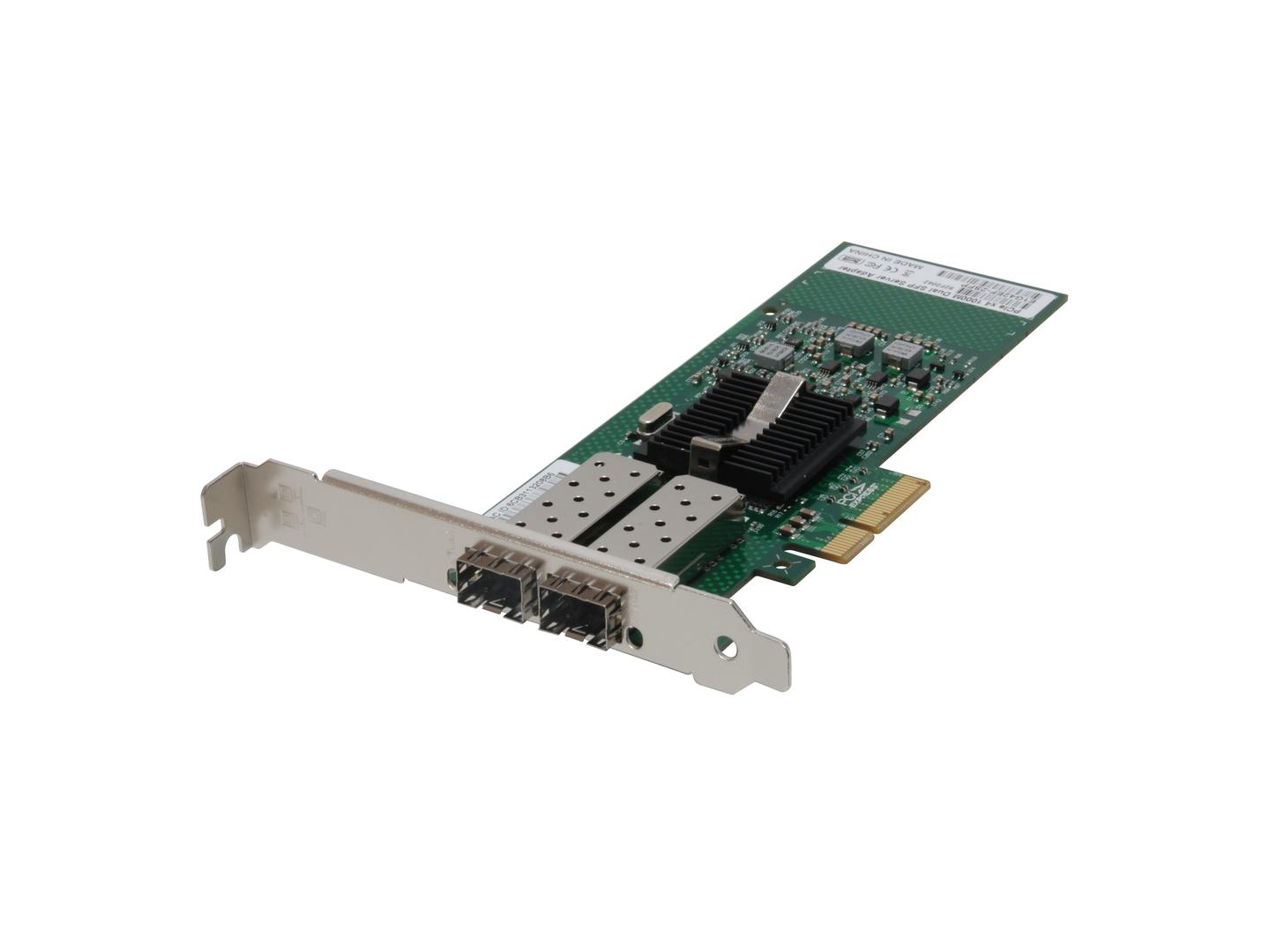

LevelOne GNC-0122 - Network adapter - PCIe x4 low profile - 1000Base-LX/1000Base-SX x 2 | GNC-0122
Please sign in so that we can notify you about a reply
Special Fetures
- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- Supports iSCSI remote boot
- Load balancing across multiple CPUs
- Compatible with x4, x8, and x16 standard and low-profile PCI Express slots
- Supports most network operating systems (NOS)
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express x4 |
| PCI Specification Revision | PCIe 2.0 |
| Networking | |
| Ports | 1000Base-LX/1000Base-SX x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 1000Base-LX, Ethernet 1000Base-SX |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Capacity | Jumbo frame size: 9500 |
| Remote Management Protocol | SNMP, RMON |
| Status Indicators | Link/activity |
| Features | Flow control, load balancing, VLAN support, wake on LAN (WOL), IPv6 support, Quality of Service (QoS), Intel I/O Acceleration Technology (I/OAT), Virtual Machine Device Queues (VMDq), PXE support, Link Aggregation Control Protocol (LACP), Watch Dog Timer (WDT), iSCSI boot |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP) |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-LX/SX - SFP (mini-GBIC) |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Power | |
| Power Consumption Operational | 2.2 Watt |
| Software / System Requirements | |
| OS Required | Microsoft DOS, SCO OpenServer, UnixWare, SunSoft Solaris, Novell NetWare 5.x, Novell NetWare 6.x, Microsoft Windows Server 2003, Open UNIX 8.x, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, VMware ESX, Microsoft Windows 2000/XP/Vista/7/8, Microsoft Windows Server 2012 R2, Linux Kernel 2.6.30 or later, FreeBSD 7.x or later |
| Dimensions & Weight | |
| Width | 16 cm |
| Depth | 6.8 cm |
| Height | 1.7 cm |
| Weight | 83 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - LevelOne - GNC-0122
More Details
Product Code
04:425187
EAN Code
4015867224212
Manufacturer
LevelOne
