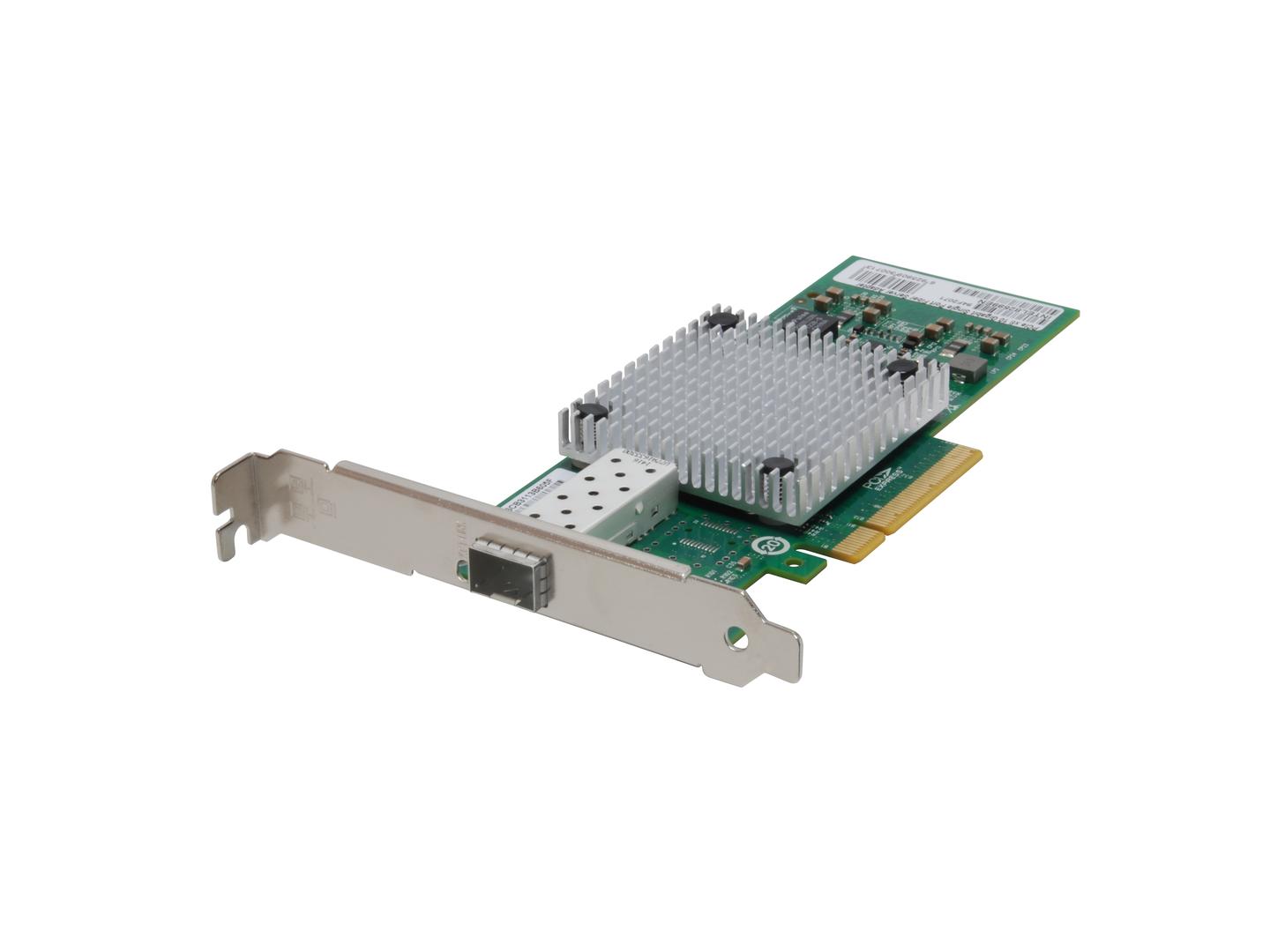

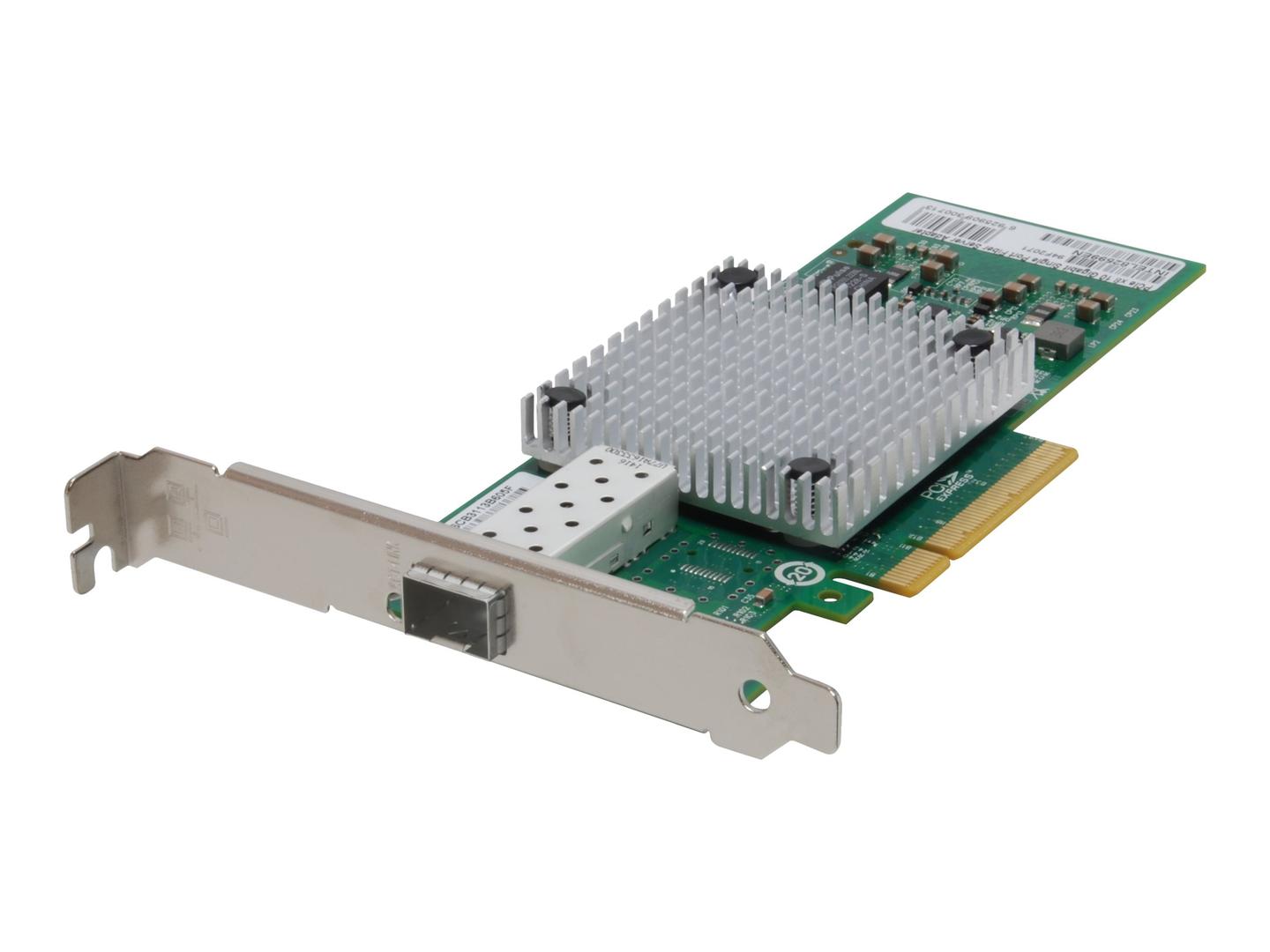

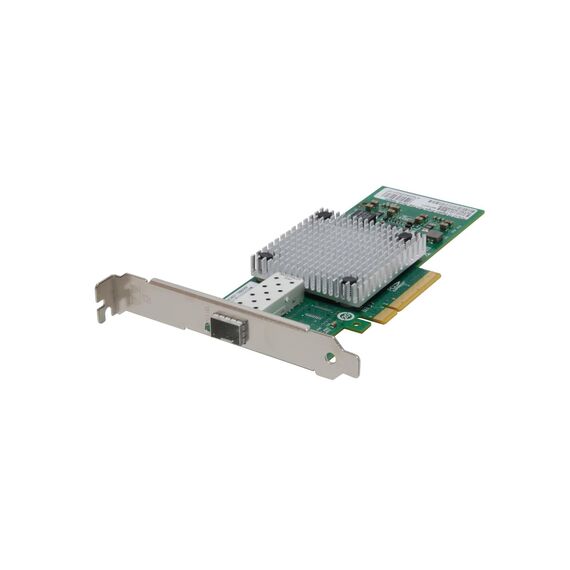

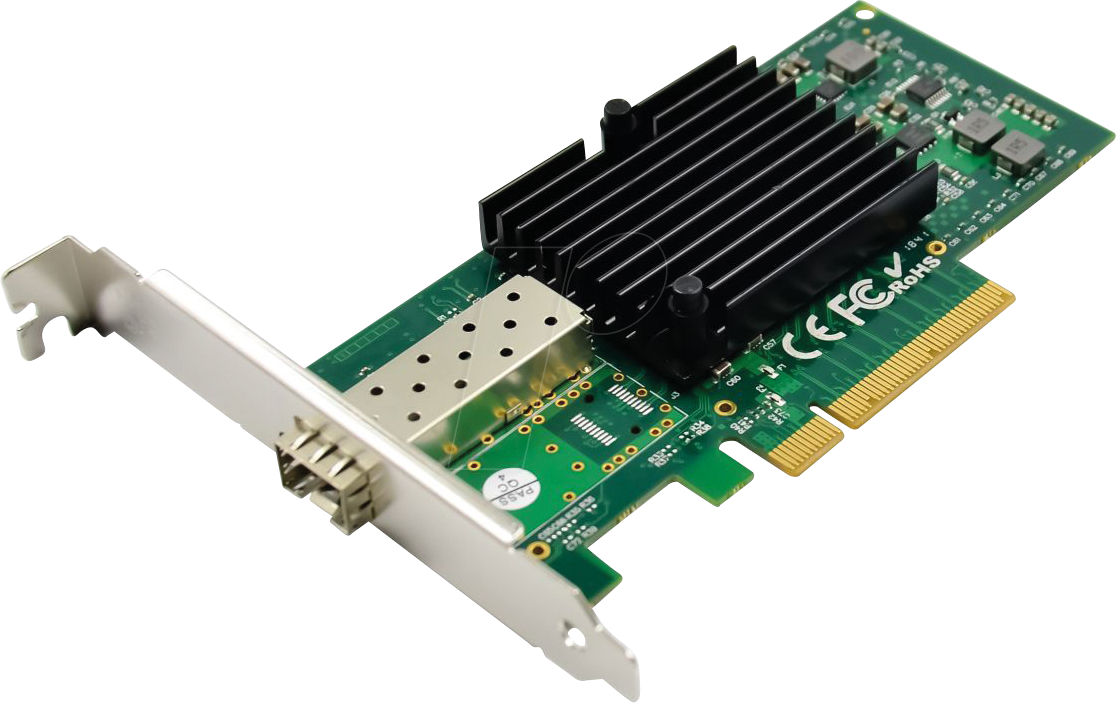

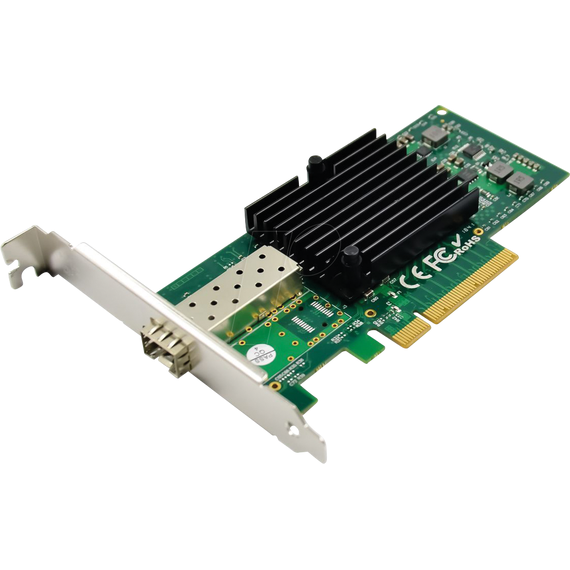

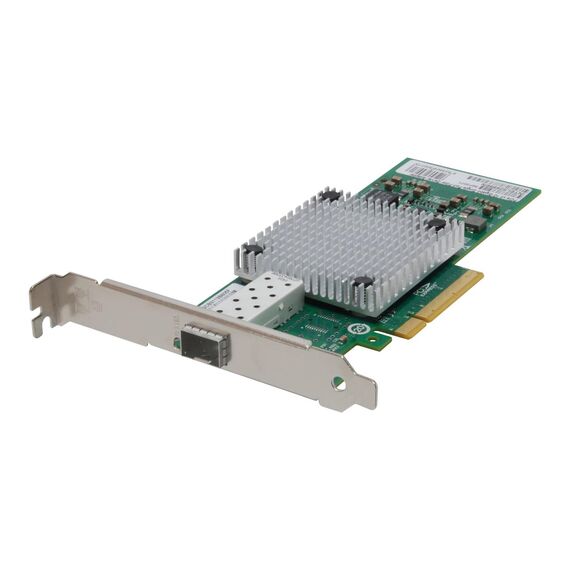

LevelOne GNC-0201 - Network adapter - PCIe x8 low profile - 10 Gigabit SFP+ x 1 | GNC-0201
Please sign in so that we can notify you about a reply
Special Fetures
- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- Load balancing across multiple CPUs
- Supports iSCSI remote boot
- Supports Fiber Channel over Ethernet (FCoE)
- Supports most network operating systems (NOS)
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express x8 |
| PCI Specification Revision | PCIe 2.0 |
| Networking | |
| Ports | 10 Gigabit SFP+ x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Capacity | Jumbo frame size: 9500 |
| Status Indicators | Link/activity |
| Features | Flow control, VLAN support, wake on LAN (WOL), Quality of Service (QoS), Virtual Machine Device Queues (VMDq), PXE support, LACP support, Single Root I/O Virtualization (SR-IOV), Virtualization Technology for Connectivity (VT-c), iSCSI boot |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP) |
| Expansion / Connectivity | |
| Interfaces | 1 - SFP+ |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Power | |
| Power Consumption Operational | 4.5 Watt |
| Software / System Requirements | |
| Software Included | Driver |
| OS Required | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, SuSE Linux Enterprise Server 11 SP1, SuSE Linux Enterprise Server 10 SP4, Red Hat Enterprise Linux 5.6, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Vista / 7 / 8 / 8.1, Linux Kernel 2.6.30 or later, FreeBSD 7.2 or later, Red Hat Enterprise Linux 6.x |
| Dimensions & Weight | |
| Width | 16.5 cm |
| Depth | 1.7 cm |
| Height | 6.9 cm |
| Weight | 100 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - LevelOne - GNC-0201
More Details
Product Code
04:425194
EAN Code
4015867224199
Manufacturer
LevelOne
