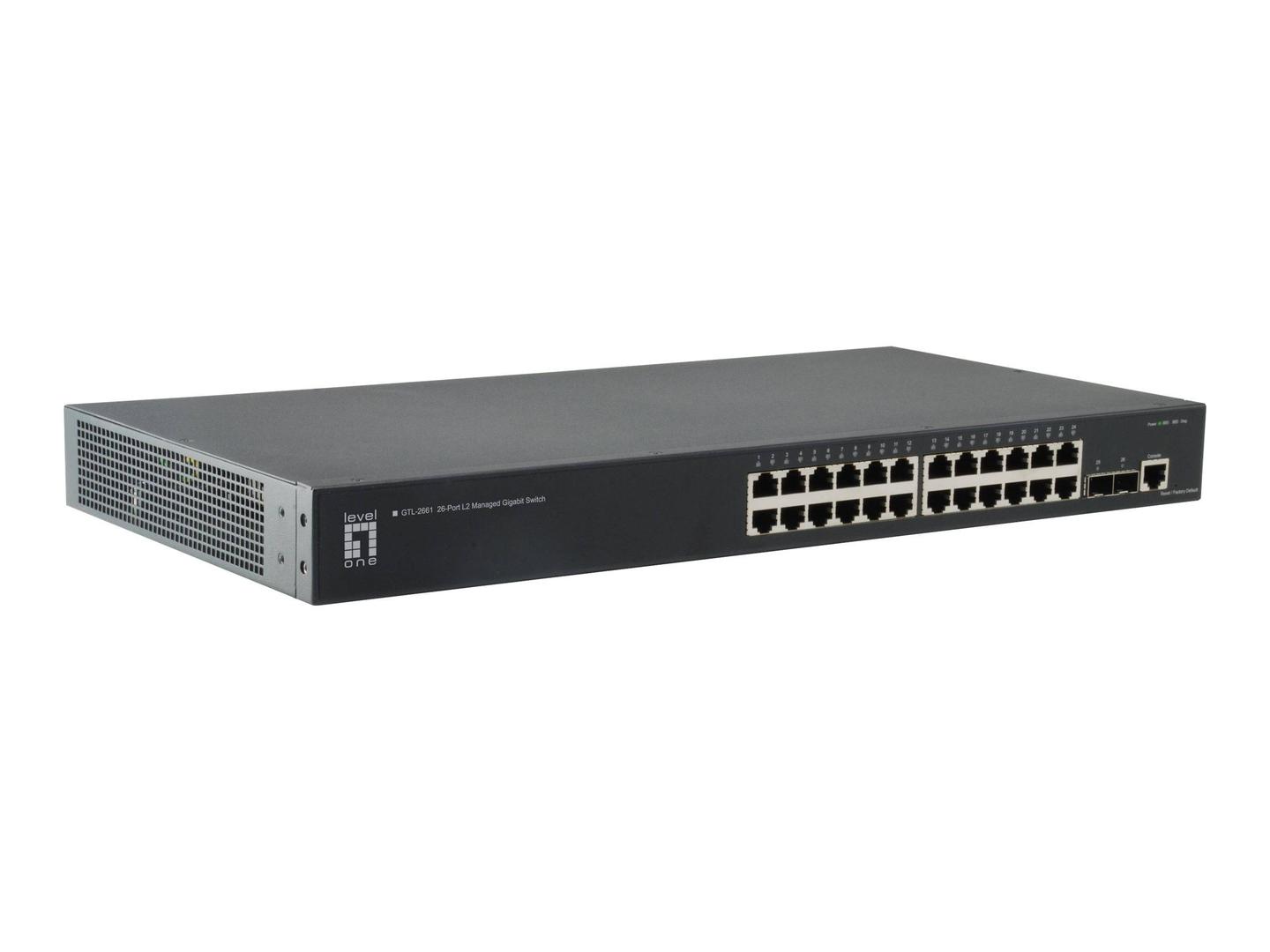

LevelOne GTL-2661 / Switch / 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ / desktop, rack-mountable | GTL-2661
Please sign in so that we can notify you about a reply
Special Features
- QoS control based on IP DSCP for advanced traffic prioritization and bandwidth management
- Minimize carbon footprint with advanced energy efficient technology
Product Specification
| Device Type | Switch - 26 ports |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ |
| Performance | Backplane speed: 88 Gbps ¦ Packet forwarding rate: 65.5 Mpps |
| Capacity | Priority queues per port: 8 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLD |
| Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, NTP |
| Features | Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, store and forward, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DDos attack prevention, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, event log, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), reset button, IPv4 support, LLDP support, DHCP relay, Port Security, DHCP client, port isolation, static routing, 12MB packet buffer, Class of Service (CoS), IGMP filtering, IGMP throttling, CPU protection, IP source guard, Bridge protocol data unit (BPDU), dual image support, MAC address authentication, Authentication, Authorization and Accounting (AAA), IGMP querier, ingress rate limiting, Energy-Efficient Ethernet (EEE), MAC based VLAN, port-based VLAN, egress rate limiting, DSCP based ToS, Unknown Storm Control |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az, UPnP |
| Flash Memory | 32 MB |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 1000Base-T RJ-45 ¦ 2 x 10Gbit LAN SFP+ ¦ 1 x console RJ-45 |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 20 Watt |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| Compliant Standards | UL, VCCI, BSMI, FCC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 22 cm |
| Height | 4.4 cm |
| Weight | 2.29 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
Features - LevelOne - GTL-2661
General
24-Port
More Details
Product Code
04:264994
EAN Code
4015867203057
Manufacturer
LevelOne
