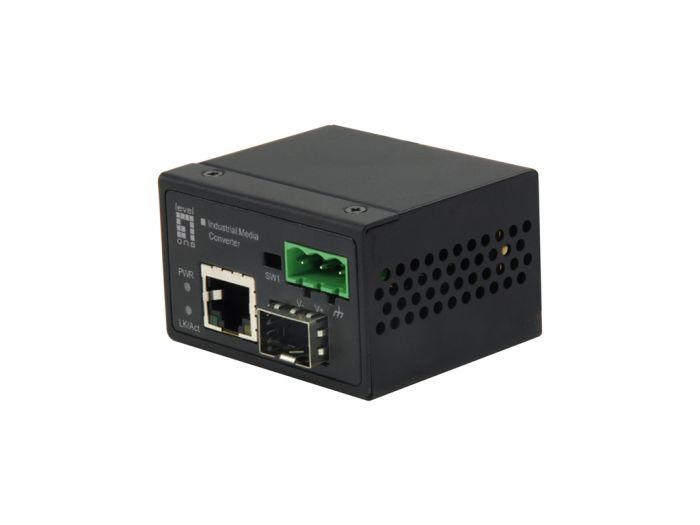

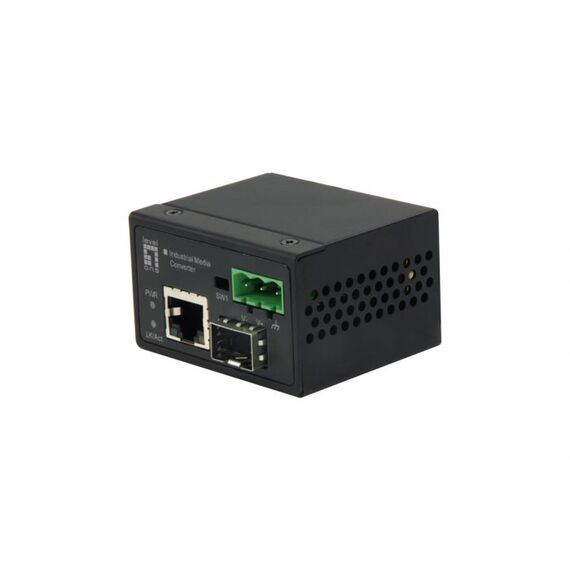

LevelOne IEC-2000 / Fibre media converter / GigE / 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T / RJ-45 / SFP (mini-GBIC) | IEC-2000
Please sign in so that we can notify you about a reply
Special Features
- Alarms for power and port link failure by relay output
- Aluminum case
Product Specification
| Device Type | Fibre media converter |
| Form Factor | DIN rail mountable |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Status Indicators | Collision status, port transmission speed, port duplex mode, power, link/activity, fault |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), built-in DIP switch, over-loading protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-LX/1000Base-SX - SFP female |
| Miscellaneous | Miscellaneous |
| MTBF | 76,33 years |
| Compliant Standards | ISO 9001, EN55022, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-6, UL 508, EN 61000-6-3, FCC Part 15 A, IP30, NEMA TS-2, FED-STD-101C, EN61000-3-2, EN61000-3-3, NEMA TS-1, IEC 61000-6-2 |
| Power | Power |
| Voltage Required | DC 12 - 48 V |
| Power Consumption Operational | 7.68 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 5 cm |
| Depth | 11 cm |
| Height | 13.5 cm |
| Weight | 800 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - LevelOne - IEC-2000
More Details
Product Code
04:245399
EAN Code
4015867184103
Manufacturer
LevelOne
