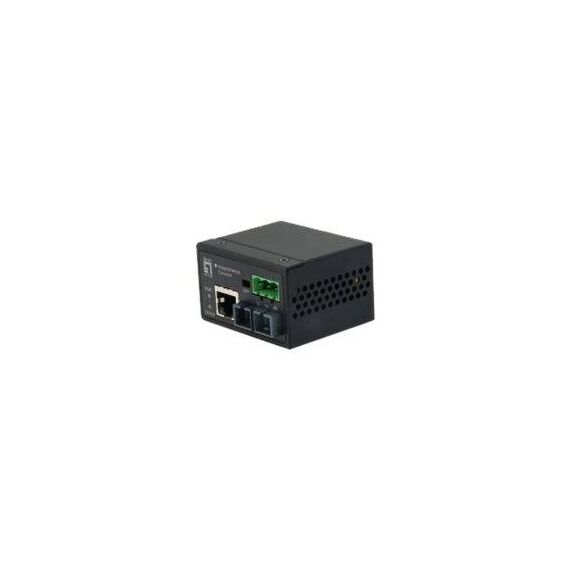

LevelOne IEC-4002 / Media converter / 100Mb LAN / 10Base-T, 100Base-FX, 100Base-TX / RJ-45 / ST multi-mode / up to 2 km | IEC-4002
Please sign in so that we can notify you about a reply
Special Features
- Rugged aluminum case design in a mini size form factor
- With polarity protection
- Link fault pass through function
- Supports switch and pure converter mode
- Surge & ESD protection
- Maximum noise & interference immunity
Product Specification
| Device Type | Media converter |
| Form Factor | DIN rail mountable |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Max Transfer Distance | 2 km |
| Status Indicators | Power, link/activity |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, Link Fault Pass Through function (LFP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - ST multi-mode female x 2 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, REACH, FCC Part 15 B Class A, EN 50121-4 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | DC 12 - 60 / 18 - 36 V |
| Power Consumption Operational | 1.44 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 5.9 cm |
| Depth | 4.9 cm |
| Height | 3.6 cm |
| Weight | 260 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - LevelOne - IEC-4002
More Details
Product Code
04:156969
EAN Code
4015867188156
Manufacturer
LevelOne
