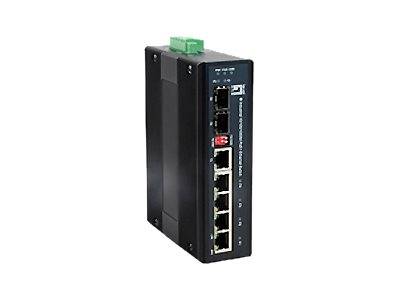

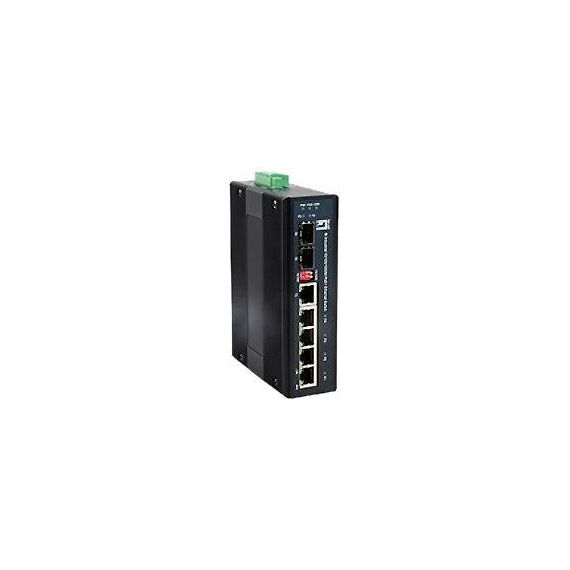

LevelOne IES-0610 / Switch / unmanaged / 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP + 1 x combo Gigabit SFP / DIN rail mountable / PoE+ / DC power | IES-0610
Please sign in so that we can notify you about a reply
Special Features
- 4 10/100/1000Base-T PoE ports
- 1 Gigabit Combo + 1 Gigabit SFP(100/1G) slot
- 1000 Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex
- Auto-Negotiation, Auto-MDI/MDIX
- 40°C to 75°C (-40°F to 167°F) operating temperature range
- DIN-Rail mount installation
- Metal case design and compliant with IP30 standard
- Input power 48VDC
Product Specification
| Device Type | Switch - unmanaged |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP + 1 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Forwarding performance: 1488000 pps ¦ Backplane speed: 12 Gbps |
| MAC Address Table Size | 1K entries |
| Jumbo Frame Support | 10KB |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, 1MB packet buffer, PoE overcurrent protection, PoE circuit sorting protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Port transmission speed, power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-X SFP ¦ 1 x 1000Base-T RJ-45 |
| Power | Power |
| Power Redundancy | Yes |
| Voltage Required | DC 48 - 55 V |
| Power Consumption Operational | 6 Watt |
| Miscellaneous | Miscellaneous |
| Compliant Standards | EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, FCC Part 15 B Class A, IP30 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 4 cm |
| Depth | 10.5 cm |
| Height | 3.8 cm |
| Weight | 720 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 75 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - LevelOne - IES-0610
More Details
Product Code
04:155755
EAN Code
4015867188507
Manufacturer
LevelOne
