LevelOne IGP-0102 - PoE injector (DIN rail mountable) - DC 12 - 56 V - 36 Watt | IGP-0102
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | PoE injector - DIN rail mountable |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Power Device | |
| Input Voltage | DC 12 - 56 V |

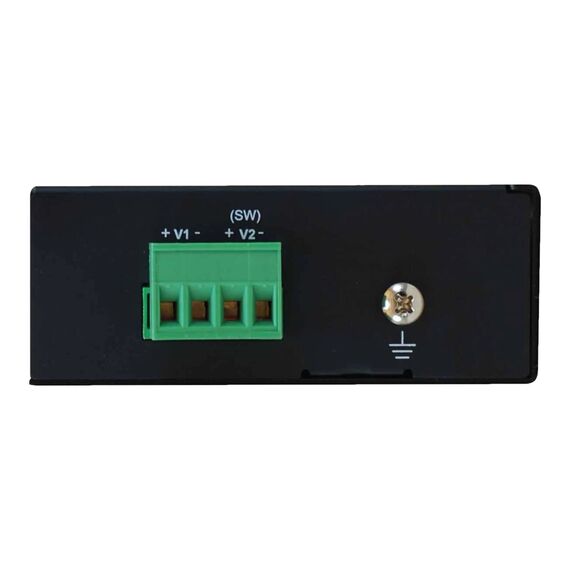

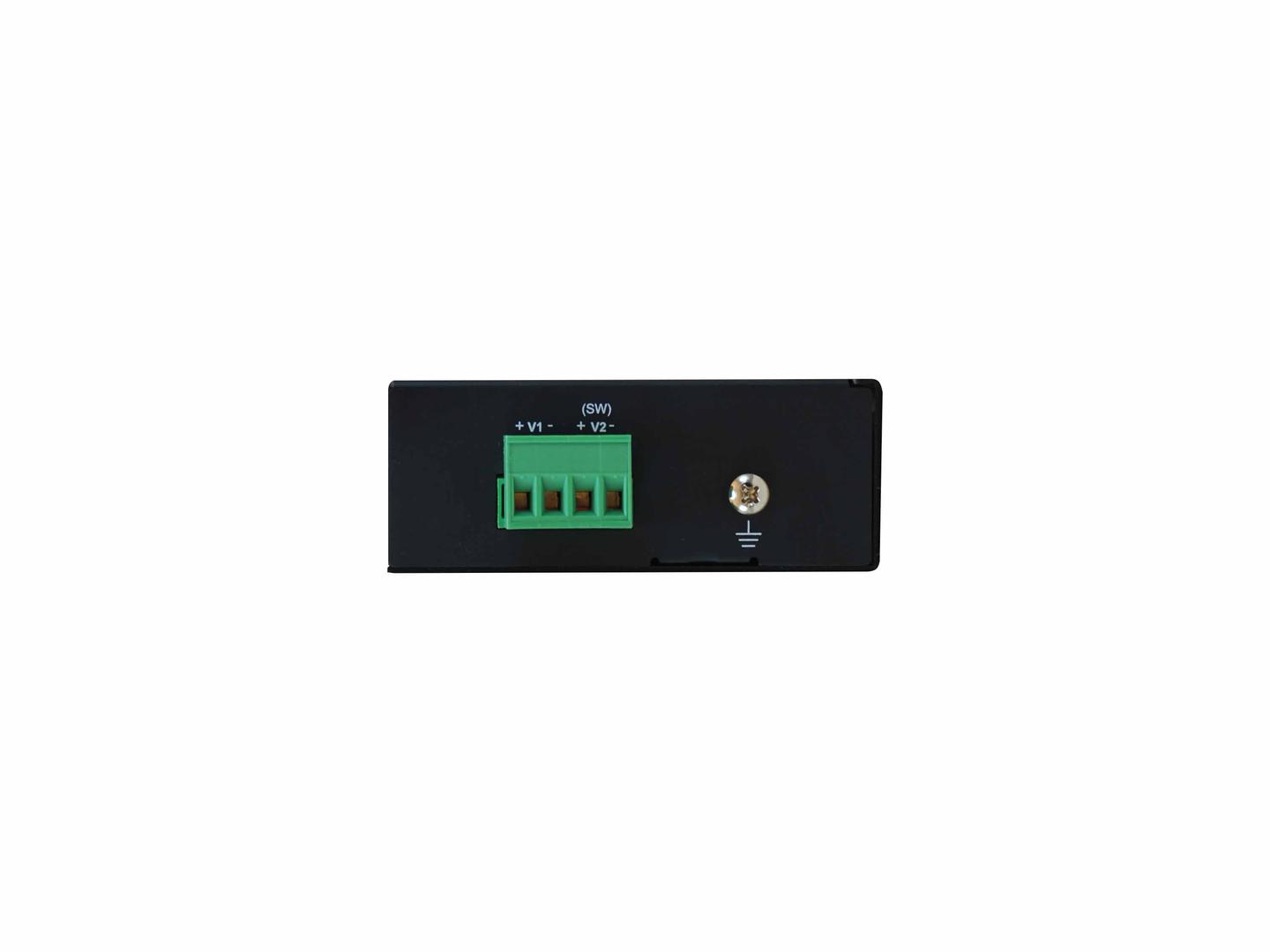

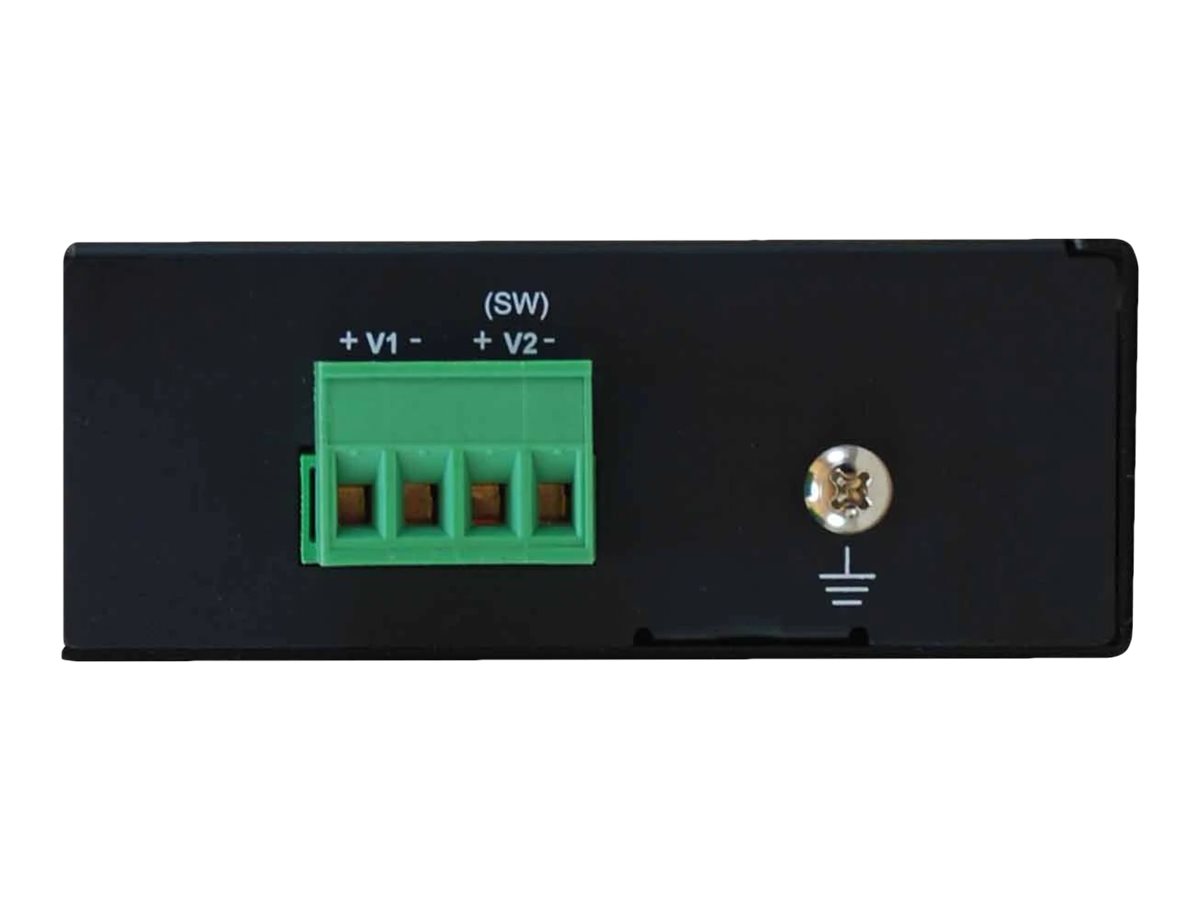

| Input Connectors | Terminal block |
| Power Capacity | 36 Watt |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | |
| MTBF | 510,304 hours |
| Features | Wall mountable, over current protection, overload protection, reverse polarity protection, DIP switch, ColdDesign technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, VCCI, EN55022, EN55024, EMC, FCC, FCC Part 15 B Class A, EMI, IP30, EN 55022 Class A, EN 50155, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6, IEEE 802.3af, IEEE 802.3at, IEC/EN 60950-1 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.2 cm |
| Depth | 8.15 cm |
| Height | 10.35 cm |
Features - LevelOne - IGP-0102
More Details
Product Code
04:381623
EAN Code
4015867196595
Manufacturer
LevelOne
