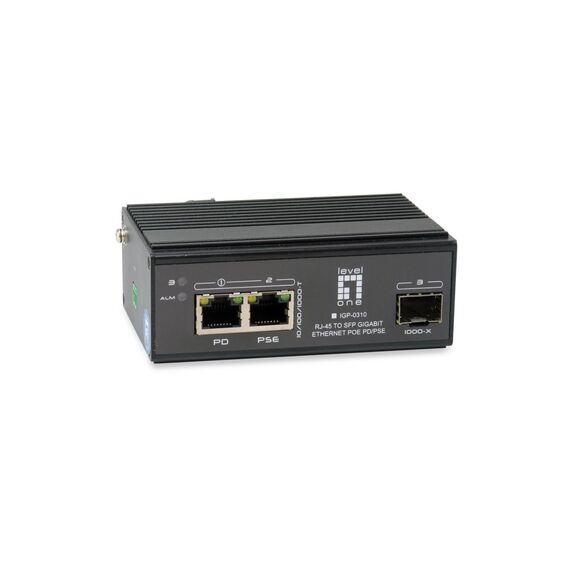

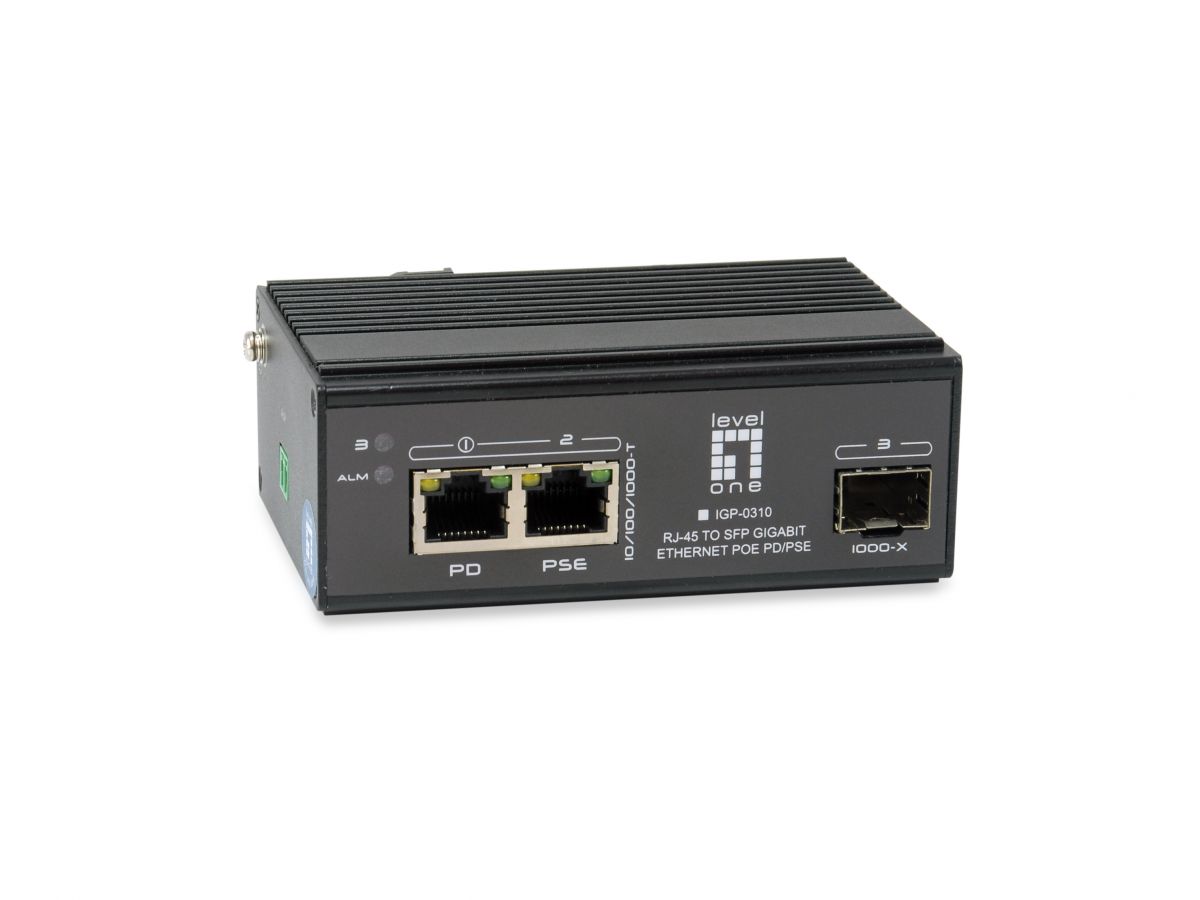

LevelOne IGP-0310 / Switch / 2 x 10/100/1000 (2 PoE+) + 1 x Gigabit SFP / desktop, DIN rail mountable, wall-mountable / PoE+ (30 W) | IGP-0310
Please sign in so that we can notify you about a reply
Special Features
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Provides DIN-rail, wall or desktop mounting
- IP30 metal case
- 6KV surge protection level on each port
- ESD and surge protection
Product Specification
| Device Type | Switch |
| Enclosure Type | Desktop, DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 2 x 10/100/1000 (2 PoE+) + 1 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 30 W |
| Features | Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, metal housing, Power Sourcing Equipment (PSE), 6KV Surge protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x Gigabit LAN SFP |
| Miscellaneous | Miscellaneous |
| Colour | Black |
| Compliant Standards | FCC, IP30 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 10.1 cm |
| Depth | 6.5 cm |
| Height | 3.6 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 0 - 95% |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 0 - 95% |
Features - LevelOne - IGP-0310
More Details
Product Code
04:381628
EAN Code
4015867226940
