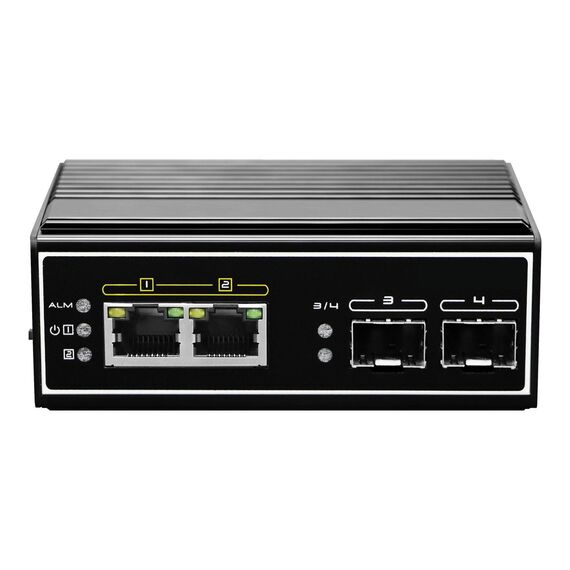

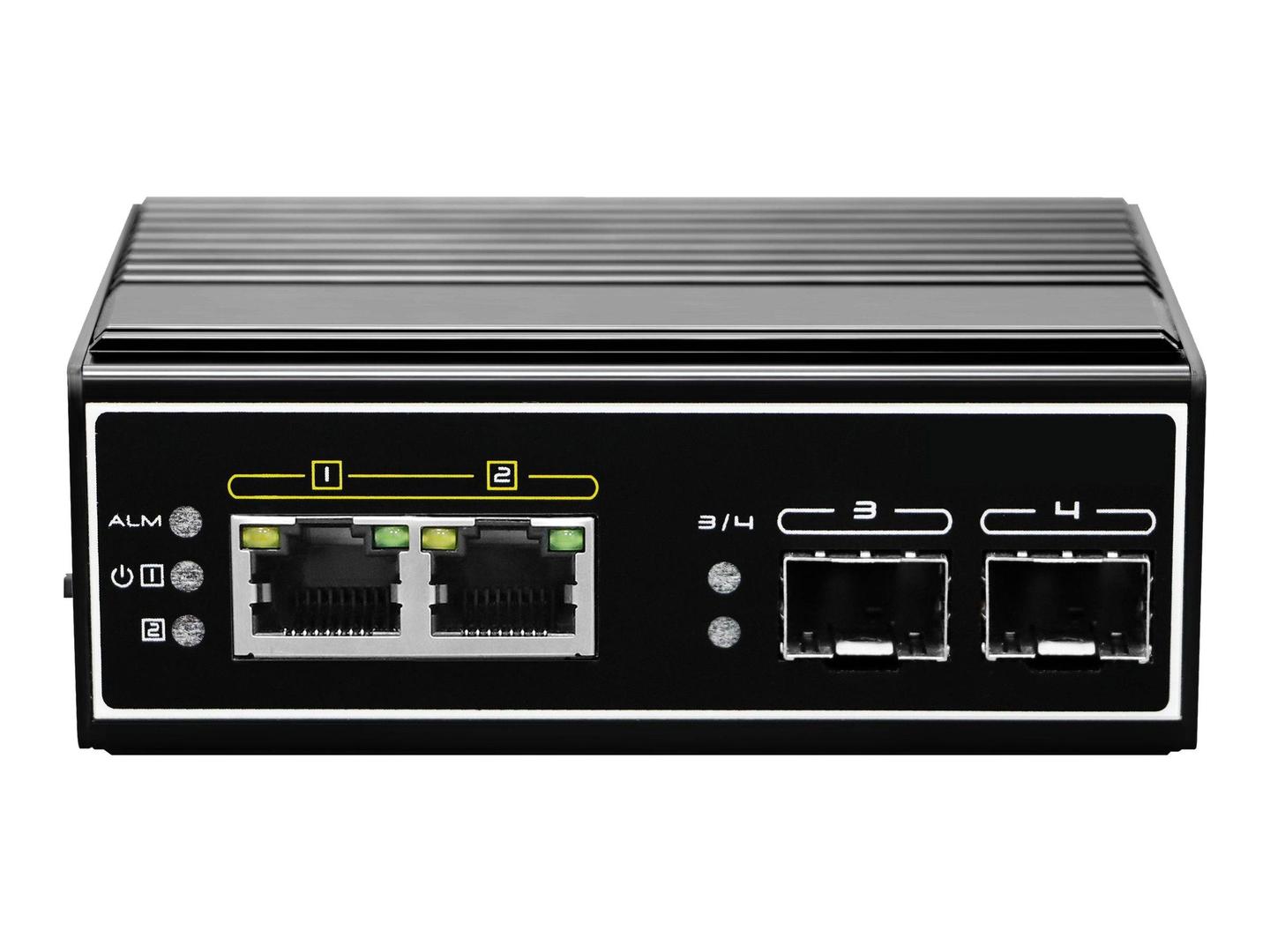

LevelOne IGP-0431 / Switch / unmanaged / 2 x 10/100/1000 (PoE) + 2 x Gigabit SFP / DIN rail mountable / PoE / DC power | IGP-0431
Please sign in so that we can notify you about a reply
Special Features
- 10/100/1000Mbps wire speed transmission and reception
- IEEE 802.3af/at/bt PoE compliant to simplify deployment and installation
- 6KV surge protection level on each port
- -40°C to 75°C operating temperature range
- ESD and surge protection
- Supports DIN-rail installation
Product Specification
| Device Type | Switch - 4 ports - unmanaged |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 2 x 10/100/1000 (PoE) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| MAC Address Table Size | 8K entries |
| Features | Surge protection, Digital Diagnostics Monitoring Interface (DDMI), Power Sourcing Equipment (PSE), 6KV Surge protection, ESD Protector |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt |
| Status Indicators | Power, status, PoE, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x 1000Base-T RJ-45 PoE - 30 W ¦ 1 x Gigabit LAN SFP |
| Power | Power |

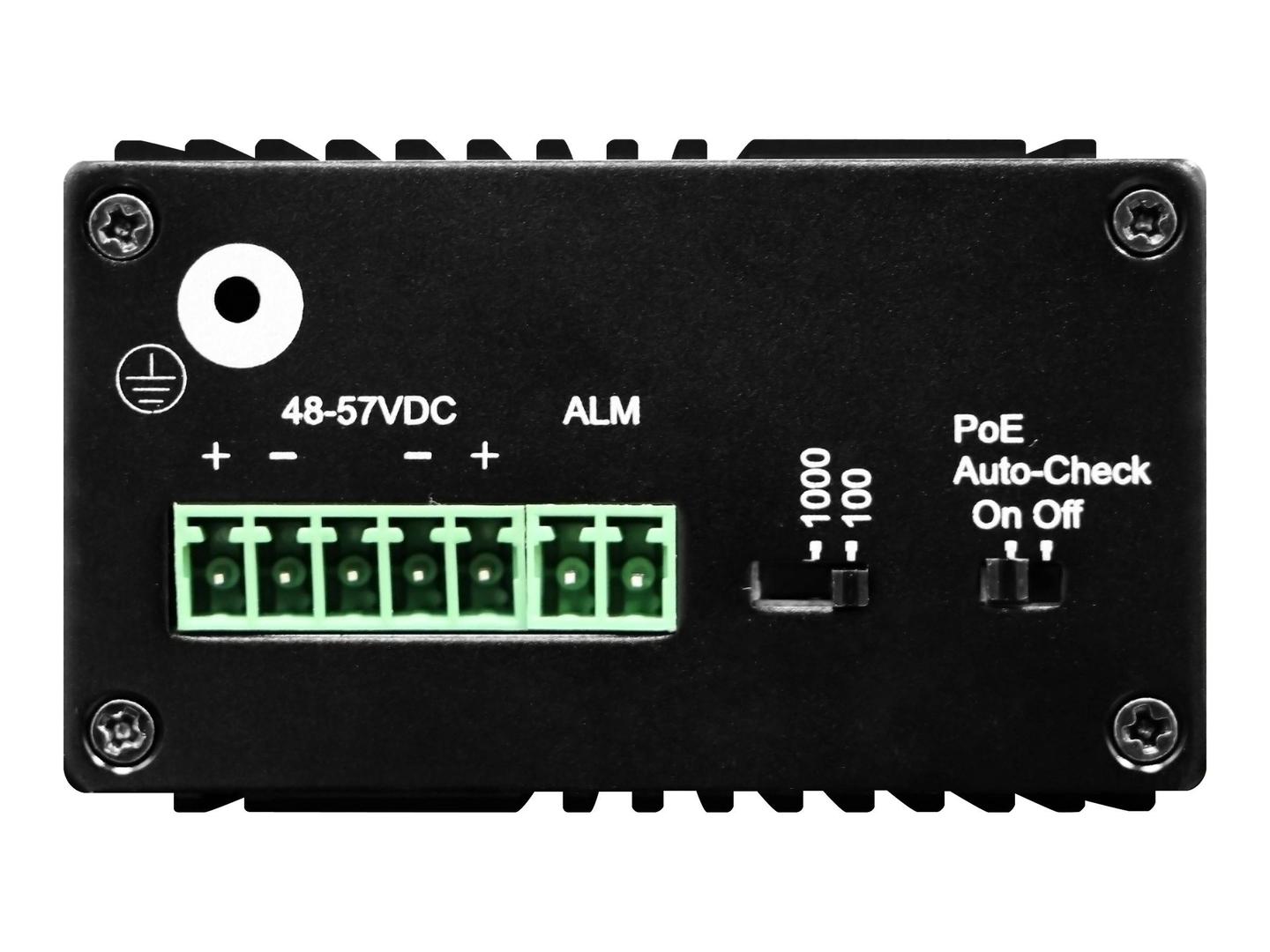

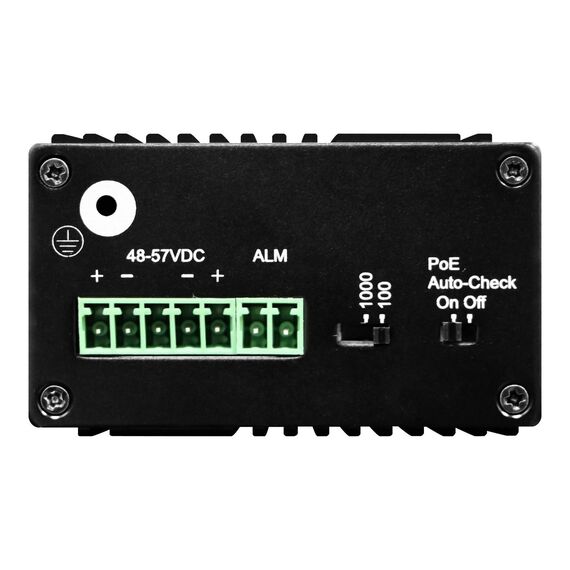

| Voltage Required | DC 48 - 57 V |
| Miscellaneous | Miscellaneous |
| Colour | Black |
| Dimensions & Weight | Dimensions & Weight |
| Width | 13 cm |
| Depth | 11 cm |
| Height | 6.2 cm |
| Weight | 300 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 0 - 95% |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 0 - 95% |
Features - LevelOne - IGP-0431
More Details
Product Code
04:373996
EAN Code
4015867223956
Manufacturer
LevelOne
