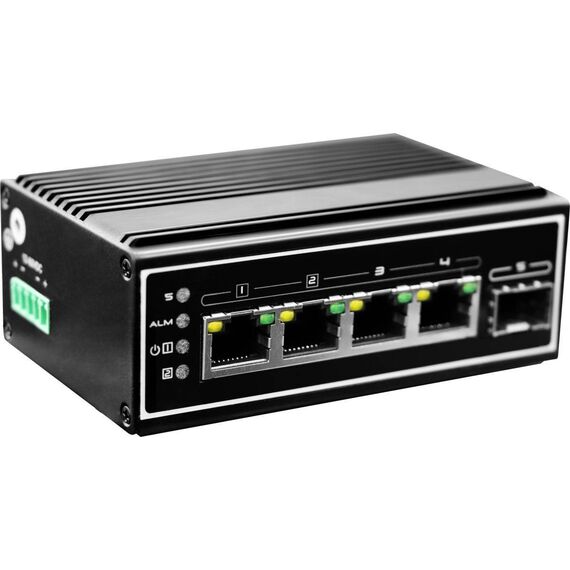

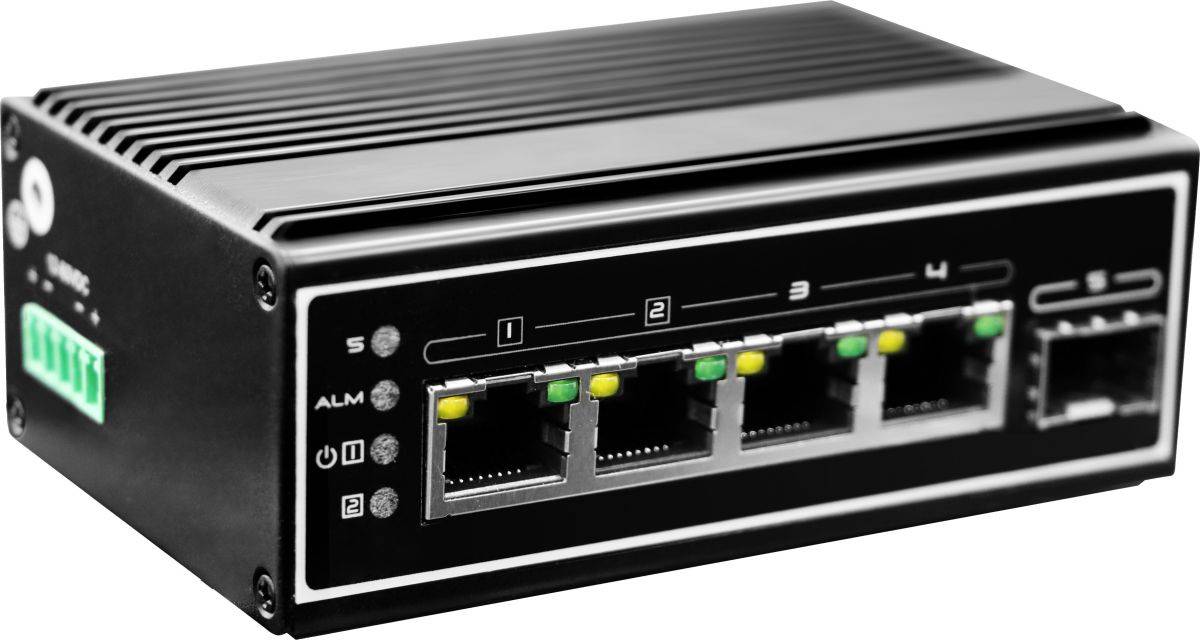

LevelOne IGP-0502 / Switch / -40°C to 75°C / 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP / desktop, DIN rail mountable, wall-mountable / PoE+ (120 W) / DC power | IGP-0502
LevelOne IGP-0502 Industry Ethernet Switch provides 4 PoE ports 10/100/1000Base plus 1 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE802.3af/af PoE standard at maximum 30W power budget. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3 af/at standard PD devices.
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Port 1 - 4 support IEEE 802.3at Power over Ethernet
- Provides DIN-rail, wall or desktop mounting
- IP30 metal case
- 6KV surge protection level on each port
- ESD and surge protection
Product Specification
| Device Type | Switch - 5 ports |
| Enclosure Type | Desktop, DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| Performance | Backplane speed: 10 Gbps ¦ Packet forwarding rate: 14.88 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9000 bytes |
| Features | Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, fanless, metal housing, Power Sourcing Equipment (PSE), 6KV Surge protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x Gigabit LAN SFP |
| Power | Power |
| Voltage Required | DC 48 - 57 V |
| Power Consumption Operational | 5 Watt |
| Miscellaneous | Miscellaneous |
| Colour | Black |
| Compliant Standards | FCC, IP30 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 10.1 cm |
| Depth | 6.5 cm |
| Height | 3.6 cm |
| Weight | 350 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
