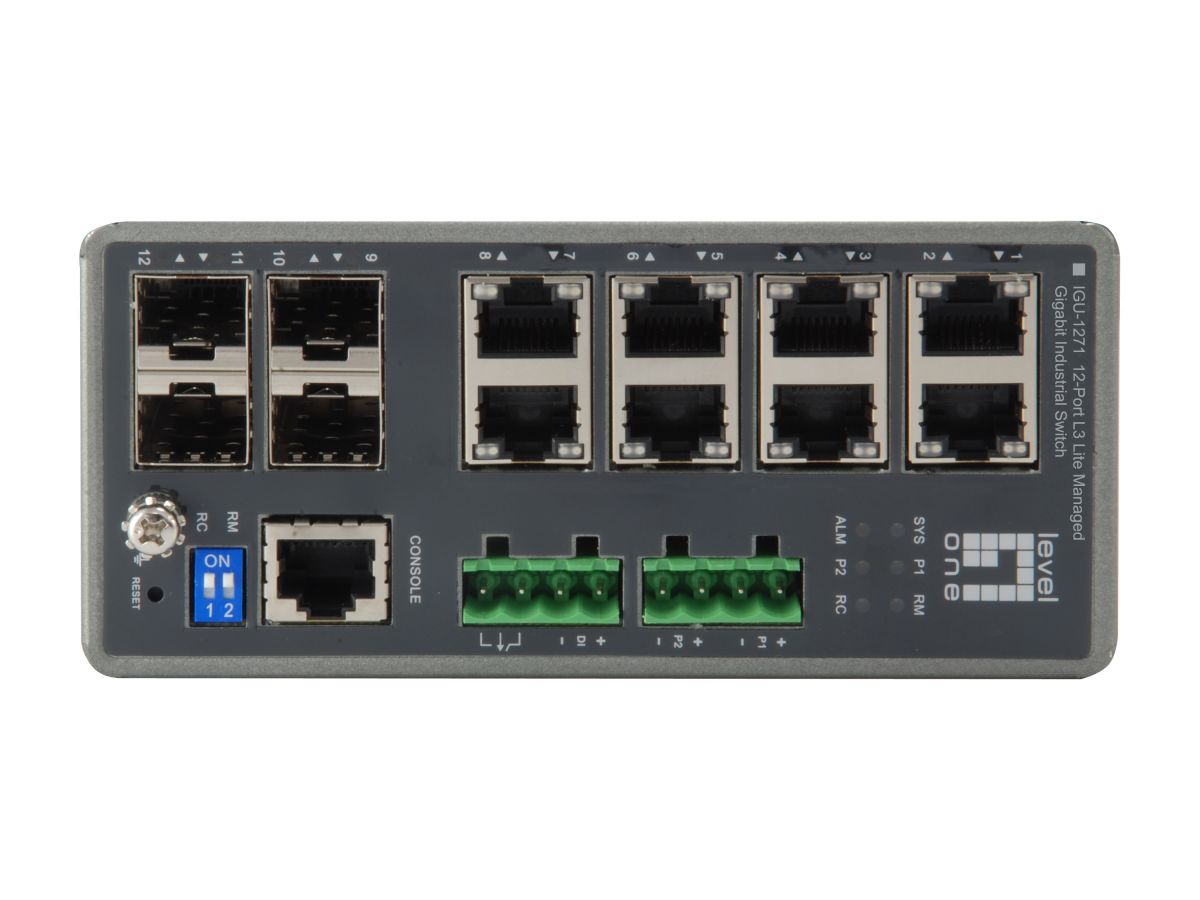

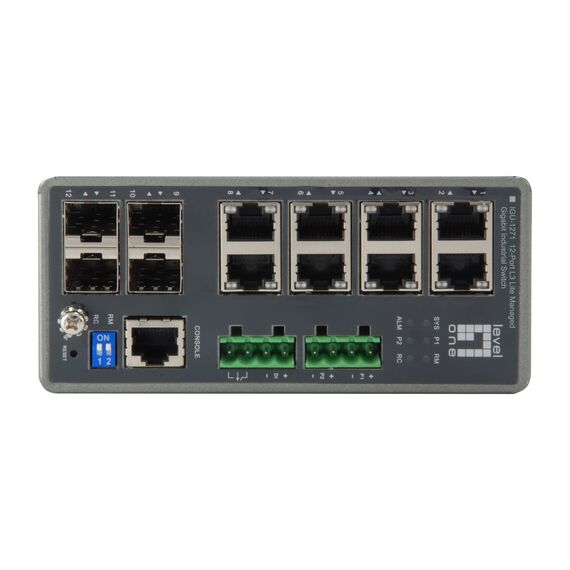

LevelOne IGP-1271 / Switch / L3 Lite / Managed / 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP / DIN rail mountable / PoE+ (240 W) / DC power | IGP-1271
Please sign in so that we can notify you about a reply
Special Features
- 8 Gigabit PoE ports and 4 Gigabit SFP slots
- Total PoE power budget: 240W, up to 30W per port
- Supports IPv4/IPv6 network operation
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
- Support Operations, Administration, and Maintenance (OAM) mechanisms
- Ethernet Ring Protection Switching (ERPS) for Ethernet ring topologies with sub-50 ms failover capabilities
- 40°C to 75°C operating temperature range
- Redundant power inputs with Terminal Block
Product Specification
| Device Type | Switch - 12 ports - L3 Lite - Managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 24 Gbps ¦ Packet forwarding rate: 17.856 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, SMTP |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+ |
| Features | IGMP snooping, Syslog support, port mirroring, store and forward, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), IPv4 support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), 500KB packet buffer, loop prevention, Generic VLAN Registration Protocol (GVRP), 802.1x authentication, SNMP support, Ethernet Ring Protection Switching (ERPS), Protocol-based VLANs support, Storm Control, IP source guard, Network Timing Protocol (NTP), Voice VLAN, Private VLAN, Device Management System (DMS), MAC based VLAN, BPDU Guard, Support Operations, Administration, and Maintenance (OAM) mechanism, Rapid Reconfiguration of Spanning Tree (RSTP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, ITU-T G.8031, ITU-T G.8032, IEEE 1588v2 |
| RAM | 128 MB |
| Flash Memory | 32 MB |
| Status Indicators | Port status, power, system, alarm, ring master, coupling |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP ¦ 1 x console RJ-45 management |
| Power | Power |
| Voltage Required | DC 48 - 57 V |
| Power Consumption Operational | 239.2 Watt |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| Compliant Standards | EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EMI, IP30 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.2 cm |
| Depth | 13 cm |
| Height | 13.5 cm |
| Weight | 680 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
