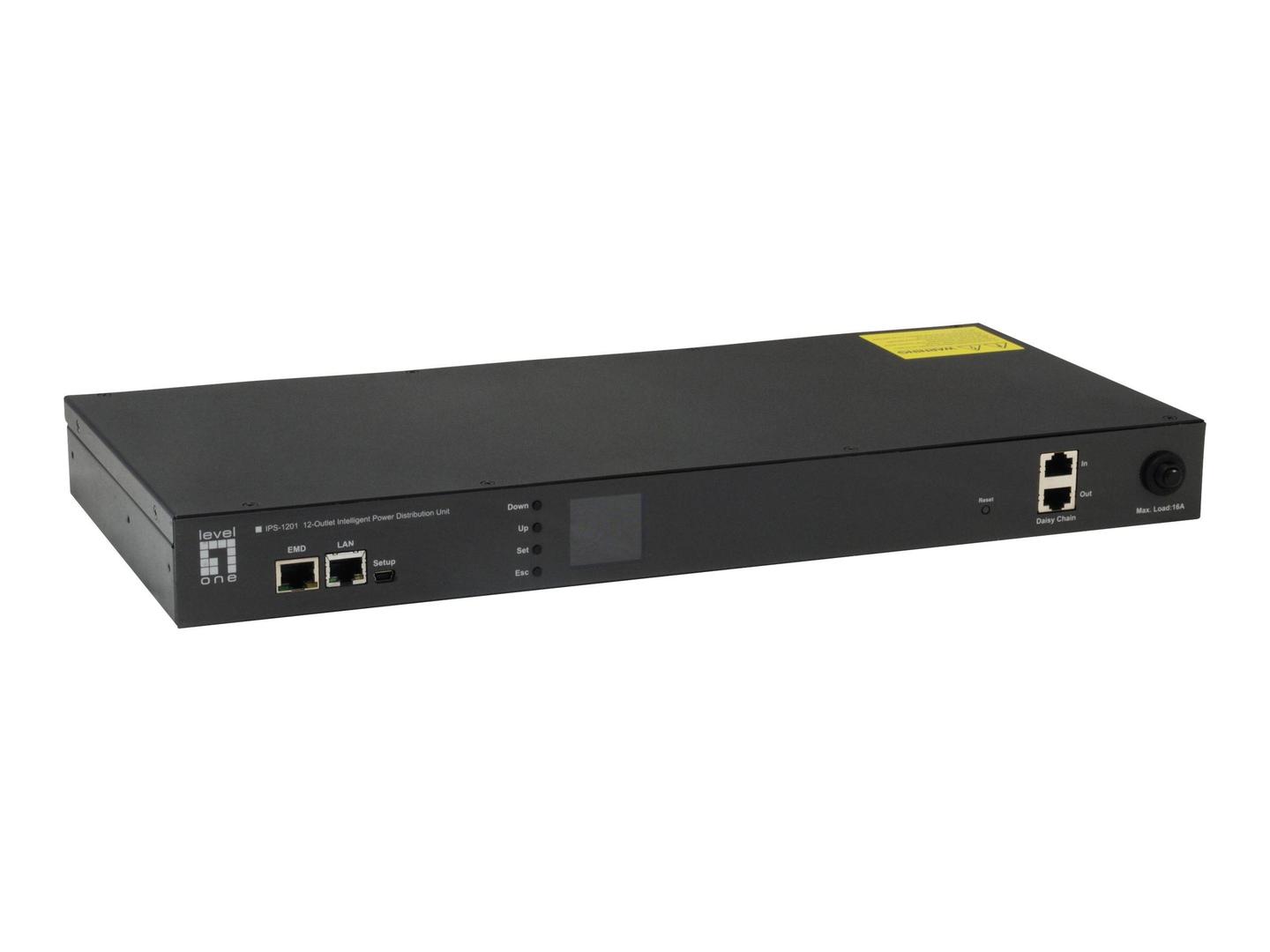

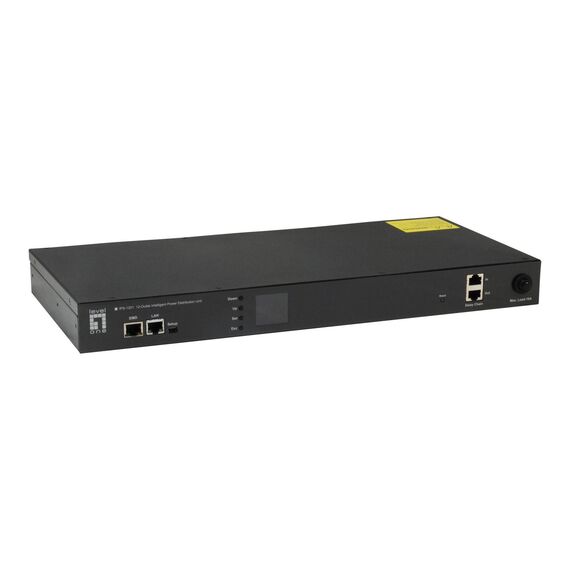

LevelOne IPS-1201E / Power distribution unit / AC 200 V / Ethernet / output connectors: 12 (12 x IEC 60320 C13) | IPS-1201E
Please sign in so that we can notify you about a reply
Special Features
- Hourly-based current statistics for analysis and diagnosis
- Alarms for power failure by relay output
- Management: web browser, SNMP, SSH and Hyper Terminal
- Network security: TLS and SSH
- Power on/off control on each port
- Access Control: Access Control List (ACL) / RADIUS
- Power protection: overvoltage / overcurrent
Product Specification
| Device Type | Power distribution unit |
| Image Colour Disclaimer | The displayed product image may be a different colour |
| Power Device | Power Device |
| Input Voltage | AC 200 V |
| Input Voltage Range | AC 200 - 240 V |

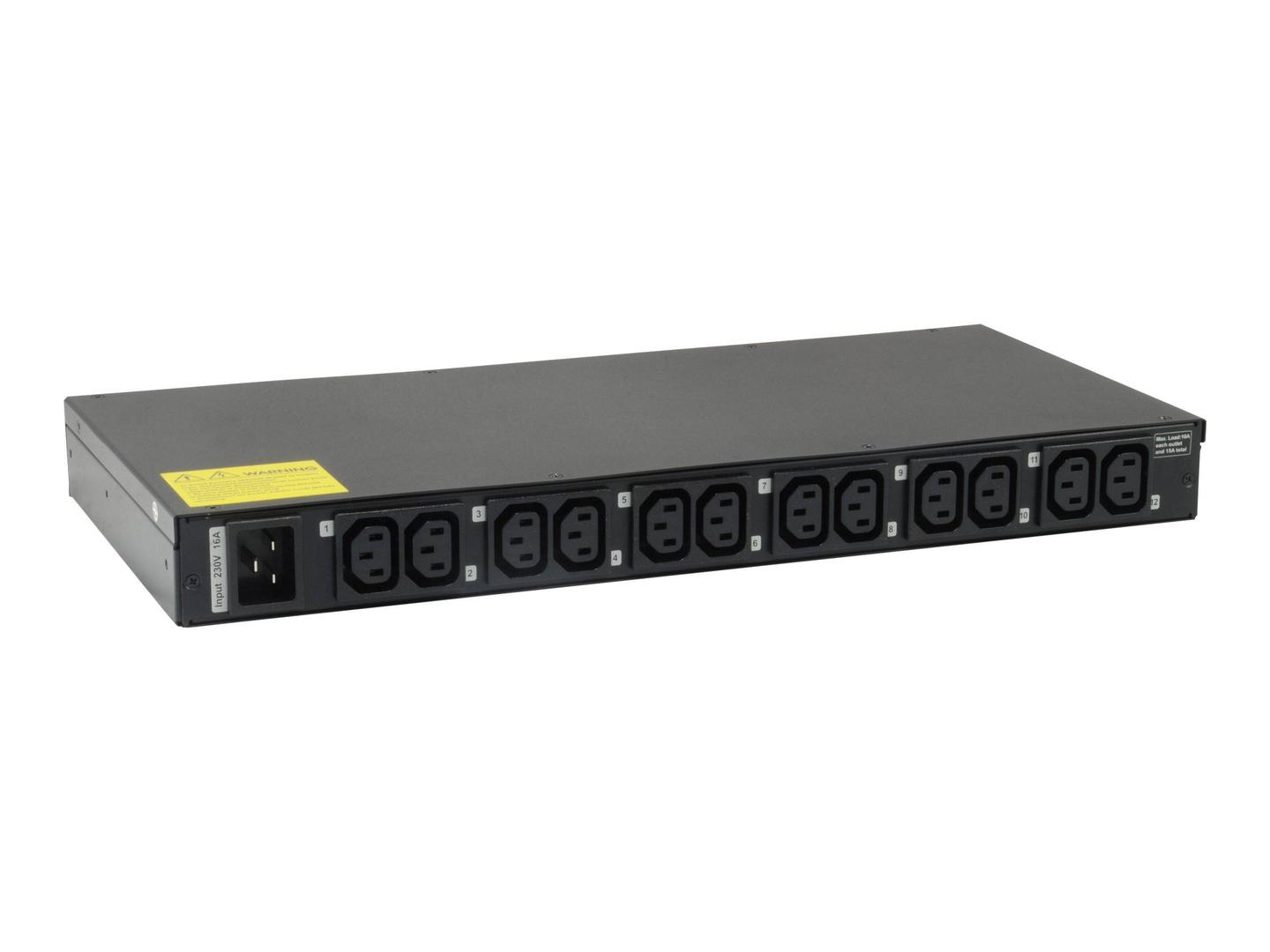

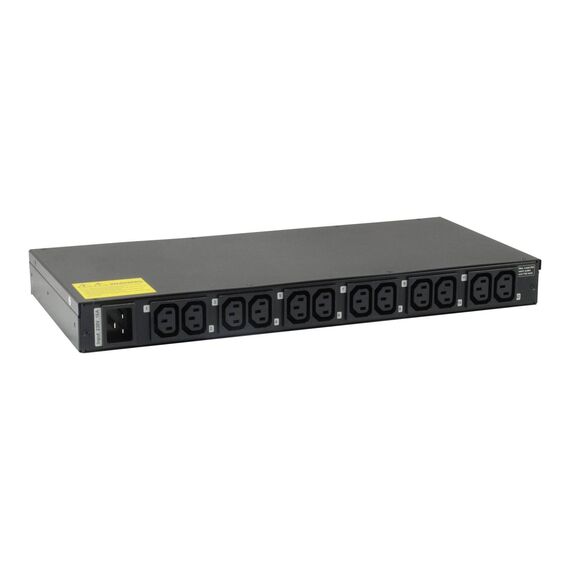

| Power Output Connectors Details | 12 x power IEC 60320 C13 15 A |
| Output Voltage | AC 200-240 V |
| Max Electric Current | 16 A |
| Circuit Protection | Circuit breaker |
| Networking | Networking |
| Remote Management Interface | Ethernet |
| Remote Management Protocol | SNMP, SSH |
| Miscellaneous | Miscellaneous |
| Cables Included | Power cable |
| Features | On/off switch, LCD display, over current protection, over voltage protection, Access Control List (ACL), Remote Authentication Dial-In User Service (RADIUS) |
| Compliant Standards | FCC Class A certified, LVD, TLS |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 43.16 cm |
| Depth | 20 cm |
| Height | 4.2 cm |
Features - LevelOne - IPS-1201E
More Details
Product Code
04:271932
EAN Code
4015867205372
Manufacturer
LevelOne
