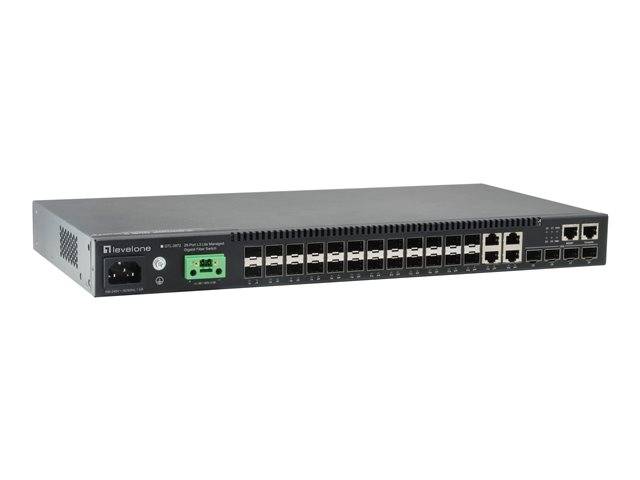

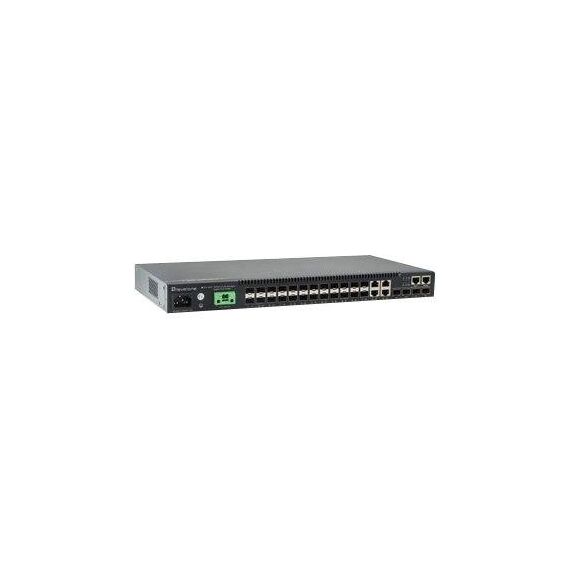

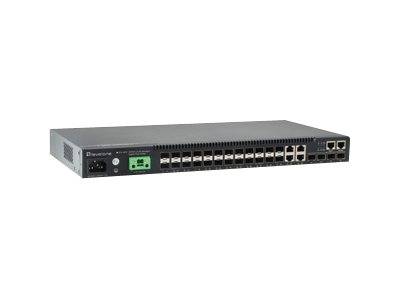

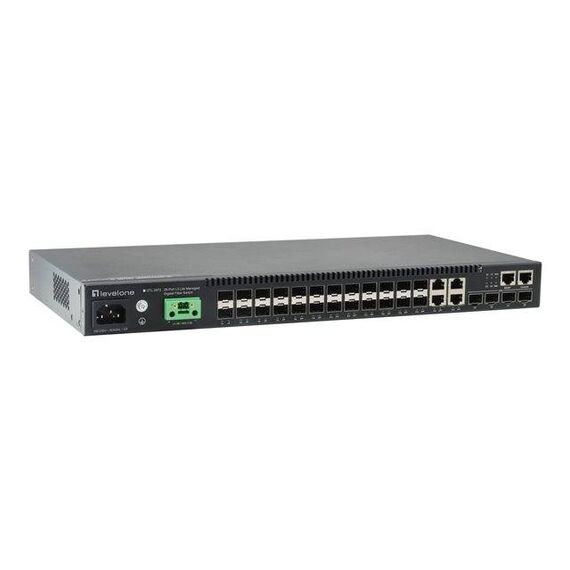

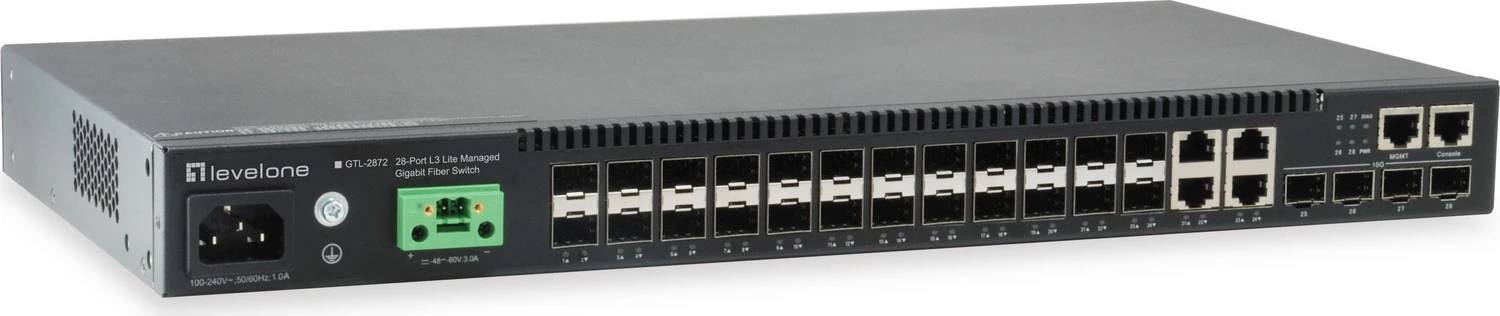

LevelOne KILBY GTL-2872 / Switch / L3 Lite / Managed / 20 x Gigabit SFP + 4 x shared 10/100/1000 + 4 x 10 Gigabit SFP+ / rack-mountable / AC 120/230 V / DC 48 / 60 V | GTL-2872
Please sign in so that we can notify you about a reply
LevelOne KILBY GTL-2872 / Switch / L3 Lite / Managed / 20 x Gigabit SFP + 4 x shared 10/100/1000 + 4 x 10 Gigabit SFP+ / rack-mountable / AC 120/230 V / DC 48 / 60 V | GTL-2872
Special Features
- IEEE 802.3ad LACP for auto port aggregation
- Dynamic ARP Inspection (DAI) protects switches against ARP spoofing
- Supports IPv4/IPv6 network operation
- MLD, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
- Support Operations, Administration, and Maintenance (OAM) mechanisms
- Supports DDMI SFP transceiver

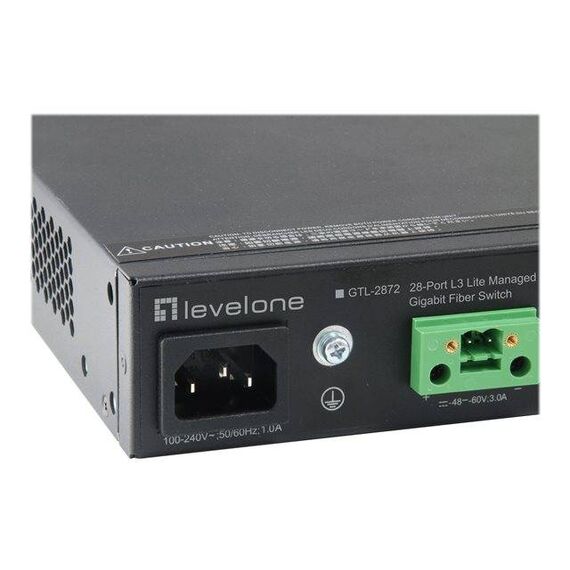

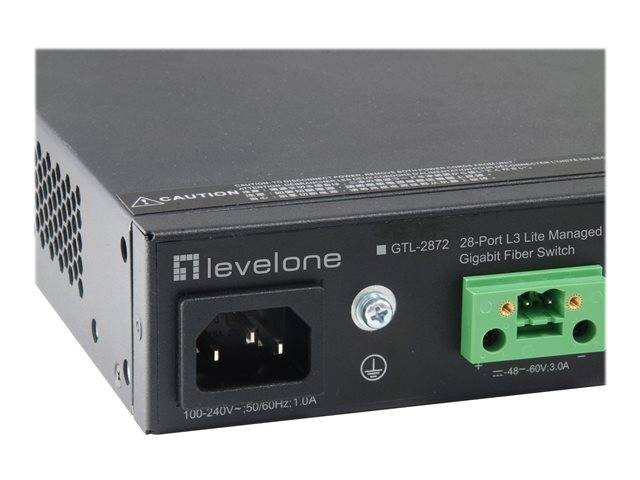

- Redundant power inputs with Terminal Block and AC Jack
Product Specification
| Device Type | Switch - 28 ports - L3 Lite - Managed |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 20 x Gigabit SFP + 4 x shared 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Performance | Backplane speed: 128 Gbps ¦ Packet forwarding rate: 95 Mbps ¦ Switching capacity: 128 Gbps |
| Capacity | VLANs supported: 4000 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLD |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, CLI, OAM |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, Link Aggregation Control Protocol (LACP), Port Security, Dynamic VLAN Support (GVRP), Loopback, IGMP proxy, 802.1x authentication, IGMP filtering, IGMP throttling, Protocol-based VLANs support, Back Pressure Support, VLAN Trunking Protocol (VTP), Digital Diagnostics Monitoring (DDM), IGMP querier, VLAN Double Tagging (Q-in-Q), Guest VLAN, Energy-Efficient Ethernet (EEE), MAC based VLAN, Layer 2 Control Protocol tunneling, port-based VLAN, IGMP immediate leave, ARP spoofing, VLAN trunking |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag, IEEE 802.3az, ITU-T Y.1731 |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Power, link/activity, diagnostic |
| Interfaces | 20 x 1000Base-X SFP ¦ 4 x Gigabit LAN RJ-45/SFP ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V / DC 48 - 60 V (50/60 Hz) |
| Power Consumption Operational | 21.48 Watt |
| Rack Mounting Kit | Included |
| MTBF | 298,951 hours |
| Compliant Standards | BSMI, FCC, UL 60950-1, CISPR |
| Width | 44 cm |
| Depth | 22 cm |
| Height | 4.4 cm |
| Weight | 3.32 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
Features - LevelOne - GTL-2872
General
8-Port
More Details
Product Code
04:254229
EAN Code
4015867203064
Manufacturer
LevelOne
