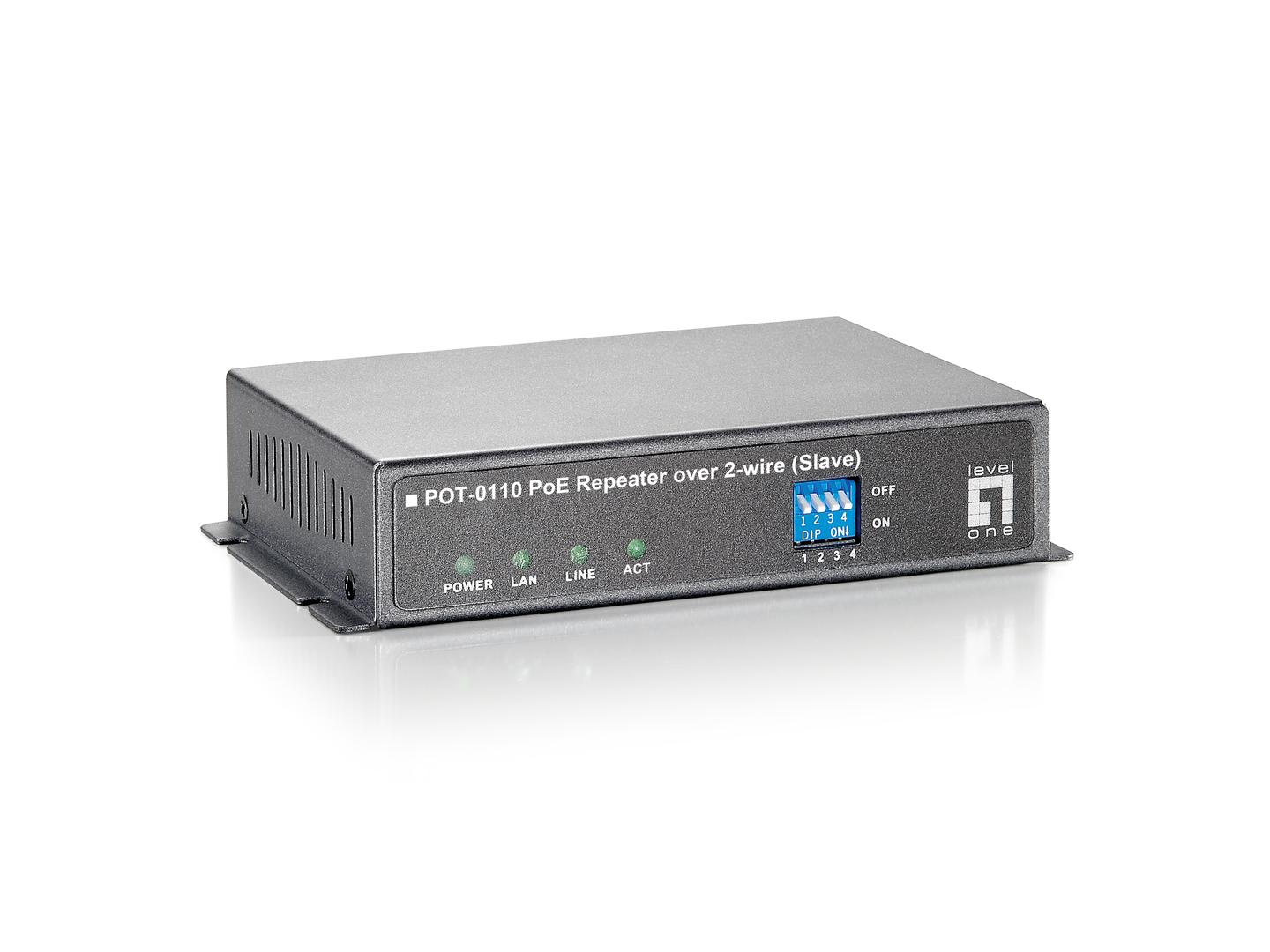

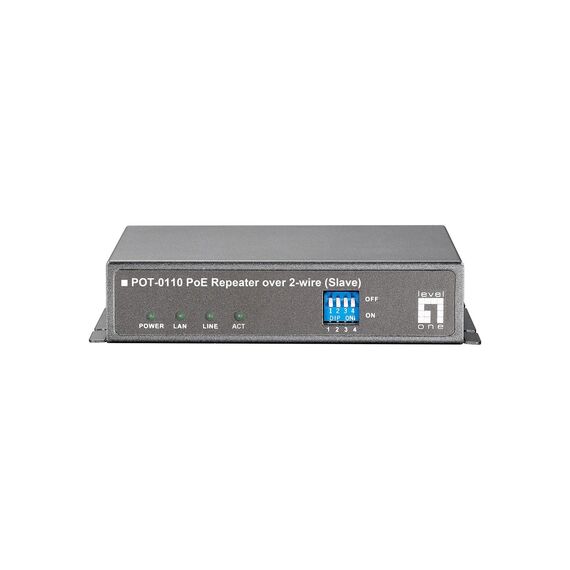

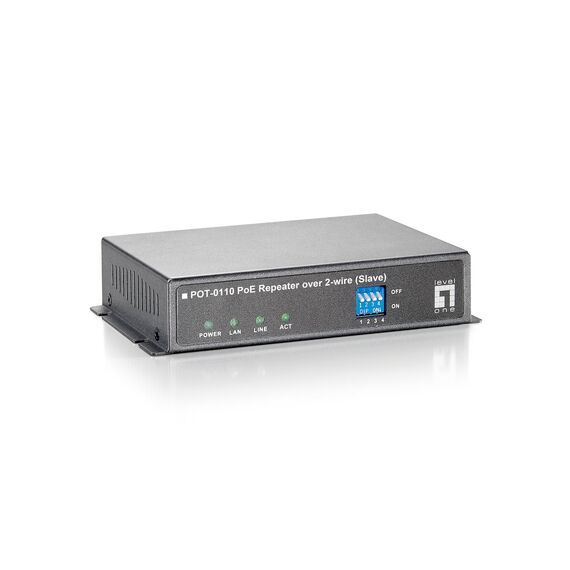

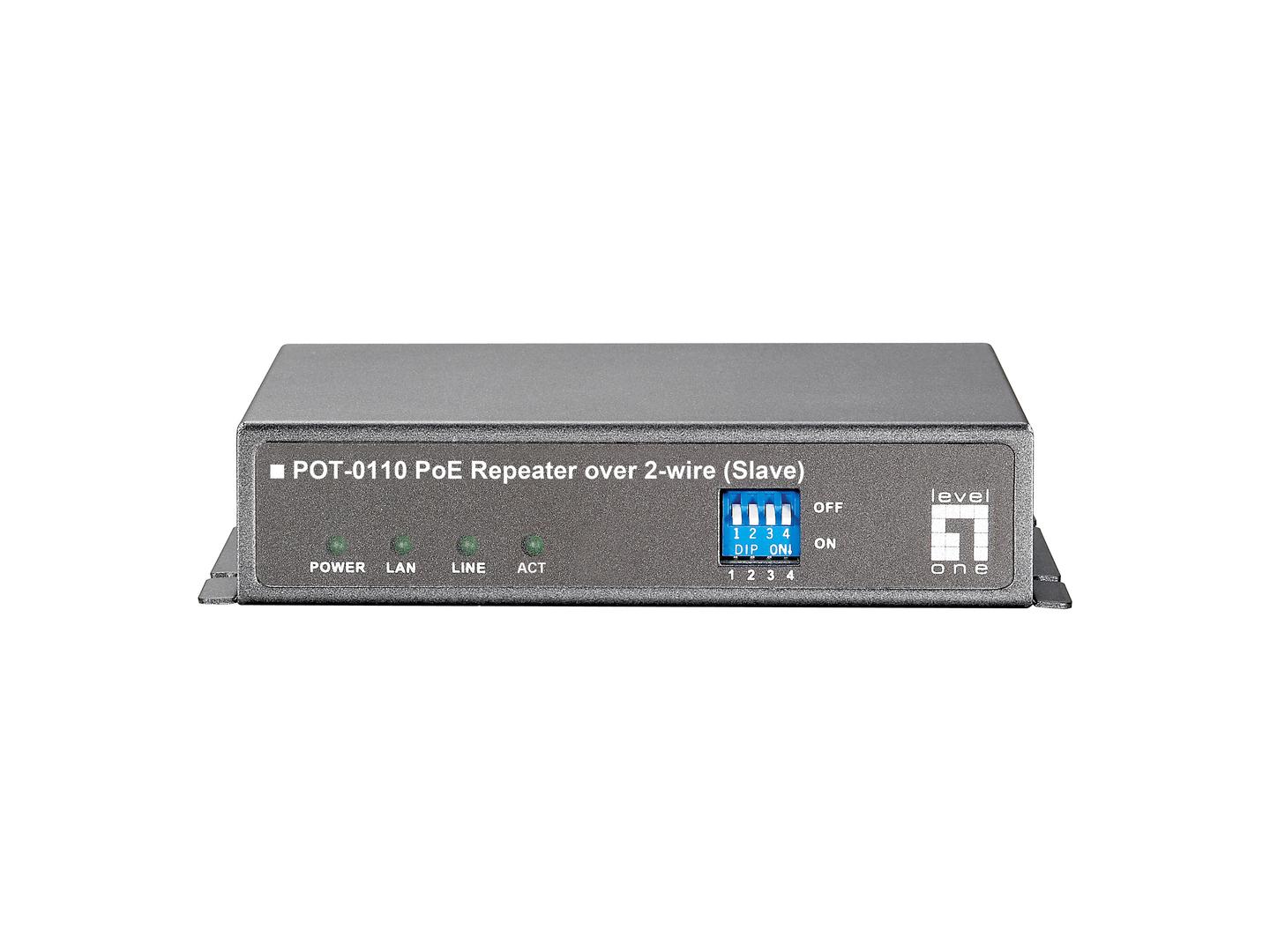

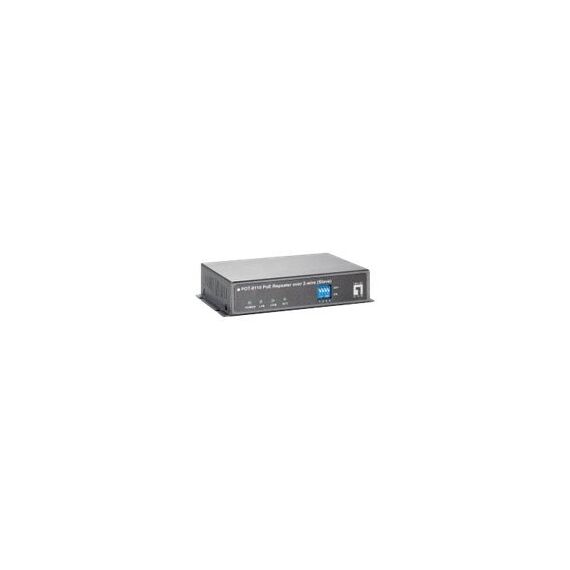

LevelOne POT-0110 PoE Repeater (Slave) - Repeater - 100Mb LAN - 10Base-T, 100Base-TX - up to 500 m | POT-0110
Please sign in so that we can notify you about a reply
Special Fetures

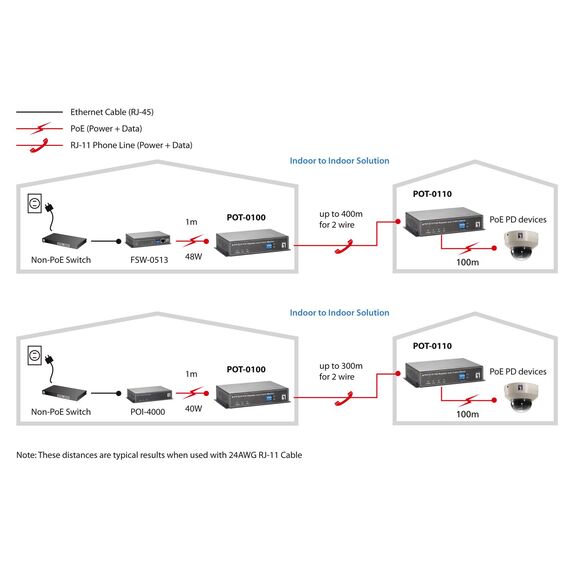

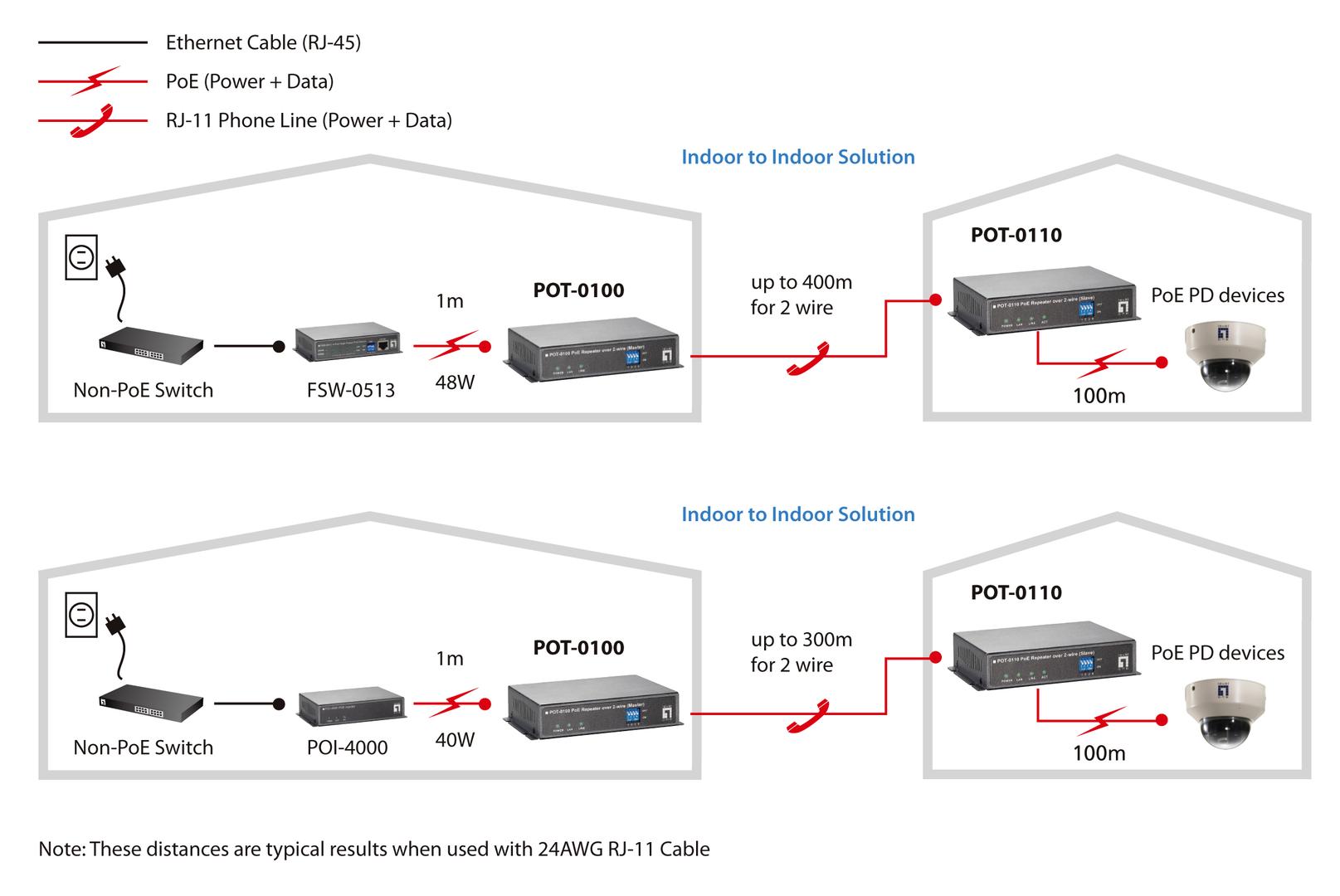

- Two-wire cables are used to connect 100Mbps Fast Ethernet PoE devices
- Remote PoE capability for PD devices of Wi-Fi AP, IP camera, IP telephones
- IEEE 802.3af PSE compliant for Class 0-3
- Dip switches for 2-wire line rate settings
- Auto MDIX for 10/100 Base-T Ethernet LAN ports
- Low-latency for video/voice/data applications
Product Specification
| Device Type | Repeater |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 60 Mbps |
| Max Transfer Distance | 500 m |
| Status Indicators | Power, link/activity |
| Features | Full duplex capability, auto-uplink (auto MDI/MDI-X) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af |
| Expansion / Connectivity | |

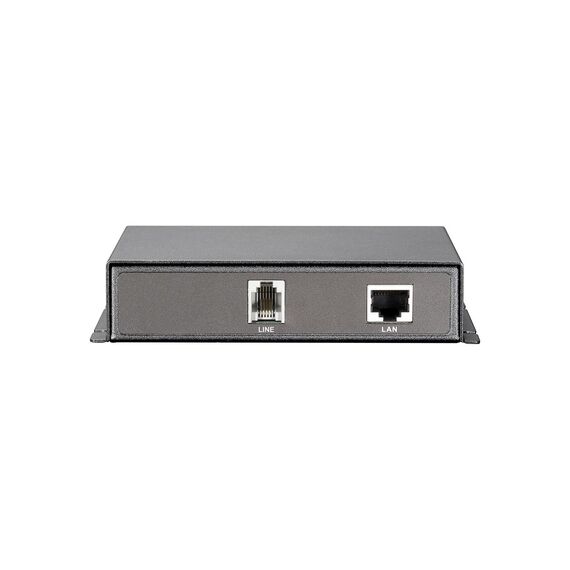

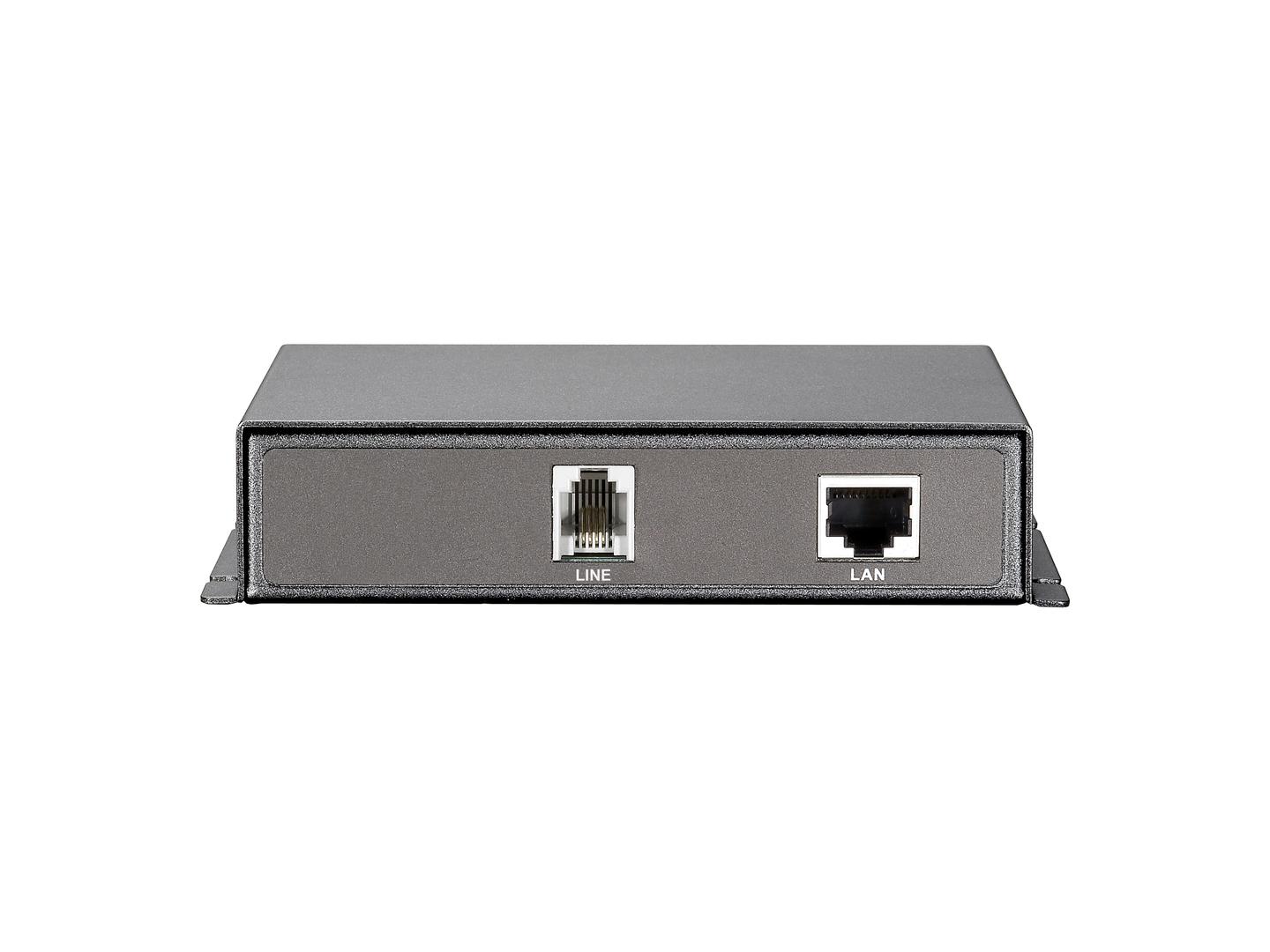

| Interfaces | 1 x Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 1 x network - RJ-11 |
| Miscellaneous | |
| Mounting Kit | Included |
| Compliant Standards | FCC Part 15 |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Dimensions & Weight | |
| Width | 12 cm |
| Depth | 9 cm |
| Height | 2.8 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% |
Features - LevelOne - POT-0110
More Details
Product Code
04:69895
EAN Code
4015867153598
Manufacturer
LevelOne
