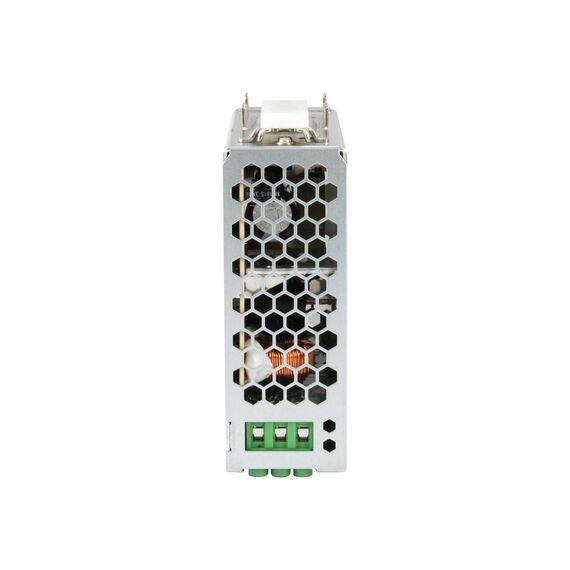

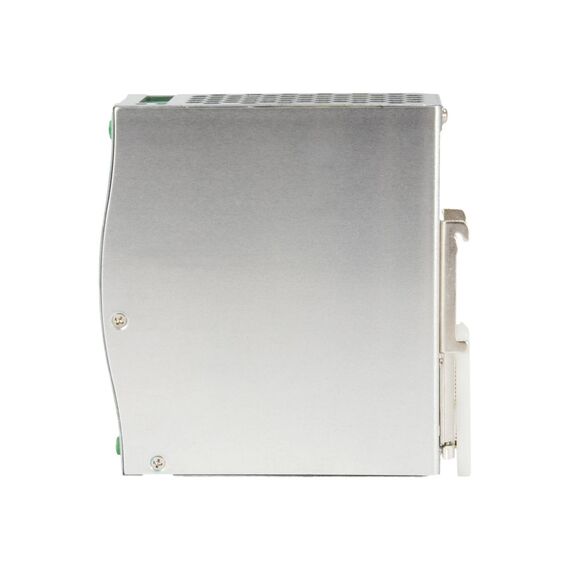

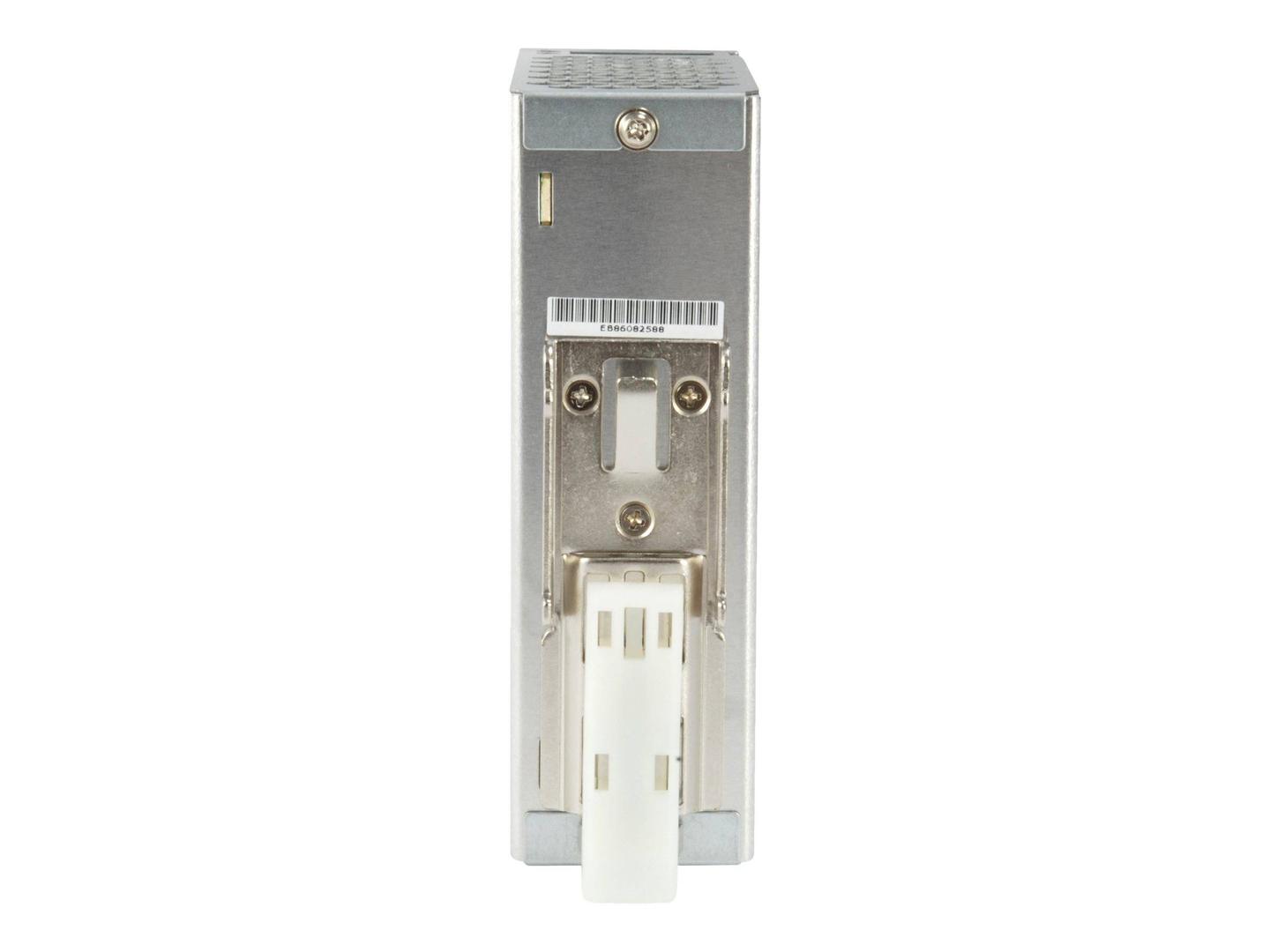

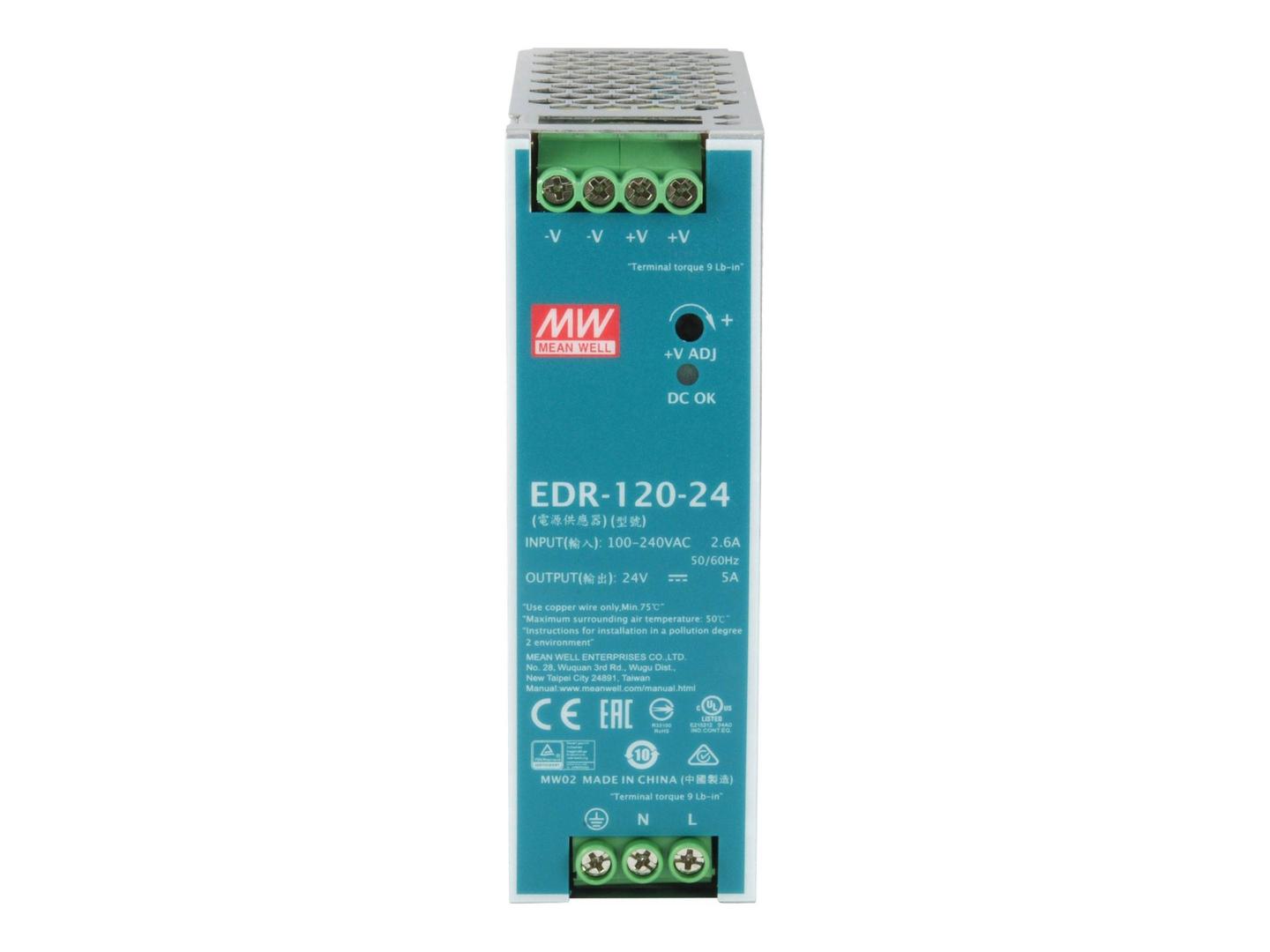

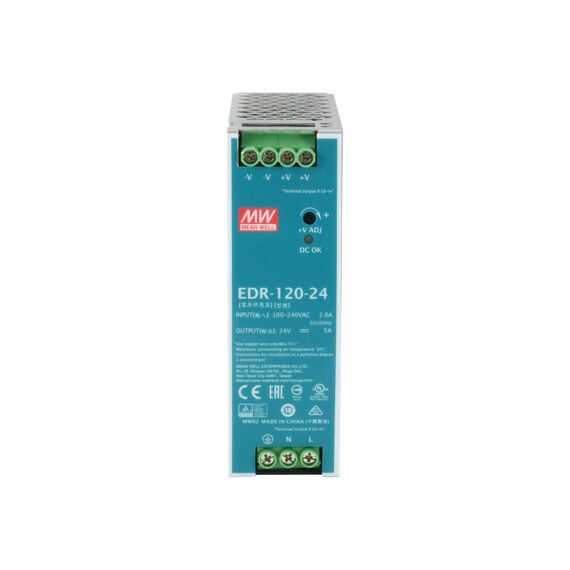

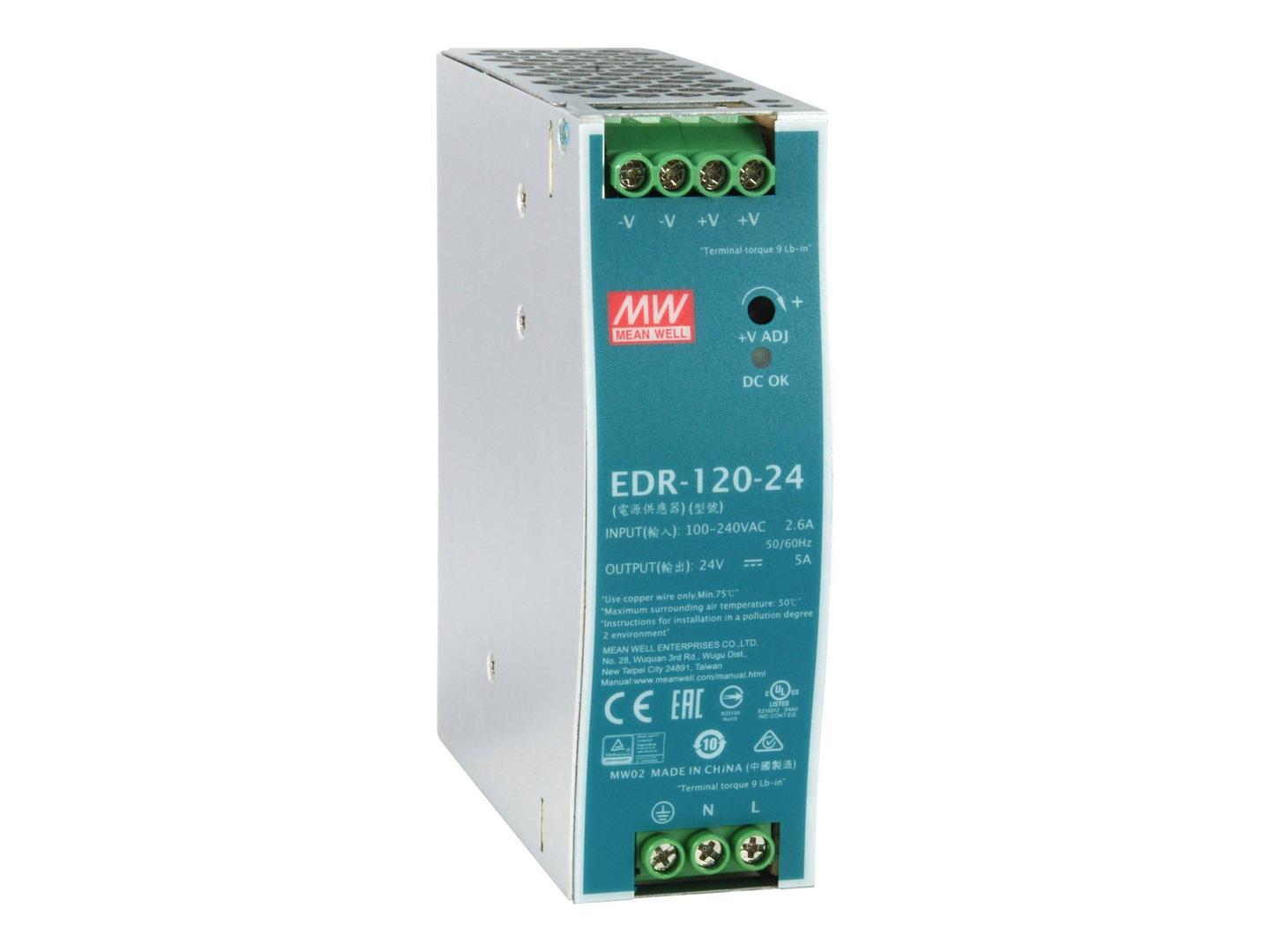

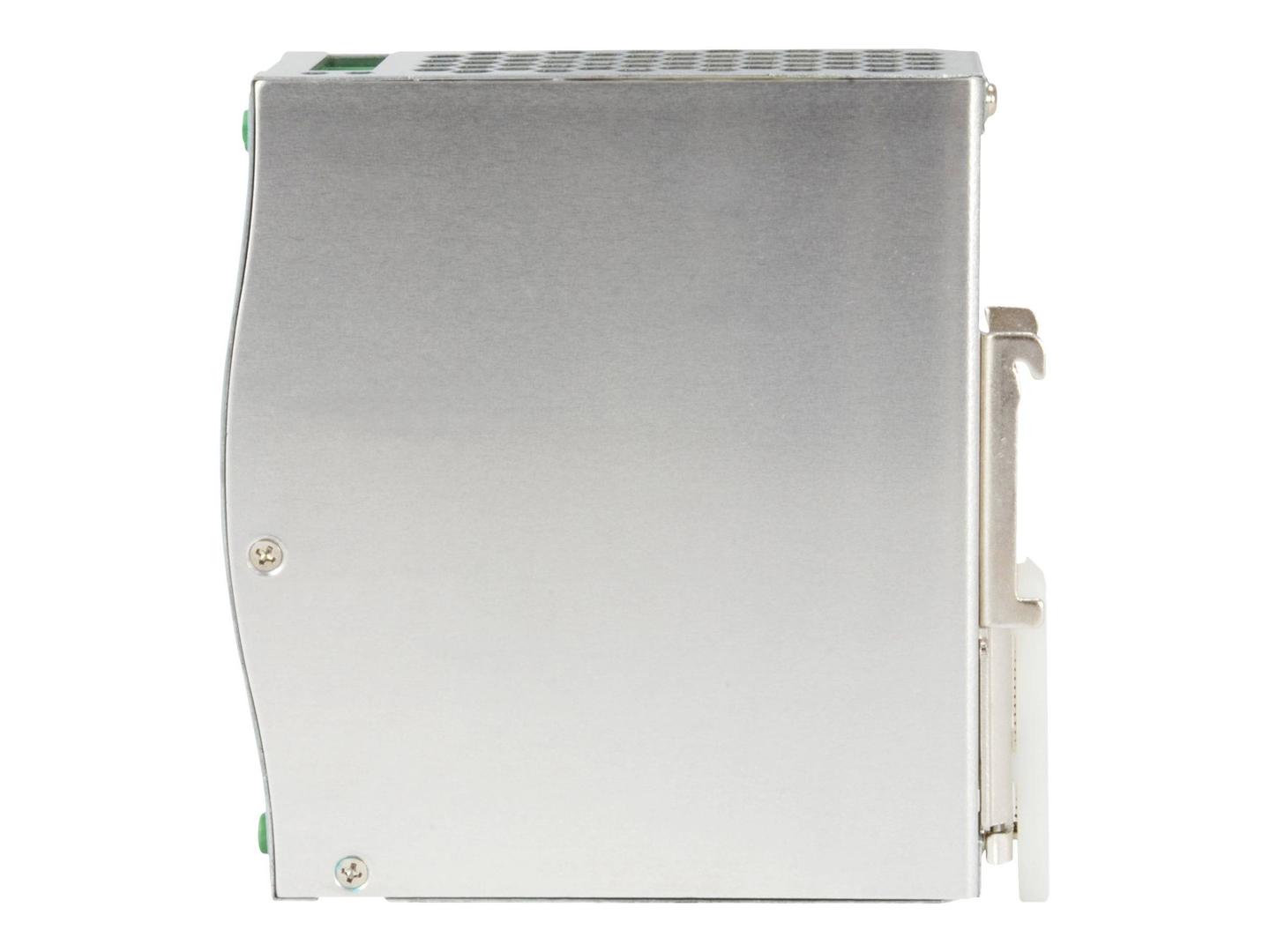

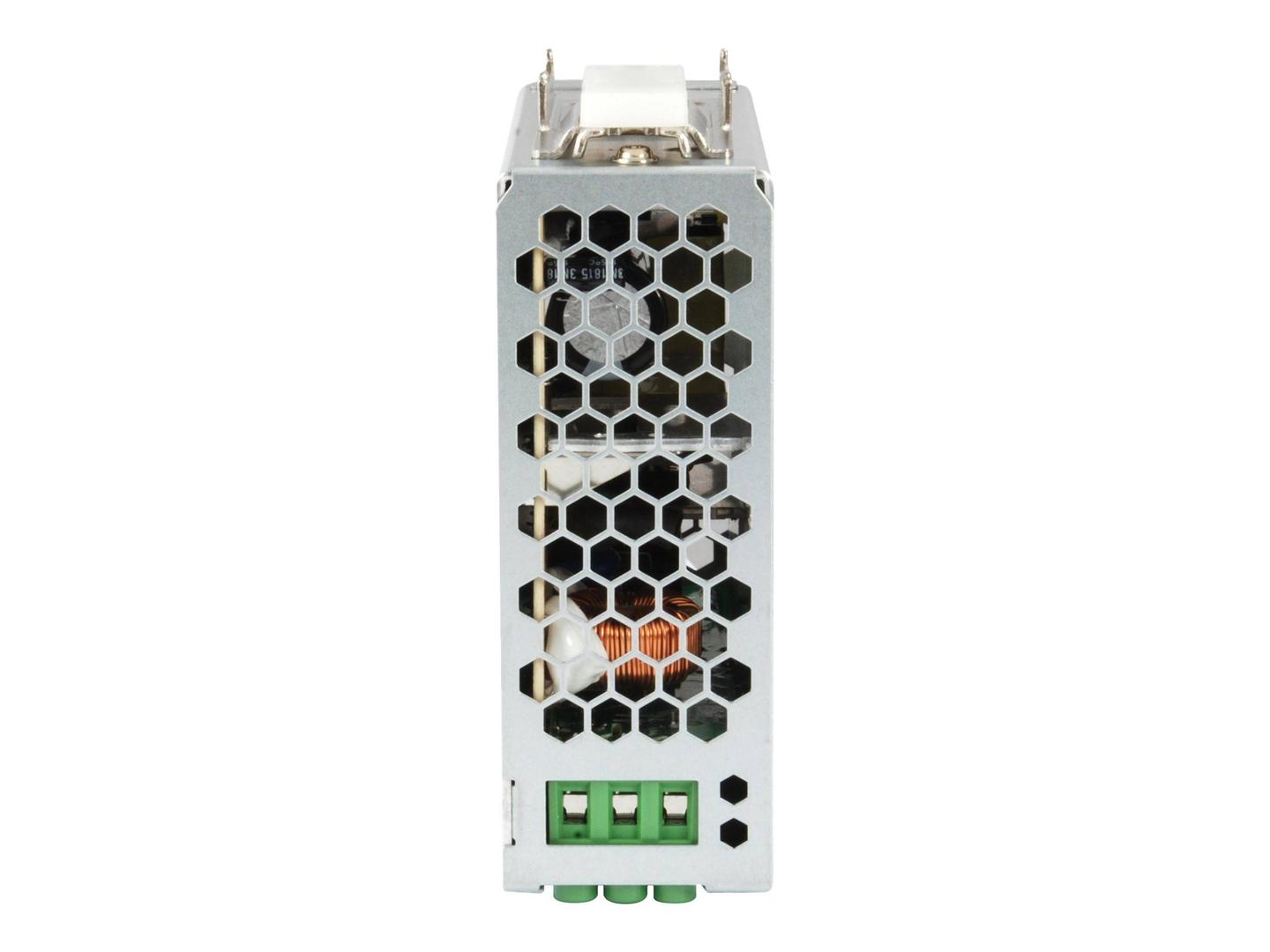

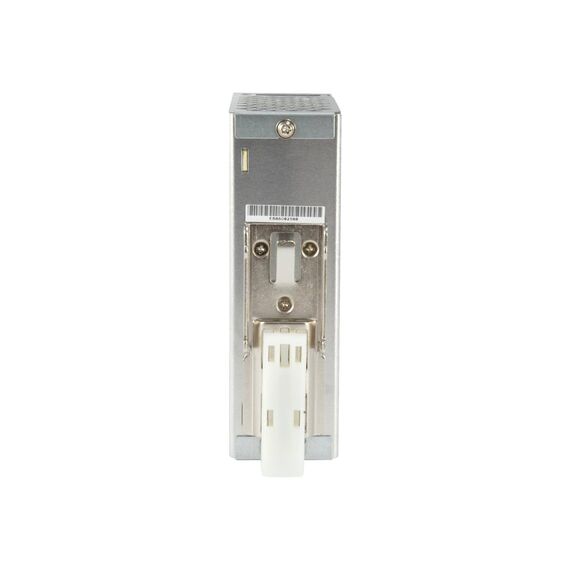

LevelOne POW-2441 / Power supply (DIN rail mountable) / AC 90 / 264 / DC 127 / 370 V / 120 Watt | POW-2441
Please sign in so that we can notify you about a reply
Special Features
- Universal AC input at full range
- Short circuit, overload / over voltage protection
- Fanless design
- Supports DIN-rail installation
- Isolation Class II
- 100% full load burn-in test
- UL 508 approval
Product Specification
| Device Type | Power supply - DIN rail mountable |
| Power Device | Power Device |
| Input Voltage | AC 90 - 264 / DC 127 - 370 V |
| Output Voltage | 24 V |
| Power Capacity | 120 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 474,600 hours |
| Features | Over voltage protection, overload protection, fanless, short-circuit protection |
| Compliant Standards | TUV, UL 60950-1, UL 508, EAC, BSMI CNS 14336-1, EN 60204-1 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 20 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 4 cm |
| Depth | 12.52 cm |
| Height | 11.35 cm |
| Weight | 600 g |
Features - LevelOne - POW-2441
More Details
Product Code
04:299619
EAN Code
4015867206478
Manufacturer
LevelOne
